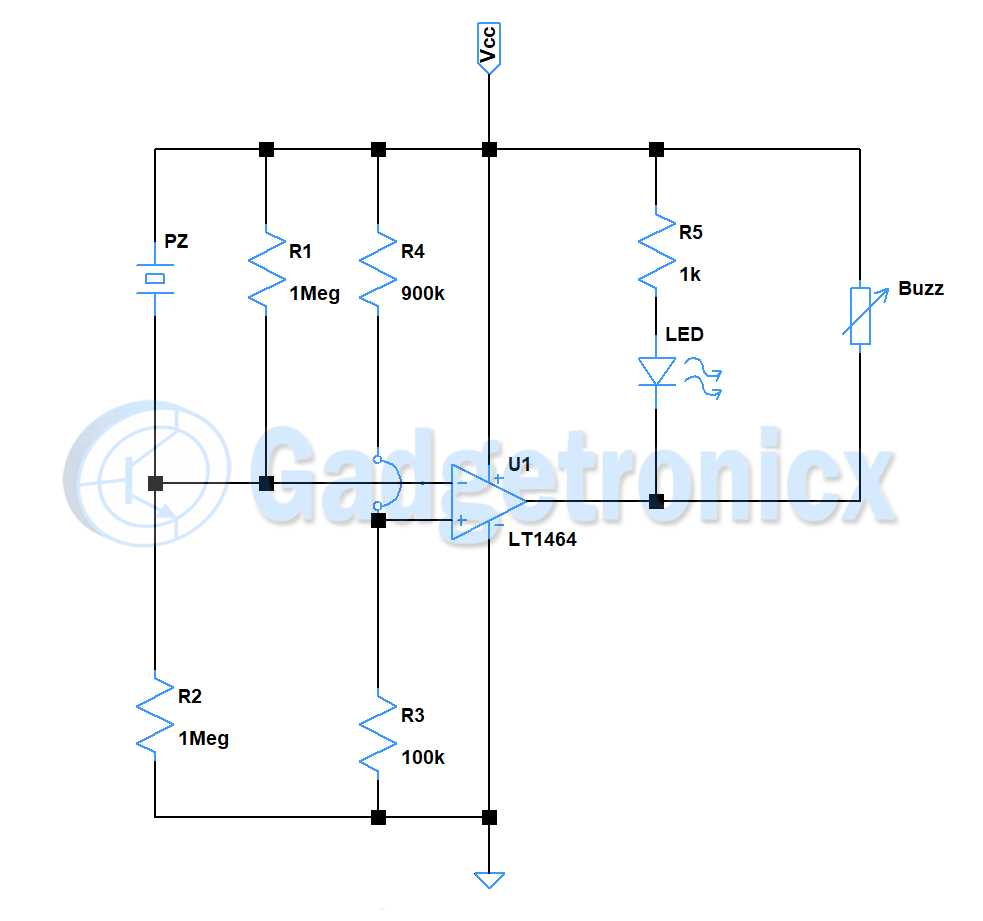

Step-by-Step Guide to Building a Pressure Sensor Circuit for Accurate Measurements

To measure applied stress accurately, integrate a Wheatstone bridge configuration into your design. Use four strain gauges–two active (mounted on the stressed surface) and two dummy (compensating for temperature drift). Connect them in a balanced network with a precision voltage source (5V DC) and a differential amplifier (OP07 or INA125) to boost weak signals (typically 2–20 mV per Volt excitation). Ground the reference point carefully to avoid noise interference; twisted-pair wiring reduces electromagnetic pick-up.

For robust signal processing, embed a low-pass RC filter (cutoff frequency ~100 Hz) before digitization. A 10-bit ADC (MCP3008) suffices for most applications, but higher resolution (12-bit ADS1115) improves sensitivity for subtle variations. Calibrate output against known weights–plot results and derive a polynomial fit (second-order) to correct nonlinearities. Store coefficients in firmware (ESP32 or Arduino) for real-time compensation.

Power stability is critical–use a low-dropout regulator (LM2937) with strict decoupling (10 µF + 0.1 µF capacitors near the chip). Shield sensitive traces with a grounded copper plane on the PCB; keep high-impedance nodes (under 1 mm) to prevent stray capacitance errors. Test under temperature swings (0–50°C) and verify cross-talk between adjacent channels if multiplexing.

For dynamic measurements, pair the setup with a sample-and-hold circuit (LF398) to capture transient peaks. Trigger data logging (SD card or serial) when the signal exceeds a software-defined threshold. Document raw voltage-to-force conversion (e.g., 3.5 mV/kPa) in the manual to simplify troubleshooting. Validate repeatability by cycling load 1,000 times–hysteresis should remain below 0.5% of full scale.

Designing a Robust Measurement System Layout

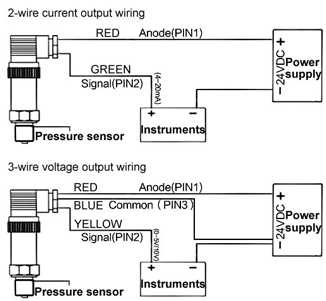

Select a precision transducer with a 4-20mA output for industrial applications requiring immunity to signal noise over long distances. Pair it with a 250Ω resistor to convert the current loop into a 0-5V signal, ensuring compatibility with most PLCs and microcontrollers without additional amplification. For environments with electromagnetic interference, use shielded twisted pair wiring, grounding the shield at a single point near the processing unit.

Incorporate a voltage divider for low-power designs, using resistors with 1% tolerance or better to maintain accuracy. A 10-bit ADC (analog-to-digital converter) provides sufficient resolution for most tasks, but opt for 12-bit or higher if detecting minute fluctuations–typical of medical or aerospace systems. Always include a 10μF decoupling capacitor across the power supply pins of the transducer to filter voltage spikes that could skew readings.

For redundancy, add a secondary transducer with independent wiring and a comparator circuit to flag discrepancies exceeding 2% of the primary reading. Use a low-dropout regulator (LDO) like the LM1117 to stabilize the supply voltage at 3.3V or 5V, depending on the chosen components. Calibrate the system using a deadweight tester or certified reference gauge, adjusting the zero and span trims on the signal conditioner to match the expected output range.

Limit bandwidth to 1kHz for most applications to avoid aliasing–filter high-frequency noise with a simple RC network (e.g., 1kΩ resistor and 100nF capacitor). For remote monitoring, integrate an RS-485 transceiver like the MAX485, which supports distances up to 1,200 meters. Document the layout’s response time by measuring the settling period after a step input, ensuring it aligns with the application’s time-critical requirements.

Critical Elements for Building a Reliable Measurement System

Select a piezoresistive transducer as the primary sensing element–models like the Honeywell SSC Series offer 0.25% accuracy across a 10–1000 kPa range, operating at 5V with a 4–20 mA output. Avoid capacitive variants for high-vibration environments; their response time (~5 ms) lags behind the

Amplification demands a low-noise operational amplifier, preferably an AD8605 (0.5 μV/°C drift) or INA333 for bridge configurations. Set gain at 100–500, depending on transducer output–typically 10–100 mV full-scale. Use a 0.1 μF polypropylene bypass capacitor across the op-amp’s supply pins to suppress 50/60 Hz noise, and a 10 kΩ trimpot for zero calibration. For digital conversion, pair with an AD7793 24-bit ADC; its 3-wire SPI interface simplifies integration, while the 16.7 mHz sample rate eliminates aliasing in dynamic scenarios.

Component	Recommended Model	Key Spec	Cost (USD)
Transducer	Honeywell SSCDRRN200PGAA5	0.25% FS accuracy, 1–10 bar	45
Op-Amp	Analog Devices AD8605	1 pA input bias, 1 MHz GBW	2.80
ADC	AD7793	24-bit, 3-wire SPI	12.50
Voltage Regulator	LT3045	0.8 μVRMS noise, 500 mA	5.20

Power stability dictates performance: use an LT3045 low-dropout regulator (0.8 μV_RMS output noise) with a 10 μF input capacitor and 2.2 μF output ceramic. Avoid linear regulators like the LM7805–its 50 μV_RMS noise introduces drift in readings. For battery-powered systems, pair with a buck-boost converter (e.g., TPS63020) to maintain 5V from 3.6V Li-ion cells; ensure the converter’s switching frequency exceeds 2 MHz to avoid interference with the ADC’s sampling rate.

Shielding is non-negotiable for sub-1 mV resolution. Enclose the entire assembly in a 0.5 mm thick mu-metal box (relative permeability: 40,000) grounded at a single point to the system’s analog ground. Separate analog and digital grounds with a ferrite bead (Murata BLM18PG121SN1L), and route traces at least 2 mm apart to prevent crosstalk. For connectors, opt for gold-plated Molex Micro-Fit 3.0 (current rating: 5A) or TE Connectivity’s AMPMODU for

Temperature compensation requires a 2N2222 transistor as a diode (forward voltage drop: 0.65V at 25°C) or a dedicated PT1000 RTD. Place the diode adjacent to the transducer’s sensing element, ensuring 2C interface simplifies integration with the ADC.

Signal conditioning begins with a 1 kHz low-pass filter (2nd-order Sallen-Key topology, 1% tolerance resistors) to eliminate RF interference. Follow with a unity-gain buffer (OPA2188) to drive 10 m cable lengths without signal degradation. For differential measurements, use a instrumentation amplifier (INA125) with a CMRR >100 dB; trim offset voltage to

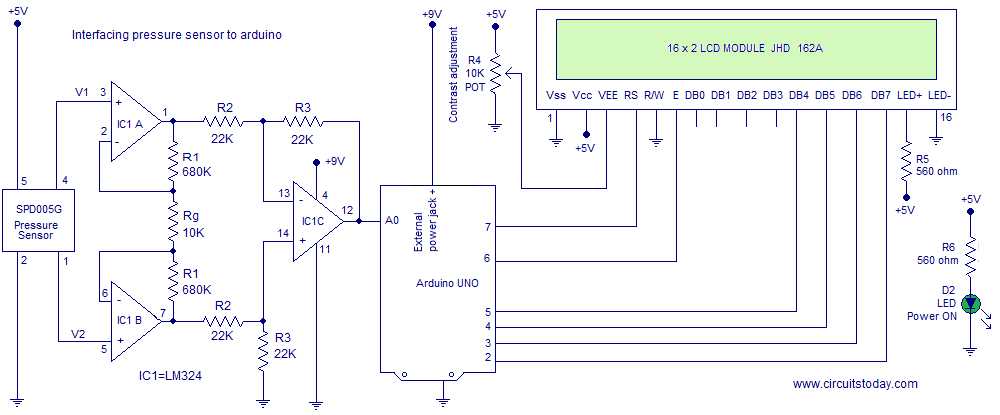

Connecting a Transducer to an Arduino: A Practical Guide

Begin by identifying the output type of your measuring device. Most analog variants provide a 0–5V signal, while resistive models require a voltage divider. For a standard analog model (e.g., MPX5010), connect the positive terminal to Arduino’s 5V pin, the negative to GND, and the signal wire to any analog input (A0–A5). Ensure stable power by avoiding breadboard connections for high-current setups–solder joints or a dedicated PCB are preferable.

Calibrate readings using known reference points. Upload a basic sketch to read raw values (0–1023 for 10-bit ADC), then apply the map() function to convert them to meaningful units. For example, if atmospheric baseline reads 490 at 1013 hPa, store this offset to adjust live data. Avoid relying solely on datasheet ranges–ambient conditions, wiring resistance, and microcontroller tolerance introduce discrepancies that require empirical correction.

For noise-sensitive applications, add a 0.1µF ceramic capacitor between the signal pin and ground. If the device is distant (>30 cm), use shielded cable and twist signal wires with ground to minimize EMI. Avoid placing control lines near inductive loads (motors, relays) to prevent false spikes. When powering multiple modules, separate analog and digital supplies–Arduino’s onboard regulator drops efficiency under 100 mA, causing reference voltage instability.

Handling Digital Interfaces

If your device outputs I²C or SPI, connect SCK, MISO, MOSI, and CS pins to corresponding Arduino ports (e.g., SDA → A4, SCL → A5 for I²C). Use libraries like Wire.h for I²C or SPI.h for serial interfaces, but verify timing–some transducers impose strict clock speeds (e.g., 100 kHz max for I²C). Pull-up resistors (typically 4.7 kΩ) are mandatory for I²C; omit them only if built into the device.

For frequency-based outputs (e.g., Honeywell’s HSC series), measure pulse width using pulseIn() or an interrupt-driven approach. Configure the pin as INPUT_PULLUP if the device lacks an internal pull-down, but test with an oscilloscope first–some models toggle high/low instead of open-drain. Store raw counts in a buffer before averaging to reduce jitter; 100 samples at 10 ms intervals typically yield stable results.

Never expose the control board to voltages outside its operating range. For 3.3V Arduino models (e.g., Due, Zero), use a level shifter for 5V devices–direct connection risks permanent damage. Isolate power grounds from signal grounds if the system shares a common return path with high-current actuators to avoid ground loops. Test continuity on all connections with a multimeter before powering up to prevent short circuits.

Signal Conditioning: Amplification and Filtering Techniques

Select an operational amplifier (op-amp) with a gain-bandwidth product at least 10x the highest frequency component of your input. For instance, the OPA350 (Texas Instruments) offers 38 MHz GBW, suitable for signals up to 3.8 MHz when configured with a gain of 10. Ensure the op-amp’s input impedance exceeds the source impedance by a factor of 100 to minimize loading effects–use a non-inverting configuration with Rf = 9kΩ and Rg = 1kΩ for unity-gain stability.

Implement a two-pole Sallen-Key filter for cutoff frequencies below 1 kHz to balance complexity and roll-off steepness. For a 100 Hz cutoff:

• Resistors: R1 = R2 = 15.9 kΩ (1% tolerance)
• Capacitors: C1 = C2 = 100 nF (X7R dielectric)
• Op-amp: TL072 (low noise, JFET input)

Avoid ceramic capacitors below 10 nF in filter designs–parasitic effects degrade performance. For frequencies above 10 kHz, switch to an active elliptic filter with >40 dB stopband attenuation to reject harmonics.

Use precision resistors (Rg = 10 kΩ for a gain of 10, achieving 50 nV/√Hz noise density. Bypass power rails with 0.1 µF (X7R) and 10 µF (tantalum) capacitors placed within 2 mm of the op-amp pins to suppress high-frequency noise.

For high-impedance sources, buffer the signal with a unity-gain follower (e.g., AD8641) before amplification. This prevents loading-induced errors. If the signal contains DC offsets, AC-couple it using a 10 µF capacitor with a 1 MΩ resistor to ground, ensuring a cutoff frequency of 0.016 Hz to preserve low-frequency components.

Logarithmic amplifiers (e.g., LOG114) excel for wide dynamic range inputs. Configure with R1 = 1 kΩ and R2 = 100 kΩ to handle 1 mV to 1 V inputs. Always shield analog traces with a ground plane, keeping them at least 3x the trace width away from digital lines to prevent crosstalk. Validate filter performance with a network analyzer–phase shift at the cutoff frequency should not exceed 90° for stable feedback systems.
