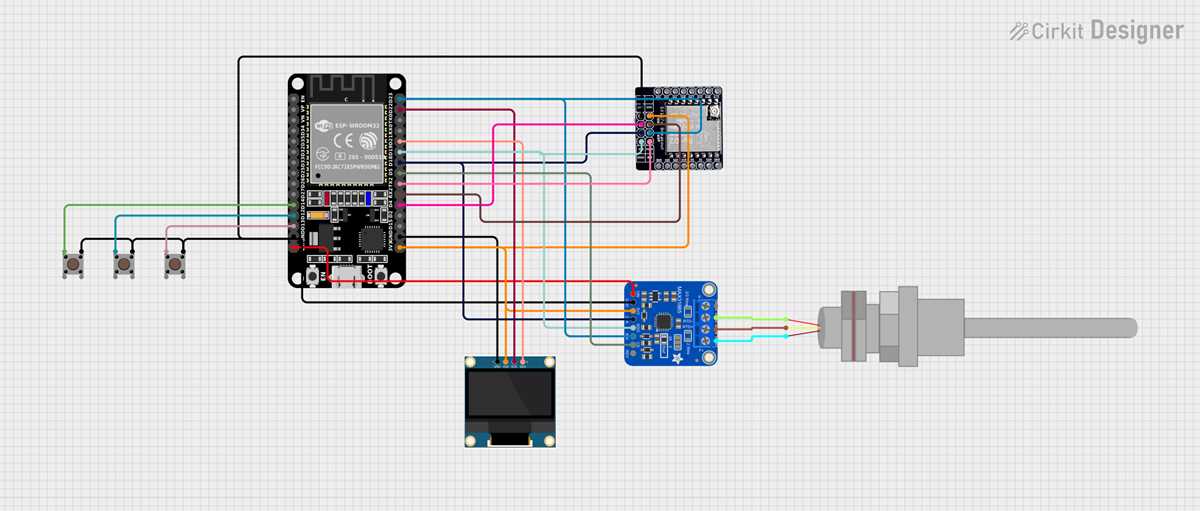

Complete Pt100 Sensor Wiring Guide with Detailed Circuit Schematics

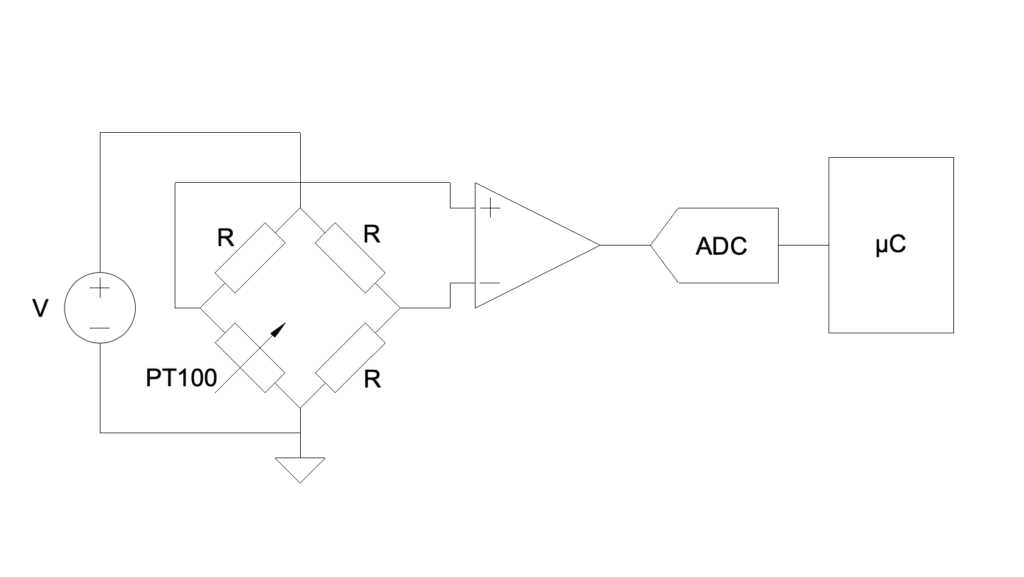

Begin with a Wheatstone bridge configuration for accurate temperature readings using a platinum resistance sensor. A balanced bridge with 1 kΩ resistors (1% tolerance) on three arms and the platinum element on the fourth arm minimizes errors from lead resistance. Ensure the excitation current does not exceed 1 mA to prevent self-heating–0.5 mA is optimal for most industrial applications. Use shielded twisted-pair wiring for the sensor leads to reduce electromagnetic interference, particularly in environments with variable-frequency drives or high-power machinery.
The inclusion of a 4-wire measurement setup eliminates lead resistance errors entirely. Connect the current source to two outer leads and measure voltage across the inner pair. For 3-wire configurations, the lead resistances must match within 0.1 Ω to maintain accuracy. A precision instrumentation amplifier (e.g., AD8421) with a gain of 100 rejects common-mode noise while amplifying the bridge output to a usable signal range (e.g., 0–10 V). Bypass capacitors (0.1 µF) should be placed close to the amplifier’s power pins to filter high-frequency noise.
For linearization, implement a software lookup table or polynomial correction. A third-order polynomial (R = R₀(1 + At + Bt² + Ct³)) compensates for nonlinearity, where R₀ = 100 Ω at 0°C, and coefficients are:
A = 3.9083 × 10⁻³,
B = –5.775 × 10⁻⁷,
C = –4.183 × 10⁻¹² (for t
For hardware-based linearization, a voltage divider with a matched resistor (e.g., 100 Ω precision thin-film) in parallel with the sensor simplifies the output but reduces sensitivity by ~5%.
Circuit protection is critical. Use a transient voltage suppressor (TVS) diode (e.g., P6KE6.8CA) across the sensor terminals to clamp voltage spikes from inductive loads. A series resistor (47 Ω) limits fault current to 20 mA if the sensor shorts to a 12 V supply. Ground the shield at a single point–typically the measurement system’s analog ground–to avoid ground loops. Test the setup with a calibrated resistance decade box (simulating –50°C to 200°C) to verify linearity and error margins before deployment.
Platinum Resistance Thermometer: Field Assembly Guide
Select a 4-wire configuration for any installation where the lead length exceeds 3 meters. Copper conductors of 0.5 mm² cross-section reduce voltage drop errors to below 0.05 °C per 100 meters. Twist pairs tightly–minimum 5 turns per decimeter–to cancel magnetic interference from adjacent AC lines. Terminate each wire directly onto the sensor’s gold-plated pin without splices; solder joints introduce micro-ohm resistances that drift with oxidation.
Connect the excitation source via precision resistors matched to 0.01 % tolerance. A stable 1 mA current yields a clean signal swing of 10 mV per degree Celsius across the 138.5 Ω element. Shield the entire loop with copper tape grounded at a single point–sacrificial zinc anode near the sensor prevents galvanic corrosion. Verify insulation resistance between each conductor and shield at 500 VDC; readings must remain above 500 MΩ or moisture ingress is present.
Signal Conditioning Steps
Use an instrumentation amplifier with input offset voltage below 5 μV. Configure a gain of 247 to scale the 138.5 Ω signal to 2.5 V output at 0 °C. Place a 1 nF polyester film capacitor between amplifier inputs to filter high-frequency noise; cutoff frequency will be 16 kHz, preserving step-response time under 5 ms. Calibrate by substituting a 100 Ω 0.1 % metal-film resistor for zero-point adjustment and a 157.33 Ω resistor for span adjustment–this removes lead-wire errors in the 4-wire loop.
Route conditioned output through a coaxial cable with 75 Ω impedance; avoid RG-59 if cable length exceeds 15 meters–distributed capacitance degrades pulse rise times. Terminate the receiving end with a 75 Ω resistor to prevent reflections. Power the amplifier from a linear regulator outputting 5.00 V ±2 mV; switching supplies inject sidebands visible on a 10 MHz oscilloscope. Log measurements with a 16-bit ADC sampling at 10 Hz to resolve 0.02 °C steps.
Mount the sensor in a drilled aluminum block bored to 6.2 mm diameter, ensuring 360° metal-to-metal contact; silicone thermal paste fills microscopic gaps. Torque the securing screw to 1.2 N·m–excess torque distorts the sheath and shifts calibration. After installation, heat the block to 100 °C and measure output stability for 30 minutes; drift must settle below 0.01 °C to validate thermal coupling.
Selecting Components for a Resistance Temperature Detector Setup
Start with a precision resistor for the reference leg–values between 100 Ω and 1 kΩ minimize noise while maintaining sensitivity. Metal-film types with 0.1 % tolerance and a temperature coefficient below 10 ppm/°C (e.g., Vishay Z201 series) prevent drift across operational ranges from -200 °C to 850 °C. Always match the lead material (usually copper) to reduce thermoelectric errors.
The amplifier stage demands an instrumentation op-amp with low offset voltage (<25 μV), high input impedance (>1 GΩ), and common-mode rejection ratio above 110 dB–Analog Devices AD8421 or Texas Instruments INA826 are optimal choices. Include a guarding trace on PCB layouts to isolate input pins from stray currents and EMI-induced fluctuations.
Signal conditioning requires filtering to eliminate 50/60 Hz interference. A second-order analog filter with cutoff at 10 Hz eliminates noise without sacrificing response time. For digital systems, add a 16-bit ADC (e.g., ADS1115) with integrated PGA allowing gains up to 128×. Sampling rates should target 10–50 Hz to balance resolution and computational load.
Configuration options dictate excitation current levels. Use constant current sources for 3-wire or 4-wire systems–values between 0.25 mA and 1 mA prevent self-heating errors (<0.1 °C for typical sensors). Linear Technology LT3092 or ON Semiconductor NSM3201 provide stable outputs with less than 10 μA drift over temperature. Avoid switching sources to prevent capacitive coupling.
Below are excitation current thresholds for common sensor constructions:
| Sensor Class | Max Excitation (mA) | Typical Error (°C) |
|---|---|---|
| Thin-film | 0.5 | <0.05 |
| Wire-wound | 1.0 | <0.02 |
| Ceramic | 0.25 | <0.1 |
PCB material affects thermal stability–FR-4 substrates introduce thermal gradients compared to Rogers 4350B with consistent dielectric properties. Keep trace widths at least 0.3 mm for current paths and use star grounding to prevent ground loops. Verify solder paste reflow profiles to avoid stress-induced resistance shifts in surface-mount components.
Calibration resistors should mirror sensor resistance values at critical points–e.g., 100 Ω at 0 °C and 138.5 Ω at 100 °C–using ultra-precision devices (e.g., Susumu RG series). Include testing points for 3-wire compensation and isolate them with Schmitt triggers to eliminate contact bounce during firmware validation. Shielded cables with braided coverage (e.g., Belden 9501) reduce EMI pickup in industrial environments.

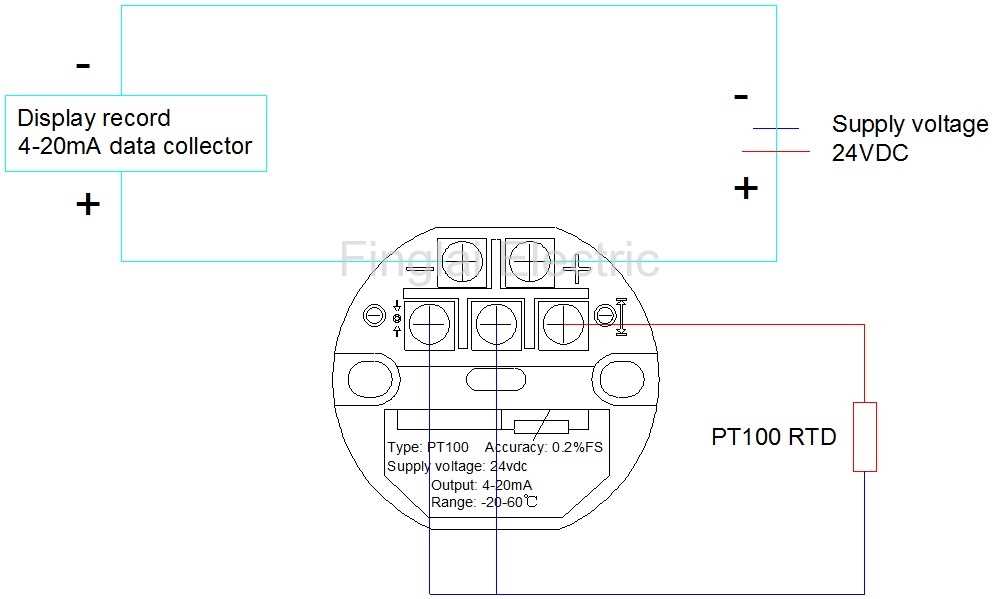

Wiring a 2-Wire Resistance Temperature Detector with Lead Compensation
Use a precision resistor (e.g., 100 Ω ±0.1%) in series with the sensing element to isolate lead resistance errors. Place this reference resistor near the measurement instrument, not at the sensor, to minimize temperature drift from wiring. Short the sensor leads temporarily and measure the offset–subtract this value from all subsequent readings to cancel lead resistance effects up to ~1.5 Ω per conductor.
For applications where ±0.5°C accuracy suffices, omit external compensation by calibrating the transmitter with known resistances mimicking sensor plus lead values. Factory-set scaling in 4–20 mA transmitters accounts for ~2 Ω total lead resistance; verify this assumption by measuring actual wiring resistance at operating temperature using a Kelvin bridge before finalizing configuration.
Practical Adjustment Methods
When direct lead resistance measurement isn’t feasible, inject a test current (1 mA) through the sensor and measure voltage drop across both conductors. Calculate resistance using Ohm’s law; subtract half this value from the sensor reading. For 18 AWG copper wire (0.021 Ω/m), a 5 m run adds ~0.21 Ω total–reduce this error by selecting transmitters with built-in lead compensation or using thicker 14 AWG wire (0.008 Ω/m).
Shielded twisted pair cable reduces electromagnetic interference but increases capacitance–limit cable length to 30 m for 2-wire setups to avoid signal degradation beyond 2% error margin. Use constant current excitation (≤1 mA) to prevent self-heating exceeding 0.1°C; for platinum elements, this corresponds to a power dissipation limit of 0.25 mW at 0°C. Verify stability by immersing the sensor in ice slurry (0°C) and boiling water (100°C), checking for consistent readings within ±0.3°C after thermal equilibrium.
Configure the signal conditioner to ignore lead resistance by setting the zero point 2 Ω above the nominal sensor resistance (e.g., 102 Ω for a 0°C baseline). Cross-check with a decade resistance box; simulate sensor plus lead values (e.g., 110 Ω for 50°C) and confirm linear output. For critical applications, replace the 2-wire setup with a 3-wire variant–this requires only one additional conductor but cuts lead resistance errors by 90% without recalibration.
Avoid grounding the sensor housing unless specified by the transmitter; floating measurements reduce noise pickup by 3 dB. If grounding is mandatory, use a single-point ground at the instrument and isolate the sensor with a non-conductive sleeve. For high-vibration environments, use spot welding instead of crimping to prevent micro-fractures in the sensing wire–replace the entire assembly if readings drift beyond 0.2% of span after thermal cycling tests.
