Understanding Pulse Code Modulation Circuit Layout and Design Principles

Start with an analog-to-digital converter (ADC) rated for at least 16-bit resolution to ensure minimal quantization noise. Pair it with a high-speed operational amplifier–such as the LMH6629–to buffer the input signal before sampling. Use a 40 MHz or higher clock generator to drive the ADC, preventing aliasing in real-time applications. Ground all unused pins of the ADC to reduce electromagnetic interference.

For data encoding, integrate an FPGA (Xilinx Artix-7 or Intel Cyclone V) to handle serialization. Configure it to output a non-return-to-zero (NRZ) or bipolar return-to-zero (BRZ) format, depending on the transmission medium. If optical transmission is required, add a laser diode driver (MAX3798) and a photodiode receiver (SFH213) with a transimpedance amplifier (OPA847) for signal recovery.

Power stability is critical. Use a low-dropout regulator (LDO) like the TPS7A4700 for analog sections and a switching regulator (TPS54331) for digital components. Decouple each IC with 0.1 µF and 10 µF capacitors placed as close to the power pins as possible. Avoid long trace runs between the ADC and FPGA–keep them under 5 cm to prevent signal degradation.

To verify performance, implement a direct memory access (DMA) controller in the FPGA to log samples to a SDRAM (IS42S16400F) or external flash. Use a logic analyzer (Saleae) to confirm timing accuracy. If bit errors occur, test with a known reference signal (e.g., 1 kHz sine wave at -1 dBFS) and adjust the FPGA’s clock phase.

Designing a Time-Encoded Signal Transmission System

Begin with a sampling stage using a dual-comparator setup to capture analog input at 44.1 kHz for audio-grade fidelity or 8 kHz for voice applications. Ensure the comparators feed into a 16-bit shift register–avoid low-bit designs as they introduce quantization noise above -96 dBFS, degrading dynamic range. For compact implementations, pair a ADS1115 (24-bit ADC) with a CD4051 analog multiplexer to handle multiple channels without sacrificing resolution. Ground the multiplexer’s unused inputs to prevent crosstalk, and decouple the ADC’s reference voltage with a 10 μF tantalum capacitor to stabilize readings.

Coding and Reconstruction Stages

Convert sampled values into a serial bitstream using a parallel-in serial-out shift register (e.g., 74HC595) clocked at 2.8224 MHz for 44.1 kHz/16-bit audio or 128 kHz for telephony. Append a 1-bit parity check to each 8-bit word to detect transmission errors; omit this only if using error-correction ICs like XR2211. For reconstruction, feed the serial stream into a serial-in parallel-out register (74HC164) and smooth the output with a SSM2131 active filter (cutoff at 20 kHz for audio) to remove high-frequency aliases. Bypass the filter’s power rails with 0.1 μF ceramics to suppress clock feedthrough.

Label every IC pin with its function (e.g., “CLK IN,” “SERIAL OUT”) using silkscreen on the PCB–even minor miswiring (e.g., swapping data and clock lines) causes irreversible bit errors. For cables, use shielded twisted pairs with characteristic impedance of 110 Ω; terminating resistors (120 Ω) at both ends prevent reflections on runs exceeding 1 meter. Test the setup with a 1 kHz sine wave at -6 dBFS: the recovered signal should match the input within ±0.1 dB and exhibit less than 0.05% total harmonic distortion.

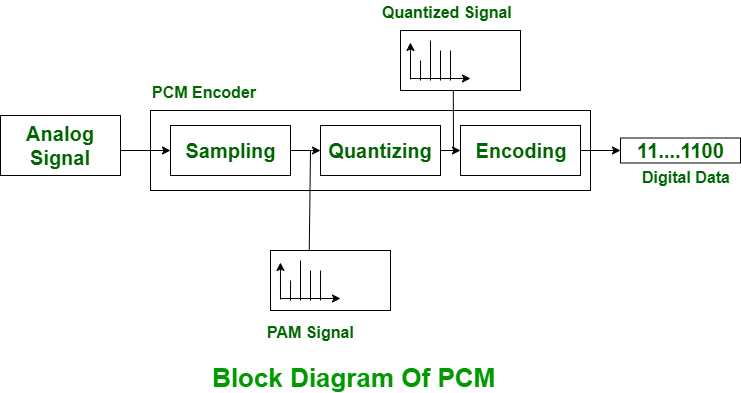

Core Elements of a PCM Signal Encoder

A well-designed encoder begins with a low-noise preamplifier, typically using an operational amplifier like the OPA2134 or NE5532. These ICs provide a signal-to-noise ratio above 90 dB while maintaining a slew rate of at least 10 V/μs. Input impedance should match the source–47 kΩ for microphone-level signals, 10 kΩ for line-level. Use a low-pass anti-aliasing filter immediately after amplification; a 4th-order Butterworth with a cutoff at 20 kHz (for 44.1 kHz sampling) prevents spectral overlap. Component tolerance matters: 1% for resistors, 5% for capacitors to ensure consistent roll-off characteristics.

Sampling & Holding Architecture

Precision timing is determined by a quartz oscillator (e.g., 11.2896 MHz for 44.1 kHz) divided down via a counter such as the CD4060. The hold capacitor must be polypropylene or polystyrene to minimize dielectric absorption–values between 1 nF and 10 nF depend on sampling rate, with lesser capacitance improving acquisition time but increasing droop. A JFET analog switch like the CD4066 provides sub-nanosecond switching while maintaining channel isolation above 60 dB.

Component	Recommended Model	Key Specification	Critical Tolerance
Op-Amp	OPA2134	130 dB THD+N	±0.00008%
Anti-Alias Filter	MAX297 (8th order)	100 dB stop-band attenuation	±0.2 dB pass-band ripple
Oscillator	DS1085 (2 MHz–133 MHz)	±20 ppm stability	±0.002% jitter

Encoding demands an 8-bit flash ADC for real-time conversion–AD7821 reaches 1 μs conversion time at 3 MHz clocking. Supply decoupling is non-negotiable: place 0.1 μF ceramics within 2 mm of VDD pins, backed by 10 μF tantalums at the power entry. Avoid ground loops by using a star topology with a single-point ground near the ADC. Output drivers must handle 75 Ω impedance; the MAX4410 delivers 30 mA drive current with 0.5 ns rise/fall times, ensuring minimal intersymbol interference.

Sampling and Holding Process in Digital Signal Encoding

Implement a dedicated track-and-hold amplifier with a settling time under 10 ns to capture transient signals accurately. Use a low-leakage capacitor–preferably NP0 or C0G dielectric–to minimize droop rates below 1 mV/ms. Configure the input buffer with a JFET or BiCMOS front end to reduce acquisition skew when switching between channels, ensuring phase coherence across multi-channel systems.

Clock Synchronization for Precise Intervals

Derive the sampling clock from a stable crystal oscillator, preferably operating at a multiple of the Nyquist rate to simplify decimation. Employ a PLL with a loop bandwidth below 1 kHz to reject jitter while maintaining lock over temperature variations. Synchronize the hold command edge with the rising edge of the ADC clock to eliminate metastability, reducing conversion errors typically below 0.5 LSB.

Select a sampling frequency 2.5× the highest signal component to satisfy practical anti-aliasing needs; for voice-grade bandwidth (4 kHz), 10 kSa/s suffices. In wideband scenarios, boost the rate to 50 kSa/s to preserve spectral integrity of edges and transients, trading off storage for fidelity. Use a programmable timer or dedicated sequencer core to generate uniform intervals, avoiding CPU-dependent drift.

Isolate the analog ground plane from digital return paths with a ferrite bead or inductor to prevent switching noise from coupling into the holding capacitor. Route critical traces–sample clock, hold command, and signal input–on inner PCB layers with controlled impedance to shield them from EMI. Terminate transmission lines with series resistors (20–50 Ω) to dampen reflections, especially when trace lengths exceed 2 cm.

Validate performance with an oscilloscope probing directly at the hold capacitor node, confirming absence of glitches during acquisition and hold transitions. Measure aperture jitter with a histogram function; a Gaussian distribution tighter than 50 ps RMS ensures consistent quantization for high-resolution converters. For applications requiring sustained accuracy, integrate a calibration cycle every 1000 samples using a known reference voltage to compensate for thermal drift.

Quantization Levels and Binary Representation Mapping

Select quantization steps based on signal amplitude range and required resolution. For 8-bit encoding, divide the input span into 256 discrete intervals. Each step should represent approximately 0.39% of the total dynamic scope. For example, a ±1V analog waveform requires each level to span 7.8125mV. Adjust step height inversely proportional to anticipated noise floor–increase bit depth if noise exceeds half the step size.

• 3-bit configuration: 8 levels, coarse granularity, suited only for control signals below 10kHz.
• 12-bit configuration: 4096 levels, ±0.0244% precision, minimizes audible distortion in audio applications.
• 16-bit configuration: 65,536 levels, ideal for instrumentation where ±0.0015% accuracy offsets thermal drift.

Assign binary patterns following signed magnitude for bipolar signals. The most significant bit indicates polarity–‘0’ for positive, ‘1’ for negative. Remaining bits encode absolute amplitude in two’s complement format to simplify arithmetic logic. For unipolar signals spanning 0V to Vref, use straight binary where all bits directly correspond to fractional magnitude. Avoid formats with offset binary unless interfacing with legacy hardware, as it introduces unnecessary decoding complexity.

Minimize nonlinear distortion by ensuring uniform level spacing. Non-uniform quantization–such as μ-law companding–should only be applied when dynamic range exceeds available bit depth and computational resources. Calculate compression characteristics based on expected probability distribution. For speech signals with heavy-tailed Gaussian distribution, allocate more levels near zero and taper logarithmically toward extremities. Verify linearity by injecting sine waves across frequencies; THD should remain below -90dB for 16-bit implementations.

Optimize storage efficiency by omitting leading zeros during transmission. Serial protocols can transmit packed nibbles, reducing bandwidth while maintaining alignment with clock edges. For parallel buses, distribute bits across multiple lanes to match throughput: 8 lanes for 64-bit samples, 4 lanes for 32-bit. Include overflow detection–set highest bit when input exceeds nominal range, preventing silent truncation. Test immunity by applying 110% of reference voltage; output should saturate cleanly without glitching adjacent channels.
