How to Design a Push Button Circuit Diagram Step-by-Step Guide

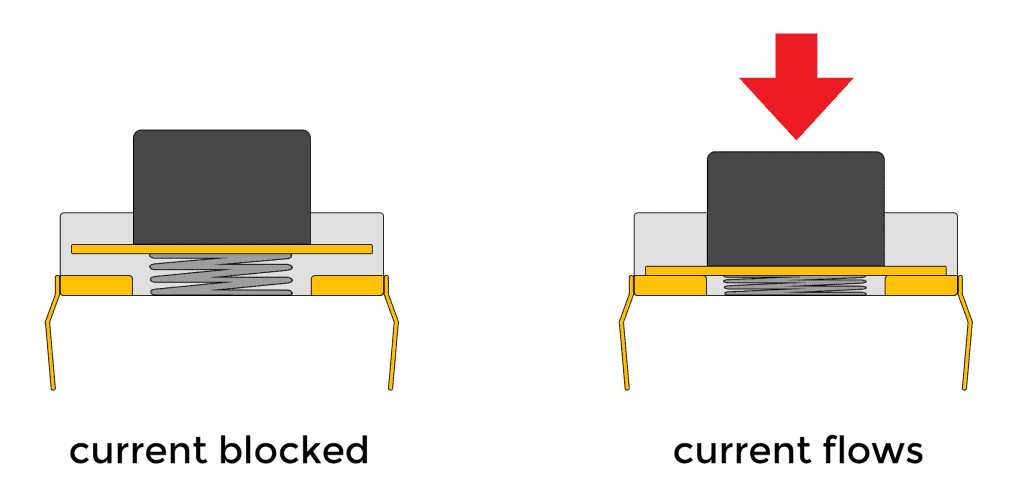

Start with a single-pole, single-throw (SPST) switch for basic control. Connect the common terminal to the positive supply rail and route the normally open contact to the load–this ensures current only flows when activated. For 5V applications, limit resistance to under 100Ω to prevent voltage drop, while 12V or 24V systems can tolerate values up to 1kΩ without signal degradation.
Add a flyback diode (1N4007) across inductive loads like relays or solenoids to clamp back-EMF spikes. Position it cathode-to-positive; failure risks damaging switch contacts or downstream components. For capacitive loads, include a series resistor (220Ω–1kΩ) to limit inrush current and prolong contact life.
Debouncing methods: Hardware solutions outperform software in high-noise environments. A 0.1µF capacitor across the switch terminals smooths transient bounce (typical delay: 1–5ms), while an RC network (4.7kΩ + 10µF) extends this to 50ms for critical applications. For precision timing, pair a Schmitt trigger (74HC14) with the capacitor to eliminate erratic edge transitions.
Low-power designs (
Label schematic nodes clearly–use reference designators (e.g., SW1, R2) and net names (e.g., VCC, LOAD_CTRL) to minimize debugging time. Copper pours under high-current traces reduce resistance; maintain 0.5mm clearance for 500mA paths, scaling to 2mm for >2A. Test prototype layouts with a thermal camera–hotspots above 60°C indicate undersized traces or inadequate heat dissipation.
Designing Reliable Momentary Switch Schematics
Use a pull-up resistor (10kΩ) between the input pin and VCC to prevent floating states. Connect the control element directly to ground to ensure clean transitions–avoid relying on internal microcontroller pull-ups for high-noise environments. Debounce with a 0.1µF capacitor across the switch contacts or implement a 20ms delay in firmware to eliminate false triggers. For 3.3V systems, reduce the resistor to 4.7kΩ to maintain sufficient current (IIL ≥ 20µA).
Isolate high-current loads from the signal path with an optocoupler (e.g., PC817) or a low-side MOSFET (2N7000 for ≤200mA). Gate the MOSFET with the switch output, pairing it with a 10kΩ resistor to ground to prevent accidental activation during power-up. For inductive loads (motors, relays), add a flyback diode (1N4007) in reverse bias across the coil terminals–failure to do so risks damaging the driving transistor within microseconds.
Test the layout with an oscilloscope: probe the input pin and observe rise/fall times (tr, tf ≤ 1µs). If ringing exceeds 10% of VCC, introduce a series resistor (100Ω) at the switch node or a ferrite bead (600Ω@100MHz). Avoid routing traces near switching regulators or transformer secondaries–keep a 5mm clearance to minimize EMI coupling.
Key Elements for Constructing a Manual Switch Control System
Begin with a momentary tactile switch rated for at least 50 mA at 12 VDC–avoid membrane types if mechanical durability is critical.
Select resistors based on supply voltage and load requirements: a 1 kΩ current-limiting resistor protects generic LEDs while maintaining 3–5 mA brightness; for low-power microcontrollers, use 10 kΩ pull-up/pull-down to prevent floating inputs without excessive current draw. The table outlines resistor values for common scenarios:
| Supply Voltage (V) | Load Type | Recommended Resistance (Ω) | Maximum Current (mA) |
|---|---|---|---|
| 3.3 | LED indicator | 470 | 4.2 |
| 5 | Microcontroller input | 10,000 | 0.5 |
| 12 | Relay coil | 1,000 | 12 |
Include a flyback diode (1N4007) directly across inductive loads like relays or solenoids–position it cathode-to-positive to clamp voltage spikes exceeding 1 kV.
For debouncing, a 0.1 µF ceramic capacitor connected across the switch contacts eliminates contact bounce artifacts lasting under 10 ms; verify with an oscilloscope if precision timing is required. Combine with a Schmitt trigger IC (74HC14) for clean logic-level transitions in noisy environments.
Power sources must match load demands: coin-cell batteries suffice for low-power indicators, while bench supplies (adjustable 0–30 V) are mandatory for prototyping motor-driven actuators or high-current relays (>100 mA). Fuses (250 mA slow-blow) add critical protection against short circuits in wiring.
Wiring gauge varies by current: 22 AWG handles 3 A intermittently, while 18 AWG is optimal for sustained 5 A loads. Strand count matters–seven strands improve flexibility for panel-mounted controls requiring frequent repositioning. Always solder connections; crimp terminals introduce resistance (>0.1 Ω) that skews low-voltage signals.
Enclosure materials dictate assembly: polycarbonate withstands 1,000 N impact force ideal for industrial panels, whereas ABS degrades under UV exposure for outdoor applications. Mount components using M3 standoffs for modular servicing; avoid direct adhesive attachment to prevent thermal expansion misalignment.

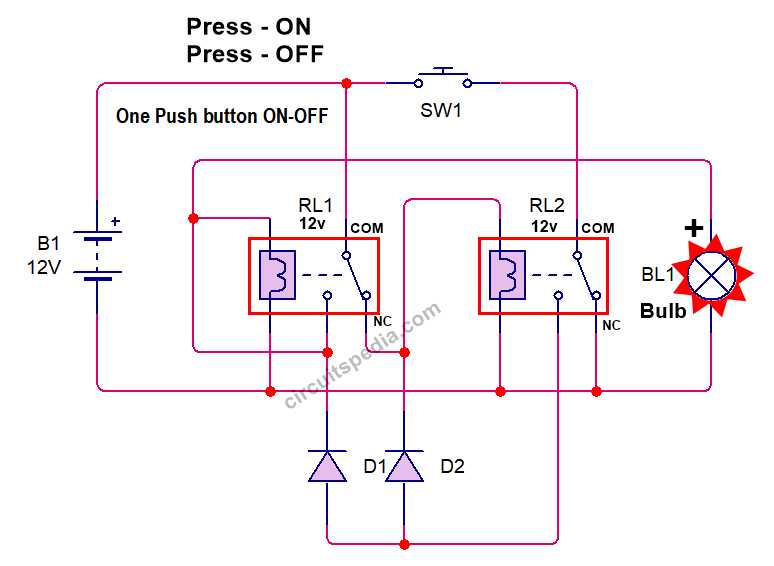

Step-by-Step Wiring Guide for a Latching Switch Mechanism
Connect the control element’s common terminal to the positive terminal of a 12V DC power source using 18AWG stranded copper wire with red insulation. Strip 6mm of the wire ends, crimp with ring terminals, and secure them using M4 screws on both the power supply and the switch’s input. Verify polarity with a multimeter set to DC voltage mode–readings should show 12V±0.5V. If deviations exceed 1V, check the power supply’s voltage regulator or replace the wiring.
Assembly Sequence for Reliable Operation
- Mount the latching actuator on a non-conductive panel (e.g., polycarbonate or phenolic) using M3 nylon standoffs to prevent short circuits. Ensure the actuator’s bushing clears the panel’s thickness by at least 2mm to avoid mechanical binding.
- Route the secondary wire (black, 18AWG) from the actuator’s NO (normally open) terminal to the load’s positive input–e.g., a 5W LED module or 0.5A relay coil. Use heat-shrink tubing over splices to insulate connections exposed to vibration.
- Link the load’s negative terminal to the power source’s ground via a 1A fuse in series, placed within 10cm of the battery to mitigate short-circuit risks. For inductive loads (relays, motors), add a flyback diode (1N4007) across the load’s terminals, cathode to positive.
- Test the setup by toggling the actuator while monitoring current draw. A stable latching state should draw <50mA (holding) and <300mA (initial engagement). If the actuator fails to latch, check for loose wiring or a faulty spring mechanism–replace if resistance exceeds 0.5Ω.
- Wire Gauge: Use 16AWG for currents >3A to prevent voltage drop.
- Terminal Blocks: Secure connections with ferrule crimps if wire strands are frayed.
- Environmental Protection: Apply dielectric grease to outdoor setups to prevent corrosion.
- Load Limits: Never exceed 80% of the actuator’s rated 10A current capacity.
Troubleshooting Common Issues in Control Switch Assemblies
Check for intermittent contact by gently tapping the switch housing while monitoring output signals. If the signal flickers, corroded or misaligned internal contacts are likely causing resistance. Clean contacts with 99% isopropyl alcohol and a cotton swab, ensuring all debris is removed. For severe oxidation, lightly abrade with 1000-grit sandpaper–never use steel wool as fibers may remain embedded.
Verify actuator alignment using a multimeter in continuity mode. Press the mechanism fully and release while observing resistance–consistent 0 ohms at full depression rules out mechanical binding. If resistance fluctuates, disassemble the assembly and inspect the plunger for deformation or foreign objects. Lubricate moving parts with silicone-based grease sparingly to prevent dust accumulation.
Voltage Drop Investigations
Measure voltage directly at the input terminals during activation. A drop exceeding 0.5V suggests undersized wiring or loose connections–replace with 18 AWG or thicker conductors. For low-voltage systems (e.g., 5V), ensure traces on printed circuit boards have a minimum width of 0.5mm to handle current loads without excessive loss. Cold solder joints often mimic wiring issues; reheat joints with a temperature-controlled iron set to 350°C until flux flows freely.
Test for parasitic loads by disconnecting all peripheral components. If the switch functions normally, a downstream device is drawing excessive current. Use an oscilloscope to detect voltage spikes during deactivation–spikes exceeding 20% of supply voltage indicate missing flyback diodes or improper snubber circuits. For inductive loads, install a 1N4007 diode in reverse bias across the load to clamp transient voltages.
Environmental Interference
Examine the enclosure for moisture ingress if erratic behavior occurs in humid conditions. Apply conformal coating (e.g., MG Chemicals 419D) to exposed conductors and seal gaps with silicone adhesive. For outdoor installations, use switches rated IP67 or higher and add a desiccant packet inside the housing to absorb residual moisture. Dust can bridge contacts–clean assemblies monthly with compressed air at 30 PSI.
Shield sensitive traces from electromagnetic interference by routing them at least 3mm away from high-current paths. Use twisted pair wiring for signals longer than 15cm and ferrite beads (e.g., Murata BLM18PG121SN1) on input lines to suppress RF noise. If interference persists, enclose the entire assembly in a grounded Faraday cage using copper mesh with openings smaller than 1/4 the wavelength of suspected noise frequencies.
