Step-by-Step Guide to Designing High-Performance Race Car Electrical Systems

Start by isolating critical circuits into separate fuses–engine control, fuel pumps, ignition, and cooling fans–each rated 10-20% above peak amperage. Use 4-6 AWG wiring for main power feeds to the battery and alternator, with heat-resistant silicone insulation (392°F/200°C rating) for all runs near exhaust manifolds, turbos, or braking systems. Solder every connection with 60/40 rosin-core solder and reinforce with adhesive-lined heat-shrink tubing to prevent vibration-induced failures.

Ground all components to a single dedicated bus bar, bolted directly to the chassis with star washers and anti-seize compound on all threads. Avoid daisy-chaining grounds–each device should terminate at the bus bar with its own 8-10 AWG cable. For ECU and sensor circuits, deploy shielded twisted-pair cables (24-20 AWG) with foil or braided shielding grounded only at one end to minimize EMI from high-current loops or ignition noise.

Label every fuse, relay, and connector with heat-stamped polyimide tags (not vinyl) and document resistance checks of every circuit before final assembly. Use sealed Deutsch or AMP SupraSeal connectors for exposed sections, ensuring inline fuses (10-15A) protect all accessory circuits like data loggers, telemetry, and back-up cameras. Avoid standard automotive relays–opt for high-temperature variants with epoxy-sealed contacts rated for 80A continuous at 125°C.

Route all high-current cables through split-loom tubing, securing every 8-12 inches with nylon zip ties or aluminum-backed adhesive mounts. Keep low-voltage signal wires perpendicular to power cables to prevent induced voltage spikes. For vehicles exceeding 500 horsepower, consider dual-battery setups with an isolator to prevent voltage drops during cranking or accessory loads.

Test every circuit under load before final installation–use a 12V bench supply with a 5A current limiter to verify amp draws match specifications. For hybrid or electric applications, segregate 48V and 12V systems with galvanic isolation, using DC-DC converters with redundancy for critical safety circuits like fire suppression and steering assist.

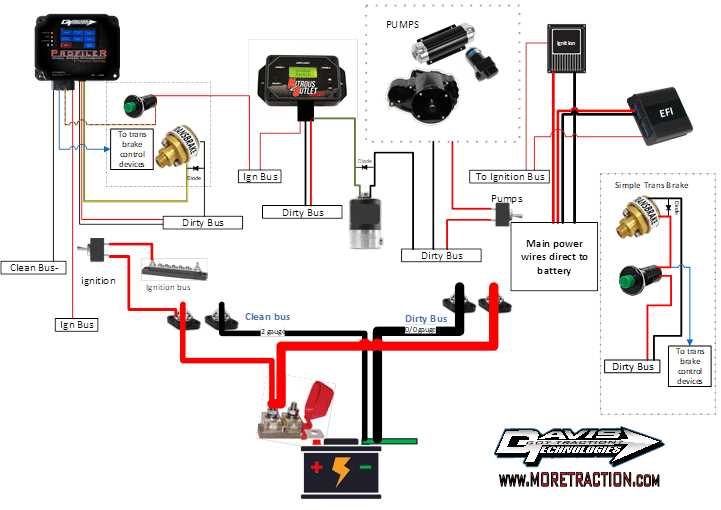

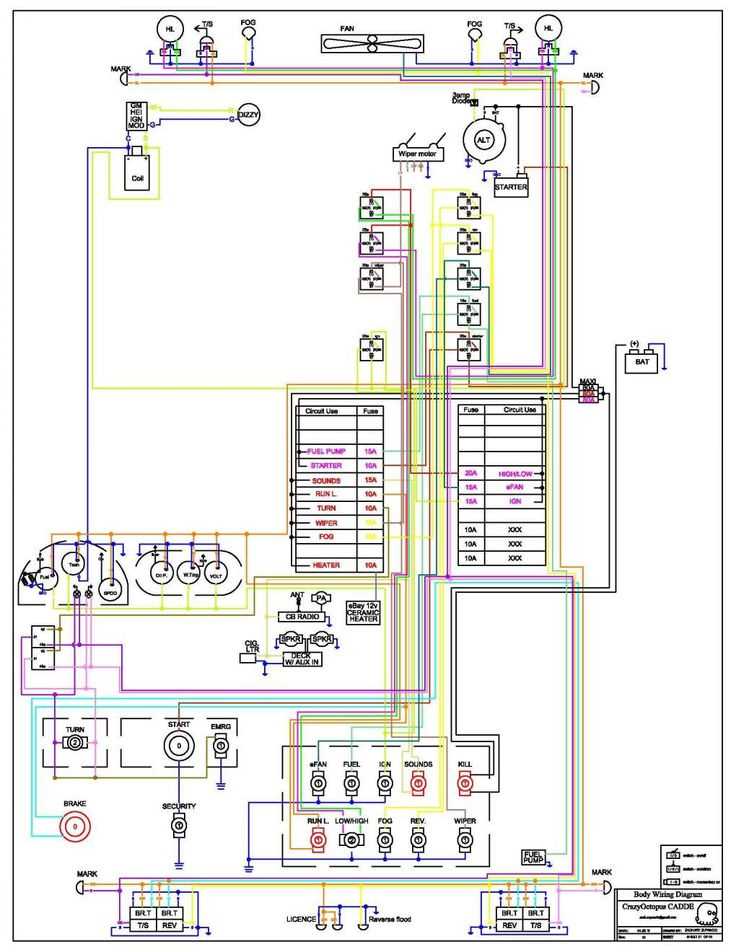

Electrical Schematic Essentials for High-Performance Vehicles

Begin by segregating power circuits into critical and non-critical groups to prevent voltage drops under load. Use 10 AWG wire for primary feeds to ignition systems and fuel pumps, while 14 AWG suffices for auxiliary components like cooling fans and interior lighting. Cross-reference wire gauge with fuse ratings: a 20A fuse demands at least 12 AWG to avoid overheating.

Route harnesses away from heat sources, sharp edges, and moving parts using nylon braided sleeves and split loom tubing. Secure every 6–8 inches with polyester cushion mounts or Teflon-coated clamps to eliminate vibration-induced chafing. Avoid bundling signal wires (sensors, ECU) with high-current feeds (starter, alternator) to reduce electromagnetic interference (EMI).

Grounding Best Practices

• Establish a central grounding block bolted directly to the chassis, preferably near the battery negative terminal. Ensure no paint, powder coating, or corrosion exists at connection points.
• Use tinned copper ring terminals crimped with 4:1 mechanical compression or soldered (for static applications). Twist strands tightly before termination to prevent strand migration.
• For engines, bond the ground strap to a bare metal surface; stainless hardware is ideal, but avoid aluminum due to galvanic corrosion risks.
• Test ground connections with a multimeter: voltage drop should not exceed 0.2V across any connection at full load.

Implement a modular harness design with Deutsch DT or AMP SuperSeal connectors for easy troubleshooting. Label each terminal with heat-shrink tubing marked in UV-resistant ink (e.g., “TPS – ECU Pin 23”). Store pinouts in a waterproof laminated sheet taped to the firewall for quick reference during pit stops. For data buses (CAN, LIN), use shielded twisted-pair wiring (120Ω impedance) terminated with 120Ω resistors at each end to prevent signal reflection.

Fuse all circuits within 7 inches of the power source. Mini-ATC fuses handle up to 30A; for higher draws (e.g., electric water pumps), use Class T fuses with a slow-blow characteristic. Add a 100A main isolator switch near the battery to disable the entire system in emergencies–ensure it’s rated for the peak current draw plus 20% headroom.

For alternator charging circuits, use a 6 AWG wire between the alternator “B+” terminal and battery positive, fused at 100A. Integrate a voltmeter monitoring the alternator output; normal readings should be 13.8–14.4V at 2000 RPM. If voltage dips below 13.2V, inspect belt tension, brush wear, or regulator failure immediately.

Termination and Inspection Checklist

1. Strip wire to expose 5–7mm of conductor; verify no strands are cut or frayed.
2. Crimp terminals with a calibrated tool (e.g., Molex 63811-1000) without solder unless in a vibration-prone area.
3. Insulate with adhesive-lined heat-shrink tubing (minimum 2:1 shrink ratio) or liquid electrical tape for irregular shapes.
4. After installation, perform a megohmmeter test (500V DC) between each circuit and chassis; resistance should exceed 1MΩ.
5. Log all readings, including fuse ratings and wire lengths, in a spreadsheet for baseline comparisons during race weekends.

Critical Elements for a High-Performance Electrical Assembly

Begin with military-grade Teflon-insulated conductors rated for 600V minimum–stranded copper with 16-12 AWG for primary circuits, 20-18 AWG for sensors. Pre-tinned strands resist corrosion under vibration; silver-plated terminals reduce contact resistance by 30% compared to bare copper. Include a master relay with a 100A continuous rating and a 300ms response time to handle inductive loads from fuel pumps and injectors. Separate each branch circuit with a blade fuse or mini circuit breaker sized at 125% of the peak current draw–calculate this using the manufacturer’s stall current specs plus a 20% safety margin.

Signal Integrity and Environmental Protection

Twist paired signal lines at 24 turns per meter to cancel EMI from ignition systems; shield the entire harness with a tinned copper braid grounded at a single chassis point to prevent ground loops. Encapsulate connectors in heat-shrink tubing with adhesive liners, ensuring ingress protection to IP67–submerge completed sections in water for 30 minutes to verify seal integrity. Route the assembly away from exhaust manifolds (minimum 150 mm clearance) and secure with nylon clamps every 100 mm to prevent chafing; use convoluted polyethylene sleeving for high-flex zones like suspension mounts.

Step-by-Step Guide to Crafting a Tailored Electrical Schematic

Begin by cataloging every electronic component slated for integration. Group sensors, actuators, power sources, and control units by function–ignition, lighting, fuel delivery, and data logging–on a digital spreadsheet. Assign each a unique identifier (e.g., IGN-01, LT-02) and note voltage requirements, current draw, and connector types. This inventory dictates circuit grouping and prevents overloads. Use a multimeter to verify specifications if documentation is unclear. Prioritize components with intermittent power demands (e.g., cooling fans) to separate them from steady-state systems like ECUs.

Map Circuit Paths with Spatial Precision

Sketch a physical layout of the vehicle’s chassis, marking mounting locations for all components. Trace potential cable routes, avoiding heat sources, moving parts, and sharp edges. Allocate separate conduits for high-current circuits (e.g., starter motors) and low-signal lines (e.g., sensors) to prevent interference. Use shielded twisted pairs for analog signals like oxygen probes. Label each path with wire gauge (AWG) based on current load: 18 AWG for under 10A, 12 AWG for 10–25A, and 4 AWG for above 100A. Include fuse ratings (never exceed 80% of wire capacity) and diode placements for polarity-sensitive devices.

Create a color-coding standard for wires to simplify troubleshooting. Reserve red for permanent power, black for ground, yellow for switched outputs, and blue for sensor signals. Cross-reference color choices with industry norms to avoid conflicts with aprèsmarket modules. Annotate each circuit branch with expected voltage drops (max 0.5V for critical systems). Use modular connectors (e.g., Deutsch DT series) for frequent disconnect points, ensuring contacts match the wire gauge. Print or plot the schematic in sections, sized for onboard reference during installation.

Validate and Iterate with Real-World Testing

Strip and terminate a test section of wiring using crimp connectors (avoid solder unless vibration is minimal). Power up the system in stages, verifying each circuit with a load tester before proceeding. Probe for voltage leaks between adjacent cables with an oscilloscope, addressing anomalies immediately. Document deviations from the schematic, updating it in real time. Finalize the layout with waterproof heat-shrink tubing over joints and cable sleeves where abrasion risk exists. Archive the digital file in vector format (e.g., SVG) for scalability and future modifications.

Critical Errors in High-Performance Vehicle Electrical Systems

Skipping ground plane verification tops the list of oversights. A single poorly secured connection–especially near the engine block or chassis–creates voltage drops measurable under load. Use a multimeter to test resistance between components and the negative terminal before finalizing terminals; readings above 0.1 ohms indicate corrosion or loose contact. Stainless steel star washers under lugs prevent vibration-induced loosening, while braided grounding straps reduce interference in ignition and sensor circuits. Never rely on painted or anodized surfaces for grounding–sand down to bare metal.

• Using undersized cables for power-hungry components: A 60-amp alternator demands minimum 6-gauge wire, yet many use 10-gauge, causing heat buildup and voltage sag. Calculate wire gauge using this formula: (Amperage × Feet × 0.006) = Voltage Drop. For 20 feet at 40 amps, target under 0.5V drop–choose 4-gauge or thicker.
• Neglecting fuse placement: Every circuit must have a fuse within 7 inches of the power source. Splice points count as sources–protect them with inline fuses matched to wire gauge (e.g., 20-gauge wire = 5 amp fuse). Mega-fuses near the battery handle main feeds; microswitches and relays require microfuses.
• Ignoring harness bundling: Route main trunks along chassis rails, not suspension or exhaust paths. Bundle sensor wires separately from power leads using expandable sleeving to prevent signal cross-talk. Secure with nylon ties every 8 inches–clips or tape fail under vibration.

Sensor Circuit Pitfalls

Mixed signal and power conductors within the same loom distort readings. Oxygen sensors, wheel-speed pickups, and ECU inputs need shielded twisted pairs (120Ω impedance). Route these 18 inches from ignition coils and alternators; temporary shields–like aluminum foil wrapped around the loom–won’t suffice for race durations. Terminate shields at a single point near the ECU to avoid ground loops; floating grounds introduce drift in analog signals.

Overlooking connector quality invites failure at 3G loads. Cheap plastic connectors melt at 85°C; use gold-plated Mil-spec terminals rated to 200°C. Crimp, don’t solder, terminals–solder cracks under vibration. Apply dielectric grease liberally to prevent moisture ingress; water inside connectors causes 60% of intermittent faults during endurance events. Label both halves of every connector with heat-shrink tubing–white for 12V, red for high current, blue for sensors–to eliminate misconnections.
