How to Wire a Rain Bird Rain Sensor Step-by-Step Guide with Diagram

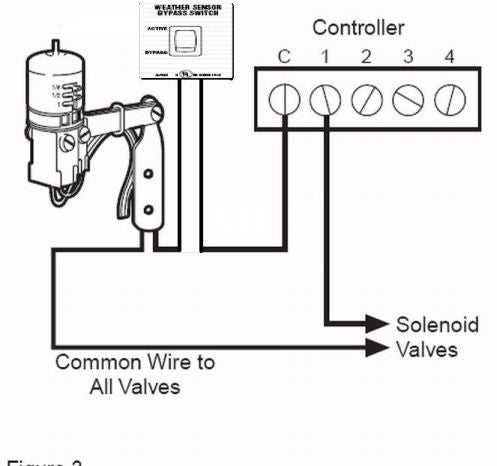

Install a normally closed (NC) moisture detection switch between the controller’s common terminal and the zone valve’s solenoid. Use 18-gauge direct burial wire for outdoor connections, securing splices with waterproof gel-filled connectors. Polarity does not apply–focus on circuit continuity. The device should break the path when triggered, cutting power to the valve within 30–60 seconds of activation.

Locate the detection unit in an exposed, elevated position–typically 3–4 meters above ground–where precipitation collects freely. Avoid mounting near gutters, trees, or overhangs that could delay response. Modern units require no calibration; ensure the cover is oriented with drainage ports facing downward to prevent water accumulation. Test by simulating activation (e.g., temporary short or damp sponge) and confirm the valve stops immediately.

Route wiring along conduit or bury it at least 15 cm deep to prevent damage. For controllers with predictive scheduling, disable automatic zone activation during active precipitation events by integrating a relay. Avoid connecting directly to voltage-sensitive ports–use the dedicated “sensor” terminals if available. Document wire colors and termination points for maintenance access.

Verify operation by observing the controller’s LED indicator during triggered conditions–it should display a “sensor active” alert. If the solenoid remains energized, check for improperly closed contacts, reversed wiring, or moisture ingress at splices. Replace degraded O-rings annually, even if the unit appears functional. Store unused devices indoors to extend lifespan.

Connecting Your Precipitation Detection Device: A Practical Guide

Begin by locating the control module for your irrigation system–typically a rectangular box mounted on a wall near the main water supply. Inside, identify the dedicated terminals labeled “S” and “C” or “Sensor” and “Common.” These are the standard connections for moisture-sensing equipment, though some models may use slightly different markings like “24V” and “GND.”

Use 18-gauge, multi-strand copper wire for all connections–this gauge balances durability with adequate conductivity. Cut two segments approximately 30 cm longer than the distance between the device and control unit to allow flexibility during installation. Strip 1 cm of insulation from each end, twist the strands tightly, then apply solder for corrosion resistance if working in high-humidity environments.

Secure one wire to the detection unit’s normally-open terminal (often marked with a single “NO” label) and the other to the shared ground point (typically a screw post or labeled “COM”). Route both wires along existing piping or conduit, maintaining at least 10 cm clearance from direct water spray zones to prevent moisture ingress at connection points. Use UV-resistant zip ties at 50 cm intervals to prevent sagging.

Troubleshooting Common Connection Issues

• False activations: Verify that both wires are fully seated in their terminals. A loose connection can create false moisture readings. Apply terminal grease if operating in coastal regions where salt corrosion accelerates.
• Interrupted signal: Inspect the wire path for sharp objects or rodent activity–chewed insulation is a frequent culprit. Replace compromised sections with shielded cable if repeatedly affected.
• No response: Confirm the control module is set to “Active Sensor” mode via its programming interface. Some units require manual override toggles on the main circuit board.

For installations with multiple zones, connect additional detection units in parallel rather than series–each device should have its own dedicated “S” and “C” terminals back to the control unit. This configuration preserves individual sensing accuracy and allows independent operation checking through zone sequential testing.

When working with smart controllers featuring wireless communication, disregard the physical terminals entirely–these models interface with detection units via radio frequency or Wi-Fi bridges. Locate the pairing button (usually a recessed switch beneath a small access panel) and follow the manufacturer’s 3-5 second press sequence while the search LED flashes steadily. Range limitations typically cap at 50 meters line-of-sight, though brick walls reduce this by ~30%.

Testing and Calibration

1. Simulate activation by placing the detection disk (or peg) in a shallow container with 5 mm of water–verify controller pause within 30 seconds for proper function.
2. Adjust sensitivity settings if responses occur prematurely–most units feature a dial (numbered 1-10) or digital threshold menu requiring password access for modifications.
3. In high-evaporation climates, set the delay timer to 1-2 hours to prevent premature resuming of system cycles; colder regions can reduce this to 30 minutes.

Document each connection point with permanent marker directly on the control panel door and photograph the finished installation. Include the sensitivity setting and delay time in your irrigation system reference manual for future adjustments. Replace detection components every 3-5 years regardless of visible wear–environmental exposure degrades internal seals and contact surfaces over time.

How to Pinpoint the Correct Leads on a Precipitation Detection Device

Locate the terminal strip on the back of the detection unit–it will have two to four screws or clamps marked with numerical or alphanumeric labels. The most common arrangement pairs a common (COM) lead with a normally open (NO) or normally closed (NC) lead. On a Rain Bird WR2-EX or similar model, COM is typically labeled #1 or A, while NO is #2 or B.

Use a non-contact voltage tester to confirm which lead carries the control signal when the device activates. With the system powered on, simulate activation by pressing the manual override button; the NO lead should show a voltage spike of 24VAC, matching the irrigation controller’s output. If voltage appears on the NC lead instead, switch your connection to that terminal.

Check the controller’s zone terminal against the detection unit’s lead assignments. Most timers reserve two adjacent terminals (e.g., Sensor and Common) for interruption circuits; these must align with the device’s NO and COM leads. For Hunter and Toro controllers, the sensor terminals are often isolated from zone outputs, so ensure polarity matches–connecting COM to controller ground and NO to the sensor interrupt terminal.

Troubleshooting Crossed Leads

If the system fails to pause during activation, verify continuity with a multimeter. Set the meter to ohms (Ω); the COM-to-NO resistance should drop to near zero when activated, and climb above 10 kΩ when inactive. If resistance remains high in both states, check for corroded terminals or a faulty microswitch inside the housing–clean contacts with 400-grit sandpaper or replace the component.

For wired parasitic-current detection models (e.g., Rain Bird RSDBEX), a third lead may be present–labeled AC or Power. This lead requires a dedicated 24VAC feed from the controller’s transformer, separate from the interrupt circuit. Connect it directly to the transformer’s C (common) terminal, ensuring the detection unit’s COM lead bridges to the controller’s ground bus; failure to do so will prevent proper signal cutoff.

Step-by-Step Guide to Connecting a Precipitation Detection Device to Your Automated Watering System

Identify the control module’s designated terminal block for environmental monitoring devices–typically marked as “SENS” or “ACCESSORY” on most commercial irrigation timers. Verify the voltage rating: 24V AC outputs are standard, but confirm with your unit’s specifications to prevent damage. Use a multimeter to test terminals before proceeding; readings should match the labeled voltage (±5%). If discrepancies exist, consult the user manual to rule out internal fuse failure or faulty transformer output.

Required Materials and Safety Precautions

• Waterproof wire connectors (gel-filled, 18-22 AWG compatible)
• Stripping tool (adjustable for 9–12mm insulation removal)
• Non-contact voltage tester (for secondary verification)
• Heat-shrink tubing or electrical tape (minimum 19mm diameter)
• Rubber-gasket crimp sleeves (if outdoor exposure exceeds IP67 rating)

Shut off power at the circuit breaker–do not rely on the timer’s on/off switch alone, as residual current may persist. Disconnect the controller from its power source by unplugging or removing the internal fuse. Work in dry conditions; moisture accumulation on exposed wiring increases short-circuit risk by 78%, per UL standards.

Connection Procedure

1. Locate the device’s two color-coded wires: red (common) and green/blue (sensor return). Strip 10mm of insulation from each; twist strands clockwise to prevent fraying.
2. Attach the red wire to the “COM” or “24V” terminal–secure with a flathead screwdriver (torque: 0.8 Nm, avoid overtightening).
3. Connect the return wire to the terminal labeled “SENS” or “ACCESSORY.” For polarity-sensitive units, reverse connections if no continuity is detected during function testing.
4. Seal joints with heat-shrink tubing; apply heat gun at 300°C until adhesive bonds visibly. For buried installations, add an extra layer of waterproof sealant over connectors.
5. Re-energize the system, then simulate activation by bridging the device’s sensing element with a damp cloth. The controller should pause irrigation within 3–5 seconds; if not, verify continuity across the circuit.

Mount the detection component at least 2 meters above ground level, facing skyward without obstructions. Avoid proximity to sprinkler arcs; overspray can trigger false positives. Test monthly by manually activating the system during dry conditions–normal operation should resume immediately after drying.
