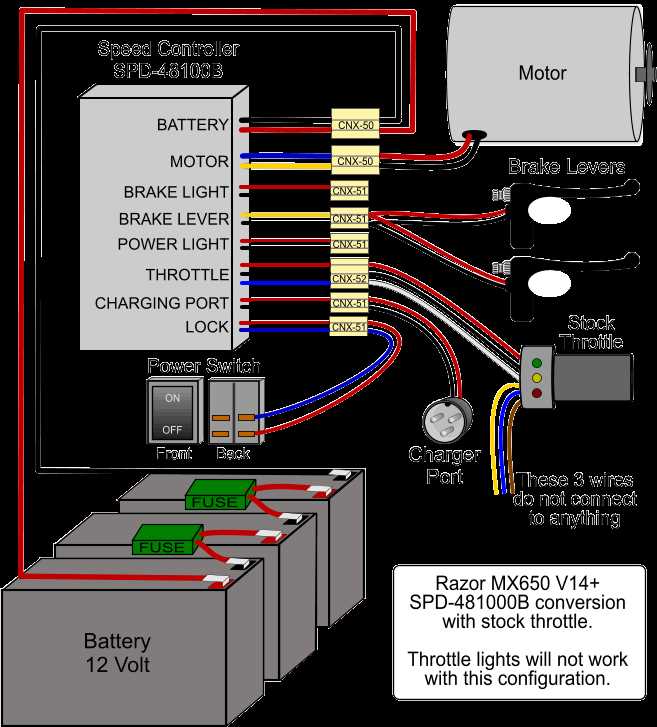

Complete Razor MX500 Wiring Diagram and Circuit Connection Guide
Locate the controller’s primary connector–typically a 9-pin Molex plug–and verify pin assignments before disassembly. Pin 1 handles throttle input (0.8–4.2V range), Pin 3 supplies 5V to the hall sensor, and Pin 5 carries battery voltage. Swap corroded pins immediately; even minor resistance skews performance. Track the red (positive) and black (ground) wires from the battery terminals to the main fuse; bypassing the fuse voids surge protection.
Identify the motor’s three-phase wires–usually yellow, blue, and green–before touching power. These feed directly into the controller’s corresponding phase outputs. Reversing any two wires inverts rotation; cross-reference labels against the printed PCB silkscreen to avoid phase mismatch. The brake lever microswitch outputs a digital signal to Pin 7; test continuity when fully depressed–broken circuits falsely engage passive braking.
Route new wires along existing harness channels, securing them every 8 cm with spiral wrap or adhesive-lined heat shrink. Replace 18 AWG wire only with 16 AWG if upgrading to 48V systems; thinner wire risks voltage drop under 30A loads. Color-code consistent with originals:
Red (+), Black (–), Yellow (Phase A), Blue (Phase B), Green (Phase C), White (Throttle), Brown (Hall Vdd), Grey (Hall Gnd), Violet (Brake).
Connect the charger port last; negative (–) terminal bridges to the battery’s negative busbar via a 2 mm bolt. Positive (+) routes through a 15A fuse holder mounted near the port. Check polarity with a multimeter before first plug-in–reverse polarity destroys the charge IC instantly. Use Anderson Powerpole connectors for aftermarket boost; crimp terminals rated for 45A ensure tight contact.
Solder joints must withstand 120°C; use 63/37 lead-tin rosin-core solder on all high-current paths. Reinforce stress points–especially near hinged components–with polyolefin tubing. Label every splice with heat-shrink tubing printed via thermal transfer; avoid Sharpie, which rubs off under vibration. Trial-run the system at half throttle before full-speed test; watch for sparking at connections.
Electrical Schematic for High-Performance Off-Road Scooter
Begin by locating the main power switch near the battery compartment–this component controls the entire circuit. Verify the wiring harness connects to the 36V lead-acid battery first, ensuring red cables attach to positive terminals and black to negative. Use a multimeter to confirm 36V output before proceeding; voltage below 34V indicates a faulty battery or corroded connections. Replace any damaged wires with 14-gauge silicone-coated copper strands to prevent heat buildup during rapid acceleration.

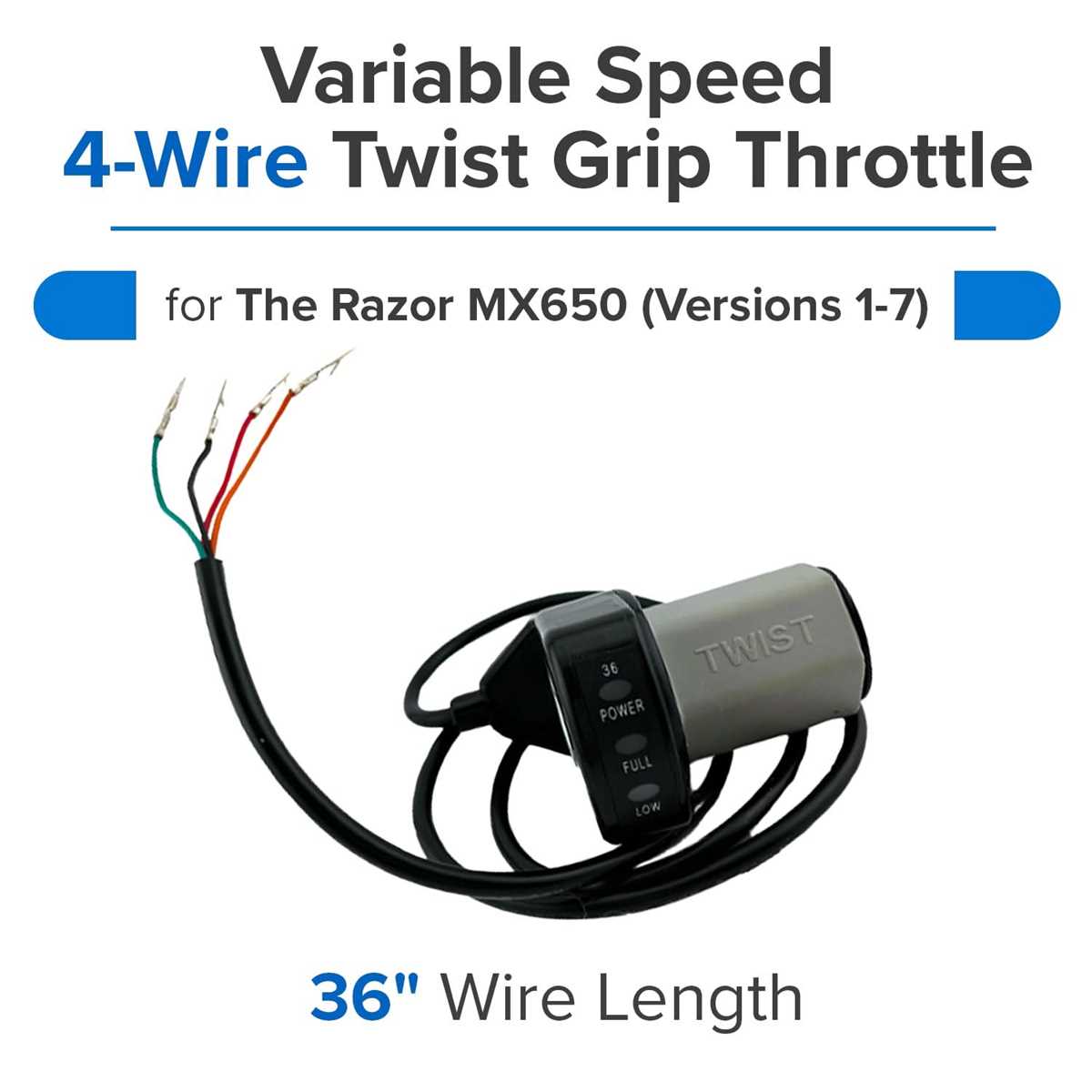

Trace the throttle control assembly next–it integrates a variable resistor triggering the controller’s input signals. Disconnect the three-pin connector (standard green/white/red) and test resistance across the green and white wires; values should shift smoothly from 0.5KΩ to 4.5KΩ when twisting the grip. Sudden jumps or infinite resistance require cleaning the potentiometer with contact cleaner or full replacement. Secure the connector tightly, as loose contacts cause intermittent power cuts.
Controller Connections and Safety Checks
- Attach the controller’s 9-pin plug to the motor, matching color codes: black/yellow (motor phase A), blue/green (phase B), red (phase C).
- Ground the controller chassis to the frame using a dedicated 12-gauge wire, preventing electrical noise interference.
- Install a 10A fuse between the battery and controller to protect against short circuits–position it within 10 cm of the battery’s positive terminal.
- Reconnect the brake lever microswitch; its output wire (usually purple) must complete the circuit when engaged, cutting power instantly.
Final diagnostics involve testing under load: elevate the rear wheel and gradually apply throttle while monitoring amperage draw. Expected range is 15–30A under normal operation; readings above 40A suggest binding in the drivetrain or misaligned motor phases. Lubricate the chain drive with light synthetic grease and check sprocket alignment to reduce unnecessary strain on the electrical system. Store the scooter indoors to avoid moisture ingress, which corrodes connectors over time.
Finding Critical Electrical Connections in the Electric Dirt Bike
Begin by removing the seat and side panels to expose the control module beneath the rear fairing. The primary power distribution block sits adjacent to the battery tray–look for a white rectangular connector with thick red and black cables (4–6 AWG). This block handles motor output and charger input; mismatched connections here can cause immediate system failure. Label each terminal before disassembly using masking tape and a permanent marker to avoid confusion during reassembly.
Identifying Circuit Protection and Control Points
| Component | Location | Wire Colors | Function |
|---|---|---|---|
| Main fuse | Under plastic cover near throttle | Red, black | 30A protection for motor circuit |
| Controller unit | Beneath battery tray | Yellow, blue, green | PWM signal distribution |
| Brake cutoff switch | Front brake lever assembly | White/red stripe | Interrupts motor feed during braking |
Trace the accelerator harness from the right handlebar to the controller unit–this bundle contains a three-wire plug (typically yellow, blue, and green). Ensure the throttle potentiometer moves smoothly; erratic resistance readings (
Step-by-Step Guide to Interpreting the Electrical Blueprint
Locate the power source symbol–typically a battery icon with “+” and “-” markings–at the schematic’s left edge. Trace the solid line extending from the positive terminal; this pathway dictates current flow through the primary circuit. Identify junction points where lines split; these intersections control components like the throttle, brake lever, and motor. Use a multimeter set to continuity mode to verify connections before handling live current; unexpected shorts can damage controllers.
Decoding Symbols and Color Codes
Standard color abbreviations appear near wire runs: “R” for red (positive), “B” for black (ground), “Y” for yellow (signal), and “G” for green (sensor). Cross-reference these against the legend if present–some schematics invert colors or use dashed lines for auxiliary circuits. For example, a dashed red line often indicates a switched 12V line powering accessories like lights. Measure voltage drop across each segment with the multimeter in DC mode; a reading below 0.5V suggests corrosion or loose connections.

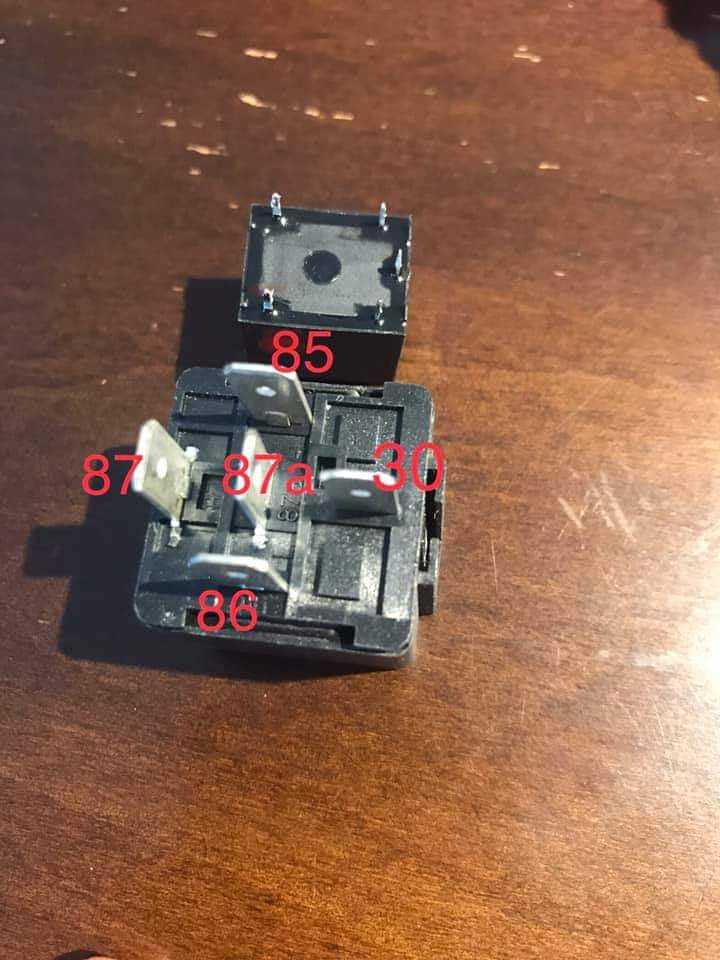

Focus on relay symbols–small rectangles with internal coil and switch diagrams. These control high-current devices like the drive motor. Confirm relay pins align with the schematic’s numbering (usually 85/86 for coil, 30/87 for contacts). Swap a suspect relay with a known-good spare from a matching system; identical pin layouts ensure direct substitution. If the replacement restores function, the original relay failed–replacements must match the original’s voltage rating (commonly 24V or 36V).
Diagnosing Electrical Connection Problems and Warning Signs
Inspect the battery terminals first if the vehicle fails to start or exhibits intermittent power loss. Corrosion or loose clamps create resistance, reducing voltage delivery. Use a multimeter to verify voltage drops–any reading below 12.4V at full charge indicates degraded performance. Clean terminals with baking soda solution and re-tighten connections to eliminate oxidation buildup preventing proper contact.
Flickering lights or sudden motor cutoff often trace back to frayed or pinched cables. Examine the entire circuit path, especially near high-flex zones like suspension components. Replace compromised insulation immediately; exposed copper triggers short circuits, leading to controller failures or potential fire hazards. Test continuity with a probe–broken strands show infinite resistance.
Overheating components, such as the speed controller or fuse block, signal current overload. Check for undersized gauge wires unable to handle motor load requirements. Upgrade to thicker cables (minimum 10 AWG for 36V systems) if melting insulation or burnt smells appear. Verify all solder joints; cold joints fracture under vibration, destabilizing connections.
Erratic throttle response or unintended acceleration usually stems from damaged potentiometers. Replace throttle assemblies showing inconsistent resistance readings (ideal range: 0.5K–5K ohms). Secure all signal wires with zip ties to prevent chafing against metal edges–intermittent contact disrupts pulse-width modulation, risking uncontrollable surges.
Essential Gear for Diagnosing and Fixing Electrical Systems in Off-Road Bikes
Begin diagnostics with a multimeter capable of measuring DC voltage, resistance, and continuity. Select a model with a minimum 10A fuse, an auto-ranging feature, and a backlit display to ensure accuracy in poorly lit engine compartments. For precision, use needle probes with silicone-insulated leads to avoid shorting adjacent terminals when probing densely packed connector blocks.
- Wire strippers with gauge guides: Choose a tool matching 18-12 AWG to prevent nicks in copper strands.
- Crimping pliers with interchangeable dies: Required for waterproof butt connectors and insulated spade terminals.
- Heat gun with adjustable airflow: Ensures uniform shrinking of adhesive-lined tubing without scorching.
- Non-contact voltage tester: Detect live circuits before physical contact to prevent accidental shorts.
- LED circuit tester: Visual confirmation of signal flow in low-current pathways like throttle position sensors.
- Soldering iron (60W minimum): Use rosin-core solder (0.032″) for robust joints in high-vibration areas.
- Magnifying loupe (5x): Reveals minute cracks in track boards and corroded solder joints.
- Torx drivers (T10, T15): Remove factory-sealed housings without stripping fasteners.
Store tools in a foam-lined case to prevent damage to calibrated instruments. Keep a pocket-sized schematic of the bike’s electrical flow on hand–annotate findings directly to streamline repairs.
