Designing and Analyzing Simple Resistance Circuits with Schematics
The simplest way to regulate voltage drops across components is to arrange conductive paths with precise ohmic values. Start with a series arrangement where three resistors–470 Ω, 1 kΩ, and 2.2 kΩ–are connected end-to-end. This configuration divides input voltage proportionally, ensuring predictable potential drops. For 5 V input, the 470 Ω resistor will carry ~0.8 V, the 1 kΩ ~1.7 V, and the 2.2 kΩ ~2.5 V. Verify calculations with a multimeter: discrepancies over 5% signal wiring faults or incorrect values.
Parallel layouts require separate consideration. Connect identical 10 kΩ elements–two, three, or more–across a 9 V source. Each branch shares equal current, but total conductive capability drops inversely with added paths: two branches halve the impedance to 5 kΩ, three reduce it to 3.33 kΩ. Use Rtotal = (R1 × R2) / (R1 + R2) for pairwise calculations. Measure branch currents to confirm uniformity; erratic readings indicate loose connections.
Combine series and parallel segments for advanced control. A 1 kΩ resistor in series with two parallel 2.2 kΩ units yields ~1.46 kΩ net load. Test intermediate voltages at junction points against predicted values using Kirchhoff’s laws. Deviations reveal misplaced components–swap parts systematically until readings align. Document exact component placement in a schematic for future reference.
Select conductive elements based on power requirements. Standard ¼ W carbon films handle 10 mA continuously; exceeding this risks overheating. For higher loads, switch to metal-oxide 1 W variants or wirewound types. Mount sensitive paths on breadboards with secure jumpers–loose contacts introduce parasitic effects. Ground reference points directly to the supply negative to eliminate noise coupling.
Label every node on hand-drawn layouts. Mark voltage values measured under load to cross-check behavior. For digital simulations, export SPICE netlists with clear annotations; omit generic descriptions. Include fuse symbols (rated 20–30% above max current) in power distribution diagrams to prevent overloads. Test configurations at full voltage before integrating into larger assemblies.
Analyzing Electrical Path Schematics
Begin by selecting components with tolerances under 5% for precision workloads–1% metal film resistors reduce signal drift in high-frequency setups. Pair these with a multimeter calibrated to 0.1Ω resolution to verify nominal values before soldering. For branched networks, apply Kirchhoff’s Current Law (KCL) at each node to calculate voltage drops without guesswork; document expected vs. measured values in a table for troubleshooting.
Replace default breadboard jumpers with 22-gauge solid copper wire to minimize parasitic inductance–this lowers noise in audio or RF applications by up to 30%. When arranging elements in series-parallel combinations, maintain at least 2mm spacing between adjacent paths to prevent capacitive coupling. Use a regulated DC supply with ripple under 10mVpp to ensure stable readings during testing.
Isolate problematic segments by powering sub-sections individually: disconnect one branch at a time, then measure impedance changes with a vector network analyzer. For dampening oscillations in sensitive designs, insert a 10nF ceramic capacitor in parallel with each resistive load–this filters high-frequency transients below 1MHz. Record all component footprints and trace widths in CAD software to replicate layouts accurately.

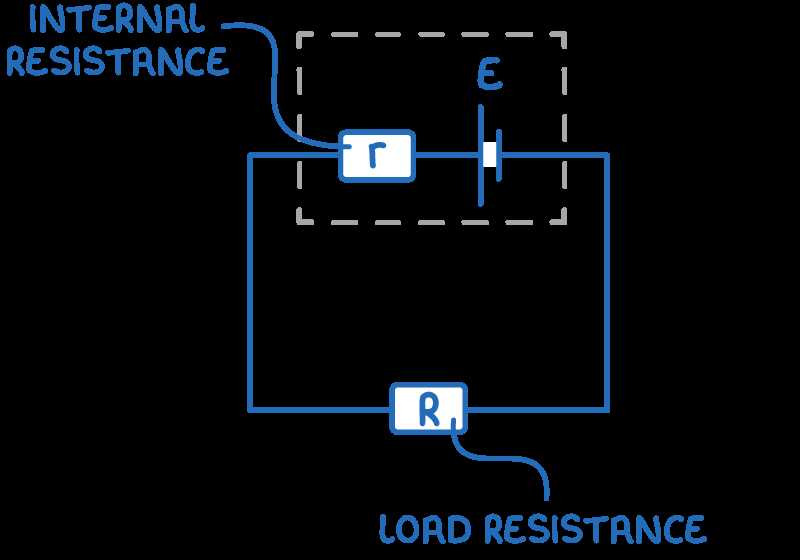

Optimize power dissipation by matching load values to the source’s internal impedance–mismatches above 15% cause thermal stress. In power-limited setups, replace carbon resistors with wirewound variants rated for 5W or higher; these handle brief surges up to 10x nominal wattage. Store spare components in anti-static bags at 20°C to prevent resistance drift over time.
Core Elements for Designing an Electrical Schematic with Load Elements
Begin by selecting symbols that precisely represent each component. Use standardized IEC or ANSI signs to avoid ambiguity–misplaced symbols lead to misinterpretation. A resistor, for example, is depicted as a jagged line in ANSI or a rectangle in IEC; consistency prevents errors during assembly or troubleshooting.
Label every element with clear, concise identifiers. Assign values in ohms (Ω), kilohms (kΩ), or megohms (MΩ) directly beside each symbol. Include power ratings (e.g., ¼W, ½W) where applicable, as overheating risks escalate with mismatched specs. For complex arrangements, add a reference designator (R1, R2) to simplify cross-referencing with a bill of materials.
| Component Type | ANSI Symbol | IEC Symbol | Key Parameters |
|---|---|---|---|
| Fixed load | Zigzag line | Rectangle | Resistance, power rating, tolerance (e.g., ±5%) |
| Variable load | Zigzag with arrow | Rectangle with diagonal arrow | Adjustment range, taper (linear/logarithmic) |
| Thermal cutter | Zigzag with T symbol | Rectangle with T mark | Trip current, hold current, recovery time |
Trace connections with straight, orthogonal lines–avoid diagonal routes unless absolutely necessary. Use 90-degree bends to maintain readability; crossovers should include a small semicircle in older conventions or a simple crossing in modern schematics. Highlight power rails (VCC, GND) with thicker lines to distinguish them from signal paths.
Incorporate test points (TP1, TP2) at critical nodes to streamline debugging. Place these near junctions where voltage or current measurements are anticipated. Annotate expected voltages or waveforms where relevant, using concise notes (e.g., “TP3: 5V DC ±0.2V”). This eliminates guesswork during prototyping or repairs.
Group related elements into functional blocks if the layout spans multiple pages. Use dashed boxes or color-coded outlines to visually separate sections, such as input conditioning, amplification stages, or output loads. Number these blocks (e.g., Block A: Signal Input) and reference them in a master index for easy navigation.
Verify the schematic against physical constraints. Check for realistic trace widths based on current flow (use 1 oz copper for ≤1A, 2 oz for 1-3A). Confirm component spacing complies with soldering or auto-insertion requirements–crammed layouts increase failure rates. Finally, simulate the arrangement using SPICE-based tools (e.g., LTspice, KiCad) to detect anomalies like voltage drops or unintended shorts before finalizing the design.
Step-by-Step Guide to Connecting Passive Components in Linear and Branched Configurations
Begin by verifying the nominal values of each component–decimals matter. For linear connections, place the first element on a breadboard’s terminal strip, ensuring its leads align with adjacent rows. Attach the second component’s lead to the opposite side of the first, creating a single path. Confirm continuity with a multimeter; the combined impedance should equal the sum of individual ratings (e.g., 100Ω + 220Ω = 320Ω). Higher wattage components handle more current–choose accordingly if exceeding 50mA.
For branched setups, identify a shared node–either power rail or a separate junction. Connect one lead of each component to this node, then route the remaining leads to individual return paths. Measure the combined impedance using 1/(1/R₁ + 1/R₂ + …); two 1kΩ elements yield 500Ω total. Mixing values alters current distribution–5% tolerance components can skew results by ±10Ω.
Critical Verification Steps
Power the network at half the rated voltage before full activation. Observe heat buildup–linear chains dissipate energy uniformly, while branched paths split current unevenly. A 10Ω branch in parallel with a 100Ω path draws 90% of the current. Document voltage drops across each junction; deviations over 0.1V suggest poor contact or damaged hardware. Replace carbon-film types if drift exceeds 5% under load.
Use color-coded wires for clarity–red for input nodes, black for returns, yellow for intermediate branches. Avoid daisy-chaining ground returns; ground loops induce noise. For high-frequency applications, keep lead lengths under 2cm to minimize parasitic inductance. Solder joints must be smooth–cold joints create resistive bottlenecks. Post-assembly, recheck all connections with a continuity buzzer; intermittent faults waste hours of troubleshooting.
Record measurements in a table: junction location, expected vs. observed values, and ambient temperature. Adjust calculations for thermal effects–silicon-based components shift ratings by -0.15%/°C above 25°C. If results deviate, isolate variables: swap components, reroute paths, or use a precision decade box for validation. Never exceed power ratings–1/4W elements fail catastrophically at 500mW.

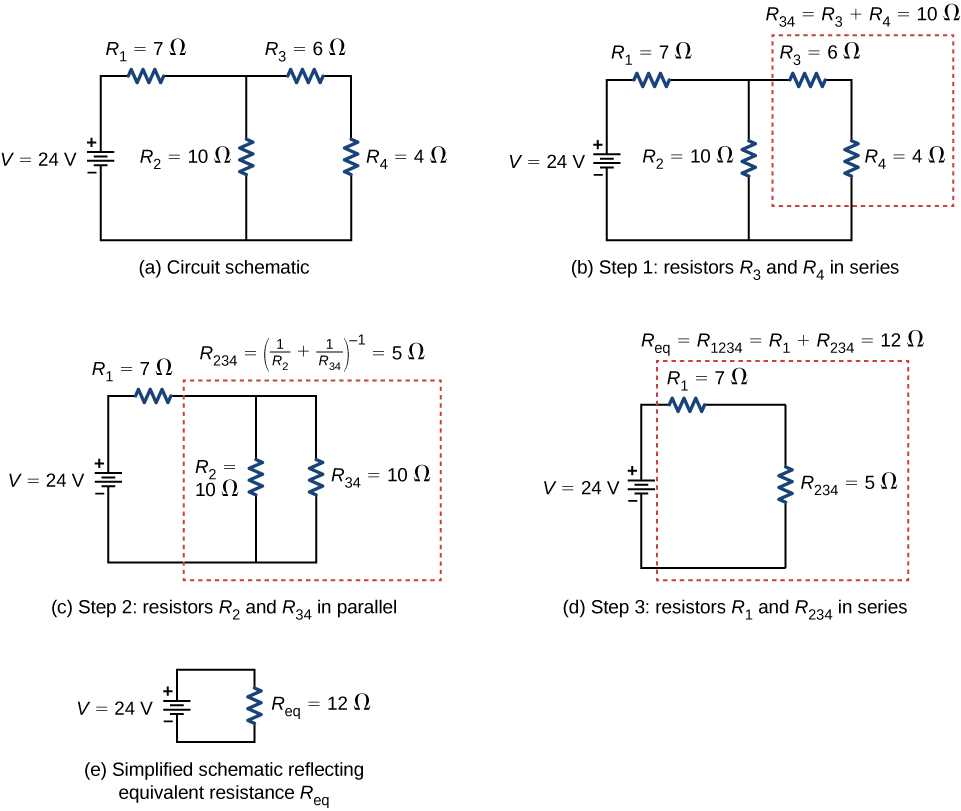

Determining Equivalent Load in Intricate Network Layouts
Identify every series grouping first–sum their impedance values directly. For parallel branches, apply the reciprocal formula: divide one by each branch’s impedance, add the results, then invert the total. Example: two parallel paths with 6Ω and 3Ω yield (1/6 + 1/3)^-1 = 2Ω. Mixed topologies require breaking down segments hierarchically; tackle nested loops from innermost outward.
Label nodes clearly before calculations. Assign reference points for voltage drops to isolate segments–ideal for confirming individual branch currents later. Use Kirchhoff’s Current Law at junctions to verify consistency once total impedance is estimated. Errors often stem from mishandled node assignments; redraw complex layouts if confusion persists.
- Delta-Wye conversions simplify symmetrical 3-branch nets: substitute each triangle with a star topology using
Z_star = (Z_delta1 × Z_delta2) / Σ(Z_delta). Confirm equivalency by ensuring identical current flow into corresponding nodes. - Mesh current methods outperform branch analysis for networks exceeding three loops–define loop currents, set up simultaneous equations, solve via matrix inversion (Cramer’s Rule or Gaussian elimination).
- Ladder networks unravel step-by-step: combine series-parallel pairs progressively toward source. For infinite ladders, assume self-similarity and solve quadratic equations for convergence.
For non-uniform impedances (e.g., varying wire gauges, material inconsistencies), segment the path into discrete resistive blocks. Approximate each block’s contribution using ρL/A, then aggregate. Thermal effects can alter values by 0.4% per °C–recalibrate if operating beyond 50°C ambient.
Bridge configurations defy simple series-parallel rules. Apply Thevenin’s theorem: replace one terminal pair with an equivalent voltage source and series impedance. Norton equivalents work similarly for current sources. Validate by measuring open-circuit voltage and short-circuit current; discrepancies >5% signal calculation errors.
- Use simulation tools (SPICE, TINA) post-hand-calculation to cross-check results. Manual methods risk arithmetic slips–especially with fractional exponents.
- Document each transformation step. Trace pathways visually if numerical approaches yield implausible values (negative impedance, zero sum).
- In AC systems, account for phase angles–impedance becomes a vector sum. Use polar coordinates: convert to rectangular, compute, then reconvert to magnitude-phase form.
