Step-by-Step Reverse Camera Wiring Guide with Circuit Diagram
Start by identifying the power source for your vehicle’s assistive viewing device. Most modern setups require a 12V feed from the reverse light circuit to activate automatically. Locate the wiring harness behind the rear lamp cluster–usually a green or purple wire indicates the signal lead. Confirm voltage with a multimeter before splicing to avoid damaging the system.
Run the video cable from the sensor unit to the dashboard display. Use shielded coaxial wire (RG-59 or similar) to prevent interference, keeping it at least 15 cm away from power lines. Route along the vehicle’s existing harness channels, securing with zip ties every 30 cm. Avoid sharp edges or moving parts to prevent chafing.

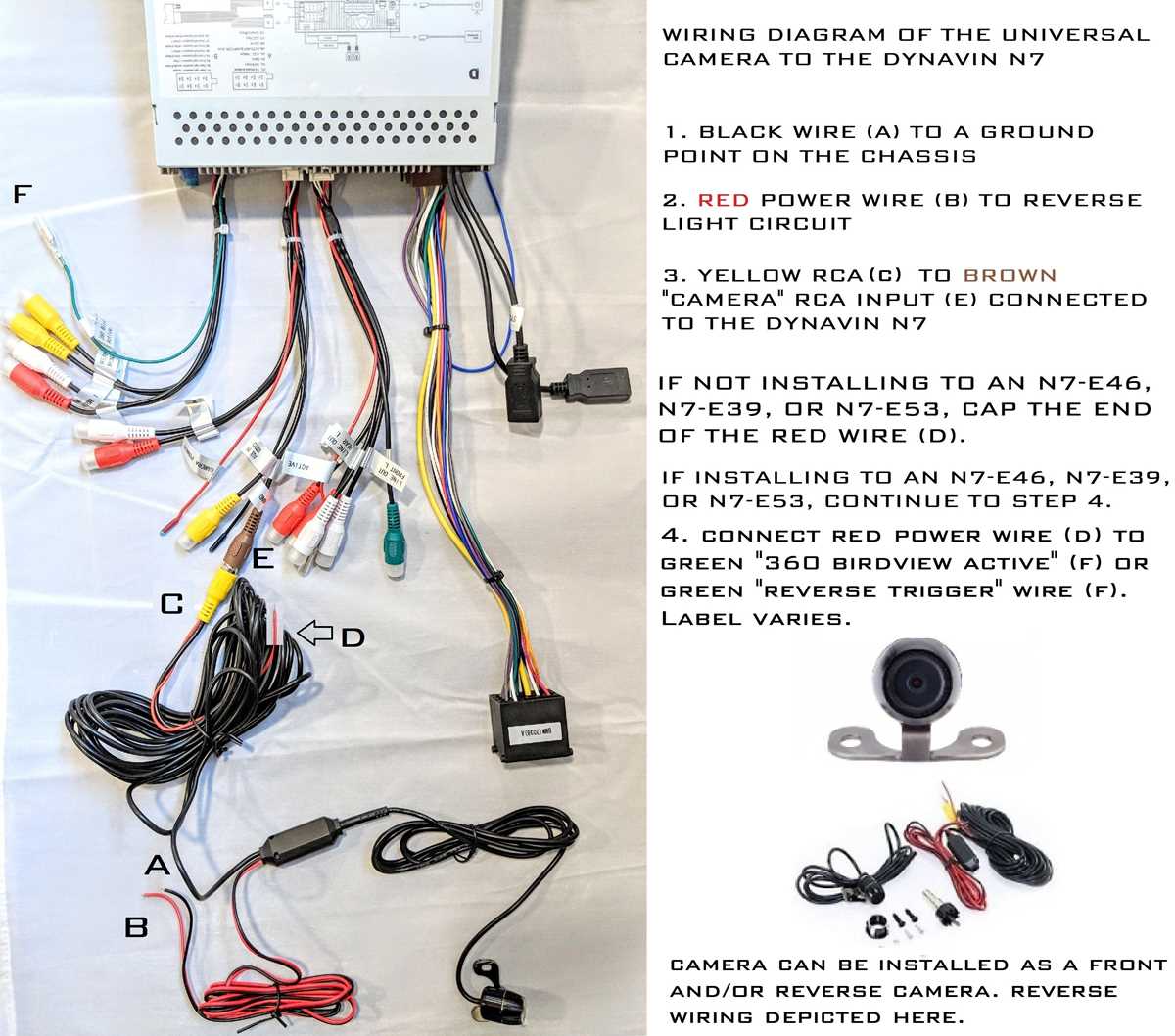

Connect the video cable to the monitor’s yellow RCA input. If no dedicated port exists, splice into the factory infotainment system’s composite video feed–typically found behind the head unit. Match wire colors precisely: red (power), black (ground), and yellow (video). Test continuity before finalizing connections.
Ground the system properly by attaching the black wire to a bare metal chassis point near the rear of the vehicle. Avoid using bolts with paint or corrosion. Clean the contact surface with sandpaper for optimal conductivity. Verify all connections by engaging the vehicle’s backing function–the display should activate within 1-2 seconds.
For vehicles with parking sensors, integrate the viewing device’s trigger wire with the sensor control module. Refer to the manufacturer’s pinout diagram (often pins 1-4 for parking aid input). Use a relay if voltage levels differ to isolate circuits and prevent system conflicts.
Adjust brightness and contrast settings on the display to match daytime and nighttime conditions. Most units store preferences automatically. If image distortion occurs, check cable integrity–replace damaged sections immediately to maintain signal clarity.
Connecting Your Vehicle’s Rear View System: A Step-by-Step Guide
Begin by identifying the power source for the display unit–typically a 12V feed from the fuse box or the vehicle’s rear light circuit. Use a multimeter to confirm voltage stability (11.5V–14.5V) before connecting. Splice the positive wire (red or yellow) to the reverse light switch harness to ensure activation only when the gear selector is engaged. Ground the negative lead (black) to a bare metal surface; avoid painted or coated areas to prevent signal interference.
- Video signal cable (coaxial): Connect to the display’s RCA input. Twist shielded pairs tightly to reduce electromagnetic noise.
- Power wires: Strip 5–7mm of insulation, crimp with solder-seal connectors for corrosion resistance.
- Trigger wire: Attach to the reverse light fuse slot using an add-a-fuse adapter for reliable switch-on timing.
Test connections in sequence: first, verify power flows to the sensor without engaging the ignition. Next, shift the transmission into neutral; the screen should remain dark. Finally, engage the gear–output must appear within 1 second. If latency exceeds this, reroute the trigger wire closer to the transmission control module. Secure all cables with adhesive-lined looms every 30cm to prevent abrasion against chassis edges.
Key Conductors for Back-View Sensor Integration
Start by locating the vehicle’s power feed controlled by the ignition switch–typically a 12V+ purple or yellow-striped wire. Verify its voltage remains active only when the key is in the “on” position using a multimeter. Connect the imaging device’s main power input here to prevent battery drain during idle periods.
Signal Trigger Line
The activation cue for the safety aid comes from the lighting circuit, usually a light green or solid brown wire near the tail lamp assembly. Probe this conductor while engaging the gear selector to confirm a brief 12V pulse–this confirms proper function. Solder this directly to the display module’s switching terminal, ensuring momentary activation.
Ground connections demand clean, unpainted metal surfaces; opt for an existing chassis stud near the rear bumper. Avoid daisy-chaining grounds through multiple components, as voltage drops may cause interference. Use a ring terminal crimped to at least 16 AWG wire for reliable bonding.
Video transmission relies on either coaxial RG-59 or shielded twisted pair. Identify the signal wire (often white-striped) in the manufacturer’s harness documentation. Strip just enough insulation to expose 2–3 mm of copper, avoiding excess which can introduce noise. Route this separately from high-current lines to maintain image clarity.
For vehicles with parking assistance features, isolate the CAN bus wires–typically orange/black and orange/white–before splicing. Tap into these only if integrating advanced driver aid overlays; otherwise, interference may corrupt sensor data. Confirm compatibility with an OBD-II tester to avoid false fault codes.
How to Integrate a Vehicle Rear View System Power Source
Locate the positive and negative terminals on your display unit’s harness. Identify the wires labeled for auxiliary power–typically a red cable for +12V and a black or brown for ground. Use a multimeter to verify voltage consistency (11.8–12.6V) at the rear lighting cluster; tap into the white or purple wire for a stable power source without triggering dashboard warnings. Avoid the brake light circuit–fluctuations from pedal activation can disrupt signal clarity.
Strip 5mm of insulation from the chosen power wire using precision strippers. Crimp a female spade connector (2.8mm) to the exposed strand, then attach a 5A inline fuse holder within 15cm of the connection point. Secure the fuse in place before splicing to prevent accidental short circuits during testing. For ground, bolt the bare end directly to an unpainted metal chassis point–clean the surface with emery cloth to ensure conductivity.
Connect the fused positive lead to the monitor’s power input, matching polarity. Use heat-shrink tubing over splices to prevent moisture ingress, applying a heat gun for a waterproof seal. Test the setup by engaging the gear selector; the screen should activate within 1.2 seconds. If latency exceeds this, recheck ground stability–resistance above 0.5 ohms causes signal lag. For vehicles with automatic dimming mirrors, splice into the mirror’s power feed instead to maintain sync with ambient light sensors.
Route excess wire length along existing harness channels, securing with nylon zip ties every 10cm. Avoid sharp edges or moving components–vibration can chafe insulation over time. Finalize by tucking the harness under trim panels, ensuring no exposed sections interfere with pedals, seats, or cargo areas. Reconnect the battery negative terminal last; a momentary spark indicates residual capacitance–normal unless followed by smoke, which signals a misstep requiring immediate disconnection.
Integrating Back-Up Imaging with Your Vehicle’s Backup Lamp System
Connect the imaging sensor’s power lead directly to the positive terminal of the backup lamp bulb. Most vehicles use a 12 V DC bulb rated between 18–27 W; verify the exact wattage printed on the bulb housing or fuse box. Tap the wire using a T-tap connector–avoid splicing with electrical tape, as vibration loosens connections. Secure the tap’s lock with a crimping tool and wrap the joint in heat-shrink tubing rated for automotive temperatures (–40 °C to 125 °C).
Voltage Drop Considerations
Measure voltage at the bulb terminal while the ignition is on and the transmission is in gear–values below 11.8 V indicate a weak circuit. Use the table below to select the correct wire gauge based on run distance and expected current draw:
| Distance (meters) | Current (amps) | Recommended Gauge (AWG) |
|---|---|---|
| 2 | 2 | 18 |
| 3 | 2 | 16 |
| 5 | 3 | 14 |
| 8 | 4 | 12 |
For runs exceeding 8 meters, fuse the circuit within 15 cm of the tap point using a mini fuse holder–match the fuse rating to the imaging unit’s maximum current plus 25 % margin. Route the harness along factory loom paths, avoiding sharp edges and moving parts. Use plastic-coated zip ties every 30 cm to prevent chafing.
Signal Grounding & Interference Mitigation
Ground the imaging unit’s shielded cable to the chassis at a bare-metal point near the lamp housing. Scrape away paint or corrosion until bright metal is exposed, then secure the ring terminal with a stainless-steel bolt torqued to 10 Nm. If flickering or static appears on the display, introduce a ferrite choke around the power lead where it exits the unit–orient the choke’s windings perpendicular to the wire bundle to block high-frequency noise. Test operation by engaging transmission gear with the engine running; the display should illuminate simultaneously with the backup lamp.
Key Errors in Visual Parking Aid Installation and Solutions
Connecting power directly to the vehicle’s tail light circuit without verifying voltage levels often damages sensors. Most modern systems operate on 12V, but LED lights may output 6V-9V–use a multimeter before splicing. Bypass the issue by tapping into the fuse box with an add-a-circuit fuse adapter, ensuring a stable 12V supply rated for at least 1.5A. Avoid ground loops by attaching the negative lead to a bare metal chassis point near the device, not a painted or coated surface.
Misaligned video cables cause signal degradation or complete failure. Coaxial or RCA connections must be secured with proper crimp connectors–not twisted wires wrapped in electrical tape. For longer runs (over 5 meters), use shielded cables to prevent interference from ignition systems. Test continuity with a cable tester before finalizing connections; a single broken strand can disrupt transmission.

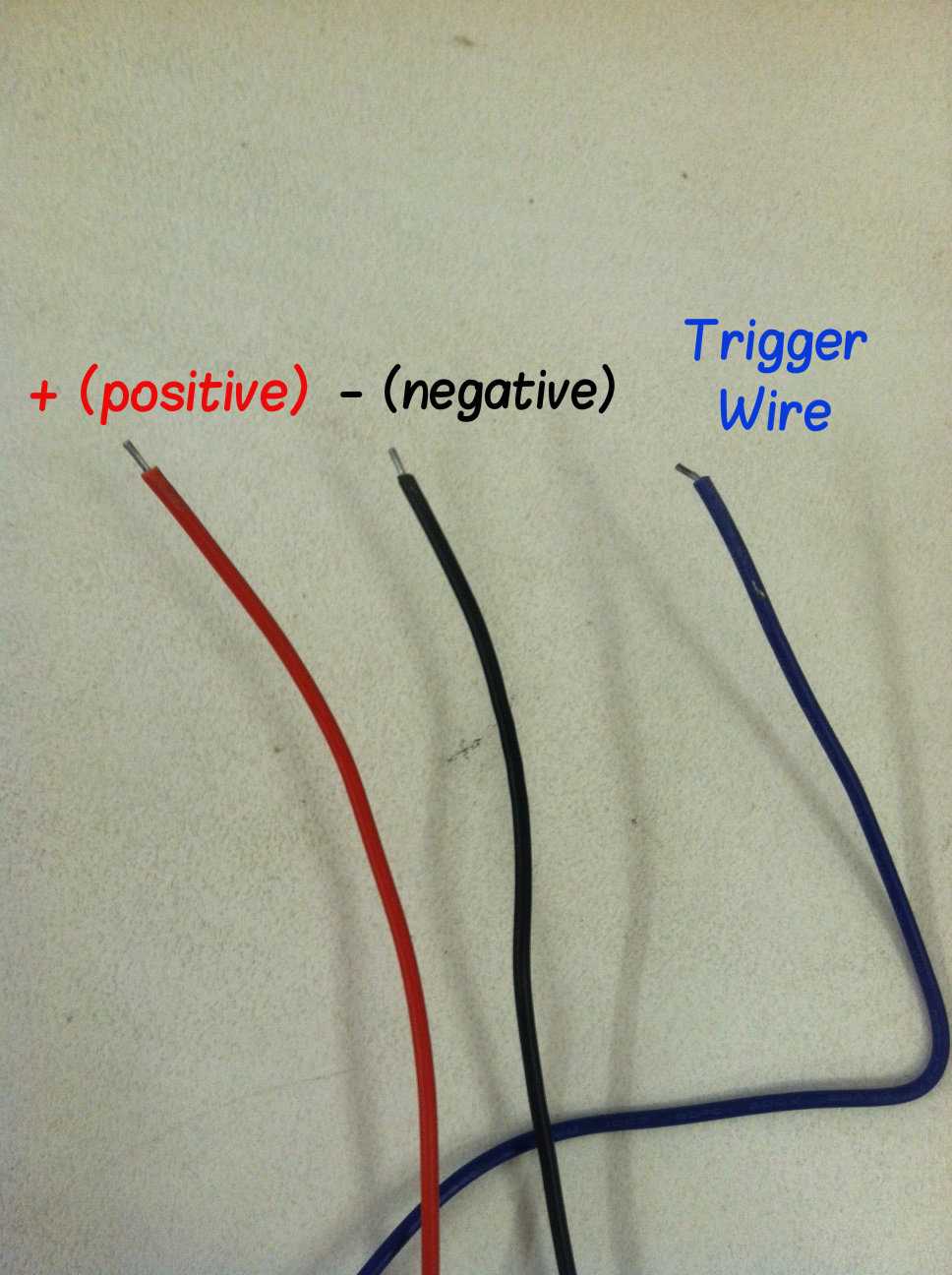

Ignoring polarity on power input terminals fries internal circuits instantly. Mark positive and negative conductors clearly–red for power, black for ground–before installation. If polarity is uncertain, reverse the leads temporarily while observing the display: flickering or no image confirms incorrect hookup. For DC power sources, always match the device’s input voltage range; a 24V tractor system, for example, requires a step-down converter for 12V components.
Overlooking the trigger signal for auto-switching to parking view leads to manual activation hassles. Wire the device to the gear shift’s reverse light circuit or a dedicated switch–never rely on the radio or accessory power. Use a relay if the current draw exceeds 200mA to prevent burning out the vehicle’s ECU or switch contacts. For aftermarket head units, verify the video input format (NTSC/PAL) matches the device’s output to avoid garbled display.
