Step-by-Step Reverse Light Circuit Connection Guide for Vehicles

Start by locating the switch directly linked to the transmission or gear selector in vehicles where this component isn’t integrated into the main harness. Models from Ford (2005–2012 F-150) and Toyota (2010–2015 Tacoma) use a dedicated microswitch mounted near the shifter. Disconnect the battery negative terminal before probing any connections to prevent shorts. Use a multimeter set to continuity mode to verify the switch closes when the selector engages the relevant position–this confirms the signal originates correctly before reaching the bulbs.

Trace the path from the switch to the rear lamp assemblies. Most standard systems split into two wires: one carrying 12V from the fuse block (typically 10–15A) and the other acting as ground. GM platforms (Silverado 2007–2013) often combine this circuit with the brake lamp harness, requiring a separate relay if retrofitting LED units. Cutting into factory wires risks corrosion; instead, pierce the insulation with a T-tap connector and seal with heat-shrink tubing. Ensure the positive lead connects to the bulb’s center terminal–polarity matters for CAN bus-compatible modules found in newer Subaru Outbacks (2018+).

For European-spec vehicles (Audi A4 B9, VW Golf MK7), check for pulse-width modulation on the feed wire using an oscilloscope–factory halogens draw 5A steady-state, while LEDs may flicker without a load resistor (6Ω, 50W). Avoid grounding through the tailgate hinge on SUVs like the Honda CR-V; duct-tape a secondary ground strap to unpainted chassis metal. If the circuit operates in reverse logic (common in Kei trucks), insert a SPDT relay with the coil triggered by the switch and the contacts wired to invert the signal before it reaches the lamps.

How to Connect Back-Up Signal Circuits Correctly

Start by locating the transmission switch on your vehicle–this component activates the rear signal when shifting into the reverse gear. Identify the power wire, usually a 12V lead from the fuse box or direct battery connection, ensuring it has a fuse rated between 10-15 amps for protection.

Use a multimeter to verify voltage at the switch terminals when the gear is engaged. A reading below 11V indicates a weak connection or corroded contacts, requiring cleaning or replacement of the switch. Avoid splicing into the brake signal wires, as this can cause false triggers or electrical interference.

• Ground connection: Attach the negative lead to a clean, unpainted metal surface near the rear assembly. Paint or rust will increase resistance, leading to dim bulbs or overheating.
• Wire gauge: For standard 18-21W bulbs, use 18-20 AWG copper wire. Thicker gauges waste energy; thinner ones risk melting.
• Relay use: Install a 4-pin relay if the signal draws over 5 amps to prevent switch burnout. Connect terminal 85 to the gear switch, 86 to ground, 30 to power, and 87 to the bulb.

Insulate all connections with heat-shrink tubing or electrical tape to prevent short circuits. Exposed wires near exhaust components will degrade quickly under high temperatures. Secure wiring away from moving parts using zip ties or loom tubing within 6 inches of the bulb socket to avoid vibration damage.

Test the circuit by engaging the gear while observing the rear bulbs. If they flicker, check for loose connections at the socket or switch. Dim illumination suggests a voltage drop–trace the power source back to the battery, testing each junction for resistance with the multimeter.

1. Debugging: Use a scan tool to confirm the transmission switch sends the correct signal to the ECU. Some vehicles require a specific resistance value (e.g., 200-500 ohms) for proper operation.
2. LED upgrades: Replace incandescent bulbs with LEDs only if the vehicle’s system supports them. LED reverse signals often need a load resistor (1-3 ohms, 50W) to prevent hyperflash or error codes.

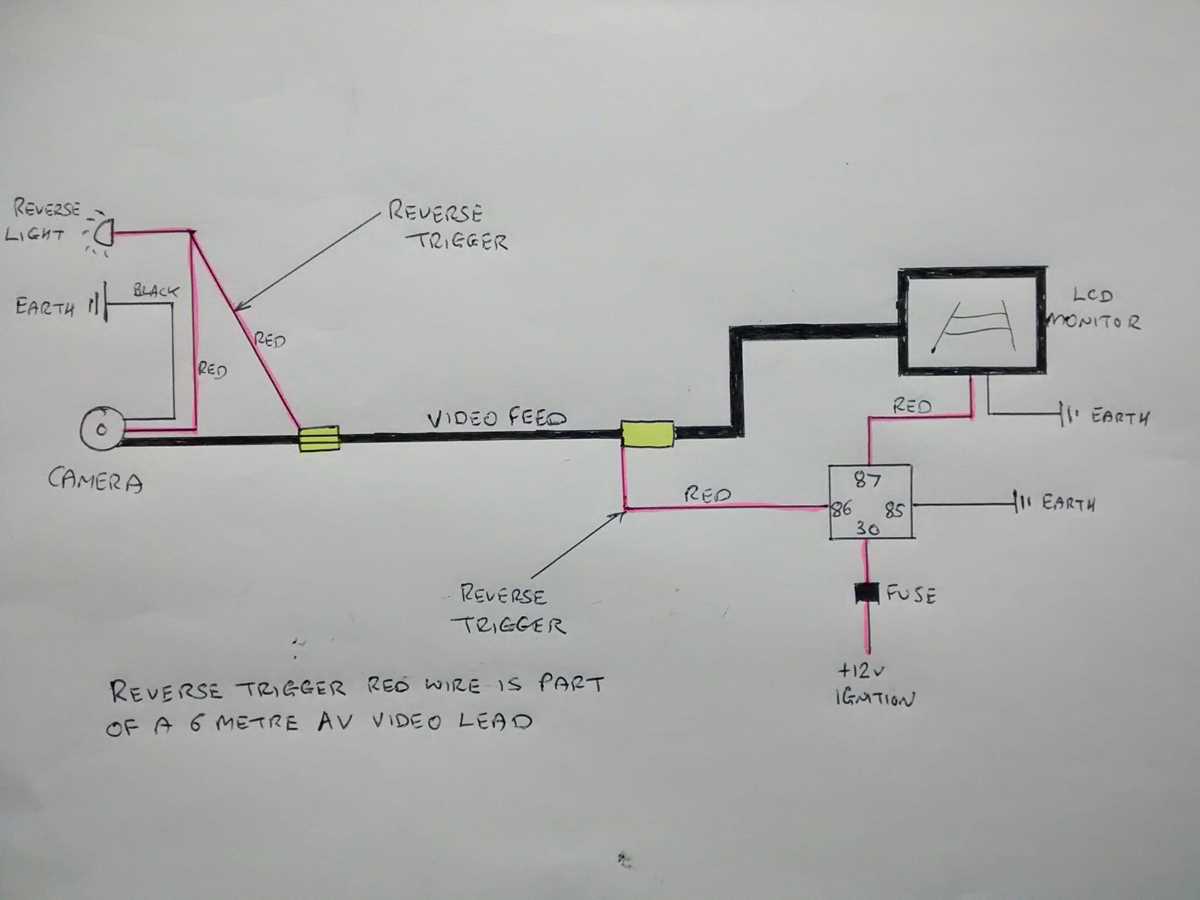

3. Aftermarket additions: For auxiliary cameras or sensors, tap into the signal wire before it reaches the bulb, not after, to ensure consistent voltage.

Selecting Proper Conductors for Backup Illumination Setup

Locate the vehicle’s schematic or repair manual–most manufacturers label the backup signal pair in color codes matching international standards. For European models, the standard is a solid black wire for ground and a green-yellow stripe (ISO) or violet (DIN) for the switched positive. Asian vehicles often use black for ground and a light blue wire for the power feed in reverse mode. Domestic American trucks typically pair black with a dark green conductor. Verify these against the manual, as variations exist even within the same brand.

Use a multimeter set to DC voltage (20V range) to test suspected cables. With the ignition on and gear engaged in the rear position, probe potential live wires–expect 12V on the correct one. Ground identification is equally critical; any wire showing continuity to the chassis or another known ground is valid. Avoid relying on insulation color alone, as aftermarket modifications or regional production differences often alter conventions.

Handling Non-Standard Configurations

For vehicles with integrated trailer harnesses or auxiliary cameras, additional wires may share the rear circuit. Trace each conductor back to the fuse box or central connector–backup feeds almost always originate from a dedicated 10A–15A fuse. If multiple wires carry current in the engaged position, isolate by disconnecting accessories like trailers or alarms until only the primary signal remains.

If dealing with older models lacking clear documentation, follow the harness from the transmission switch to the bulb socket. The switch side of the socket will connect to the switched positive; the opposite terminal always grounds to the body. Splice a temporary 12V test lamp between the two–if it illuminates only when the shifter moves to the lowest gear, the wires are correctly identified.

Twisted or shielded pairs in luxury or hybrid models indicate separate circuits for backup sensors or cameras. Confirm by checking for voltage drops: backup sensors typically draw 50–150mA, while illumination requires 1–3A. Isolate the higher-current line for the lighting system–this is the one requiring heavier gauge (minimum 18 AWG) for reliable operation.

Final Validation Steps

After identification, reinstall components and test under load. Reconnect the bulb or LED module and verify operation in daylight–some vehicles disable the circuit if ambient light is sufficient. For vehicles with automatic transmissions, ensure the neutral safety switch isn’t interfering; a brief flash of the circuit during key-on should occur before gear engagement.

Seal all connections with adhesive-lined heat shrink tubing, especially in exposed areas like tailgate harnesses. Moisture ingress in reverse signal lines is a leading cause of intermittent failures. For splices, use crimp connectors rated for automotive temperatures (-40°C to 125°C) and apply dielectric grease to prevent corrosion.

Step-by-Step Guide to Integrating Backup Illumination with a Control Device

Begin by identifying the vehicle’s rear signal circuit entry point. Locate the factory harness near the tail assembly–typically a bundled cable with color-coded wires. Use a multimeter to verify the 12V positive lead (often white with a stripe) and ground (black or brown). Confirm output only activates when the transmission engages the designated gear.

Select a manual toggle rated for at least 20A to handle the current draw of the bulbs. Mount the switch within easy reach but away from moving pedals or steering components. Drill a hole in the dashboard panel, secure the switch with its locking nut, and route wires through the firewall using an existing grommet to prevent chafing.

• Strip 6mm of insulation from each wire end using a dedicated tool–avoid nicking copper strands.
• Twist strands tightly before crimping connectors to ensure maximum contact surface.
• Apply heat-shrink tubing over crimped joints, then use a heat gun to seal against moisture.

Connect the switch’s input terminal to the verified 12V source using a 16-gauge wire. Attach the output terminal to the bulb’s positive terminal via another 16-gauge wire. For ground, run a separate 14-gauge wire from the bulb’s negative terminal directly to the vehicle chassis–a self-tapping screw near an unpainted metal surface ensures reliable conductivity.

Test functionality before finalizing connections. Toggle the switch while the vehicle is stationary and transmission in neutral–the bulbs should remain off. Shift into the designated gear to confirm illumination activates only then. If bulbs stay lit regardless of gear position, revisit the switch wiring to isolate the fault.

Troubleshooting Common Issues

1. Flickering bulbs: Check for loose wire connections or corroded terminals. Clean with a wire brush and re-crimp.
2. No power at switch: Verify fuse integrity–replace with identical rating if blown. Test continuity across the fuse holder with the multimeter.
3. Overheating wires: Ensure wire gauge matches bulb wattage (16-gauge for up to 55W, 14-gauge for 75W+).

Secure all wires with zip ties every 15cm to prevent vibration-induced shorts. Route wires above suspension components and away from sharp edges or exhaust systems. Use spiral wrap for added protection in high-abrasion areas. Recheck all connections after securing to confirm no tension or pinching occurs.

A final inspection should include verifying all tools and debris are removed from the vehicle interior. Test drive on a low-traffic road, engaging the switch multiple times to ensure consistent operation. Document the exact wiring path and component locations for future reference–label wire ends with masking tape if modifications are planned later.
