Step-by-Step RF Amplifier Circuit Design and Schematics Guide

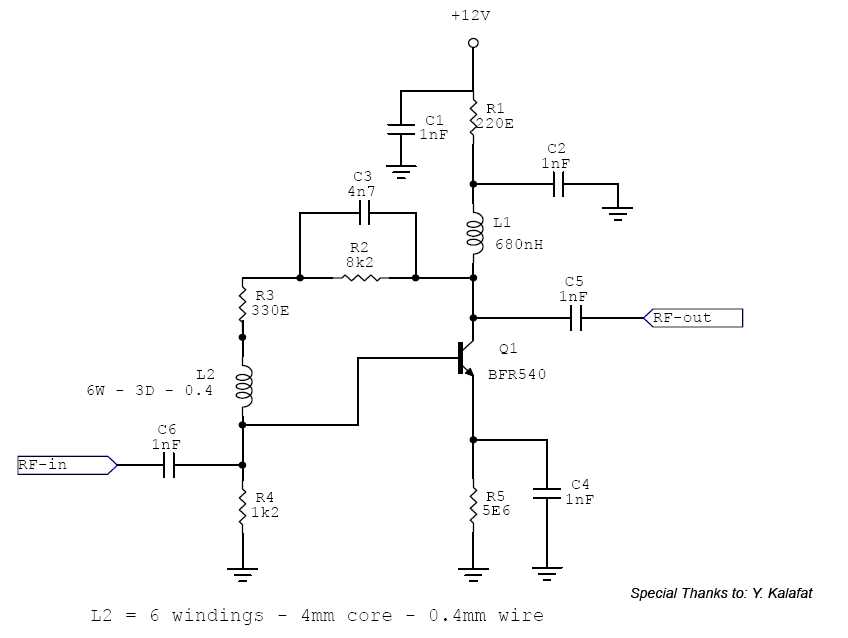

For high-frequency applications up to 500 MHz, use a two-stage bipolar junction transistor configuration with proper impedance matching at input and output. The emitter-follower input stage reduces source loading, while the common-emitter output stage provides necessary gain. Implement LC networks for inter-stage coupling–to avoid signal attenuation, ensure component values align with target frequency ranges.

Preferred components: For RF transistors, select the BFR92P (NPN, 5 GHz fT) or similar low-noise devices. Passive elements should include high-Q inductors (e.g., air-core coils with 0.5–2.5 µH) and ceramic capacitors (10 pF–1 nF) for stability. Avoid electrolytics in signal paths due to parasitic losses.

Biasing requires precision–use a voltage divider for stable operation, with resistor values calculated to maintain collector current between 5–20 mA. For temperatures above 70°C, incorporate thermal compensation via negative feedback or bias-stabilizing diodes. Power supply decoupling is non-negotiable: place 0.1 µF bypass capacitors within 10 mm of each transistor’s power pin to suppress oscillations.

Grounding demands rigor–employ a star topology with a single reference point to minimize return-path interference. Shield sensitive traces using 1 oz copper pours tied to the ground plane, especially for PCB layouts above 100 MHz. If parasitic oscillations occur, add ferrite beads (e.g., Fair-Rite 25-material) in series with supply lines or base resistors (47–220 Ω) to dampen unwanted feedback.

Validation procedure: Test gain linearity with a network analyzer across the bandwidth; deviations exceeding ±1 dB suggest improper matching or bias drift. Noise figure should remain below 3 dB–adjust emitter degeneration resistors (10–50 Ω) if excessive. For pulse applications, verify rise/fall times (

Alternative topologies for specialized cases: GaAs FETs (e.g., ATF-55143) excel in low-noise front-ends up to 6 GHz, while MOSFETs (e.g., MRF150) handle higher power (10–50 W) in linear modes. For wideband designs (e.g., 2–200 MHz), use feedback pairs with resistive loading to flatten response curves–but expect reduced efficiency.

Designing High-Frequency Signal Boosters: Key Schematics and Components

Start with a bipolar junction transistor (BJT) or field-effect transistor (FET) matched to your target frequency range. For VHF/UHF applications (30 MHz–3 GHz), the BFG540 or MRF901 offer low noise figures (NF < 1.5 dB) and high power gain (G > 15 dB). Ensure the active device’s f_T exceeds the operating frequency by at least 3–5×. Bias the stage for class A operation with a collector/drain current of 10–50 mA to balance linearity and efficiency.

Frequency Band	Recommended Transistor	Power Gain (dB)	Noise Figure (dB)	Output Power (dBm)
HF (3–30 MHz)	2SC5739	18–22	0.8–1.2	+20–+24
VHF (30–300 MHz)	BFG591	16–20	1.0–1.4	+18–+22
UHF (300 MHz–3 GHz)	ATF-54143	14–18	0.5–0.9	+15–+19
SHF (>3 GHz)	HMC451LC3	10–13	1.8–2.2	+12–+16

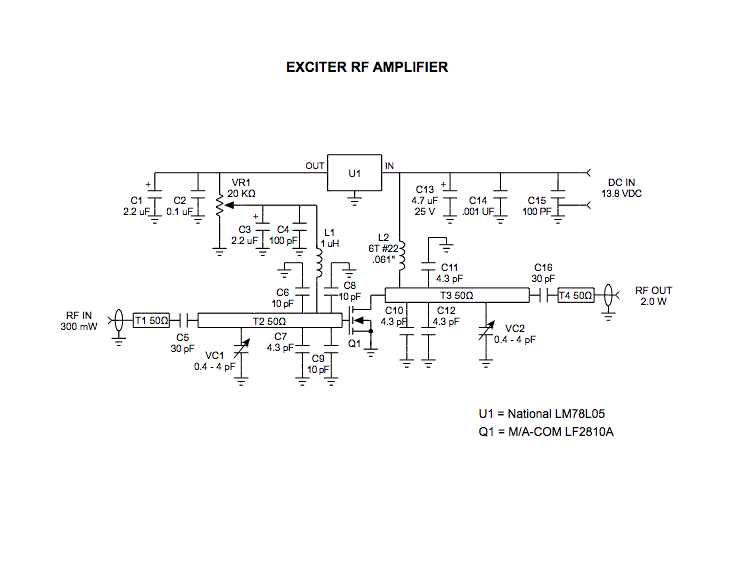

Impedance matching networks must account for parasitic reactances at RF. Use microstrip lines on a substrate with ε_r ≈ 3–4 (e.g., Rogers RO4350B) to transform 50 Ω to the transistor’s optimal load impedance, typically 10–50 Ω. For discrete designs, employ low-loss capacitors (NP0/C0G dielectric) and inductors with Q > 50 at 100 MHz. For example, a π-network with a 10 pF series capacitor, 47 nH shunt inductor, and 22 pF output capacitor achieves <0.5 dB insertion loss at 433 MHz.

Stability demands a feedback network (e.g., 1 kΩ resistor in series with 1 pF capacitor from collector to base) to prevent oscillations below f_T. Thermal management requires a copper pour (50×50 mm, 2 oz/ft²) beneath the transistor, reducing junction temperature by 15–20°C. Measure S-parameters across temperature ranges (–40°C to +85°C) to validate performance; an ideal layout minimizes stray inductance (<0.5 nH/cm) and capacitance (<0.3 pF/cm) in signal paths.

Key Components for a Basic RF Signal Booster Design

Select a transistor optimized for high-frequency performance, such as the BFG591 (5 GHz, 15 dB gain) or MRF904 (8 GHz, 12 dB gain). Match the active device to the target band; for VHF applications (30–300 MHz), bipolar junction transistors (BJTs) like the 2N3866 offer 10 dB gain at 175 MHz with 5 W output. For UHF and above (300 MHz–3 GHz), prioritize GaAs FETs (ATF-54143) providing 18 dB gain at 2 GHz with a noise figure under 0.5 dB. Ensure the chosen device handles the expected power level–check datasheet values for P_1dB (1 dB compression point) and f_T (transition frequency), which should exceed the working frequency by at least 3×.

• Input/Output Matching Networks: Design microstrip lines or lumped-element networks to transform impedance to 50 Ω. For frequencies below 1 GHz, use ceramic capacitors (C0G/NP0 dielectric, 0.1–100 pF) and high-Q inductors (wire-wound or multilayer, Q > 50). Above 1 GHz, employ transmission lines–calculate length using λ/4 transformers for impedance matching. Example: For a 2.4 GHz design, a λ/4 line on FR-4 (ε_r = 4.4) requires a 18.2 mm trace; adjust width to target 50 Ω characteristic impedance using an online calculator like Saturn PCB Toolkit.
• DC Biasing: Stabilize quiescent current with a voltage divider or active bias network. For BJTs, use emitter degeneration (resistor value R_E = (V_BE / I_C)) to improve linearity. Example: For 2N3866 (V_BE = 0.7 V, I_C = 100 mA), R_E ≈ 7 Ω. Add bypass capacitors (100 nF ceramic + 10 µF electrolytic) near power pins to suppress low-frequency noise.
• Feedback Control: Add resistive feedback (1–10 kΩ shunt resistor) between collector/drain and base/gate to flatten gain response and improve stability. Verify stability using Rollett’s factor (k) from S-parameters; target k > 1 across the band. Use a vector network analyzer (VNA) to measure S₁₁ and S₂₂–poor return loss (< –10 dB) indicates mismatched networks.
• Thermal Management: Mount the active device on a copper pour (minimum 1 oz/ft²) or a heatsink if P_DC > 1 W. Example: BLF188XR (LDMOS, 150 W) requires a θ_JA < 0.5°C/W heatsink. Use thermal vias (0.3 mm diameter, 1 mm pitch) to connect the die-attach pad to the ground plane.

Step-by-Step PCB Layout Techniques for RF Designs

Minimize trace inductance by keeping signal paths under 0.1λ for the highest frequency component. Use microstrip or stripline configurations with precise impedance control–50&ohm; for most RF systems–calculated via Z₀ = (87 / √(ε_r + 1.41)) * ln(5.98h / (0.8w + t)), where h is dielectric thickness, w trace width, and t copper thickness. Ground planes should be uninterrupted beneath RF traces; avoid splits, stitch vias every 0.05λ along edges to suppress radiative emissions.

Isolate sensitive components using partitioned ground zones. High-gain stages, mixers, and oscillators require dedicated ground areas, connected at a single star point to the main ground. Place decoupling capacitors (typically 100pF, 0402 size) within 2mm of IC power pins, with vias directly underneath to reduce loop area. For PLL loops, use dual decoupling–10nF ceramic for low-frequency stability and 100pF for high-frequency noise rejection.

Via Stitching and Shielding Strategies

• Space vias no farther than 0.15λ apart at board edges to create an effective Faraday cage.
• Use at least two vias for every capacitor pad to lower inductance–parallel paths reduce loop impedance by 40%.
• For frequencies above 1GHz, employ via fences around radiating elements; spacing between fences should not exceed 0.1λ.
• Backdrill vias that extend beyond the required layer depth to eliminate stub effects–critical for signals above 2GHz.

Route differential pairs with matched lengths and controlled skew–target ±5mil tolerance for 10GHz signals. Maintain 3W spacing between differential traces (where W is trace width) to avoid cross-coupling; increase to 5W near noisy components. For impedance matching, use tapered traces or step changes instead of abrupt right angles–45° mitered corners reduce reflections by 12dB compared to 90° bends.

Thermal management dictates component placement–locate power-dissipating parts (e.g., LDMOS transistors) near board edges or dedicated copper pours. Use thermal vias with 1mm diameter, spaced no farther than 5mm apart, to conduct heat to inner or bottom layers. Avoid placing temperature-sensitive parts (e.g., VCOs) adjacent to heat sources; maintain &geq;20mm separation for stability.

1. Validate impedance with time-domain reflectometry (TDR) measurements before and after etching.
2. Perform EM simulation (e.g., Ansys HFSS) for critical nets–especially filters and matching networks–to identify resonance points.
3. Test radiated emissions using a spectrum analyzer with near-field probes; peak emissions should not exceed -40dBm at 3m distance.
4. Confirm ground continuity with a DC resistance test–target <1m&ohm; between any two points on the same ground plane.

Impedance Alignment in High-Frequency Signal Boosters

Use a Smith chart for precise impedance matching between stages to minimize reflections. For a 50-ohm system, aim for a return loss better than -20 dB at the target frequency, adjusting component values in real-time with a vector network analyzer. L-networks with variable capacitors (5–100 pF) and inductors (10–200 nH) allow fine-tuning without redesigning the entire path. Avoid fixed-value components in high-power stages as thermal drift can shift impedance by 5–10 ohms.

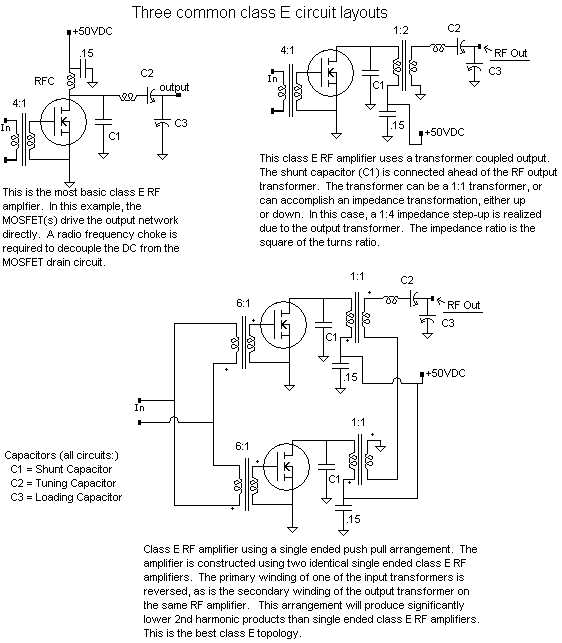

Stage coupling via transformers with bifilar or trifilar windings on a ferrite core (e.g., FT-37-43) reduces insertion loss below 0.5 dB while handling 10W+. For broadband applications, stagger-tuned resonant circuits using coupled coils can maintain flat response across an octave, but careful shielding is required to prevent parasitic coupling. Always verify match with a directional coupler and spectrum analyzer–even minor mismatches degrade efficiency by 15–30%.

Microstrip traces on FR-4 PCB material achieve 50-ohm impedance with a trace width of 1.7 mm for a 1.6 mm substrate thickness, but reduce width to 0.5 mm for 2-layer boards using 0.8 mm prepreg. For 2.4 GHz designs, compensate for via inductance (≈0.2 nH) by adding small series capacitors (1–3 pF) at trace transitions.
