Understanding RF Module Circuit Design and Component Layout Guide

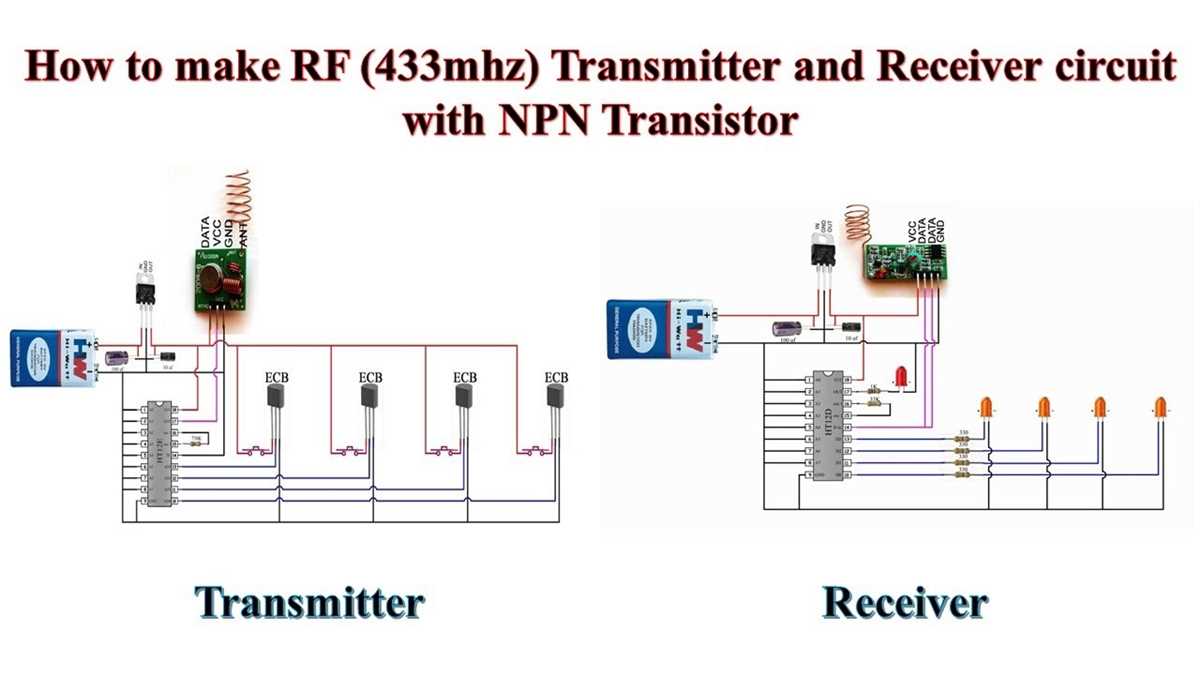

rf module schematic diagram

Start with a SA612AN mixer IC for low-power RF front ends–its double-balanced Gilbert-cell topology minimizes feedthrough and improves signal purity. Pair it with a Colpitts oscillator using a 2N3904 transistor and a tapped inductor (e.g., Coilcraft 142-07J12S) to ensure stable oscillation at 433 MHz without harmonic leakage. Keep trace lengths under λ/20 (≈35 mm at 433 MHz) to prevent impedance mismatches; use 0.5 oz copper with 2.5 mm width for 50 Ω microstrip lines.

Decouple power rails with 0.1 µF X7R ceramic caps at the IC’s VCC pin and 10 µF tantalum caps at the board’s input to suppress noise. For antennal matching, employ a π-network with a 12 pF trimmer cap and a 68 nH inductor to trim VSWR below 1.5:1. Avoid ground loops by dedicating a single star-ground point beneath the SA612; split analog and digital grounds with a zero-ohm jumper if mixed-signal components coexist.

Test frequency stability with an Agilent E4438C signal generator set to -30 dBm; expect phase noise ≤-110 dBc/Hz at 10 kHz offset. If using a superregenerative receiver, add a 74HC04 hex inverter with RC feedback (R=10kΩ, C=100pF) to quench oscillations predictably. For PCB materials, select Rogers RO4003C (εr=3.38) over FR4–its loss tangent of 0.0027 at 1 GHz reduces signal attenuation by up to 30%.

Calibrate sensitivity using a Siglent SSA3032X spectrum analyzer; aim for 120 dBm at 1.2 kBaud. If interference appears, shield critical sections with mu-metal foil (µ ≥ 10,000) grounded via vias spaced 0.5 mm apart. For ASK/OOK modulation, drive the data pin with a TS555 timer IC at 1/3 VCC to optimize rise/fall times.

Designing RF Circuit Blueprints: Key Components and Layout Rules

Start with a PI-section matching network between the transmitter IC and antenna to optimize power transfer at 433 MHz. Use a 5.6 pF shunt capacitor followed by a 12 nH series inductor and a parallel 2.2 pF capacitor; these values reduce VSWR below 1.5 for 50 Ω systems. Position vias directly beneath inductors to ground planes, spacing them no closer than 0.8 mm to prevent parasitic coupling. Route trace widths at 0.5 mm for 3.3 V logic signals and 0.8 mm for RF paths, maintaining a minimum 0.3 mm clearance from adjacent traces to limit crosstalk below -45 dB.

Component Part Number Tolerance Placement Distance (mm)
Shunt Capacitor Murata GRM188 ±0.1 pF ≤1.5 from IC pad
Series Inductor Coilcraft 0603CS ±2% ≤2.0 between caps
Parallel Capacitor AVX AQ11 ±0.25 pF >3.0 from antenna feed

Keep the entire matching network within a 30 mm² rectangle to confine phase distortion; extend ground fills underneath with polygon pours, stitching vias every 5 mm to suppress edge radiation. Validate reflections with a vector network analyzer, targeting S11 below -18 dB across the 425–440 MHz band.

Key Components for a Basic RF Transmitter and Receiver Circuit

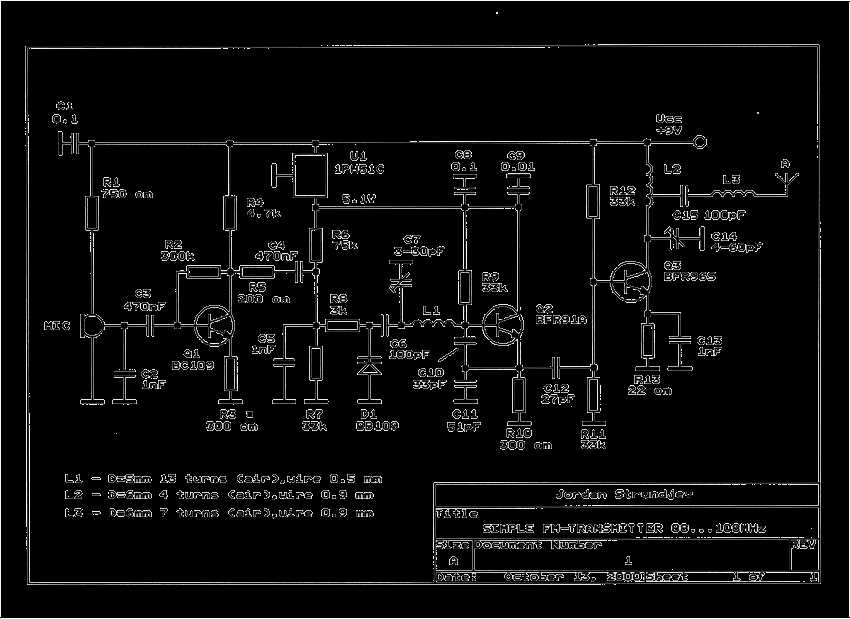

rf module schematic diagram

Select a voltage-controlled oscillator (VCO) with a frequency range matching your application–common bands include 315 MHz, 433 MHz, or 2.4 GHz. For 433 MHz, the SA612A or MAX2606 deliver stable output with minimal external components. Pair the VCO with a varactor diode (e.g., BB145) to enable frequency tuning via a DC control voltage. Ensure the tank circuit uses high-Q inductors (10-22 nH) and low-ESR capacitors (1-10 pF) to minimize phase noise. For short-range designs, a Colpitts oscillator with a single transistor (2N3904) can suffice, though power output will be limited to ~0 dBm.

A power amplifier (PA) stage is critical for extending range–integrate a MGA-30889 or discrete solution using a BFG591 transistor biased in Class C for efficiency. Match the PA output to 50 Ω using a pi-network (two capacitors, one inductor) to reduce reflections; for 433 MHz, values of 33 pF, 12 nH, 33 pF work reliably. Avoid harmonics by adding a low-pass filter (Murata LFL143 series) after the PA. For battery operation, use a dedicated PA IC like the RF3140, which integrates bias control and shutdown pins to conserve power when transmitting is unnecessary.

The receiver demands a low-noise amplifier (LNA) like the SPF5189Z to boost weak signals before demodulation. Follow the LNA with a mixer (NE612) to downconvert RF to an intermediate frequency (IF) of 455 kHz or 10.7 MHz, where filtering is simpler. Use ceramic filters (CFS455E) for IF selectivity–bandwidths of 10-25 kHz balance sensitivity and interference rejection. For ASK/OOK modulation, demodulate the IF signal with a diode detector (1N5711) or a dedicated IC (TDA5200), which includes automatic gain control (AGC) to handle varying input levels.

For stable operation, regulate the supply voltage with an AP2112 (for 3.3V) or LM1117 (for 5V), bypassing with a 100 nF capacitor and 10 μF tantalum capacitor near each IC. Clock references for the transmitter VCO and receiver local oscillator (LO) should derive from a stable crystal (10 MHz AT-cut) or MEMS oscillator (SiT1534) with

Test each stage incrementally: verify transmitter output with a spectrum analyzer (Rigol DSA815), checking for spurious emissions–FCC Part 15 limits require Agilent E4438C), targeting -3 BER. If range is insufficient, double-check impedance matching with a vector network analyzer (VNA), and ensure all inductors are shielded to prevent coupling. Persistent instability often stems from poor layout–route RF traces

Step-by-Step Wiring Guide for RF Transceivers with Arduino

Connect the VCC pin of the RF unit directly to the Arduino’s 5V output–most low-cost 433 MHz or 315 MHz units operate at this voltage. Skip voltage regulators unless the datasheet explicitly warns of voltage sensitivity, as unnecessary components add resistance and reduce signal stability. Use a 0.1µF ceramic capacitor between VCC and GND, placed within 2 cm of the power pins, to filter high-frequency noise from the board.

Wire the GND pin to any Arduino ground pad; consistency here prevents ground loops. Cross-check the unit’s pinout–common labels include GND, +5V, DATA (or T×D/R×D), and ANT. If the transceiver lacks an antenna connector, solder a 173 mm straight copper wire (for 433 MHz) or 238 mm (for 315 MHz) to the ANT pad to maximize range. Avoid bending the wire sharply; a gradual curve maintains impedance.

Signal Connections and Code Integration

Attach the DATA line to Arduino digital pin D12 for transmit (TX) operations or D11 for receive (RX). These pins align with the default SoftwareSerial or VirtualWire libraries, minimizing setup changes. For bidirectional communication, split the link into separate TX and RX wires, each connected to distinct Arduino pins. Keep wires under 10 cm; longer leads pick up interference.

Install the RH_ASK (RadioHead) library via Arduino’s Library Manager. Replace default constructor parameters (RH_ASK driver(2000, 11, 12);) with your pin assignments if deviations exist. Upload the ask_transmitter.ino or ask_receiver.ino example sketch, lowering the speed parameter to 500 for cheaper units to improve decoding accuracy. Test range incrementally–start at 1 meter, increasing distance only after stable transmission.

Solder a 10 kΩ pull-up resistor between the DATA line and VCC if the transceiver randomly triggers; cheaper units lack internal debounce circuits. Shield the unit with aluminum foil tape, grounded to Arduino GND, when operating near motors or switching power supplies. For troubleshooting, probe the DATA line with an oscilloscope–clean square waves at 3–5 V should appear during transmission; distorted signals indicate power instability or antenna mismatch.

Common Pin Configurations for Widely Used RF Transceivers (433MHz, NRF24L01)

For the 433MHz ASK/OOK transceiver, pins typically follow this arrangement: VCC (3.3V–5V), GND, DATA (single bidirectional line), ANT (50Ω output for external antenna). Always decouple VCC with a 10µF capacitor and a 0.1µF ceramic capacitor directly at the footprint to suppress noise. Avoid routing the DATA line parallel to high-speed traces–cross-talk degrades signal integrity. Use a 17cm monopole antenna for optimal range when PCB constraints permit; shorter lengths reduce coverage disproportionately.

Key Variations Across Boards

  • HC-12: Expands to six pins:
    • SET (configuration mode entry)
    • RXD/TXD (UART interface)
    • VCC/GND (3.2V–5.5V, internally regulated)

    Avoid tying SET high during firmware updates–this forces factory defaults. For serial passthrough, pull SET low briefly after power-up to avoid unintended mode switches.

  • FS1000A/XY-MK-5V: Minimal four-pin pairing:
    • ATAD (bidirectional data)
    • VCC (3V–12V, linear regulator onboard)

    Keep supply voltage below 6V for prolonged operation; thermal derating occurs above 5V. Insert a 1N4007 diode on VCC if powering from raw lithium cells to prevent backflow.

NRF24L01+ adheres to an eight-pin layout but demands strict grounding discipline. Pin 1 (GND) must connect to a solid ground plane; via stitching around the pad reduces ground loops. Pin 2 (VCC) requires 1.9V–3.6V–5V damages the die. Pins 3–4 (CE, CSN) interface via SPI; keep traces under 20mm to minimize capacitive loading. Pins 5–6 (SCK, MOSI) tolerate up to 8MHz SPI clock; decouple VCC with a 4.7µF tantalum capacitor alongside a 0.1µF ceramic.

Missteps often occur at the IRQ (pin 8) and MISO (pin 7). IRQ is active-low–pull high via 10kΩ resistor to prevent false triggers. MISO tri-states during power-down; omit series resistors unless driving long traces (>100mm), where a 22Ω resistor dampens reflections. For antenna matching on the ANT pair (pins 3–4 on PA+LNA variants), solder a 2.4pF capacitor between the pads and a 1.5nH shunt inductor to GND for 2.4GHz optimization.

Voltage-Level Translation Pitfalls

NRF24L01+ tolerates 3.3V logic exclusively. When interfacing with 5V microcontrollers (e.g., Arduino Mega), employ a bi-directional level shifter like TXB0104 or discrete MOSFETs:

  1. Tie NRF’s VCC to 3.3V regulator output.
  2. Connect MCU’s 5V SCK/MOSI to shifter’s high-side, low-side to NRF.
  3. Leave MISO untranslated (NRF’s output is 3.3V-compatible with most 5V logic).

Ommiting translation corrupts SPI transactions; verify data integrity with a logic analyzer snapshot at 2MHz clock before deploying.
