Complete RGB LED Strip Connection Guide with Detailed Circuit Layout
Begin by connecting the color-changing tape’s positive terminal to a 12V DC power supply using 18 AWG copper wire for minimal voltage drop. Ensure the controller’s input matches the tape’s rated amperage–typically 6A per 5-meter segment for high-density variants–to prevent overheating. Ground the common cathode to the power supply’s negative terminal via a 10A fuse for safety, especially in prolonged installations.
Attach the signal wires (red, green, blue) from the tape to the controller’s corresponding output channels, securing connections with solder or waterproof connectors if exposed to moisture. For extended runs exceeding 10 meters, inject power at multiple points using 20AWG wire to maintain uniform brightness. Avoid daisy-chaining controllers; instead, wire each unit independently to a dedicated breaker-rated switch.
Test polarity before finalization–reverse current risks permanent damage to diodes. Use a multimeter to verify 12V across the terminals before energizing. For dynamic effects, program the controller’s PWM frequency above 1kHz to eliminate visible flicker. If dimming is required, integrate a 10kΩ potentiometer between the power source and controller’s dimming input, ensuring compatibility with the tape’s specifications.
For outdoor setups, encase all connections in heat-shrink tubing and seal with dielectric grease to repel condensation. Mount the power supply on a non-flammable surface, away from direct sunlight or heat sources. Label each wire by function (e.g., +V, R, G, B, COM) to streamline troubleshooting. Adhere to local electrical codes regarding low-voltage installations, particularly in commercial or high-visibility areas.
Connecting Multicolor Lighting Tapes: Key Schemes
Use a 12V or 24V power supply matching the tape’s voltage rating–most common variants require 2A per meter. Connect the power adapter’s positive (+) terminal to the tape’s anode and the negative (-) to the cathode. For remote-controlled or smart variants, add a 4-pin connector: V+ goes to power, R/G/B to their respective channels, and GND to ground. Always verify polarity with a multimeter before energizing.

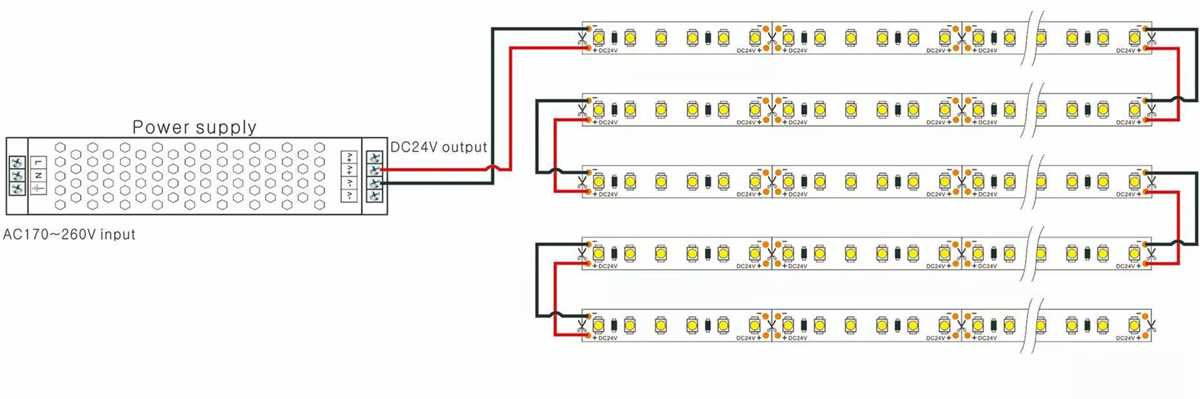

For split installations, insert amplifiers every 5 meters to prevent voltage drop. Each segment needs independent power injection–parallel connections outperform series wiring. Use 18-20 AWG copper wire for runs under 3 meters; switch to 16 AWG for longer distances. Avoid daisy-chaining more than two segments without an amplifier, as brightness will degrade unevenly.
Controllers must handle the total wattage of the connected load–calculate it by multiplying tape length (meters) by rated power per meter (usually 7.2W or 14.4W). Overloading causas flickering or overheating. For digital addressable variants (e.g., WS2812B), use a microcontroller with a 5V logic level and a separate power supply for the data line to ensure signal integrity.
Solder joints should use rosin-core flux and heat-shrink tubing for insulation. Twist wires tightly before soldering to prevent cold joints. For waterproof variants (IP65/IP67), use silicone sealant around connectors to protect against moisture. Never connect power while adjusting wires–short circuits will damage both the tape and the power supply.
Test configurations with a 0.5-second power-on before permanent installation. Observe color consistency and brightness uniformity. If using aluminum channels, ensure adequate cooling–LEDs lose efficiency at temperatures above 60°C. For outdoor use, opt for an IP68-rated power supply and weatherproof connectors rated for the operating environment.
How to Connect Colored Light Segments to a Direct Current Source
Start by selecting a transformer rated for the total wattage of your installation. Multiply the segment length in meters by its power consumption per meter (typically 5–24 watts). Add 20% overhead to prevent overheating. A 10-meter reel requiring 14 watts per meter needs at least a 168-watt supply (10 × 14 × 1.2).
Identify the anode (+), cathode (–), and color channels on the segment connector. Most four-wire junctions use red for power (+12V or +24V), black for ground, and green/blue for the remaining hues. Label each conductor with heat-shrink tubing to avoid polarity errors before cutting any wires.
Required Tools & Components
- Power transformer with appropriate voltage and wattage
- 4-conductor cable (minimum 18 AWG for runs under 5 meters, 16 AWG for longer spans)
- Waterproof butt splices (if outdoors)
- Multimeter (set to DC voltage, 20V range)
- Wire strippers calibrated for 0.5–1.0 mm² conductors
- Heat gun or soldering iron (for permanent joints)
Connect the transformer’s positive terminal to the segment’s anode and the negative terminal to the cathode. For multi-zone setups, use a common bus for ground and run individual color channels to separate controllers. Verify voltage drop across the entire run–no less than 11.8V for 12V systems–to ensure uniform brightness.
Secure all joints with heat-shrink tubing or silicone-filled connectors to prevent moisture ingress. Strain-relief the cable at entry points using cable glands or adhesive-lined clips. Test each channel individually before final assembly; flickering often indicates a loose connection rather than a defective segment.
Troubleshooting Common Issues
- Inconsistent brightness: Re-check voltage at both ends of the segment.
- Flickering: Resolder joints or replace suspect connectors.
- Dead channel: Swap the controller’s output to isolate the fault.
- Overheating: Reduce segment density or upgrade the transformer wattage.
For dimming functionality, integrate a PWM controller between the transformer and segment. Match the controller’s current rating to the segment’s requirements–overloading causes premature failure. Always mount controllers in ventilated enclosures to prevent thermal throttling.
Step-by-Step Guide for Soldering Multicolor Illumination Tape Connections
Use a 25-30W temperature-controlled soldering iron with a fine chisel tip (1.5-2mm) and 60/40 rosin-core solder with a 0.5mm diameter for precision joints. Pre-tin both the tape contact pads and connecting wires–apply solder to cover 1mm of the pad surface and 2mm of the wire strands within 3 seconds to prevent thermal damage to the flexible circuit substrate. Maintain iron contact at 320°C for standard copper-based pads or 280°C for aluminum-backed variants, verified with a calibrated thermometer.
Secure connections with heat-resistant polyimide tape before applying flux remover (isopropyl alcohol >90% purity) to eliminate corrosive residues. Verify continuity post-assembly using a multimeter in diode test mode: red probe to +12V (common anode variants) or +VCC (common cathode), black probe to R/G/B channels; valid joints register 1.8-2.2V forward voltage. For extended runs (>5m), derate power injection points every 3m using 18AWG silicone-jacketed cables to compensate for voltage drop–consult voltage drop tables below for exact wire gauge adjustments based on current draw.
| Tape Density (LEDs/m) | Current Draw (A/m) | Recommended Wire Gauge | Max Run Length (m) |
|---|---|---|---|
| 30 | 0.6 | 22 AWG | 5 |
| 60 | 1.2 | 20 AWG | 3 |
| 120 | 2.4 | 18 AWG | 1.5 |
Selecting the Optimal Control Unit for Your Color-Changing Light Installation
Prioritize controllers with at least 15A per channel for installations exceeding 10 meters to prevent voltage sag and flickering. Inline amplifiers every 5 meters maintain signal integrity for SPI-based systems, while DMX512 devices offer scalability up to 512 channels with consistent timing. Verify the unit’s protocol compatibility–WS2812B addressable arrays require precise timing, whereas analog 4-pin variants demand consistent power delivery without PWM interference.
Key Specifications to Verify Before Purchase
Check for voltage compatibility (12V/24V/DC), ensuring alignment with your power supply’s output. For synchronized setups, select devices supporting Art-Net or sACN protocols, which handle bandwidth-intensive displays without latency. Wireless alternatives like Bluetooth LE work for sub-300-LED arrays; beyond that, hardwired solutions with error-checking capabilities (e.g., LPD6803) prevent data corruption. Examine the controller’s maximum load–derate by 20% to account for real-world conditions like temperature fluctuations and resistance in cabling.
Frequent Errors in Connecting Multi-Color Light Tapes and Prevention Techniques
Incorrect voltage matching causes overheating and premature failure. Always verify the power source output matches the light tape’s requirements–most flexible illumination modules operate at 12V or 24V, while lower voltages like 5V are rare for longer runs. Use a multimeter to confirm the power supply’s output before attaching it; even a slight mismatch can degrade performance or damage components. For extended installations, opt for higher-voltage options to minimize voltage drop over distance, ensuring consistent brightness across all segments.
Improper Soldering and Connection Points
Avoid soldering wires directly to pads without strain relief; these fragile joints can break under minimal tension. Instead, use pre-soldered connectors or solderless clamps for secure, reusable links. When cutting flexible light tapes, always follow marked division points to prevent severing circuit paths. After splicing, insulate exposed connections with heat-shrink tubing or electrical tape–bare metal contacts invite short circuits, corrosion, or accidental disconnections. For high-current setups, reinforce connections with thicker gauge wires to handle the load without overheating.
