Understanding Ring Main Unit Electrical Diagrams and Their Key Components
For reliable medium-voltage switchgear configurations, prioritize isolating sections with load-break switches rated for 24 kV or higher. Standard IEC 62271-103 mandates interrupting capacities of at least 25 kA for urban networks–verify manufacturer specs against this baseline. Gas-insulated modules (SF6 or dry-air variants) reduce footprint by 40% compared to air-insulated setups, crucial for compact substations. Always cross-reference insulation coordination; IEC 60071 recommends 1.2/50 µs impulse withstand levels of 95 kV for 12 kV systems.
Arrange protection relays in a zone-selective interlocking scheme to limit fault propagation. Use directional earth-fault relays (ANSI 67N) with 5% sensitivity thresholds for overhead feeders–underground cables tolerate 10%. Include automatic sectionalizing switches to isolate faults without tripping upstream breakers, cutting restoration times from 20 to under 5 minutes. Schneider RM6 and ABB SafeRing use epoxy-coated busbars; specify minimum clearance of 150 mm for 24 kV systems to prevent partial discharge.
Test cable terminations with a 10 kV megohmmeter–resistance below 1 GΩ indicates moisture ingress. For SF6-filled cubicles, install gas density monitors calibrated to 4.5 bar at 20°C, with alarms triggering at 0.5 bar below nominal. Motorized actuators for switch operation must comply with IEC 60947-5-1, ensuring stroke times under 1.5 seconds to prevent contact welding. Label mimic panels with IEC 60617 symbols: use circle-X for switch-disconnectors, triangle-X for fuses, and solid lines for bus ties.
Integrate RTUs with Modbus TCP/IP (port 502) for SCADA integration, sampling voltage transformers at 1 kHz to detect flicker. Grounding grids require copper conductors sized for 1-second short-circuit currents–35 mm² for 25 kA. Verify torque settings on bolted joints: 45 Nm for M12 hardware, retightening every 1,000 operations. For retrofits, replace bare conductors with XLPE-insulated cables to eliminate corrosion-induced faults when humidity exceeds 85%.
Electrical Distribution Module Circuit Layout Essentials
Begin by identifying the primary components in your medium-voltage switchgear network visualization: load-break switches, fuse-combination modules, and vacuum circuit breakers. Each symbol must adhere to IEC 62271-200 standards for clarity–use standardized notations (e.g., IEC 60617) to represent disconnectors, grounding switches, and transformers. Label all elements with unique alphanumeric codes (e.g., “Q1” for the first switch, “F1” for fuses) to eliminate ambiguity during maintenance or troubleshooting.
Critical Pathway Configuration
Ensure the feeder lines form a closed-loop topology with at least two incoming power sources–this redundancy prevents outages during single-point failures. Position the tie-switch (typically a three-position device) at the loop’s midpoint to segment the circuit into two radially fed halves. Verify that the schematic includes surge arrestors (ZnO type) at each termination point to protect against transient voltages, specifying the exact voltage rating (e.g., 12 kV for 11 kV systems).
Incorporate precise busbar routing: solid-drawn lines for phase conductors (185 mm² Cu for 25 kA fault currents), dashed lines for neutral, and dotted for grounding. Color-code each conductor per IEC 60446 (L1: brown, L2: black, L3: grey, neutral: blue, earth: green/yellow). Add a legend in the bottom-right corner with cross-references to the legend table in the accompanying bill of materials.
Control and Protection Layer
Integrate current transformers (CTs) upstream of each protective device, specifying their ratio (e.g., 200/5 A for overload detection). Link CT secondaries to relays (inverse-time overcurrent type, e.g., ABB REF615) with trip settings calculated via the formula: Itrip = 1.2 × Imax × kct, where kct is the CT ratio. Include a mimic panel inset showing LED status indicators for switch positions (red: closed, green: open) and a SCADA interface port (Modbus RTU protocol) for remote monitoring.
Validate the design by simulating fault conditions using software like ETAP or DIgSILENT PowerFactory. Test scenarios should include: a) single-phase-to-ground fault (verify earth-fault relay tripping within 0.5 s), b) short-circuit at busbar (confirm breaker interruption within 3 cycles), and c) loss of one incoming feeder (verify automatic transfer via tie-switch). Document all simulation results in an appendix, including oscillograms of voltage/current waveforms during transient events.
Key Components and Symbols in Secondary Distribution Enclosure Blueprints
Begin by identifying the switchgear symbols in load-break configurations–standard IEC 60617 or ANSI Y32.2 notations mark these as interrupters with a breaker arrow (angled line through a rectangle) or fused switch (rectangle with a diagonal cross). Verify busbar continuity: thick horizontal lines denote primary conductors, while thin parallel lines indicate sectionalized connections, typically spaced 2–5 mm apart in scaled drafts. For solid insulation systems, look for dashed enclosures around components–these signify SF₆ or epoxy-resin compartments, critical for fault containment.
Ensure voltage transformers and current sensors are annotated with distinct glyphs: a circle with a diagonal slash (VT) and loop around a conductor (CT) respectively, positioned adjacent to outgoing feeders. Metering points must align with directional arrows on downstream lines–errors here risk incorrect power flow readings. For earthing arrangements, two intersecting lines at 45° (IEC) or a downward-pointing triangle (ANSI) confirm neutral bonding–misplacement violates IEC 61936-1 safety clearances.

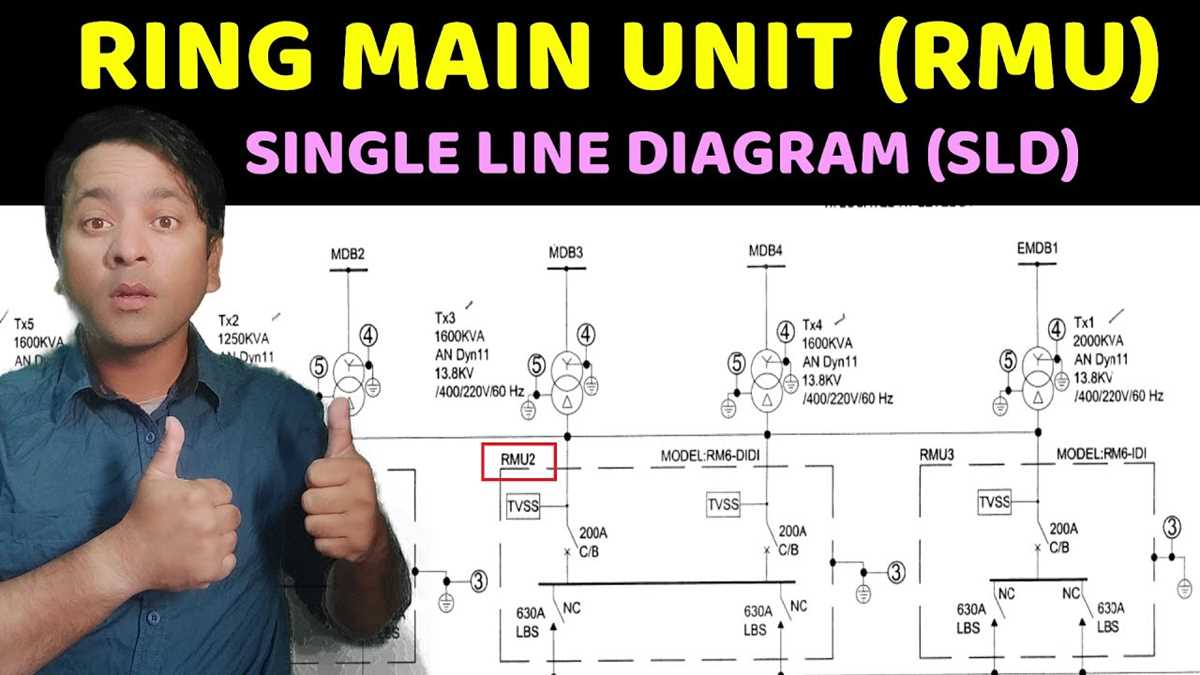

Step-by-Step Guide to Reading an Switchgear Single-Line Layout
Start by locating the incoming supply lines at the top or left side of the drawing–these represent the primary power sources feeding the installation. Identify transformers (if present) immediately downstream, noting their voltage ratios (e.g., 11 kV/400 V) and connections to determine step-up or step-down configuration.
Trace each feeder line from the busbars to its termination point. Use the legend to decode symbols: solid lines for conductors, dashed for protective earth, triangles for circuit breakers (CBs), and rectangles with internal markings for switches or disconnectors. Verify fuse ratings adjacent to symbols–these indicate maximum current handling capacity (e.g., 630 A).
Key components to annotate:
- Busbars: Thick horizontal/vertical lines labeled with voltage levels (e.g., “11 kV Bus” or “LV Bus”).
- Protection devices: Labels like “Overcurrent Relay (51)” or “Earth Fault (50N)” next to CBs define their trip settings.
- Meters: Watt-hour meters (Wh) or ammeters (A) show real-time monitoring points.
- Loads: Motors, lighting panels, or distribution boards (DBs) are denoted by standardized symbols with load capacity (kVA/kW).
Check for isolation points. Every disconnector/switchgear must have a clear open/close state indicated by a slash (/) across the symbol. Cross-reference these with labels like “Normally Open (NO)” or “Normally Closed (NC)” to avoid misoperation during maintenance.
Examine interlocking mechanisms between CBs and disconnectors. Arrows or dashed lines show dependencies–e.g., a feeder CB may require upstream disconnector to be open before tripping. Note control circuit voltages (typically 110 V DC or 230 V AC) powering these interlocks.
Calculate total load demand by summing individual load values along each feeder. Compare this against busbar ratings to confirm no overload exists. For example, a 1000 kVA transformer should not feed loads exceeding 80% of this (800 kVA) under normal conditions.
Identify earthing arrangements at both source and load ends. Look for:
- Solid grounding: Direct connection to earth bus via low-resistance conductor.
- Resistance-earthed: Neutral grounded through a resistor (e.g., 10 Ω) to limit fault current.
- Isolated neutral: No intentional earth connection (rare in LV systems).
Verify earth continuity using color codes (green/yellow) on the layout.
Validate protection coordination by reviewing time-current curves (if attached). Ensure upstream devices (e.g., 11 kV CBs) have longer trip times (e.g., 500 ms) than downstream (e.g., 30 ms) to prevent unintended isolation of healthy circuits during faults.
How to Identify Load Break Switches and Fuses in Circuit Layouts
Locate load break switches by scanning for rectangular symbols with a diagonal line intersecting the contact point–ISO standards denote these as IEC 60617 compliant. Check adjacent labels; manufacturers typically mark switches with “LBS” or an equivalent code (e.g., “Q” in Siemens schematics). In modular panels, switches often sit upstream of feeder lines, distinguishable from disconnectors by their arc-quenching chambers.
Fuses appear as elongated rectangles with a central narrowing–indicating the fusible element–or as cartridge symbols with standardized IEC codes (e.g., “FU” for fuse units). High-voltage fuses may include a dashed line representing the striker pin mechanism. Cross-reference fuse ratings with the circuit’s nominal current; mismatches suggest incorrect identification or outdated components.
| Component | Symbol (IEC 60617) | Key Features | Common Label Variations |
|---|---|---|---|
| Load Break Switch | □⧸ | Diagonal slash, manual lever notation | LBS, Q, SLS, “Switch-Disconnector” |
| Fuse (Low-Voltage) | ▭ with narrowed center | Fusible link, often color-coded per rating | FU, FF, “HR” (High Rupturing) |
| Fuse (High-Voltage) | ▭ with dashed line extension | Striker pin, expulsion tube | FU, “HV Fuse”, “Power Fuse” |
Trace conductor paths: switches interrupt live phases, while fuses protect neutral or phase lines. In three-phase systems, switches often group in threes (one per phase), whereas fuses may appear in single or combined housings. Verify by checking terminal block numbering–L1/L2/L3 for switches, N or PE for fuse-adjacent neutrals.
Inspect physical panel layouts: load break switches typically have external operating handles, while fuses require tool access (e.g., hexagonal caps or pulling rings). Thermal imaging can confirm active components–switch contacts generate minimal heat (90°C). Document findings with infrared snapshots alongside the visual layout for cross-verification.
Prioritize safety lockout: toggle switches to the “OFF” position and measure voltage across fuse terminals using a CAT III multimeter. Zero voltage indicates a blown fuse or open switch; non-zero readings necessitate rechecking the switching mechanism. For unknown configurations, contrast the layout against manufacturer datasheets–ABB, Schneider, and Eaton use consistent symbology across product lines.
Update outdated schematics by redlining discrepancies. Replace ambiguous symbols with ISO-compliant alternatives–e.g., convert circular fuse symbols (older ANSI standards) to IEC rectangles. Ensure all protective devices match the system’s fault current rating; 100A switches paired with 63A fuses violate coordination principles.
