Complete RJ45 B Wiring Guide with Color Code Standards and Schematics

Start by aligning the conductors in this sequence: white-orange, orange, white-green, blue, white-blue, green, white-brown, brown. This arrangement follows the T568B standard–use it for patch cords linking devices to switches, routers, or wall jacks. Verify each wire’s position against the housing notch before crimping; misaligned strands cause link drops or intermittent faults.

For cross-over setups–directly connecting two computers or switches–swap pins 1-2 with 3-6 and 4-5 with 7-8. Streaks of incorrect wiring often reveal themselves at 100 Mbps first, masking errors until gigabit negotiation fails entirely. Test continuity on each conductor before sealing the plug; resistance should stay under 2 Ω per meter.

Avoid untwisting pairs beyond 12 mm from the termination point. Excessive untwist degrades signal integrity, particularly on Cat 6 or higher cables. Maintain pair twist ratios–orange and green pairs should remain tighter than blue and brown–to meet crosstalk limits set by ANSI/TIA-568-C.2.

Inspect plucked insulation. Damaged jackets from poor stripping tools introduce shorts under PoE loads or harsh bends. When troubleshooting, probe each contact with a multimeter before suspecting port failure; most miswiring faults appear as open circuits or reversed polarity on specific pins.

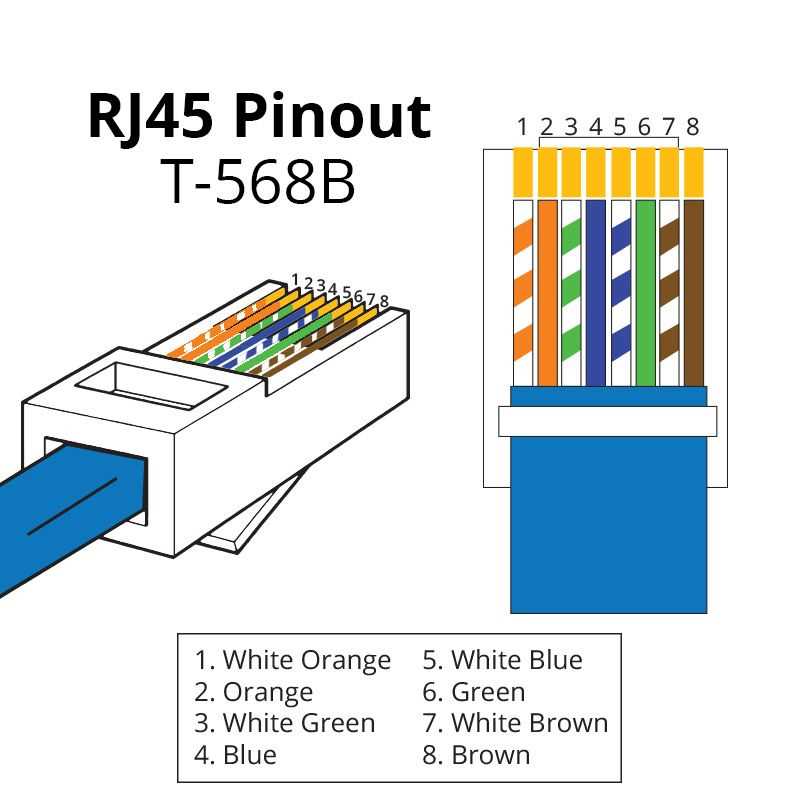

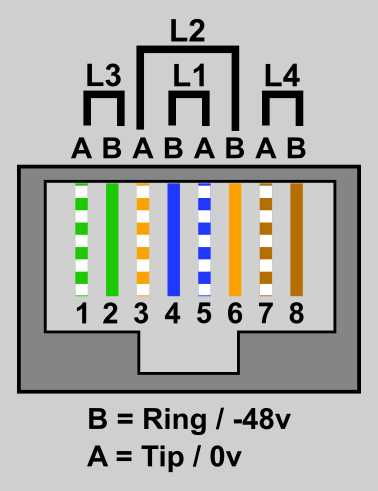

T568B Standard for Ethernet Connection Pinout

Use the T568B termination sequence when crimping an 8P8C connector: pin 1-white/orange, pin 2-orange, pin 3-white/green, pin 4-blue, pin 5-white/blue, pin 6-green, pin 7-white/brown, pin 8-brown. Cross-check each wire against the corresponding contact slot to prevent misalignment–improper placement (e.g., swapping green and orange pairs) causes silent transmission faults or full link disruption despite physical connectivity. Strip the outer jacket precisely 1.5 inches to ensure individual conductors remain untwisted no more than 0.5 inches at termination; excessive untwisting degrades signal integrity, particularly above 100 MHz.

Verify continuity with a cable tester after crimping: failed scans on pins 3 and 6 typically indicate reversed green pair or broken conductor, while intermittent errors on pins 1–2 or 3–6 suggest poor contact pressure–re-clamp connector with 10 kg-rated crimp tool to ensure full insertion of copper conductors into slots. For gigabit deployments, maintain consistent pair twisting even near the plug; untwisted length exceeding 0.3 inches increases crosstalk beyond permissible IEEE 802.3 thresholds.

Step-by-Step Color Code Sequence for T568B Standard

Strip the outer jacket of the twisted-pair cable approximately 1.5 inches from the end to expose the eight inner conductors without damaging their insulation. Arrange the wires in the following fixed order from left to right (pins 1 through 8): white/orange, orange, white/green, blue, white/blue, green, white/brown, brown. Hold the connector with the locking tab facing downward to ensure correct pin alignment.

Verify each conductor sits flush against the connector’s front edge before crimping–inserting them too shallow or too deep will cause signal failure. Use a modular plug designed for Cat5e or higher to guarantee compatibility and avoid impedance mismatches. Trim wires evenly with sharp cutting pliers to prevent stray strands from causing shorts between adjacent contacts.

The T568B scheme is the dominant standard for most Ethernet deployments, ensuring interoperability with switches, patch panels, and network interface cards. Pin 1 (white/orange) carries the transmit positive signal, while pin 2 (orange) handles transmit negative–both are critical for reliable Fast and Gigabit Ethernet communication. Pins 3 (white/green) and 6 (green) handle receive signals, forming the differential pair that minimizes noise interference.

Testing continuity after termination is non-negotiable. Use a cable tester with an eight-remote-unit adapter to confirm each wire connects to the correct pin without cross-talk or opens. If LED indicators flash out of sequence, re-terminate–miswired pairs degrade bandwidth and introduce errors even if connectivity appears functional. For PoE applications, ensure blue and brown pairs (pins 4/5 and 7/8) carry power without resistance variations.

When securing the connector, apply even pressure with a crimping tool until the prongs pierce the conductor insulation–over-crimping crushes connectors, while under-crimping leaves loose connections. Inspect the strain relief boot before sliding it over the connector; a properly seated boot prevents jacket damage from bending and extends cable lifespan. Avoid twisting or untwisting pairs beyond their natural lay to preserve signal integrity.

Label both ends of the cable immediately after termination to simplify future troubleshooting. Store excess length in coils no smaller than four inches in diameter to prevent kinks that degrade performance. For outdoor or industrial use, select shielding based on environmental noise levels–foil-shielded (FTP) or braided shield (STP) types mitigate interference more effectively than unshielded (UTP) variants.

Required Tools and Materials for Crimping Ethernet Plugs

For precise termination of twisted-pair cables, start with a high-leverage ratcheting crimper delivering at least 12 kg of pressure–brands like Ideal Industries Tele-Tech 30-498 or Paladin Tools PDL800-L feature hardened steel dies that eliminate doubled-over pins. Pair it with a modular plug designed for solid conductors (AWG 24–22) rather than stranded; AMP Netconnect 5-554720-3 or Stewart Connector STPCAT6PLG ensure corrosion-resistant 50 μin gold-plating on the contact points. A flush-cutting cable cutter–Tреема NT-5597 or Klein Tools VDV110-227–is critical to prevent copper whiskering; blades should maintain a Rockwell hardness of 55-60 HRC. For verification, use a dedicated network tester like Fluke Networks LinkIQ or Ideal Networks NaviTEK NT that supports TDR for up to 100 m cable length, immediately identifying split pairs and excessive return loss.

Tool/Material	Specifications	Notes
Ratcheting crimper	Min. 12 kg pressure, hardened steel dies, AWG 22–26 jaw	Avoid plastic-handled models; ensure die alignment gauge
Twisted-pair plugs	50 μin gold contact, polycarbonate body, solid-conductor only	Verify straight-through pinout; reject if load-bar is absent
Flush cutter	55-60 HRC blades, spring-loaded, max 0.8 mm blade thickness	Cut at 90°; discard if burr exceeds 0.2 mm
Network tester	TDR-capable, TIA-568 compliance, 1–100 MHz sweep	Check for NEXT/RL measurements; single-ended only
Boot covers	UL94V-0 flame rating, flex-rating ≥10,000 cycles	Match color code to EIA/TIA standard

Common Pitfalls in Termination Following T568B Color Code

Swapping pairs 2 (orange) and 3 (green) during termination disrupts communication speeds. T568B specifies orange/white-orange on pins 1-2 and green/white-green on pins 3-6. Misalignment here forces gigabit interfaces to downgrade to 100 Mbps or fail completely. Always double-check color sequence before crimping; use a continuity tester to verify each conductor connects to the correct pin.

Inconsistent Stripping and Twist Preservation

Exposing too much bare conductor breaks twists essential for noise rejection. Aim to strip the outer jacket precisely 1.25 inches from the end, leaving conductors twisted within 0.5 inches of the termination point. Untwisting beyond this distance introduces crosstalk and signal degradation. A dedicated stripping tool with a 1.25-inch guide ensures repeatable results.

Using oxidized or undersized connectors silently sabotages performance. Ethernet connectors rated for 24-26 AWG conductors with gold-plated contacts prevent intermittent failures. Standard off-the-shelf connectors often skimp on gold thickness, accelerating corrosion. Verify connector specifications match the cable gauge; imprint markings like “CAT5E” or “CAT6” alone do not guarantee compliance.

Excessive untwisting during termination damages signal integrity. Maintain twists up to the entry of the connector; conductors should enter the connector block still paired. Staggered untwisting between pairs causes differential impedance mismatch, measurable as return loss above 10 dB at higher frequencies. Use a pair separator tool to maintain twists while inserting conductors into the plug.

How to Verify a Freshly Terminated Ethernet Cable for Signal Integrity

Use a network tester with an LCD display immediately after termination. Connect both ends of the cable to the device’s ports: the main unit and the remote identifier. Power it on and observe the sequence of LEDs or numerical readout. A correctly assembled four-pair link will display eight consecutive indicators–one for each conductor–ascending from 1 to 8 without skips, flickers, or out-of-sequence flashes. Any deviation signals a miswire, short, or open circuit requiring recrimping.

For quick field validation without specialized tools, plug the terminated ends into two devices with active Ethernet ports–switches, routers, or laptops–and check link status LEDs. Solid green or amber lights on both devices confirm physical layer connectivity; blinking indicates activity but doesn’t guarantee data integrity across all pairs. If one side remains dark, swap ends; persistent failure suggests a wiring fault rather than device misconfiguration.

Test each pair individually using a multimeter on continuity mode. Separate the conductors at both ends and probe corresponding pins: orange-white to pin 1, orange to pin 2, green-white to pin 3, blue to pin 4, and so on. Resistance below 1 ohm across the full cable length verifies uninterrupted conduction. Values above 2 ohms or infinite resistance (OL display) indicate broken strands, poor crimp, or severed conductor–common with solid-core cables subjected to excessive pulling force.

Check for crosstalk and shorts by probing non-adjacent pins. Set the multimeter to continuity or low-resistance mode and touch one probe to pin 1 while sweeping the other across pins 2, 3, 4, and beyond. Repeat the process starting at pin 2, then 3, etc. A properly shielded link will show no continuity between these pairs; any beep or sub-10 ohm reading denotes a short–typically from untwisted conductors or insulation damage during crimping.

Validate performance at operational speeds using a throughput tester or software like iperf. Connect the cable between two Gigabit-capable devices and initiate a sustained transfer. Consistent speeds above 900 Mbps with latency under 1 ms across multiple runs confirm proper termination. Drops below 800 Mbps suggest pair misalignment, suboptimal termination, or interference–retest after ensuring all conductors align with T56b standard and twists remain intact up to the plug.

• Repeat bend tests near both plugs–flex the cable 180 degrees ten times while monitoring link status. Temporary disconnections during flexing reveal loose pins or cracked conductors beneath the crimp.
• Inspect strain relief bumps at the plug base. Absent or uneven crimps here compromise durability; cables pulled by the plug will fail over weeks, not years.
• Measure total length with TDR-capable testers. Discrepancies exceeding 1 meter indicate unintended loops or hidden bends that degrade signal integrity.

Document test results for each cable: date, measured resistance per pair, observed throughput, and failure modes if any. Label cables at both ends with unique identifiers matching these records. Replace any link showing intermittent faults or marginal performance–even if functional–since environmental stress (heat, vibration) will exacerbate latent defects in field deployment.

Troubleshooting Persistent Connectivity Issues

If all preceding tests pass but speed remains inconsistent, examine the jack-to-plug interface microscopically. Debris, oxidation, or skewed pins inside the jack can create high-contact resistance despite perfect termination. Clean both ends with isopropyl alcohol and retry. For molded plugs, verify the blade cut through the conductor insulation fully; partial cuts create intermittent failures visible only under load.
