Understanding 11kV Ring Main Unit Circuit Diagrams and Key Components

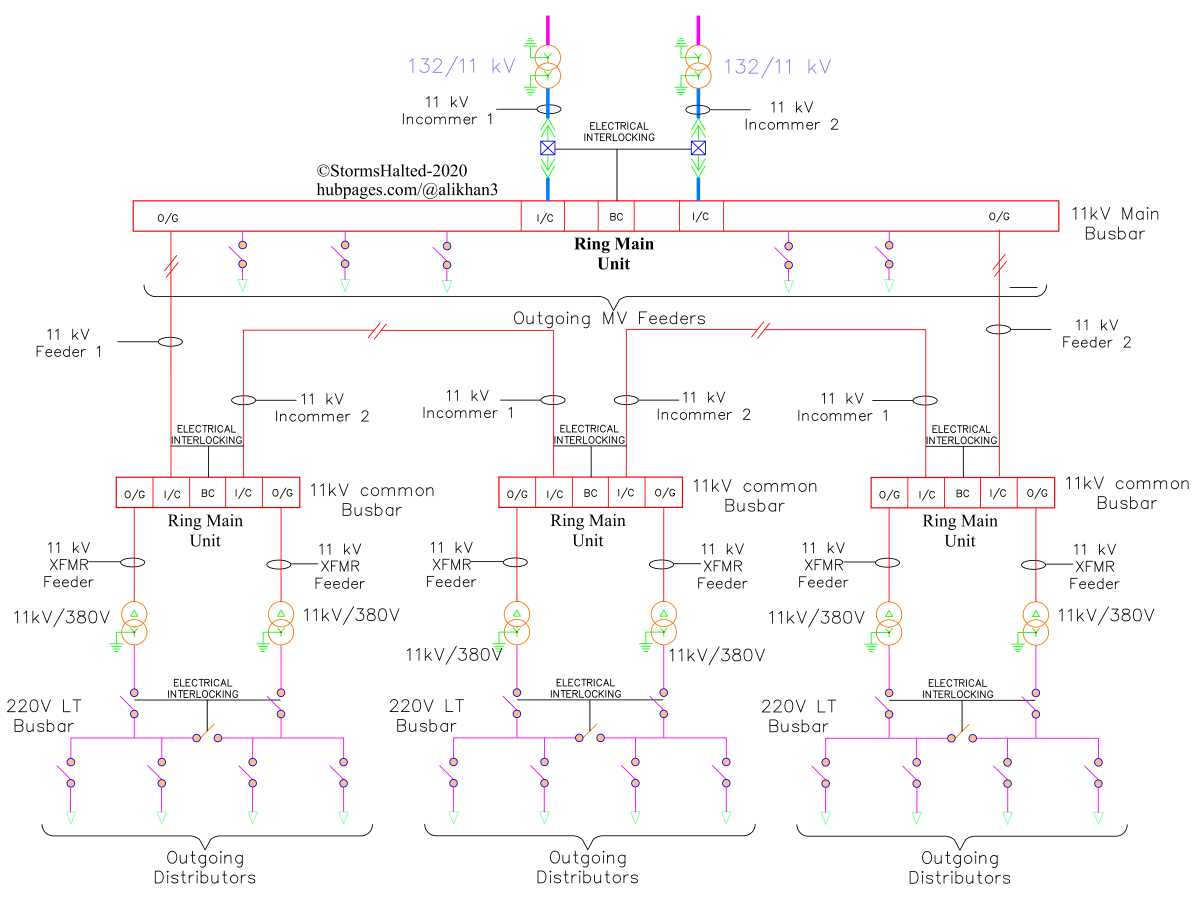

For reliable operation of a 12 kV loop-fed distribution setup, begin with a single-line representation showing sectionalizers at each node. Position load-break switches at entry points to isolate faults without disrupting adjacent feeds. Use three-position vacuum interrupters–closed, open, and earthed–to ensure safe maintenance. Verify coordination with fuse ratings on transformer branches; typical values for 500 kVA units range between 40–63 A.

Apply IEC 62271-200 standards for compartmentalization. Each cubicle must include a pressure-relief vent and segregated busbar chamber to contain arc faults. Label phase conductors with color-coded sleeves––to prevent misconnection during inspections. Ground straps should connect all metallic enclosures to a central earthing bus with resistance below 1 ohm.

Integrate protection relays with adjustable settings: overcurrent (51) at 120% of maximum load, earth-fault (51N) at 30% of neutral current, and undervoltage (27) at 85% nominal. Use SF₆ or dry-air insulation for switch contacts; typical dielectric strength exceeds 25 kV/mm. Ensure cable terminations employ stress cones rated for 17.5 kV, reducing electrical field gradients at the shield cut.

During commissioning, perform a 50 kV AC withstand test for 60 seconds per IEC 60060-1. Log all measurements–insulation resistance (>100 MΩ), contact resistance (

Electrical Switchgear Distribution Network Schematics

Prioritize isolating switches at each feeder inlet to enable safe maintenance without service disruption. Use load-break switches rated for 630A minimum on 12kV systems, ensuring compliance with IEC 62271-102 for short-circuit withstand capability.

Integrate fault detection relays (ANSI 50/51) at primary protection points. Configure inverse time characteristics for overcurrent elements, with pickup settings at 1.2× nominal current and time multipliers adjusted for coordination with upstream fuses (e.g., 0.1s delay at 10× pickup).

• Connect vacuum interrupters (VI) in series with SF6 insulated sections to mitigate arc flash risks – VI units must sustain 60kA for 3 seconds per IEEE C37.09.
• Ground all metallic enclosures via 25mm² copper conductors, bonded to a dedicated earth grid with resistance below 1Ω.
• Install surge arresters (metal oxide, 12kV MCOV) at cable terminations to protect against transient overvoltages exceeding 1.7× phase-to-ground voltage.

Design sectionalizing schemes using three-position switches (open/closed/ground) to create redundant paths. Validate switchgear arrangement against single contingency outages by simulating feeder faults during peak load conditions (e.g., 80% of transformer capacity).

Apply torque-controlled bolted connections at busbar joints – use M12 stainless steel bolts tightened to 60Nm ±5%. For copper busbars exceeding 30A/mm² current density, implement forced-air cooling with temperature sensors set to alarm at 90°C.

1. Label all conductors per BS 7671: Chapter 51 – use yellow (L1), green (L2), red (L3), black (neutral), and green/yellow stripes (protective earth).
2. Etch directional arrows on cable trays indicating power flow, spaced every 2 meters for maintenance reference.
3. Embed RFID tags on critical components (e.g., circuit breakers, relays) for asset tracking using handheld readers during inspections.

Test the completed scheme via primary injection methods: apply 1kA for 1 second to verify relay response times and breaker operation. Document results with oscillographic records showing trip curves aligned with manufacturer specifications (e.g., ±10% tolerance on time-current curves).

Critical Elements and Schematic Markings in Medium-Voltage Switchgear Layouts

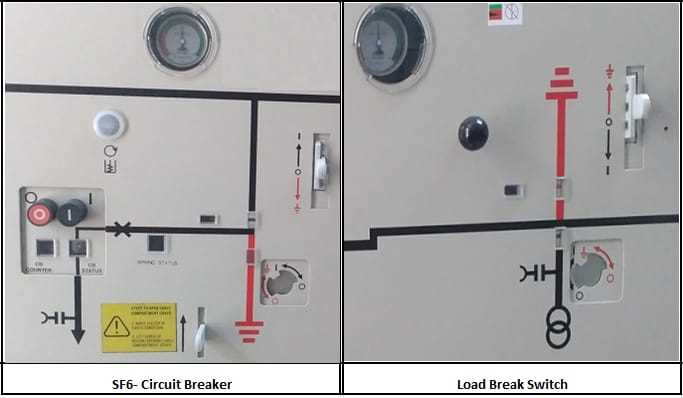

Start by verifying the load-break switch symbols–these are typically shown as a vertical line intersecting a horizontal one, often marked with a circular arc. The arc indicates the switch’s ability to interrupt current under load, not just no-load conditions. Misidentifying this symbol risks incorrect operational assumptions, particularly in live maintenance scenarios where improper isolation can lead to catastrophic failures. Ensure the symbol’s arc orientation matches physical device behavior; some manufacturers rotate it 90° for clarity, which must be cross-referenced with the legend.

Core Protective Devices and Their Representations

Fuses in the schematic appear as a rectangle bisected by a diagonal line, sometimes accompanied by a numerical rating (e.g., 63A). Verify these ratings against coordination studies–underrated fuses may blow unnecessarily, while overrated ones fail to protect downstream equipment. Current transformers (CTs) are depicted as circles with a primary winding symbol (a thick bar) and secondary leads (thin lines). For accurate metering or relay operation, confirm CT ratios match system requirements; a 100/5A CT on a 150A feeder will skew protection settings. Busbars–shown as bold horizontal or vertical lines–should align with cable sizing calculations to prevent overheating.

Vacuum interrupters or SF6 puffer assemblies use standardized IEC/ANSI symbols: a pair of parallel lines with a gap or a filled rectangle. These components require periodic dielectric testing; reference the schematic’s annotation layer for test points and voltage thresholds (e.g., 28kV for 1-minute withstand). Earthing switches appear as a zigzag line grounded to a triangular base–confirm their mechanical interlocking with primary switches to prevent accidental closure on live circuits. Always trace auxiliary contacts to control circuits; a miswired “52b” (closed when breaker open) contact can disable critical alarms.

Step-by-Step Connection Layout for Load Break Switches and Fuses

Begin by isolating the medium-voltage switchgear section using visible disconnects on both incoming and outgoing feeders. Confirm the absence of voltage with a verified high-voltage detector rated for 12 kV operations–never rely on panel indicators alone. Ground the isolated conductors temporarily to discharge stored capacitance before proceeding. Failure to complete this step introduces arc flash hazards, even in de-energized systems.

Align the load break switch (LBS) horizontally within the compartment, ensuring the operating handle extends no farther than 800 mm from the front frame to comply with IEC 62271-103 accessibility standards. Secure mounting bolts at torque values specified in the manufacturer’s data sheet–typically 45 Nm for M12 bolts–using a calibrated torque wrench. Misalignment or under-tightening leads to contact misfires and overheating under normal load conditions.

Component	Torque (Nm)	Material Grade	Surface Treatment
Main busbar clamp	60	Al 6101-T6	Tin-plated
Switch terminal bolt	45	A2-70 stainless	Passivated
Fuse holder block	35	Polyamide 6,6	None

Connect the incoming busbar to the LBS upper terminal via copper conductors sized per IEC 60364-5-52–minimum 120 mm² for 630 A continuous current at 12 kV. Crimp lugs using a hydraulic crimper set to 20 kN force, then apply heat-shrink tubing over the joint to seal against moisture ingress. Verify joint resistance with a micro-ohmmeter; readings above 50 µΩ indicate oxidation or poor crimping, requiring immediate rework.

Insert HRC fuses into their holders only after confirming fuse ratings match the downstream transformer’s full-load current. Use type gTr fuses for general-purpose transformers with a rating of 1.5× the transformer’s primary current to handle inrush transients without nuisance tripping. Never substitute with NH fuses unless the installation explicitly specifies low-voltage coordination–mismatch causes delayed fault clearance and transformer damage.

Energize the switchgear in staged sequence: close visible disconnects first, then engage the LBS, and finally restore power via the upstream breaker. After each operation, measure voltage across switch terminals with a true RMS multimeter to confirm phase rotation. Record readings in the installation log; deviations beyond ±2% from nominal indicate potential contact erosion or loose connections, mandating inspection.

Common Variations in Medium-Voltage Secondary Distribution Block Configurations by Brand

Select manufacturers integrate load-break switches with fused tap-offs directly into the busbar chamber, eliminating external fuse assemblies. Schneider Electric’s SM6 series and ABB’s SafeRing models demonstrate this approach, reducing installation footprint by 30% while improving short-circuit withstand ratings to 25 kA for 1 second. Verify busbar insulation–some vendors use epoxy-coated copper, others rely on heat-shrink sleeves–when retrofitting, as epoxy can delaminate after 15 years of ambient temperature swings above 40°C.

Arc-resistant designs differ substantially:

• AEG’s SecoRMW vents exhaust gases upward through a chimney, achieving IAC-AFLR classification without additional plenum; requires ceiling clearance ≥800 mm.
• LS Electric’s SVS channels plasma laterally via partitioned ducts, necessitating side clearances ≥500 mm from adjacent walls.
• Ormazabal’s CGM compacts employs a double-walled stainless steel enclosure that contains 90% of arc energy internally; thermal sensors must be IEC 62271-200 compliant for proper coordination.

Busbar Tap-Off Arrangement Comparisons

1. Vertical inline – Siemens 8DJ20 stacks incoming and outgoing feeds vertically; torque requirements for M12 bolts increase from 55 Nm (front) to 80 Nm (back) to prevent micro-vibration loosening.
2. Lateral offset – Hyundai HVTS-12 offsets tap-offs by 45°, reducing phase-to-phase spacing from 230 mm to 180 mm; apply anti-corona grease Molykote 1102 to terminations below 600 m elevation.
3. Radial spoke – GE Power/VIP-40 spreads connections radially; uses Belleville washers (series 65 Mn) under M16 terminals to maintain 7 kN contact pressure under thermal cycling.

Cable termination practices diverge: Pfisterer 95 conductor ferrules require crimping with 12-tonne hydraulic press and torque of 110 Nm for 400 mm² Al cables, whereas Nexans prefers compression lugs with shear bolts, demanding 135 Nm but allowing visual verification via shear-off indicators.
