Step-by-Step Roller Shutter Door Wiring and Assembly Guide

Begin by identifying the core elements in any retractable barrier assembly: the coiled slat assembly, guide tracks, and tubular motor. The coiled slat stack–typically fabricated from interlocking 0.8mm to 1.2mm galvanized steel or extruded aluminum–must maintain a precise helix diameter (200–350mm) to ensure smooth retraction into the headbox. Confirm the guide tracks are vertically aligned within ±2mm tolerance; misalignment causes slat binding, increasing motor load by 18–23%.

Select a tubular motor with torque matching the slat weight: 30 Nm for spans up to 3m width × 2.5m height; 50 Nm for larger apertures. Wire the motor via a 4-core 1.5mm² cable directly to the limit switch terminals–avoid intermediate junctions to prevent voltage drop exceeding 3%. Include a thermal cut-out rated at 105°C as a failsafe against continuous duty cycles exceeding 30 operations/hour.

Integrate an electromagnetic brake clutch (holding torque ≥ 1.5× motor torque) to counterbalance gravitational forces during pauses. Mount the brake inline between motor shaft and slat stack axle with a splined connection–keyways introduce backlash, degrading positional repeatability. Verify slat stack balance with a dynamometer: imbalance > 0.3 Nm triggers premature wear on nylon rollers and guide track edges.

Include a manual override mechanism–either a gearbox with 1:40 reduction or a stainless-steel emergency crank. Test override torque: it must engage within 2 full rotations and release automatically upon power restoration. Seal the headbox with a neoprene gasket rated IP54 to block dust ingress; a single gram of silica dust increases friction coefficient by 7%, reducing motor lifespan by up to 12%.

Inspect the wiring harness for conductor cross-section minima: 0.75mm² for signal lines, 1.0mm² for power feeds. Isolate control circuits using 24V DC relays–mains voltage (230/400V AC) induces electromagnetic interference, corrupting MicroPLC timers and causing unintended barrier cycling. Ground the guide tracks via 6mm² braided copper straps bolted at both base and header; floating potentials invite electrostatic discharge, fusing slat interlocks at contact points.

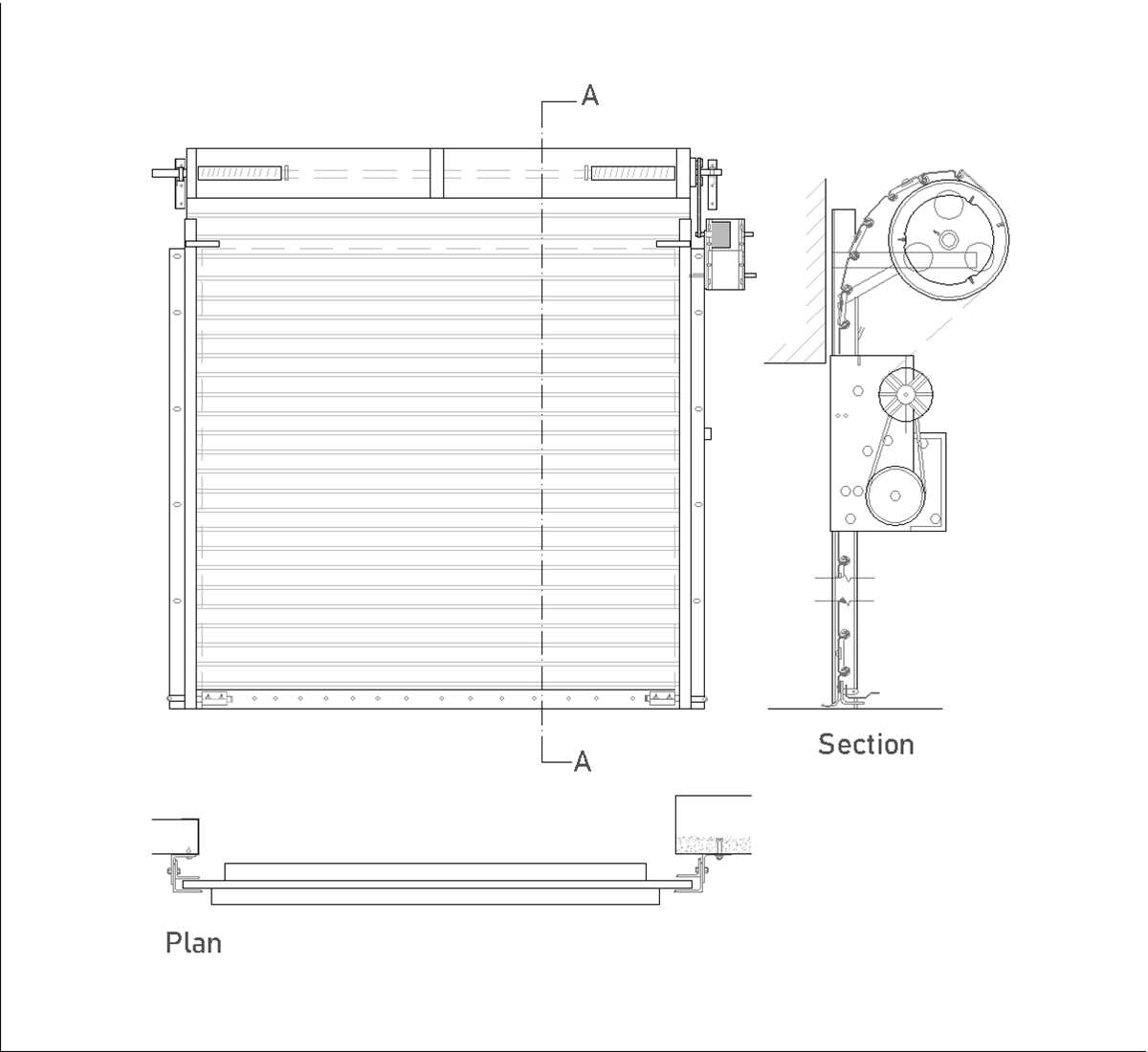

Technical Blueprint for Industrial Sliding Barrier Systems

Begin assembly with the vertical guide tracks–ensure they are aligned within ±1.5 mm tolerance to prevent binding during operation. Use galvanized steel channels (minimum 2.5 mm thickness) for outdoor installations, while powder-coated aluminum (1.8 mm) suffices for controlled environments. Mounting brackets should be spaced no more than 600 mm apart, secured with M10 bolts torqued to 45 Nm. Misalignment at this stage compounds into audible noise and premature wear of the curtain slats.

Critical Component Specifications

Part	Material	Dimensions (mm)	Load Rating
Curtain slats (interlocking)	Cold-rolled steel (0.4–0.6 mm)	Width: 75–150; Thickness: 0.8–1.2	≤120 kg/m²
Barrel shaft	Seamless carbon steel	Ø50–76; Wall: 2.5–3.5	Torsion spring: ≥1,200 cycles
Bottom rail	Extruded aluminum (6063-T5)	Height: 30–50; Thickness: 2.0	Impact resistance: 250 J

Electrical wiring demands 1.5 mm² copper conductors for standard motors (230V, 0.75 kW), while three-phase units (400V) require 2.5 mm². Route cables through flexible conduit (IP65) with strain relief at both ends–avoid sharp edges. For automated units, integrate a 24V DC safety edge switch with a response time

Lubricate the gearbox with lithium-based grease (NLGI 2) every 1,000 cycles; apply PTFE dry film to guide rails to reduce friction by 40%. For manual overrides, install a hexagonal socket (8 mm) accessible from the exterior–ensure it engages the shaft without slippage under 50 Nm torque. Failure to adhere to these tolerances results in uneven rolling speeds and stress concentrations at weld points, reducing operational lifespan by 30–50%.

Key Components in a Retractable Barrier Assembly

Install a high-tensile steel curtain with interlocking slats to withstand lateral forces–minimum 0.8 mm thickness for commercial use, 1.0 mm for industrial environments. Secure the bottom rail with a reinforced aluminum extrusion containing a rubber seal to prevent dust ingress and noise transmission. Choose slats with a zinc coating of at least 275 g/m² to resist corrosion in humid or coastal conditions; pre-galvanized coils offer superior durability compared to post-fabrication treatments.

Select a tubular motor with a torque rating 20% above the calculated load–measure the total weight including the curtain, guides, and any ice buildup in cold climates. Fit an integrated brake that engages within 0.3 seconds of power loss to prevent uncontrolled descent. For manual overrides, use a stainless-steel crank handle with a gear ratio of 1:12 or higher to reduce operator effort, and ensure the mechanism is accessible from both sides for emergency releases.

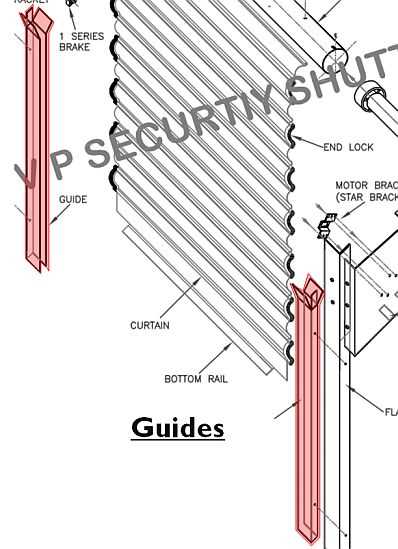

Opt for side guides made from extruded aluminum with a minimum depth of 40 mm to maintain curtain alignment during operation–narrower tracks increase binding risks, especially with thermal expansion. Include a polymer insert in the guides to dampen vibration and reduce wear on the slats; test compatibility with the curtain material to avoid abrasion. For fire-rated installations, specify intumescent seals that expand at 180°C and maintain integrity for at least 120 minutes–verify certification to EN 1634-1 for European compliance or UL standards for North American markets.

Step-by-Step Wiring Guide for Motorized Retractable Barriers

Disconnect the power supply at the circuit breaker before handling any electrical components. Verify zero voltage using a multimeter across the live and neutral terminals. Failure to confirm de-energization risks severe injury or equipment damage.

Component Preparation

• Inspect the tubular motor: Ensure the capacitor wires (typically brown and gray) are intact and free of fraying. Replace if insulation is compromised.
• Locate the limit switch wires: Identify the up/down control wires (usually yellow for upward, green for downward) by referencing the manufacturer’s color code.
• Prepare the control box: Strip 6–8mm of insulation from all wire ends using wire strippers. Twist stranded wires clockwise to prevent fraying.

Connect the motor to the power source first. Attach the live (L) wire (red or black) to the motor’s brown terminal, and the neutral (N) wire (blue) to the gray terminal. Secure connections with a screwdriver, ensuring no exposed copper extends beyond the terminal clamp. For motors with built-in capacitors, skip separate capacitor wiring–these models integrate the component internally.

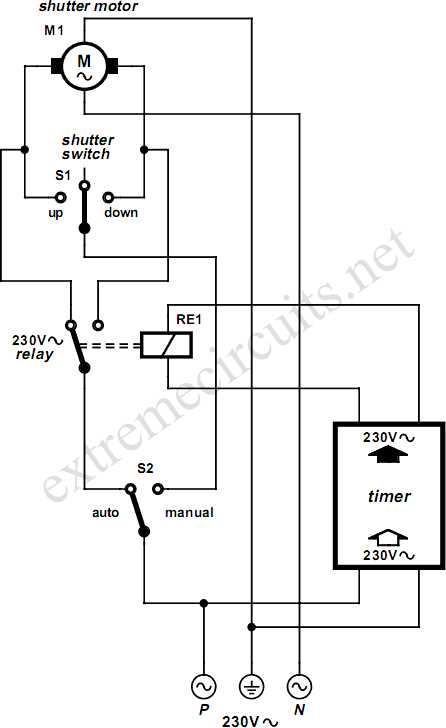

Wiring the Control Mechanism

1. Link the motor’s limit switch wires to the control unit:
   • Yellow wire → “A” or “UP” terminal
   • Green wire → “B” or “DOWN” terminal
2. For wall-mounted switches, connect:
   • Live wire → switch’s common terminal
   • Switch’s output → motor’s L terminal
   • Neutral wire → bypasses switch (direct to motor’s N terminal)
3. For remote-controlled systems, wire the receiver between the power source and motor:
   • Receiver’s input → L/N supply
   • Receiver’s output → motor’s L/N terminals

Test the installation in manual mode before sealing the control box. Activate the upward limit by pressing the switch until the barrier fully retracts; repeat for the downward limit. Adjust the limit screws incrementally–turning clockwise decreases travel distance, counterclockwise increases it. Repeat testing after each adjustment. Once calibrated, seal the control box with silicone to prevent moisture ingress, ensuring the label with wire connections remains visible for future maintenance.

Key Symbols in Automated Barrier Circuit Plans

Start by identifying motor symbols–typically a circle or oval with an “M” inside–positioned near the drive assembly. AC motors use phased winding indicators (three inward-facing arrows for three-phase), while DC variants show a single arrow or plus/minus markings. Always cross-reference these with manufacturer datasheets, as placement dictates wiring routes for limit switches.

Limit Devices and Safety Interlocks

Micro switches appear as a rectangle with a diagonal line, often paired with “NC” (normally closed) or “NO” (normally open) labels. Cam-operated types include a small triangle pointing toward the contact. Thermal overloads use a zigzag resistor symbol inside a box–locate these downstream of the motor starter to trip at 120% nominal current. Optical sensors (photoelectric pairs) show as two opposing triangles; align them horizontally to ensure proper gap tolerance.

Gear reducers appear as two meshed circles with teeth counted (e.g., 3:1 ratio inside), directly linked to the winding drum shaft. Torque arms use a right-angle bracket symbol, secured to concrete anchors denoted by a T-shaped line with X-hatch fill. Dynamic braking systems insert a diode symbol in parallel with the motor to dissipate back-EMF during descent–confirm polarity before installation.

Remote actuators (key fobs, push-buttons) display as a circle with arrow inputs; connect these to a relay coil (a spiral inside a rectangle) that controls the main contactor. Battery backup symbols show a generic cell stack (three parallel plates) with voltage rating–typically 24V for emergency operation. Verify deep-cycle capacity to support three full open/close cycles during power loss.

Troubleshooting Electrical Connections Using a Wiring Diagram

Check voltage drop across connections first–use a multimeter set to DC or AC, depending on the system. Probe terminal screws directly, not wires, to avoid false readings. Expect 0–0.5V drop in low-power circuits; values above 1V indicate corrosion, loose crimping, or undersized conductors. Record measurements; if voltage varies by more than 10% during operation, tighten terminals or replace fasteners.

Trace color-coded wires against the reference chart to locate misroutes. Strip insulation 5–7mm, twist strands clockwise, and apply a thin layer of antioxidant paste to aluminum conductors. Crimp terminals with a calibrated tool–insulated spade lugs demand 2.8mm² dies for 14AWG; compression connectors use 4.5mm for 10AWG. Verify each joint with a 10N pull test.

• Red (live): active from breaker to motor windings
• Black/blue (neutral): shared return for auxiliary components
• Green/yellow (earth): mandatory path to grounding busbar
• White (control): signal wiring to limit switches and relays

Inspect relay contacts under load–clicking alone does not confirm proper engagement. Remove cover to observe arc marks or pitting; replace relays with dual in-line pin configurations rated 20% above peak current. Coil voltage must match supply; 12V coils fail if fed 24V. Test coil continuity with the meter’s continuity setting–acceptable resistance ranges 50–150Ω.

Remove oxidation from busbars using a brass wire brush and wipe with isopropyl alcohol. Tighten bolts in a diagonal sequence to 12Nm for M6 fasteners, ensuring even pressure. If thermal imaging shows hot spots (>40°C above ambient), double-check torque or re-terminate with nickel-plated hardware. Avoid steel washers–copper or tin-plated versions prevent galvanic corrosion.

Test limit switches using a wiggle test while monitoring circuit response. Press and release micro-switches manually; erratic behavior indicates worn actuators or misalignment. Calibrate adjustment screws in 0.25mm increments while observing end positions. Mechanical lifespan drops 30% if switches activate >12 times per minute; consider solid-state alternatives for high-cycle applications.

Verify battery connections in systems with backup power. Clean corrosion from lead-acid terminals with a baking soda solution, rinse, and dry thoroughly. Apply dielectric grease to posts before reconnecting. Equalize charge voltages for flooded cells to 2.4V per cell; sealed AGM batteries require 2.45V. Float voltage should maintain 2.25V per cell–deviations shorten lifespan.

Isolate ground loops by disconnecting auxiliary loads one at a time. Measure resistance from chassis to neutral bus–should read
