Complete RV Pedestal Wiring Guide with Step-by-Step Diagram

Begin by verifying the correct amperage rating for your setup–most RV sites offer 30-amp or 50-amp service, but mismatches cause overheating or equipment failure. Use a plug adapter with a built-in surge protector if the power source doesn’t match your rig’s requirements. Before connecting, inspect the outlet box for visible damage: cracks, corrosion, or loose contacts. Replace frayed cables or worn connectors immediately–cheap repairs lead to costly hazards.

Key components to check: Ground wire continuity (test with a multimeter), polarity (hot-neutral reversal risks appliances), and voltage under load (should remain between 115V–125V for 120V systems). For 50-amp setups, two hot legs must each read 120V relative to neutral; a 240V reading between them confirms proper configuration. Avoid relying on visual inspections alone–fluctuations often occur under demand, especially at parks with older infrastructure.

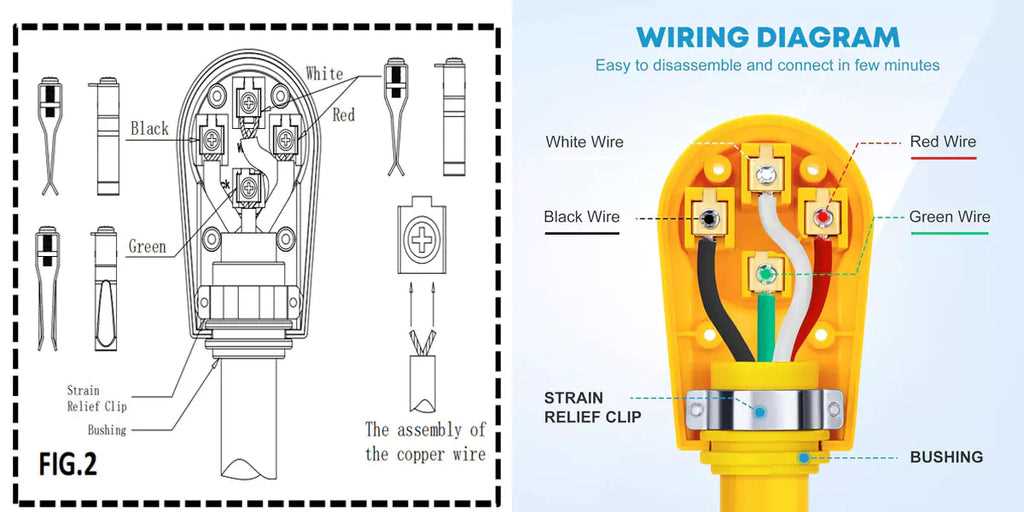

Label each wire during installation: black (hot), white (neutral), green or bare (ground), and red (second hot for 50-amp). Secure connections with weatherproof connectors and dielectric grease to prevent oxidation. If the outlet lacks a ground, do not use it–improper grounding creates fire and shock risks. For extended stays, monitor connections weekly; rodents or vibration can loosen terminals over time.

Critical troubleshooting steps: If the breaker trips repeatedly, disconnect all appliances and test one at a time to isolate the issue. Flickering lights often indicate a poor neutral connection, while dimming suggests inadequate power supply or undersized wiring. Use a dedicated RV extension cord rated for outdoor use–standard household cords overheat under continuous load.

Store backup fuses, a spare plug, and a non-contact voltage tester in an accessible compartment. For DIY modifications, follow the manufacturer’s schematic precisely–deviations void warranties and violate safety codes. If unsure, consult an electrician certified for mobile installations; improper work risks voiding insurance coverage.

Connecting Your RV Power Source: A Field Manual

Use a 50-amp plug as the primary connection point for most modern campers. Verify the outlet’s voltage with a multimeter before attaching cables–standards require 110-120 volts per hot leg on 30-amp setups and 220-240 volts across the two legs for 50-amp units. Mismatched readings indicate faulty components or improper grounding, which can damage appliances or trip breakers.

Identify L1, L2, neutral, and ground wires inside the power box before making connections. L1 and L2 carry current, neutral completes the circuit, and ground provides a safety path. Connect L1 to the brass screw, L2 to the second brass screw if present, neutral to the silver screw, and ground to the green screw. Use 6 AWG copper wire for 50-amp circuits and 10 AWG for 30-amp setups–thinner wire risks overheating under load.

Test GFCI protection by pressing the “Test” button on the outlet–it should trip the circuit. Reset it immediately; repeated failures suggest a leak or faulty breaker. Replace the GFCI outlet if it doesn’t trip, as this indicates a potential hazard. Ensure the ground wire connects to a dedicated rod driven at least 8 feet into the earth, separated from any neutral bonding to prevent stray currents.

Label each wire with heat-shrink tubing for clarity during future maintenance. Use a torque screwdriver to tighten terminal screws to 18-24 inch-pounds–over-torquing strips threads, while under-torquing causes loose connections. Secure cable clamps to prevent strain on terminals, especially in high-vibration areas or exposed installations where movement could loosen wires.

Install a surge protector between the power box and RV inlet. Models rated for 30 or 50 amps must match the circuit capacity. Mount the unit within 6 feet of the outlet for optimal protection, as longer runs reduce effectiveness. Avoid generic surge strips–they lack the joule rating needed for RVs (minimum 1,500 joules for basic setups, 3,500+ for high-demand systems).

Keep a spare 30-amp and 50-amp pigtail adapter on hand for incompatible hookups. A 30-to-50 amp adapter creates a safe workaround, but never exceed the lower-rated circuit’s capacity. Monitor voltage with a digital meter during operation–fluctuations below 108 volts or above 126 volts require immediate correction to avoid compressor or inverter damage in refrigerators, air conditioners, and microwaves.

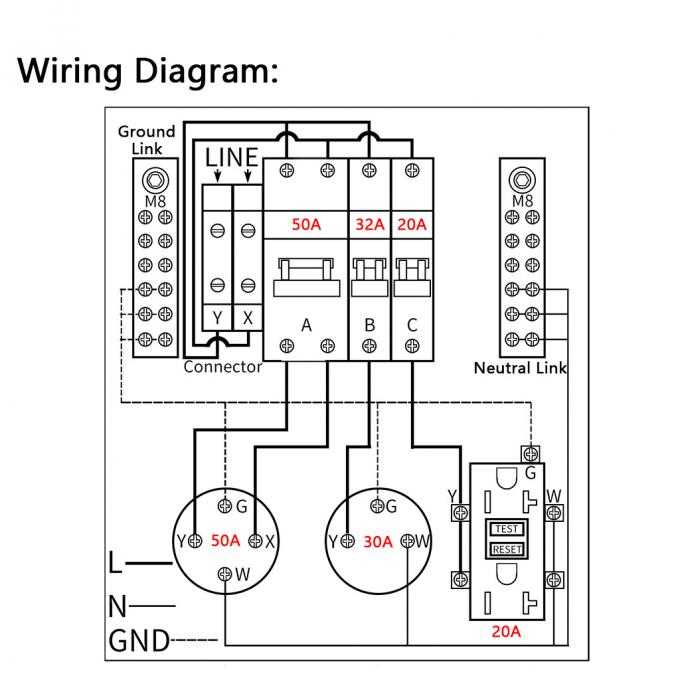

Identifying Key Components in an RV Power Supply Station

Begin by locating the main breaker at the top of the unit, typically a 30- or 50-amp double-pole switch. This component isolates the entire setup from incoming grid electricity. Check the amperage rating stamped on the switch–it dictates compatibility with your recreational vehicle’s power cord. Smaller 20-amp circuits may exist for auxiliary outlets, often controlled by separate single-pole breakers.

The power inlet, a recessed socket with three or four prongs, accepts the shore cable from your RV. Verify the configuration:

• NEMA TT-30: two flat blades forming a V with a round grounding pin (common for 30-amp service).
• NEMA 14-50: four prongs (two hots, one neutral, one ground) for 50-amp service.

Measure voltage between the hot legs–expect 240V for 50-amp inlets or 120V for 30-amp. Crossed or absent neutrals produce abnormal readings and pose fire risks.

Surge protection modules appear as cylindrical or rectangular devices screwed onto a busbar. Their indicator lights–red, green, or yellow–reveal operational status. Flashing red signals immediate replacement. Some units integrate ground-fault protection; these combine surge suppression and residual-current sensing in one enclosure, identifiable by a test and reset button.

Busbars–flat copper strips with multiple screw terminals–distribute current to breakers and outlets. Inspect for discoloration or heat marks; oxidation or pitting mandates cleaning with emery cloth. Check torque on terminal screws using a calibrated torque screwdriver–loose connections cause arcing. For 50-amp stations, two busbars carry separate 120V legs, enabling 240V appliances like air conditioners.

Meter sockets occupy the upper section, displaying cumulative kilowatt-hour usage. Analog dials rotate clockwise; digital LCDs show instantaneous readings. Tamper-proof seals (plastic or metal) secure the cover–broken seals require facility manager notification. Behind the meter, sealed compartments house voltage regulators or power conditioning gear, distinguishable by finned heat sinks or relay clicking during operation.

Common Auxiliary Elements

1. USB charging ports: two or four slots, molded into the unit’s lower faceplate, rated 2.1A per port.
2. Lighting: interior LED strips or exterior halogen bulbs, controlled by a photocell or manual switch.
3. Lockout hasps: steel clasps accepting padlocks to prevent unauthorized access to breakers or inlets.
4. Weatherproof covers: hinged doors with neoprene gaskets, securing receptacles from moisture.

Ground rods–copper-clad steel rods driven into soil–connect via a braided copper strap to the chassis. Verify continuity with a multimeter: probe between the rod and the unit’s grounding busbar; resistance should not exceed 25 ohms. For regions with high soil resistivity, stations incorporate ground enhancement material or Ufer grounds embedded in concrete.

Document each component’s condition and location in a notebook or app. Note the manufacturer–ATEK, Park Power, or Zamp–for replacement parts. Annual maintenance includes tightening connections, spraying contact cleaner on breaker switches, and verifying torque specs against the facility’s service manual. Immediate shutdown is required if flickering lights, buzzing, or burnt smells occur.

Installing a 30 Amp RV Outlet: Precise Electrical Setup

Begin by shutting off power at the main breaker panel–verify absence of voltage using a non-contact tester on the circuit. Strip 0.75 inches of insulation from the ends of a 10-gauge copper wire (black, white, green) rated for outdoor use. Connect the black (hot) wire to the brass terminal, white (neutral) to the silver terminal, and green (ground) to the green grounding screw inside the outlet box. Torque all connections to 12 inch-pounds to prevent loosening from vibration.

Secure Mounting and Weatherproofing

Position the outlet box on a sturdy, non-flammable surface away from direct spray (minimum 18 inches above ground). Use stainless steel screws to anchor the box–avoid drywall anchors if mounting to wood or composite materials. Apply a silicone-based sealant around the edges before screwing the faceplate until snug. Ensure the rubber gasket compresses evenly to prevent moisture ingress, which can corrode terminals within 6–8 months if unprotected.

Route wires through the back of the box using a 0.5-inch knockout–never force them through sharp edges. If the run exceeds 25 feet from the breaker, upsize the wire to 8-gauge to compensate for voltage drop (3% maximum loss per NEC guidelines). Label each wire at both ends with heat-shrink tubing to avoid confusion during future maintenance.

Test the circuit with a multimeter: confirm 120V between hot and neutral, 0V between hot/neutral and ground. Re-energize the breaker, then plug in a 30-amp RV cord–check for overheating at the outlet after 15 minutes of continuous 24A load (80% of rated capacity). Replace the outlet immediately if it exceeds 140°F or shows discoloration.
