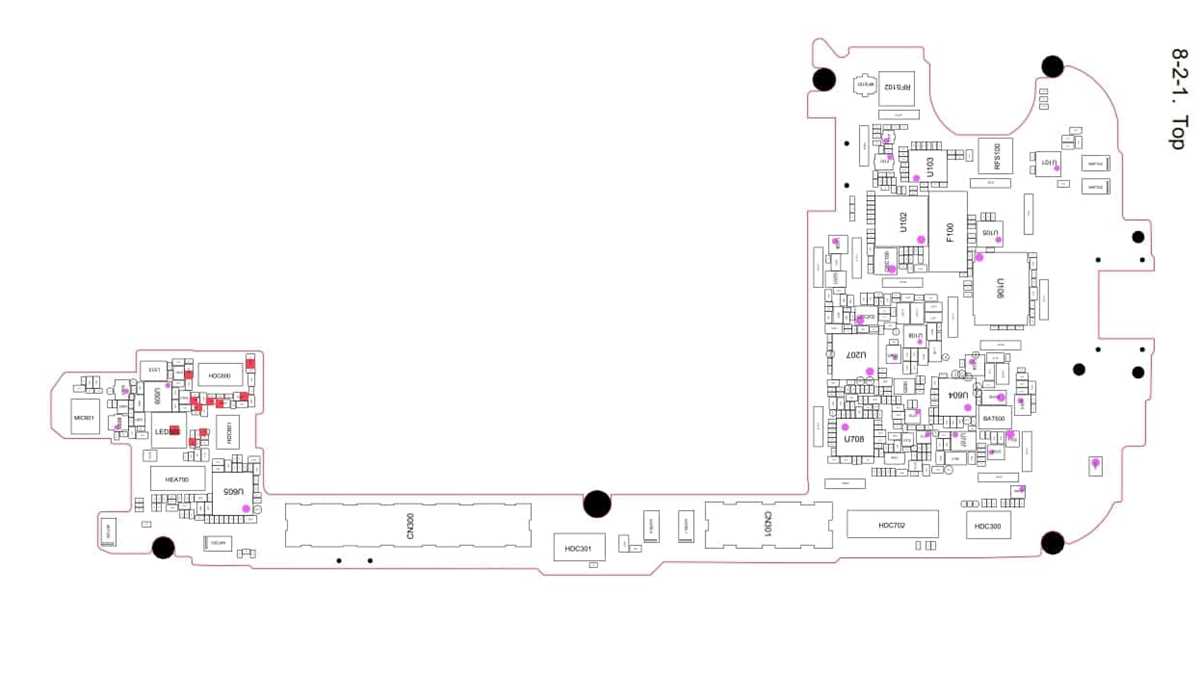

Detailed Samsung Galaxy S10e Circuit Board Schematic Guide with Component Layout

Access the official hardware layout for this 2019 premium compact device by locating the service manual through authorized repair centers or verified online repositories. The document typically includes detailed PCB views, signal paths, and power distribution maps–critical for diagnosing faults in charging circuits, display connectors, or camera modules. Prioritize versions stamped with revision markers (e.g., “Rev 1.2” or higher) to ensure accuracy.

Focus on key circuit sections: the PMIC (power management IC) handles voltage regulation, while the AP (application processor) coordinates data flow between memory, modem, and peripherals. Trace lines from the USB-C port to the charging IC–interruptions here often cause bootloop failures. Use a multimeter to verify continuity on data pins (D+ and D-), which frequently suffer corrosion from humidity exposure.

For troubleshooting touch irrepsonsiveness, examine the connection between the digitizer flex and the main board. The schematic highlights dedicated test points near the display connector–measure resistance against reference values to isolate faults. When replacing the battery, ensure the new cell’s thermistor matches the original spec to prevent thermal shutdowns, a common issue post-third-party repairs.

Download the layout file in PDF or EDIF format from trusted sources like Electronic Repair Guide or Schematic Heaven, but cross-reference with the physical board using a microscope for fine-pitch components. Skip generic “block diagrams” often found on tech forums–they omit critical net labels for tiny resistors and capacitors prone to failure under heat stress.

If repairing a water-damaged unit, target areas around the audio codec and SIM tray interface, where corrosion spreads fastest. The layout pinpoints component labels like C9001 (a 1µF decoupling cap near the CPU) and R6012 (a 10K pull-up resistor on I2C lines)–replace these first during damage control. Always ground your tools; ESD risks escalate when probing near the eMMC chip.

Analyzing the Exynos 9820 Reference Board Layout

Begin troubleshooting power delivery issues by isolating the PMIC (S2MPB02) lines on page 4 of the service manual–focus on pins 12 (BUCK1), 19 (LDO1), and 27 (VBAT) for voltage drops exceeding 50mV under load. Use a thermal camera to detect hotspots near these regulators; consistent >45°C readings indicate failing decoupling capacitors (0402 10µF Murata GRM15). Replace with TDK C-series if Murata components are unavailable to maintain ESR stability.

The Qualcomm WTR5975 RF transceiver (U501) requires precise impedance matching on the primary TX/RX paths–verify traces C101-C104 and L101-L104 against the PCB stackup documentation (Layer 3: 0.8mm microstrip width, εr=4.2). Signal degradation above 3dB at 2.4GHz often stems from oxidized via stubs; reflow with SN100C alloy at 245°C for uniform wetting. For persistent desense, disable MIMO antenna switching via test point TP702 using a 1kΩ resistor to ground.

Flash memory corruption frequently originates from improper shutdown sequences involving the eMMC 5.1 interface (KLM8G1GETF-B041). Check CLK (pin 6) and CMD (pin 5) lines for ringing >20% of VCCQ with an active probe; terminate with 33Ω resistors if overshoot exceeds 50mV. Reinitialize the bootloader via UFS mode by bridging test points TP12 and TP8 during power-on while connected to a jig with TZ.SW enabled.

Display-related artifacts usually trace back to the TD4320B display driver IC. Measure resistance between pins 28 (VGL) and 36 (VGH) after disconnecting the flex cable–readings below 1MΩ confirm gate oxide leakage. Replace the driver if isolation resistance falls below 500kΩ; substitute with BOE NT35597 if TD4320B is unavailable. For backlight flickering above 5kHz, recalibrate PPG settings in registers 0x11C0-0x11C3 using I2C bus 0x38.

Charging anomalies demand verification of the MAX77705 PMIC’s thermal foldback behavior–monitor pin 11 (THM) voltage drop below 1.2V during 15W fast charge cycles. Replace the NTC thermistor (10kΩ ±1%) if readings deviate by >3% at ambient 25°C. For USB-C port failures, inspect CC1/CC2 lines for shorts to GND with a milliohm meter; clean oxidation with isopropyl >90% concentration and apply conformal coating to exposed traces.

Key Power Delivery Paths in the Compact Flagship’s PCB Layout

Trace the primary battery connector (J3701) directly to the PMIC (S2MPU08A) via a 1.2mm-wide, low-impedance copper pour–minimize vias in this segment to under 0.2Ω cumulative resistance. Bypass capacitors (4×22µF X5R 6.3V) must be placed within 1.5mm of PMIC input pins VIN_0_1 and VIN_2, arranged in descending capacitance value toward the IC to suppress high-frequency noise.

Power rails for the AP (Exynos 9820) demand a split-plane strategy: core voltage (0.8V) routed via a 300µm-thick, 2oz copper layer with serpentine geometry to equalize trace lengths, while I/O voltage (1.8V) uses a mesh plane beneath the SoC to reduce inductive coupling. Critical paths include LDO outputs (LDO10/12) feeding the DRAM; these require 1µF decoupling caps at each DRAM power pin, with no more than 3mm trace length.

Fast-charging paths (5V/3A) between the USB-C port (J3300) and buck converter (SM5714) utilize dual 0.4mm traces per line, spaced 0.2mm apart to handle thermal dissipation. The buck converter’s SW node (pin 6) needs a 10nF snubber capacitor and 1µH inductor (SRR1045-1R0M) placed adjacent to the IC to attenuate switching noise; failure to comply risks Q-factor spikes above 40MHz.

Component	Max Trace Width (mm)	Via Count Limit	Impedance Target (mΩ)
Battery to PMIC	1.2	3	<200
PMIC to AP Core	0.8	1	<150
USB-C to Buck Converter	0.4 (dual)	2	<300

RF power amplifiers (QFE3320) receive 3.8V from the PMIC’s BUCK6 output; this rail must be shielded with a ground pour on layer 2, separated by 0.1mm dielectric to prevent coupling into GPS/LTE traces. The buck regulator’s output (BOUT6) requires a 22µF ceramic capacitor (GRM32ER61E226M) within 2mm, with an ESR below 5mΩ to maintain stability during load transients.

Always verify the return path for each power rail by simulating current density in tools like Allegro PowerTree–hotspots exceeding 35A/mm² indicate inadequate routing. For the modem’s discrete power rails (e.g., PA_ENABLE), use a star topology with ferrite beads (BLM18PG121SN1) at branch points to isolate digital noise from analog sections.

Thermal vias beneath the PMIC and AP should be filled with solder mask to improve heat transfer to the ground plane; a 3×4 array of 0.3mm vias connects the IC thermal pad to the internal ground layer. For the buck converter, prioritize a 10mm² copper landing pad on the top layer with direct via stitching to layer 4–this reduces junction temperature rise by ~12°C under full load.

Identifying Key Measurement Nodes on the Flagship Compact Device PCB

Start with TP8103 near the primary PMIC–this point grants direct access to the battery charging line (VBUS) for verifying input current with a multimeter or oscilloscope. Reference the power management IC datasheet to confirm tolerances (±50mV for stable operation); deviations suggest a faulty MOSFET or corrupted firmware in the charging circuit.

P12_TEST, adjacent to the SIM tray connector, exposes the main processor’s power rail (VDD_MAIN) at 3.8V nominal. Use a low-impedance probe here to detect voltage drops during boot cycles–consistent spikes above 4.2V indicate capacitor degradation or a strained buck converter. Cross-check with the BOM for nearby decoupling capacitors (C5912, C5914) rated at 10µF; their failure mimics rail instability.

Locate JTAG pads–typically a cluster of six unlabeled vias beneath the lower-right RF shielding. Connect here for firmware debugging via UART at 1.8Mbps; mismatched baud rates cause garbled output, requiring precise resistor bridging (R3820, 0402 package). Ensure solder mask removal with a fiberglass pen to avoid shorting adjacent pads, which disrupts flash memory access.

The LTE_ANT_TEST node sits near the RF transceiver, exposed as a copper pad labeled A27. Inject a -20dBm signal via network analyzer to validate antenna switch performance–attenuation beyond -3dB suggests a damaged SAW filter or corroded coax connection. For precise readings, calibrate equipment against the reference impedance (50Ω) before measurement to exclude cable losses.

Examine TP2801 near the USB-C port for CC1/CC2 lines–these 5.1kΩ pull-down resistors govern PD negotiation. Measure resistance in-circuit to detect open paths (expected: 4.8–5.4kΩ); values outside range confirm damaged ESD diodes or a fractured trace, common after liquid ingress. Replace the port flex assembly if corrosion extends beyond the connector housing.

Tracing Signal Pathways in Exynos-Based Mobile Architectures

Identify the primary communication buses connecting the application processor to critical components by locating MIPI lanes on the circuit reference. Pinpoint the following pathways:

• Display interface: Two differential pairs (DP/DN) for DSI, plus clock lane (CLK) – typically routed to U501 (display IC) on layer 3 via MIPI_DSI1 traces.
• Rear camera: Four-lane MIPI-CSI interface through CAM_RST, CAM_AVDD regulators – examine J701 connector for trace continuity and termination resistors (22 Ω).
• Touch controller: I2C bus (I2C5_SCL/SDA) with 4.7 kΩ pull-ups to 1.8V – verify signal integrity with 20 MHz scope.
• DRAM: LPDDR4X channel splits into two 16-bit channels (CA/CK/DQ/DQS) – check routing length matches (±5 mm) between processor U200 and memory U400.

Use a thermal camera to detect abnormal resistance between power domains if signal corruption occurs; focus on decoupling capacitors near the SoC (C200-C230) with ESR < 0.05 Ω. Replace suspect components with identical dielectric materials (X7R 0603).

For troubleshooting intermittent connectivity on secondary interfaces, measure jitter on the following control lines:

1. Suspend signal (AP_SUSPEND) – expect <100 ps RMS jitter at 1.2V swing.
2. GPIO multiplexed lines (GPIO_10, GPIO_12) – validate tri-state behavior under different boot modes.
3. Audio codec (I2S0_DO/CLK) – ensure 32-bit frame alignment on a 48 kHz sample clock.

When probing high-speed lanes (USB 3.1, PCIe), reduce ground loops by connecting the scope’s ground lead directly to the nearest ground via (GND_LAYER2_VIA) rather than relying on probe clips. Disable spread spectrum clocking in test mode to stabilize frequency measurements–access hidden test points TP202 (USB TX) and TP204 (PCIe RX) via 0.1 mm micro-vias exposed on the PCB’s inner layers.
