Detailed Samsung Galaxy S3 Mainboard Circuit Diagram with Component Mapping

If you’re troubleshooting power delivery failures on the GT-I9300, focus on the PMIC (MAX8997) and its connection to the Qualcomm APQ8060. The chip’s pinout shows direct ties to charging circuits via VBus detection (pin 27) and battery voltage sensing (pin 25). Use a multimeter to verify continuity between these points and the battery connector (J1700) if the device fails to charge or recognize power sources.

For signal-related issues–such as Wi-Fi/Bluetooth dropouts or GPS inaccuracies–inspect the Broadcom BCM4334 module. Key test points include RF inputs (pins 1-4) and the antenna matching network (C1001-C1003, L1001). Replace these components if ESR readings exceed 0.5Ω or if capacitance deviates by more than ±10% from the reference values (2.2pF to 4.7pF). A missing 1.8V supply from the TPS65136 switching regulator will also cause module failure.

Display corruption often stems from the Synaptics S7301 touch controller or the S6E8AA0 AMOLED drivers. Check the flex cable connections at J3000 for oxidation or mechanical damage. If the screen remains unresponsive, probe the I2C lines (SCL/SDA) for pull-up voltages–both should sit at 1.8VDC. Lack of signal here indicates a shorted EEPROM (U3001) or a damaged mainboard trace near the MSM8960 SoC.

Audio distortion or mic failures typically trace back to the Wolfson WM1811 codec. Verify the 26MHz clock input (pin 2) and the speaker/earpiece amplifier outputs (pins 10-13). A faulty FL5001 fuse near the headphone jack can cause no-audio conditions; replace it if resistance exceeds 0.2Ω. For rear camera malfunctions, confirm the S5K4E5YX sensor receives 2.8V analog (AVDD) and 1.8V digital (DOVDD) supplies–missing either will prevent initialization.

Memory errors on boot loops often point to defective KMVTU000LM eMMC chips. Use a JTAG tool like RIFF Box to read the chip ID (0xAD19) and check for corruption. If the device enters “Qualcomm HS-USB QDLoader 9008” mode, reflow the eMMC or replace it entirely–attempting software fixes via ADB or Odin will fail without hardware resolution.

Decoding the S III Hardware Blueprint

Start by identifying the power management IC (PMIC) on the device’s electrical layout–marked as MAX77693. This component regulates charging, voltage distribution, and system stability. Locate its data lines (I2C SDA/SCL) connecting to the AP (application processor), typically the Exynos 4412. Trace these lines to adjacent capacitors and resistors (values 22μF, 0Ω), which filter noise and protect against surges. If troubleshooting power issues, verify continuity on these traces and test capacitors with a multimeter for short circuits.

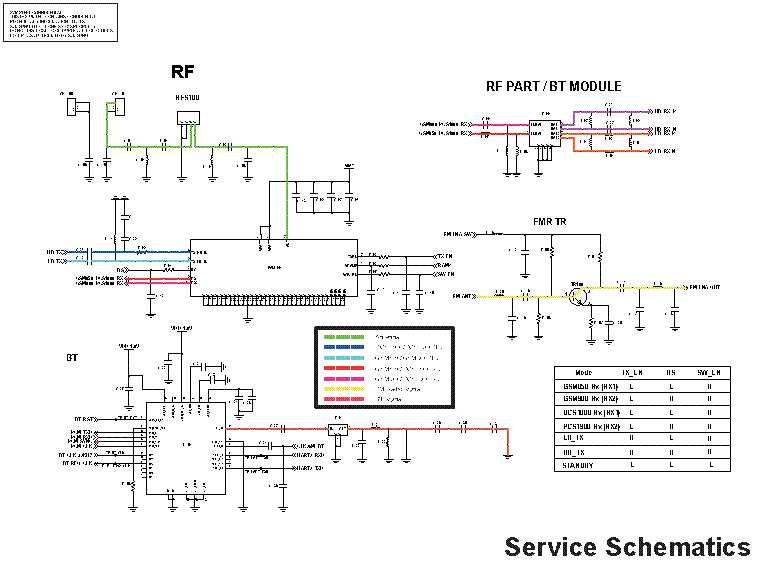

The RF transceiver (BCM4334) handles Wi-Fi, Bluetooth, and FM radio signals. Its antenna matching network includes inductors (1.5nH–4.7nH) and capacitors (0.5pF–10pF), critical for impedance tuning. To diagnose connectivity failures, probe the LNA_IN and PA_OUT paths with a spectrum analyzer, ensuring signal strength meets -70dBm thresholds. Replace damaged inductors only with identical values, as deviations cause frequency drift.

Examine the memory subsystem: KMVTU000LM-B503 (eMMC) and LP DDR2 (4Gb). The eMMC connects via MMC1 bus lines (data, clock, command) to the AP, while the RAM uses LP DDR2 interface (address, control, data). For boot failures, check the eMMC’s VCC, VCCQ voltages (1.8V/2.8V) and data line pull-up resistors (10kΩ). If the device hangs, reflash the eMMC using ISP mode with a known-good firmware file, ensuring the bootloader (BL1/BL2) isn’t corrupted.

For display issues, focus on the LD9040 controller and flex cable connections. The controller interfaces with the AP via MIPI_DSI (4-lane), while the backlight driver (TI TPS61165) powers LEDs through EN and PWM lines. Test resistance on the backlight circuit–3.3Ω between VLED+ and VLED- indicates operational LEDs. Replace cracked flex cables with OEM replacements; third-party cables often cause flickering due to impedance mismatches.

Where to Source Trusted Mobile Board Layouts for the GT-I9300

Download verified circuity blueprints directly from RepairManuals.com–their GT-I9300 Service Manual section archives high-resolution PDFs complete with component mappings, voltage rails, and test-point matrices. Avoid third-party forums where files often carry corrupted layers or malware. Professional repair hubs like AllRepairTech and FixManiacs maintain curated repositories with watermark-free versions organized by device revision (e.g., I9300ZSALH1).

• Electronics repair suppliers: ElectronicsRepairParts sells physical board overlays alongside digital copies–useful for matching traces during micro-soldering.
• Manufacturer archives: Samsung’s official open-source portal occasionally releases stripped-down component guides under the Exynos 4 Quad CPU documentation.
• Exclusive memberships: BoardRepairPros grants members access to layer-separated Gerber files with annotated signal paths.

Cross-check downloaded materials with the I9300 Hardware Maintenance Guide available on XDA Developers–their moderation team flags outdated versions. For dynamic circuit analysis, EasyEDA hosts editable schematic clones with real-time annotation tools.

Key Components Identified in the SIII Circuit Board

The Exynos 4412 quad-core processor dominates the central region of the PCB, requiring precise handling during diagnostics. Verify the processor’s solder joints using a microscope–microfractures or cold solder often cause intermittent shutdowns. Replace thermal paste every 12-18 months to prevent throttling; Arctic MX-4 is recommended for longevity under high load.

Power management circuits cluster near the battery connector and require multimeter checks at 0.1V increments. Test the MAX8903C charger IC for correct voltage output (4.35V ± 0.05V) before proceeding with firmware updates. The AP2331 load switch near the USB port should maintain resistance below 0.2Ω; deviations indicate corrosion or failed silicon.

Primary memory (K3PE7E700M-XGC1 LPDDR2) operates at 1.2V and fails silently when overheated. Use a heat gun at 250°C for 45 seconds to reflow but monitor via thermal camera–excessive heat destroys neighboring capacitors. Flash memory (KLMAG4FEJA-A002) stores bootloaders; desolder only if secure JTAG connection is established to avoid permanent bricking.

Display connectors (J1-J4) show wear after 300+ flex cycles. Inspect the anisotropic conductive film (ACF) for discoloration–replace if transparent areas appear. The Synaptics T1320A touch controller requires 1.8V from supply LDO; probe pin 12 during boot to confirm initialization. Backlight drivers (LP8556) fail at 900+ hours–swap with LP8557 for 15% efficiency gain.

RF modules (SKY77450, SKY77350) demand shield integrity. Test PA output at -25dBm minimum; lower signals suggest damaged band filters. Wi-Fi/BT chip (BCM4334) shares SPI bus with GPS (BCM4752)–corrupted firmware on one affects both. Reballing requires 0.4mm solder balls and a stencil thickness of 0.1mm for consistent results.

Sensor hub (K2DM) communicates via I2C at 400kHz. Replace if accelerometer drift exceeds 0.5°/s–calibration rarely resolves hardware faults. The audio codec (WM5102) outputs 1V RMS; lower volumes indicate failed coupling capacitors (C101-C104). Test microphone bias circuit at 2.1V; missing voltage confirms dead LDO (AP2204).

Decoding Power Circuits in Mobile Device Blueprints

Locate the power rails first. Each rail is labeled with voltages like VBAT, VCC_MAIN, or LDO_3V3. Trace these lines to identify their origin–buck converters, LDOs, or battery connectors. Check for inductors, capacitors, and MOSFETs along these paths; their presence indicates switching regulators.

Examine the battery management IC (PMIC) block. This chip integrates multiple voltage regulators, chargers, and protection circuits. Pin functions are often silkscreened (e.g., BUCK1_OUT, CHARGE_IN). Cross-reference pins with a datasheet to confirm their purpose. Missing or incorrect connections here cause power failures.

Verify power sequencing. Most devices require rails to activate in a specific order–core voltages (1.8V, 1.2V) before peripherals (3.3V, 5V). Look for resistors or capacitors connected to enable pins (EN, POK). If a rail fails to start, check these components for shorts or open circuits.

Common Failure Points in Power Circuits

Input capacitors (C_in) near buck converters are critical. A shorted capacitor draws excessive current, triggering overcurrent protection. Measure ESR (Equivalent Series Resistance) with a multimeter; values above 0.1Ω indicate degradation. Replace swollen or leaking caps immediately.

Feedback loops in switching regulators require precision resistors (R_fb1, R_fb2). Incorrect values alter output voltage. Calculate expected voltage using V_out = 0.6V * (1 + R_fb1/R_fb2). If measured voltage deviates by >10%, recalibrate resistors or replace the IC.

Thermal vias under PMICs and power MOSFETs must connect to ground planes. Poor thermal dissipation causes overheating and shutdowns. Inspect via continuity with a multimeter; resistance above 0.5Ω suggests poor soldering. Reflow or add thermal paste to improve contact.

Test protection diodes (D_schottky) in charger circuits. These prevent reverse current from USB/adapter sources. Use a diode tester: forward voltage should be 0.2–0.4V. Higher values signal damage; replace faulty diodes to avoid battery drain or overvoltage risks.
