How to Design a Schematic Block Diagram for High-Quality Audio Systems

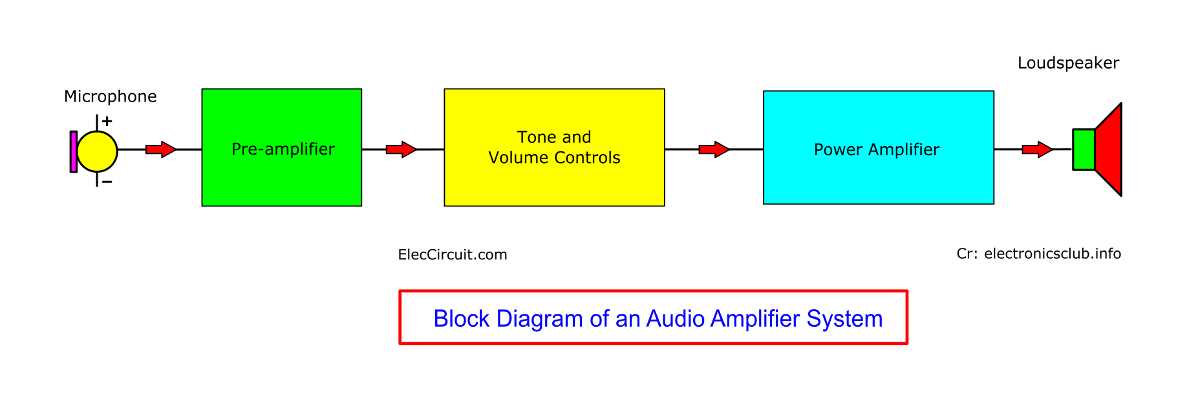

schematic block diagram for a sound system

Start with identifying the core components: microphones (dynamic or condenser), preamplifiers (XLR or ¼-inch inputs), signal processors (EQ, compressors, limiters), power amplifiers (bridged or stereo modes), and speakers (passive or active crossovers). Label each stage with input/output impedance specs–microphones typically require 150–600Ω inputs, while line-level devices operate at 10kΩ or higher. Use distinct shapes for each stage: rectangles for hardware, circles for signal paths, arrows for direction.

Connect stages with copper wire gauges: 22–18 AWG for line-level signals, 16–14 AWG for speaker cables. Mark cable runs with voltage drop percentages–no more than 3% loss per 100 feet for 14 AWG at 8Ω. Include ground loops by isolating power sources (separate AC circuits for digital and analog) and using star grounding topology.

Highlight critical signal paths: phantom power (48V) for condenser mics, balanced TRS/XLR to reject noise (CMRR > 60dB), and speaker wiring polarity (positive:red/negative:black). Add frequency response indicators: subwoofers (20–200Hz), woofers (200Hz–2kHz), tweeters (2kHz–20kHz). Specify crossover points–12dB/octave Butterworth for smooth transitions.

Integrate protection circuits: DC offset detection on amplifiers, inrush current limiters (NTC thermistors), and thermal fuses on speaker drivers. Annotate power ratings: RMS for continuous output, peak for transient handling. Example: 200W RMS at 8Ω, 350W peak.

Verify signal flow with oscilloscope readings: 1V peak-to-peak at line level, <0.1% THD. Document latency between stages–<5ms for digital processors, <2ms for analog. If using DSP, note sampling rate (48kHz–96kHz) and bit depth (24-bit).

Visual Representation of Audio Signal Flow

Begin with a single-line pathway illustrating signal progression from source to output. Place the input stage at the top left–microphones, instruments, or digital feeds–and direct the flow rightward through preamps, mixers, and processors before terminating at amplifiers and speakers. Label each stage with precise voltage ranges (e.g., mic-level: 1–10 mV, line-level: 1–1.2 V) and impedance values (e.g., 200 Ω for instruments, 10 kΩ for consumer line inputs) to ensure compatibility during routing.

Separate power and signal paths vertically to prevent interference. Highlight ground lifts, transformers, or differential inputs for noise-sensitive segments like phantom-powered condensers. Use distinct color coding: red for high-current paths, blue for low-level signals, and dashed lines for control data (MIDI, digital clock). Indicate shielding requirements–braided copper for analog, twisted pair for digital–to mitigate EMI from nearby cables.

Component Interconnections

  • Preamplifiers: Insert a dedicated module per channel, specifying gain structure (e.g., 0–60 dB with 10 dB steps) and THD+N (≤0.05% at 1 kHz). Include pad switches (-20 dB) for loud sources to prevent overload.
  • Equalizers: Divide into parametric (adjustable Q and frequency) and graphic (fixed bands at 31 Hz, 63 Hz, 125 Hz, etc.). Note corner frequencies for shelving filters (e.g., high-pass at 80 Hz, low-pass at 12 kHz) to avoid phase shifts.
  • Dynamics: Depict compressors with threshold (-30 to 0 dB), ratio (2:1–∞:1), attack (1–300 ms), and release (50–5000 ms) parameters. Add gates with hold (50–500 ms) and range (-80 to -20 dB) to suppress ambient noise.

Route auxiliary sends and returns as parallel branches. Label subgroups (e.g., drums, vocals) and assign buses–ideally 24-bit/48 kHz for digital, balanced XLR/TRS for analog. Specify crossovers (e.g., 2-way with 80 Hz, 2.5 kHz) between mains and subwoofers, including slope (12/24/48 dB/octave) and alignment delays (≤5 ms) to synchronize drivers.

Power Delivery

Designate separate rails for preamps (±15 V), amplifiers (±48 V), and digital circuits (3.3 V/5 V). Include fuse ratings (e.g., 250 mA slow-blow for preamps) and transient-voltage-suppression diodes for input stages. Calculate current draw for each module–e.g., a 500 W class-D amp at 8 Ω requires ~8 A–and add 20% headroom for surges. Use thick-gauge wire (12 AWG for mains, 18 AWG for signal) based on distance: 0.1 Ω/m drop per 10 meters at 10 A.

  1. Install star grounding at a single point–typically the mixer’s chassis–to eliminate ground loops. Connect analog/digital grounds via a 10 Ω resistor to avoid coupling.
  2. Place linear regulators (LM7815 for ±15 V) near high-impedance inputs to stabilize reference voltages.
  3. Add EMI filters (e.g., Murata BNX012) on AC inlets to reject RF noise >10 MHz.
  4. Include bypass capacitors (100 nF ceramic + 10 µF electrolytic) across each IC’s power pins to decouple high-frequency noise.

Test phase coherence across all pathways with a dual-channel FFT analyzer. Verify time-alignment of stereo pairs (60% may shift capacitor values, necessitating recalibration of crossover points and delay settings.

Core Elements of an Audio Architecture Blueprint

Begin with a high-fidelity microphone or instrument input, selecting models with 110dB SNR for clean signal acquisition. Dynamic microphones (e.g., Shure SM58) handle 50Hz–15kHz with 1.5dB variation, ideal for vocals, while condenser types (e.g., Neumann U87) capture 20Hz–20kHz at ±2dB for studio precision. Include phantom power (+48V) for condenser units, ensuring low-impedance outputs (

Preamp gain staging demands attention: target +4dBu nominal levels (1.23V RMS) to avoid clipping while maintaining headroom. Solid-state preamps (e.g., API 512C) offer 65dB gain with 0.005% THD at +20dBu, while tube designs (e.g., Manley Voxbox) introduce 2–3% harmonic distortion at full drive, useful for coloration. Route signals through a patch bay with normalized connections–to avoid hot-plugging noise–or an audio interface (e.g., RME Fireface UCX II) with 32-bit float AD/DA, ensuring

Signal Processing and Routing Essentials

EQ and compression should precede mixing: parametric EQs (e.g., FabFilter Pro-Q 3) allow ±15dB cuts/boosts at Q=0.3–20, with linear-phase mode for transients. Multiband compressors (e.g., iZotope Neutron) split audio into 4 bands (50Hz, 200Hz, 2kHz, 20kHz crossover points), applying 4:1 ratios above -24dB thresholds. Use sidechain inputs for ducking effects, ducking bass by 6dB when vocals exceed -18dBu. For live applications, insert graphic EQs (e.g., Behringer Ultragraph PRO) post-compression to tame feedback at 8kHz (Q=5) without altering dry signal.

Routing matrices must accommodate mono-to-stereo conversion and stem isolation. Assign subgroups (e.g., drums to Bus 1–4) before master bus, applying 2:1 brickwall limiting at -0.2dBFS to prevent inter-sample peaks. For immersive audio, encode signals into Dolby Atmos or Auro-3D via objects (height channels) and beds (7.1.2 base layer). Delay compensation (

Output and Monitoring Infrastructure

Amplifier selection hinges on transducer efficiency: Class-D models (e.g., Powersoft Duecanali) deliver 2kW/8Ω with 95% efficiency, ideal for subwoofers (18–80Hz), while Class-AB (e.g., Crown I-Tech) offers 0.01% THD at 250W/4Ω for mid-high drivers. Match amplifiers to speakers via Darlington pairs (e.g., MJL21193/MJL21194) for stable temperature-sensitive biasing. For studio monitors, bi-amped designs (e.g., Genelec 8351) use active crossover at 2.5kHz, reducing passive component losses by 30% compared to tri-amped setups.

Acoustic treatment precedes speaker placement: 4″ open-cell foam (e.g., Auralex Studiofoam) absorbs >100Hz, while Helmholtz resonators (e.g., GIK 242s) target 80Hz room modes. Position tweeters ±15° off-axis for ±6dB sweet-spot width, with subwoofers in non-symmetrical corners to avoid nulls. For portable rigs, lithium-ion battery packs (e.g., Roland PB-3000) provide 150W @ 20V for 12 hours, while networked Dante controllers (e.g., Yamaha RIVAGE) stream 128 channels at 24-bit/96kHz with

Step-by-Step Process to Design an Audio Signal Flow Path

Begin with a written routing sequence on paper. Define each stage’s input impedance–microphones (1–2 kΩ), line-level sources (10 kΩ+), and instruments (50 kΩ–1 MΩ)–to prevent signal degradation. Match impedances within 10% tolerance at every connection point to avoid reflections and phase cancellation. Use shielded twisted-pair cables for unbalanced signals under 10 meters; switch to balanced pairs with XLR or TRS connectors for longer runs or noisy environments. Ground the shield at one end only–typically at the source–to eliminate ground loops.

Select preamplifiers with a noise floor below –120 dBu and a dynamic range exceeding 100 dB. For dynamic microphones, aim for a preamp gain of 40–60 dB; condenser mics require 0–10 dB less due to internal amplification. Insert a 20 Hz–50 kHz bandpass filter after the preamp to block DC offset and ultrasonic interference. If processing includes compression, place it before equalization to prevent amplitude-dependent frequency shifts distorting the EQ response. Use a bypass switch to isolate each processor during initial calibration.

Routing and Gain Structure

Set unity gain at every stage unless intentional boost or cut is needed. Start with the fader at –6 dB for analog consoles and –20 dBu for digital mixers to allow headroom. Route auxiliary sends post-fader for monitor mixes; route subgroup busses pre-fader for parallel compression or effects processing. Calculate total system gain by summing each stage’s contribution–microphone (-50 dBu), preamp (+40 dB), mixer channel (+6 dB), and power amplifier (+30 dB)–to ensure the signal reaches the loudspeaker at +0 dBu ±3 dB without clipping. Use a pink noise generator at –20 dBu to verify each gain stage independently.

Integrate metering at every critical junction: PPM (Peak Programme Meter) for transient peaks, VU (Volume Unit) for average levels, and clip indicators with a 3 ms attack time. Position the loudest input signal (usually kick drum) at –3 dB on the master fader to leave headroom for mix automation. For digital interfaces, keep the sample rate at 48 kHz or higher and the bit depth at 24 bits to preserve dynamic resolution. Insert a de-esser or multiband compressor after the EQ to tame sibilance or harsh frequencies without affecting the entire signal path.

Conclude with a final gain verification using a 1 kHz sine wave at –18 dBu. Measure the output at the loudspeaker terminals: it should register 80–90 dB SPL at 1 meter, depending on the driver’s sensitivity. Document each connection’s pin configuration–XLR pin 1 (shield), 2 (hot), 3 (cold); TRS tip (hot), ring (cold), sleeve (ground)–to simplify troubleshooting. Label every cable and connector with its signal type, source, and destination for future reference. Store spare cables terminated identically to maintain consistency across events.
