Understanding Schematic Circuit Diagrams Key Components and Functionality

Begin by isolating critical pathways in your design–identify power rails, signal lines, and ground connections first. Label each component with precise reference designators (e.g., R1, C3, Q2) to eliminate ambiguity during assembly or troubleshooting. Use standardized symbols: resistors as zigzag lines, capacitors as parallel plates, and transistors with their three terminals clearly marked. Avoid custom icons unless absolutely necessary, as non-standard representations complicate collaboration.

Group related elements logically: keep sensor inputs near their processing units, power regulators adjacent to the loads they serve, and feedback loops compact. Horizontal and vertical alignment of lines reduces visual clutter–use 90-degree bends sparingly and maintain consistent spacing (no less than 0.5 cm between adjacent tracks). For complex systems, split the layout into functional blocks (power supply, microcontroller, peripherals) and connect them with labeled nets rather than sprawling wires.

Prioritize readability for maintenance: color-code lines by function (red for power, blue for signals, black for ground), and add concise but descriptive labels (e.g., “5V_OUT”, “I2C_SDA”). Include a bill of materials (BOM) directly on the blueprint with part numbers, tolerances, and supplier links. For analog designs, specify voltage ranges, current ratings, and thermal considerations–omit these, and you risk costly errors during prototyping.

Validate early and often: simulate the layout with tools like SPICE to detect bottlenecks, voltage drops, or signal interference. Verify all connections against the physical pinouts of components–swap TX and RX lines on a microcontroller once, and you’ll waste hours debugging. Document every assumption: if a resistor value is “temporary,” note it. Unclear documentation is the leading cause of avoidable rework.

Understanding Graphical Electrical Blueprints

Begin by adopting standardized symbols for components like resistors (zigzag lines), capacitors (parallel lines), and transistors (T-shaped). Use IEEE 315 or IEC 60617 as reference–these eliminate ambiguity in cross-team collaboration. For example, a npn transistor is always depicted with an arrow pointing outward from the base.

Label every element with unique identifiers (R1, C3, Q2) and specify values in consistent units: ohms for resistance, farads for capacitance, and volts/amperes where critical. Use suffixes like k (kilo), M (mega), or µ (micro) to avoid clutter–e.g., 4.7kΩ instead of 4700Ω. Include tolerance (+/-5%) and power ratings (0.25W) for resistors to prevent overheating.

• Place signal flow left-to-right or top-to-bottom. Power rails should run horizontally at the top/bottom; ground symbols (inverted triangle) align vertically.
• Avoid overlapping lines–use dot junctions for connections, open intersections for crossings.
• Group related components (e.g., voltage dividers) spatially, separating analog and digital sections with clear gaps.

Annotate critical nodes with net names (e.g., VCC, CLK_OUT) to simplify debugging. Add test points as circles with labels (TP1) for oscilloscope probes. For microcontrollers, include pin numbers and functional descriptions (PC6/TOSC1 for timer input).

1. Verify connectivity with a netlist compare tool (KiCad’s ERC or Altium’s DRC).
2. Check for floating inputs–tie unused CMOS gates to VCC/GND via pull-up/down resistors (10kΩ typical).
3. Simulate power integrity by calculating total current draw; ensure traces handle expected loads (e.g., 1 oz copper for ≤1A).

Use hierarchical sheets for complex designs. Break down subsystems (power supply, MCU, sensors) into separate files, linked via port symbols. Color-code nets: red for power, blue for signals, green for grounds. Document revision history in a corner with date, author, and changes (Rev 1.2: Added EMI filter).

Export final versions in both vector (PDF/SVG) and editable formats (KiCad, Eagle, OrCAD). Include a BOM with manufacturer part numbers (e.g., Resistor 1kΩ ±1% 0.25W Vishay CRCW0402) to streamline procurement. For high-speed designs, add impedance requirements (e.g., 50Ω single-ended) to PCB notes.

Core Elements and Notation in Electrical Blueprints

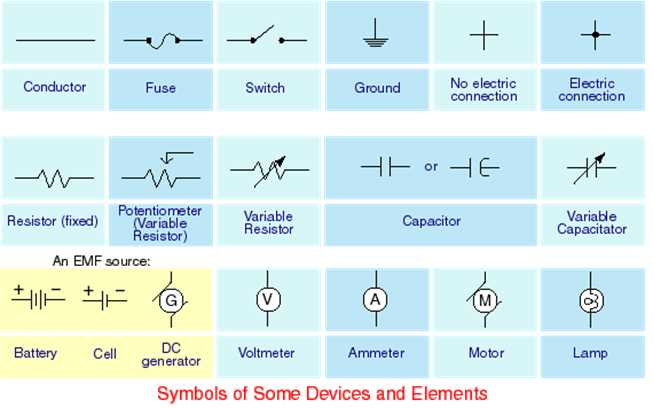

Begin by mastering the standard notation for resistors, capacitors, and inductors–these form the backbone of most designs. For resistors, use a rectangular box with resistance values annotated in ohms (Ω), kilohms (kΩ), or megohms (MΩ). Capacitors require two parallel lines (non-polarized) or a curved line beside a straight one (polarized), with capacitance in farads (F), microfarads (µF), or picofarads (pF). Inductors are depicted as a coiled line, labeled in henries (H) or millihenries (mH). Mislabeling these can lead to incorrect impedance calculations, especially in high-frequency applications.

Transistors and integrated circuits demand precise symbol placement and pin numbering. Bipolar junction transistors (BJTs) use a circle with three leads: emitter (arrow), base, and collector. MOSFETs replace the circle with a vertical line, distinguishing enhancement or depletion types by the presence of a broken or solid channel line. For ICs, a rectangle with numbered pins suffices, but always cross-reference datasheets–generic symbols rarely convey pin functions like power rails, clock inputs, or specialized I/O.

Power sources span multiple forms: batteries use unequal-length parallel lines (longer line for positive), while DC sources adopt a circle with a “+” sign. AC sources combine a sine wave inside a circle, sometimes with frequency specifications in hertz (Hz). Ground symbols vary–chassis ground (three descending lines), earth ground (vertical line with horizontal bars), and signal ground (a simple downward triangle)–each serving distinct purposes in safety and noise reduction. Mixing them introduces risks like ground loops or equipment damage.

Switches and relays require clarity in their state representations. A momentary switch (push-button) shows an open or closed gap, while a toggle switch uses a diagonal line intersecting two possible paths. Relays combine a coil symbol (similar to an inductor) with switch contacts, often labeled “NO” (normally open) or “NC” (normally closed). Ambiguity here can mislead debuggers into overlooking dead paths or unintended shorts in fault conditions.

Passive components like diodes and LEDs share a triangle pointing to a line but differ in notation: diodes label anode/cathode, while LEDs add arrows for light emission. Zener diodes append a zigzag line to indicate breakdown operation. For connectors, use standardized pinouts–USB, HDMI, and barrel jacks each have unique shapes and pin arrangements. Deviating from industry conventions invites compatibility issues, particularly in modular designs.

Wire crossings and junctions deserve meticulous attention. A dot at an intersection confirms electrical connection; its absence means no contact. Modern standards frown upon the old “loop-over” crossing method, which can confuse optical recognition tools. Label wires with net names (e.g., “VCC,” “GND,” “CLK”) to simplify tracing; numerals alone risk misinterpretation during revisions. Color-coding in documentation aids quick visual verification but must align with physical wiring to avoid integration errors.

How to Read and Interpret Electrical Blueprint Connections

Start by identifying power sources–look for battery symbols, voltage labels, or power rails marked with “+” and “−”. Trace lines extending from these points to determine which components receive energy. Note that thicker lines often indicate higher current paths, while thin lines may represent signal or control wiring.

Examine component symbols and their standardized representations. Resistors appear as zigzag lines, capacitors as parallel lines (one curved for polarized types), and transistors as three-terminal devices with arrows indicating current flow. Refer to a symbol reference if unfamiliar designs appear.

Follow connection paths methodically. If a line splits, each branch leads to a separate node–verify where they reconnect or terminate. Avoid assumptions about hidden junctions; cross-references with physical layouts if available. Look for dots at intersections, which confirm electrical contact, while crossed lines without dots indicate no connection.

Identifying Functional Groups

Group components serving the same purpose. For example, a cluster of resistors, diodes, and a capacitor near a power input typically forms a filtering or protection network. Similarly, multiple switches or relays with shared control lines suggest a control module. Label these sections mentally to simplify analysis.

Check for ground references–symbols like downward triangles or horizontal lines with three descending segments. Confirm all paths eventually connect here, either directly or through other components. Floating nodes (no ground path) often signal design errors or intentional isolation, such as in differential signal pairs.

Analyze ic pins by cross-referencing datasheets. Pin numbering usually starts at an index mark (a dot or notch) and progresses counterclockwise. Power pins (VCC, GND) and signal pins (IN, OUT) follow manufacturer-specific arrangements–never assume standard layouts without verification.

Note any annotations like net names (e.g., “CLK,” “DATA”) or color codes on wires. These labels correlate physical implementations, helping bridge theory with real-world wiring. Use continuity checks with a multimeter if the blueprint lacks clarity.

Test comprehension by reconstructing a section on breadboard. Misinterpretations become obvious when powering the build–unexpected shorts or open circuits reveal errors in reading. Adjust tracing techniques based on observed behavior.
