Induction Cooker Power Electronics Circuit Layout and Key Components Guide

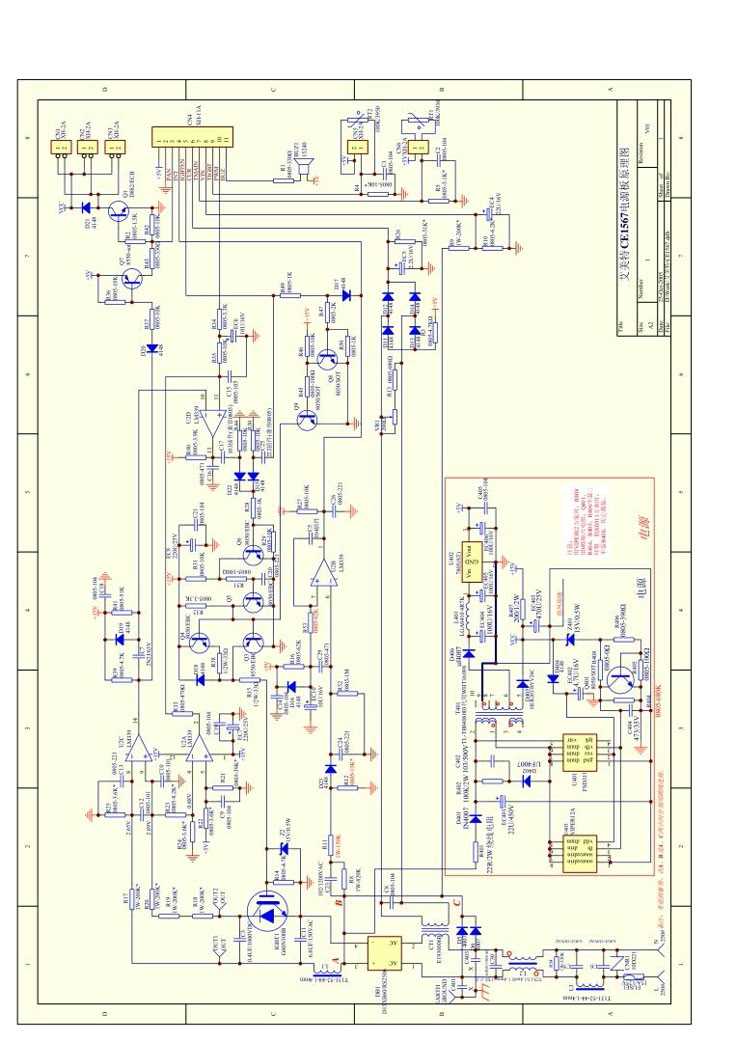

The high-frequency switching inverter lies at the heart of any magnetic surface unit, typically operating between 20-50 kHz. Use a half-bridge or full-bridge MOSFET configuration–IRFP460 or IXYS IXFH40N120 are reliable choices–paired with a resonant tank formed by a 0.1-0.3 µF polypropylene capacitor and the work coil itself. Ensure the coil’s inductance ranges from 80-200 µH; wind 16-24 turns of 2 mm Litz wire around a ferrite core to minimize skin-effect losses. Gate drivers like the UCC27322 should be placed no farther than 5 cm from the MOSFETs to prevent ringing and false triggering.

Current sensing demands precision. A 0.01 Ω shunt resistor (1% tolerance, 3 W) placed in series with the resonant path provides a low-impedance feedback path. Amplify the voltage drop with an INA186 instrumentation amplifier, configured with a gain of 50-100, before feeding it into the microcontroller’s ADC. Avoid cheap Hall-effect sensors; their phase lag at 30 kHz skews regulation. Instead, opt for a software-based PID loop running at 1 kHz sampling rate–this achieves 0.5°C stability under typical loads.

Over-temperature cutoff must be hardware-enforced. Mount a PT1000 RTD beneath the glass ceramic, wired in a 4-wire Kelvin configuration to eliminate lead resistance errors. The signal should route through an AD7124-8 ADC offering 24-bit resolution. A secondary failsafe uses a bimetallic snap disc clipped directly to the coil former; set it to trip at 220°C–this protects against software hangs that could otherwise lead to thermal runaway.

Power factor correction is non-negotiable for compliance. A boost PFC stage using a SiC diode (C3D06060A) and a 1 mH choke reduces THD below 8% at 2.2 kW output. Control the PFC with a dedicated UCC28180 IC; keep the bus voltage between 380-400 VDC. Any lower risks insufficient headroom for full-power cooking; any higher stresses capacitor lifetimes.

Lastly, design the EMI filter with differential-mode chokes wound on toroidal cores (Fair-Rite 2643665702) and Y-capacitors (2.2 nF) placed as close as possible to the housing’s ground lug. Test conducted emissions with a LISN and a spectrum analyzer; aim for compliance below EN 55014 Class B limits from 150 kHz to 30 MHz. Skipping this step risks interference with adjacent appliances–especially wireless charging pads and Wi-Fi routers.

Understanding Electronic Blueprints for Magnetic Heating Appliances

Begin by identifying the high-frequency inverter at the core of the design–typically an IGBT or MOSFET module paired with a resonant capacitor bank. Opt for components with a breakdown voltage of at least 1200V and a current rating of 30–50A to handle transient spikes during load changes. The gate driver must be optically isolated (e.g., HCPL-3120) to prevent ground loops, with a dead-time setting between 1.5–2.5µs to avoid shoot-through. Verify the snubber network (RC pair: 10Ω + 1nF) across the switching device to dampen ringing at the resonant frequency (20–50kHz).

• Resonant coil inductance: 100–200µH (ferrite core, Litz wire for skin effect mitigation).
• Resonant capacitor: 0.3–0.6µF (polypropylene, 630VAC rating).
• Current sensor: Hall-effect (ACS712) with a 20A range and ±1.5% accuracy.
• Microcontroller: STM32F or PIC18F for PWM generation (25–50kHz range).
• Thermal protection: NTC thermistor (10kΩ @ 25°C) mounted on the inverter heatsink.

Route the feedback loop from the analog front-end to the MCU ADC with a low-pass filter (cutoff ~1kHz) to reject high-frequency noise. The control algorithm should implement a PI regulator with anti-windup to maintain constant power delivery–adjust Kp (0.1–0.3) and Ki (5–15) based on load characteristics. For EMI compliance, use a common-mode choke (1mH) on the AC input and a Y-capacitor (0.1µF) across line-neutral. Test the design with a dummy load (non-ferrous metal disc) before connecting ferrous cookware to validate ZVS (Zero Voltage Switching) across the full power range.

Critical failure points demand redundancy: fuse the DC bus (fast-acting, 1.5x max current), and add a varistor (470V) across the bridge rectifier. For firmware, prioritize watchdog timer resets and brown-out detection to ensure system recovery. Bench-test all components individually–measure gate drive waveforms with an isolated probe (>100MHz bandwidth) to confirm clean transitions. Avoid overheating by ensuring the heatsink’s thermal resistance is ≤1°C/W; use thermal paste with >3W/mK conductivity. Document each revision with oscilloscope captures and load-testing data to streamline troubleshooting.

Critical Parts in a Modern Heat-Induction System

Start by ensuring the inverter module operates at 25–50 kHz with a half-bridge or full-bridge configuration using IGBTs rated for 1200V/50A or MOSFETs like IXYS IXFN32N120P3. Place a snubber capacitor (0.1–0.47 μF, X7R dielectric) directly across each switching element to suppress voltage spikes exceeding 900V–failure here risks thermal runaway in the pancake coil. Use Litz wire with individual strands under 0.1 mm diameter to minimize skin-effect losses; a 20-turn coil with 35 AWG strands delivers 6–10 μT at 5 mm standoff, balancing efficiency and stray field containment.

Power Regulation and User Interface

Integrate a microcontroller (STM32F334 or similar) with 12-bit ADC resolution for real-time current sensing via a 5 mΩ shunt resistor–sample rates above 20 kHz prevent aliasing during PWM transitions. A buck converter (24V to 5V, 3A) powers the MCU and display, while optocouplers (VO3120) isolate feedback signals from the high-side driver (IR2110 or UCC27211). Implement a 24V fan with 0.2 CFM/Watt airflow to cool the heatsink, sized for 1°C/W thermal resistance; exceeding 70°C junction temperature reduces IGBT lifespan by 30%. Equip the system with a 10 nF Y2-class capacitor between coil ground and chassis to meet

Step-by-Step Wiring Layout for Power Conversion Stages

Begin by securing the high-voltage AC input to the rectifier module, ensuring the live and neutral connections adhere to a minimum 4 mm² cross-section for 220V/50Hz systems. Solder the output terminals of the rectifier directly to a 1000 µF/400V electrolytic capacitor, maintaining a tight loop to minimize parasitic inductance–critical for transient suppression during switching transitions. Verify polarity with a multimeter before energizing, as reversed connections will catastrophically fail the capacitor within milliseconds.

Bridge Configuration and Filtering

Wire the full-wave bridge rectifier using ultrafast recovery diodes (UF4007 or equivalent), paralleling them if current demands exceed 1A to prevent thermal runaway. Route the DC output through a 10 Ω/10W current-limiting resistor before the main capacitor bank to soften inrush surges–this extends component lifespan by reducing stress on the bridge. Place a 10 nF polyester film snubber capacitor across each diode’s anode-cathode junction to clamp voltage spikes generated by reverse recovery effects, which can reach 200V/µs slopes.

For the resonant converter stage, connect the inverter’s IGBT pairs (e.g., IXGH40N60) in a half-bridge topology, with gate resistors (10 Ω/1W) soldered no more than 2 cm from the driver IC to prevent ringing. Use twisted-pair wiring for gate signals to reject EMI, and incorporate a 15V Zener diode between the gate and emitter to clamp excursions beyond the IGBT’s ±20V absolute maximum rating..route the resonant tank–comprising a 1 µF/1000V polypropylene capacitor in series with a 100 µH/20A air-core coil–directly to the inverter’s midpoint to minimize stray inductance, which degrades zero-voltage switching efficiency.

Feedback and Protection Loops

Implement a Hall-effect current sensor (ACS712) in the return path of the resonant tank, scaling its 185 mV/A output to the PWM controller’s analog input via a 47 kΩ/1% resistor divider. Add a 10 µF tantalum capacitor at the controller’s feedback pin to filter switching noise, but keep trace lengths under 1 cm to avoid phase lag in overcurrent thresholds, which must trip within 5 µs to prevent desaturation failures. For thermal protection, bond a 10 kΩ NTC thermistor to the IGBT’s heatsink, wiring it in series with a 2.7 kΩ resistor to form a voltage divider monitored by the microcontroller’s ADC–set a 90°C cutoff to avoid thermal overstress.

Terminate the DC link by connecting the smoothing capacitor bank to a bleed resistor (56 kΩ/5W) for safe discharge post-power-down, ensuring residual voltage decays below 30V within 30 seconds. Ground the chassis and heatsink through a star point topology, isolating them from the power stage’s switching node with a 10 nF Y-rated safety capacitor to comply with Class II insulation standards. Validate the entire layout with an oscilloscope, triggering on the gate drive signal to confirm dead-time intervals (300–500 ns) between IGBT transitions–shorter gaps risk shoot-through, longer delays reduce conversion efficiency by 2–4% per 100 ns.

Resolving Faults with the Electrical Blueprint

Check the power module first if the appliance fails to start. Locate the IGBT (insulated-gate bipolar transistor) on the layout–typically marked near the high-voltage section. Use a multimeter in diode mode to measure between the emitter and collector. A reading above 0.5V indicates a blown transistor; replace it immediately. Verify the surrounding capacitors (rated 400V or higher) for bulging or leaks.

For inconsistent heating, inspect the coil assembly. Disconnect power, then test coil resistance with an ohmmeter. Expected values range between 30-60 ohms depending on the model. Resistance below 10 ohms suggests shorted turns; above 80 ohms indicates an open circuit. Compare readings against the reference chart below.

Model	Normal Resistance (ohms)	Minimum Tolerance (ohms)	Maximum Tolerance (ohms)
GH-2230	42	38	46
XP-1500	55	50	60
TR-800	28	25	31

If the device powers on but won’t detect cookware, focus on the sensor loop. Trace the sensing line from the main control IC to the coil connector. Look for cold solder joints or fractured traces under a magnifier. Apply fresh solder to suspect joints. For Hall-effect sensors, ensure they’re seated correctly–misalignment disrupts detection.

Examine the rectifier stack when experiencing flickering displays. Test each diode in the bridge with a multimeter set to continuity. Replace any diode showing forward voltage beyond 0.7V or reverse leakage above 1mA. Confirm the smoothing capacitor (usually 220μF/400V) isn’t dry–bulging or low capacitance causes erratic behavior.

Overheating often stems from failed cooling. Locate the fan control traces leading to the MCU. Measure the drive transistor’s base voltage; it should switch between 0V and 5V when active. If stuck at 0V, the fan motor or driver IC is faulty. Clean fan blades of dust–restricted airflow triggers thermal shutdown.

For erroneous error codes, cross-reference the layout with the manufacturer’s fault table. Common codes point to specific components: “E1” usually means a temperature sensor failure, while “E3” flags a voltage anomaly. Test the thermistors using a multimeter in resistance mode–values should drop smoothly as temperature rises. Replace any thermistor with a sudden jump or open reading.

If the appliance trips the breaker, isolate the high-current path. Check the varistor for degradation–blackened or cracked cases require replacement. Inspect the surge protection fuse holder for arcing; burn marks indicate the fault location. Measure line voltage at the input terminals–fluctuations above 10% necessitate a dedicated circuit or stabilizer.

Silent operation with no response often traces to the MCU. Reset it by cutting power for 60 seconds. If unsuccessful, probe the oscillator pins (typically 12MHz) with an oscilloscope–absence of waveform confirms a dead crystal. Replace the crystal and nearby loading capacitors (20pF) together to ensure stability.

Key Test Points Summary

Component	Test Method	Expected Result	Fault Indication
IGBT	Diode mode E-C	<0.5V drop	>0.5V or OL
Bridge Rectifier	Forward voltage	0.5-0.7V	>0.8V or leakage
Coil	Resistance	30-60Ω	<10Ω or >80Ω
Fan Transistor	Base voltage	0V/5V switching	Constant 0V
