Autonomic Nervous System Structure and Functional Pathways Explained
To grasp how internal functions regulate unconsciously, begin by isolating the two core branches: the sympathetic and parasympathetic pathways. These divisions operate antagonistically, balancing arousal and restorative states. The sympathetic branch triggers rapid responses–accelerating heart rate, dilating pupils, and redirecting blood flow to skeletal muscles during stress or physical exertion. Target the adrenal medulla: it releases adrenaline and noradrenaline, amplifying this cascade within seconds.
Examine the parasympathetic network’s origins in cranial nerves III, VII, IX, and X, plus sacral spinal segments. Cranial nerve X (vagus) dominates, innervating thoracic and abdominal organs. Identify cholinergic transmission here–acetylcholine binds muscarinic receptors, slowing heart rate and stimulating digestion. Precision matters: the vagus nerve’s myelinated fibers conduct signals faster than unmyelinated ones, shaping response speed.
Trace preganglionic fibers from the intermediolateral cell column (T1–L2) for the sympathetic chain. These fibers synapse near spinal vertebrae or in prevertebral ganglia (celiac, superior/inferior mesenteric). Note exceptions: sweat glands and piloerector muscles use cholinergic transmission after sympathetic synapsing. For clinical relevance, isolate referred pain patterns–visceral afferents converge on somatic pathways, explaining radiated discomfort from internal organs.
Assess neurotransmitter variance: sympathetic postganglionic neurons primarily use noradrenaline, except for sweat glands (acetylcholine) and renal vessels (dopamine). Parasympathetic neurons exclusively release acetylcholine. This differential dictates pharmacological targets–beta-blockers for sympathetic overdrive, anticholinesterases for parasympathetic deficits. Validate these pathways through physiological tests: cold pressor response for sympathetic activation, heart rate variability analysis for vagal tone.
Prioritize anatomical landmarks: the stellate ganglion (fusion of inferior cervical and T1 ganglia) marks a critical junction for upper limb and head sympathetic supply. Disruptions here manifest as Horner’s syndrome (ptosis, miosis, anhydrosis). For visceral control, focus on the hypothalamic-pituitary-adrenal axis–it integrates autonomic responses with endocrine signaling. Use functional imaging (fMRI) to map hypothalamic subnuclei (paraventricular, dorsomedial) during stress paradigms.

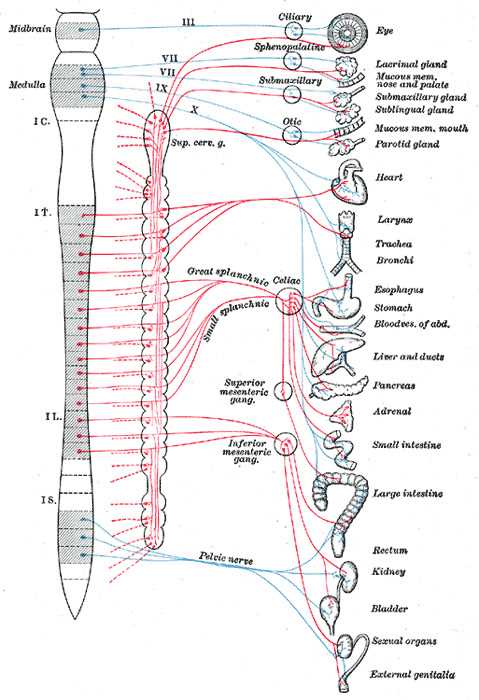

Visualizing Peripheral Neural Pathways: Key Components and Connections
Begin by segmenting the illustration into two primary divisions: sympathetic and parasympathetic trunks. Sketch the sympathetic chain alongside the vertebral column, marking ganglia at each spinal level from T1 to L2–critical entry points for preganglionic fibers. For clarity, use distinct colors: red for sympathetic outflow, blue for parasympathetic. Label the superior cervical ganglion at C2-C3, where fibers redistribute to cranial and cardiac targets.
Essential nodes to highlight:
- Celiac plexus (T5-T9) – cluster nerve endings around abdominal organs.
- Superior mesenteric ganglion (T10-T12) – directs signals to intestines.
- Inferior mesenteric ganglion (L1-L2) – modulates bladder and reproductive control.
Trace parasympathetic pathways from cranial nerves III, VII, IX, and X, noting their extended ganglia near effector organs. Vagus nerve (X) deserves extra emphasis–draw branches reaching heart, lungs, and digestive tract, terminating in intramural networks. Include tiny ganglia within organ walls, especially in the gastrointestinal tract’s enteric plexus, to show local reflex arcs.
Critical Anatomical Landmarks
For clinical relevance, pinpoint:
- Carotid bifurcation – where glossopharyngeal (IX) fibers converge, regulating blood pressure.
- Cavernous sinus region – oculomotor (III) fibers synapse before innervating ocular muscles.
- Pelvic splanchnic nerves (S2-S4) – diverge to descending colon, rectum, and genitalia.
Use dashed lines for postganglionic extensions, solid for preganglionic–the distinction helps identify signal origin and termination. Add arrows to indicate nerve impulse direction, avoiding clutter near dense clusters like adrenal medulla interfaces.
Validate accuracy by cross-referencing spinal segment origins with functional outcomes:
- T1-T4 → Heart/lungs (sympathetic acceleration).
- S2-S4 → Detrusor muscle contraction (parasympathetic).
- Cranial nerve III → Pupillary constriction.
Finalize with a legend explaining line weights–thicker strokes for major trunks, thinner for visceral branches. Include a scale bar adjusted to spinal column length for proportional clarity, ensuring anatomical ratios remain consistent across views.
Core Structures and Neural Routes in the Sympathetic Division
Target preganglionic neurons in the intermediolateral cell column of spinal segments T1–L2 for focused intervention. These cholinergic fibers exit via ventral roots, forming white rami communicantes to reach paravertebral ganglia (sympathetic trunk) or prevertebral clusters (celiac, superior/inferior mesenteric). Postganglionic noradrenergic axons extend via gray rami to vascular smooth muscle, sweat glands, and piloerector units–prioritize segmental mapping (e.g., T1–T4 for cardiac acceleration, T5–T9 for adrenal medulla stimulation) to predict autonomic responses during clinical modulation.
Critical Splenic and Suprarenal Pathways
Isolate the greater splanchnic nerve (T5–T9) for precise modulation of adrenal chromaffin cells, releasing 80% epinephrine and 20% norepinephrine systemically. This bypasses synaptic delay, amplifying fight-or-flight responses within 2–3 seconds. For visceral regulation, trace fibers from celiac ganglia to renal arteries, gastrointestinal plexuses, and hepatic vasculature–lesions here disrupt metabolic mobilization during stress, necessitating targeted ablation or pharmacological blockade (e.g., α1-adrenoceptor antagonists) to prevent hypertensive crises.
Building a Parasympathetic Pathway Illustration: Key Steps
Begin with the cranial origins: mark the Edinger-Westphal nucleus (CN III), superior salivatory nucleus (CN VII), inferior salivatory nucleus (CN IX), and dorsal motor nucleus (CN X) at brainstem levels. Use distinct color coding–deep blue for CN III, green for CN VII, purple for CN IX, and red for CN X–to ensure immediate visual differentiation. Label axonal trajectories precisely: preganglionic fibers from CN III synapse at the ciliary ganglion, CN VII at pterygopalatine and submandibular ganglia, CN IX at the otic ganglion, and CN X along thoracic and abdominal plexuses. Include branch details: CN X’s recurrent laryngeal and cardiac branches must show separate pathways to lungs and heart.
Sacral Component Integration
Add the sacral preganglionic neurons at spinal segments S2–S4, emerging via ventral roots. Draw these fibers converging into pelvic splanchnic nerves, which diverge to synapse in intramural ganglia within distal colon, bladder, and genital organs. Highlight the hypogastric plexus as the convergence point for both sacral and lumbar inputs; use dashed lines to denote inhibitory modulation of sympathetic activity. Ensure proportional scaling: sacral fibers should appear thicker than cranial due to broader innervation targets.
Verify ganglion positions: ciliary and otic ganglia lie near effector organs (eye, parotid gland), while pterygopalatine and submandibular ganglia remain in the head, requiring precise spatial mapping. Include neurotransmitter labels: all preganglionic fibers release acetylcholine; postganglionic fibers also cholinergic except sweat glands (sympathetic but cholinergic). Cross-reference with known deficits–e.g., CN III lesion eliminates pupillary light reflex–to confirm accuracy before finalizing.
Neurotransmitter Signaling and Receptor Classification in Peripheral Neural Circuits
Begin labeling efferent pathway components by identifying primary messenger molecules at pre- and postganglionic synapses. Acetylcholine (ACh) dominates parasympathetic preganglionic terminals and all ganglia, while norepinephrine (NE) exclusively mediates sympathetic postganglionic signaling–except for sweat glands and certain blood vessels where ACh reappears via muscarinic receptors.
Construct a receptor type matrix for rapid reference during annotations. Nicotinic (nAChR) ionotropic channels cluster at autonomic ganglia, ensuring rapid depolarization. Muscarinic (mAChR) metabotropic receptors (M1-M5) govern parasympathetic target organs, with M3 subtypes predominantly regulating smooth muscle contraction in bronchioles and bladder detrusor. Adrenergic receptors bifurcate into α1/α2 (excitatory/inhibitory) and β1-β3 (predominantly excitatory), each exhibiting distinct tissue-specific distributions.
| Receptor Type | Primary Location | Signal Transduction | Key Target Organs |
|---|---|---|---|
| Nicotinic (nAChR) | Autonomic ganglia | Na⁺/K⁺ influx → rapid EPSP | All ganglia; adrenal medulla |
| Muscarinic M3 | Smooth muscle, glands | Gq → IP₃/DAG → Ca²⁺ release | Bronchioles; bladder detrusor; exocrine glands |
| Adrenergic α1 | Vascular smooth muscle | Gq → IP₃/DAG → Ca²⁺ release | Cutaneous/renal arterioles; pupillary dilator |
| Adrenergic β2 | Non-vascular smooth muscle | Gs → cAMP → relaxation | Bronchioles; uterine muscle; skeletal muscle vessels |
Highlight co-transmission patterns in sympathetic fibers to avoid oversimplification. Besides NE, ATP and neuropeptide Y (NPY) modulate vascular tone via P2X (ionotropic) and Y1 (metabotropic) receptors, respectively. Label these auxiliary transmitters adjacent to NE terminals in vascular diagrams to reflect real physiological complexity.
Differentiate receptor subtypes by their intracellular cascades when annotating cardiac nodes. β1 receptors in sinoatrial tissue elevate cAMP to accelerate spontaneuos depolarization, whereas M2 receptors in atrial myocardium activate Gᵢ, reducing cAMP and prolonging repolarization via K⁺ channel modulation. Use color-coded arrows (red = stimulatory, blue = inhibitory) to visually separate opposing pathways in illustrations.
Incorporate non-canonical signaling for visceral afferent feedback circuits. Substance P and calcitonin gene-related peptide (CGRP) released from nociceptive endings bind NK1 and CRLR receptors, respectively, amplifying visceral pain signals in conditions like irritable bowel syndrome. Position these labels proximal to dorsal root ganglia projections in sensory pathway sections.
Validate receptor density heterogeneity across tissues to prevent mislabeling. β2 adrenergic receptors outnumber β1 by 3:1 in bronchial smooth muscle, making their annotation critical for understanding bronchodilator pharmacology. Conversely, α1 dominance in renal vasculature (70% of total adrenoceptors) dictates that NE-induced vasoconstriction labels must be prominently placed on afferen arterioles.
Apply temporal dynamics to synaptic annotations where relevant. ACh degradation by acetylcholinesterase occurs within milliseconds at neuromuscular junctions, requiring “transient” labeling notation. NE reuptake via NET (norepinephrine transporter) exhibits slower kinetics (minutes), meriting a distinct “prolonged” marker for sympathetic postganglionic junctions.
