Standard Schematic Diagram Symbols in PNG Format Explained

Start with standardized icons for resistors, capacitors, and inductors–these form the foundation. A fixed resistor uses a zigzag line with legs, while variable types include an arrow crossing the path. Capacitors split into polarized (curved vs. straight plate) and non-polarized (parallel plates) variants. Inductors appear as coiled loops; adjust the number of turns to indicate different values.

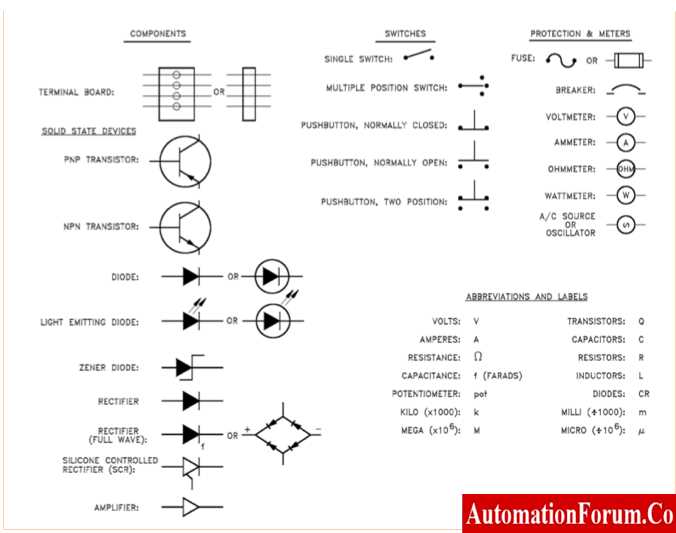

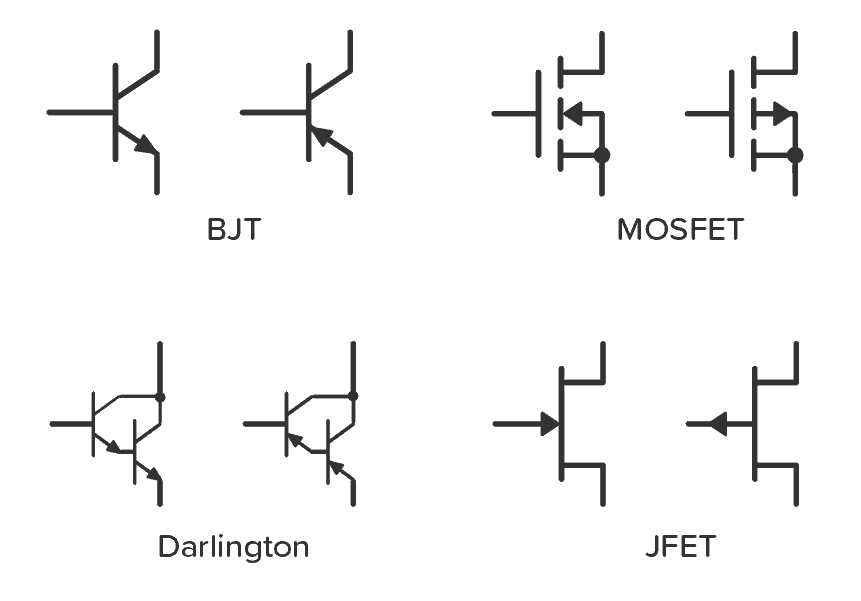

For transistors, distinguish BJTs (three legs, arrow on emitter) from FETs (gate as an inward arrow). Logic gates follow strict shapes: AND gates resemble a “D,” OR gates curve outward, and NOT gates include a bubble. Power sources separate into DC (straight vertical lines for positive/negative) and AC (sine wave). Ground symbols use a downward triangle or multiple horizontal lines, never interchange them.

Label every component with values (ohms, farads, henries) and reference designators (R1, C2, Q3). Use consistent line weights–thin for signal paths, thick for power rails. For clarity, avoid diagonal lines unless indicating crossing points with a small semicircle bridge. Group related elements with dashed outlines or color-coding (red for high voltage, blue for ground). Export files at 300+ DPI to prevent pixelation when scaling.

Key Electrical Representations in Vector Graphics for Circuit Design

Use vector-based formats like SVG instead of raster images for electrical layouts to ensure scalability without quality loss. PNG files, while widely compatible, introduce pixelation when resized–critical for detailed circuit boards where precision matters. For example, a resistor in SVG retains crisp edges at 300% zoom, while a 300 PPI PNG blurs at 150%. Always export symbols in both formats for compatibility: SVG for editing and PNG for quick reference.

Standardize naming conventions for graphical assets to streamline workflows. Adopt a system like [component]_[spec]_[variant].png–e.g., capacitor_10uF_smd.png or switch_spdt_th.png. This eliminates ambiguity when collaborating across teams or referencing legacy designs. Store files in categorized folders (e.g., /passives, /actives) with a README detailing version control rules to prevent duplicates or outdated symbols.

Common Circuit Elements and Their Graphic Standards

Element	Recommended Size (PNG)	Color Code (Fill/Outline)	Key Attributes
Resistor	64×20 px (axial)	Black/None	Label value (e.g., “1kΩ”) centered
NPN Transistor	50×50 px (circle)	White/Black	Emitter arrow at 30°, collector/top
LED	40×25 px	Black/Red (fill)	Anode (+) on left, cathode (-) line thicker
Ground	30×40 px (vertical)	Black/None	Three descending lines, shortest on bottom

Prioritize consistency in line weights: 2px for primary connections, 1px for auxiliary lines (e.g., indicator arrows). For power rails, use thicker strokes (3px) to visually distinguish them from signal paths. Avoid color reliance; ensure symbols remain recognizable in grayscale for documentation or monochrome printing. Test symbols at 50% opacity–they should still convey meaning without relying on color cues.

Optimizing Exports for Different Use Cases

Adjust PNG resolution based on application: 72 PPI for web previews, 300 PPI for print-ready schematics, and 600 PPI for high-detail fabrication documents. Compress files using lossless tools like TinyPNG to reduce size while preserving transparency–critical for layered designs. For libraries used in CAD software, include metadata in the PNG’s EXIF data (e.g., Component: MOSFET, Pinout: GDS) to enable programmatic parsing. Always validate exported symbols in target software before batch importing to catch alignment or compatibility issues.

Where to Source Professional-Grade Vector Elements for Circuit Designs

Download pre-made graphic sets directly from IEC (International Electrotechnical Commission) standards library. Their collection adheres to global engineering norms, ensuring compatibility across projects. Files are available in scalable formats, not just raster exports, so you retain crisp edges at any zoom level. Access requires registration, but the precision outweighs the minor setup effort.

Explore niche repositories like ElectricalSymbols.org–a curated hub with free and premium options. Each icon follows industry labeling conventions, eliminating ambiguity in technical drawings. The platform also offers layered source files for customization, ideal when standard variants need tweaks. Filters let you narrow by component type, speeding up searches.

• SnapEDA: Instant downloads for PCB footprints and corresponding visuals. Real manufacturers vet submissions, reducing errors.
• KiCad Libraries: Open-source project with thousands of verified elements. No watermarks; optimal for hobbyists and commercial use alike.
• DigiKey Scheme-it: Drag-and-drop interface bundling symbols with parametric data. Exports integrate seamlessly into CAD workflows.

Manufacturers like Texas Instruments and Analog Devices release schematic assets alongside their datasheets. These are tailored for their products, guaranteeing accuracy when documenting circuits built around specific ICs. Check the “Design Resources” tab on product pages–hidden gems often lurk there.

Paid platforms such as Altium Content Vault or Ultra Librarian streamline procurement with cloud libraries. Sync elements across tools without manual file transfers. Monthly plans include updates, so you always have the latest component visuals. Trial periods let you test before committing.

For custom creations, use vector editors (Inkscape, Affinity Designer) to modify existing assets. ISO/IEC 60617 or ANSI Y32 standards provide blueprints for consistent stroke weights and shapes. Export final work in lossless formats like SVG first–then generate raster copies only if needed.

Standard Circuit Representation Icons and Raster Graphic Alternatives

Use consistent icon styles when exporting elements to portable network graphics to avoid misinterpretation. Vector-based schematic components scale without quality loss, but raster exports–especially under 256×256 pixels–exhibit noticeable blur when zoomed. Prioritize line weights above 0.5 pt for clarity; thinner strokes disappear in low-resolution PNGs.

Switches display two primary forms in raster files: toggle and pushbutton. Toggle icons typically show a straight or angled lever (IEC 60617 symbol #07-02-01), while pushbuttons appear circular or rectangular with a depressed center. For crisp PNG rendering, maintain a minimum 10-pixel gap between switch contacts to prevent pixel merging on high-DPI screens.

Resistor Variations in Pixel-Based Graphics

• Fixed resistor: zigzag line, 5–7 segments, exported in 64×64 PNG retains legibility.
• Potentiometer: zigzag with superimposed arrow, requires 128×64 canvas to preserve arrowhead.
• Thermistor: zigzag plus “T” annotation–render at 96×96 for subscript clarity.
• Photoresistor: zigzag encased in circle–ensure circle edge remains unbroken in 32×32 exports.

Capacitor raster files bifurcate into polarized (asymmetrical plates with “+” marker) and non-polarized (parallel lines). Polarized types demand 100×50 minimum dimensions; below this, polarity markers become unreadable. Use solid fill for the positive plate edge–hatched fills render inconsistently on some CAD-to-PNG converters.

Transistors–BJT, MOSFET, and JFET–share a triangular base in raster exports but differentiate via lead indicators. Collector, emitter, and base (or drain, source, gate) labels must align orthogonally to the triangle edges in final PNGs. Misalignment under 150×150 resolution obscures identification; validate orientation in preview mode before final export.

For integrated circuits, rectangular blocks with pin numbers dominate raster outputs. Remove gridlines from PNG exports–retain only pin labels and block outline. Pin numbers should sit 2 pixels inward from the block edge; outward placement causes clipping during PCB footprint overlay. Export at multiples of 5 mm actual size to align with standard library resolutions.

Grounding and Power Symbol Considerations

1. Earth ground: downward triangle, export at 32×32 with 3-pixel triangle height.
2. Chassis ground: inverted “T”, maintain 1-pixel line weight to prevent merging.
3. DC positive: upward arrow–export minimum 48×24 to preserve arrowhead taper.
4. AC source: sine wave–renders adequately at 64×64, below this waveforms flatten.

Lamps and LEDs diverge in iconography; lamps use enclosed circles with filament, LEDs add two directional arrows. Raster outputs of filament symbols require 2-pixel stroke weight; thinner strokes disappear in monochrome exports. LED arrows must span 70% of the circle radius–shorter arrows risk misinterpretation as generic indicators.

How to Modify and Tailor Circuit Graphics for Your Work

Open your graphic in Inkscape or GIMP–free tools that handle vector and raster edits without watermarks. Import the file, then press Shift+Ctrl+D (Inkscape) to expose metadata. Delete obsolete labels before scaling to maintain crisp edges.

Use the Path Tool to redraw connectors or alter pin arrangements. For IC representations, snap nodes to a 0.1-inch grid to align with prototyping boards. Export at 300 DPI for print clarity, or 96 DPI to reduce file size for web previews.

Color-code voltage rails–red (#FF0000) for power, blue (#0000FF) for grounds, and green (#00FF00) for signals. Apply a 1px black stroke to outlines to ensure visibility across dark and light backgrounds. Avoid gradients; flat fills render faster in PDFs and ECAD tools.

Resize inductor coils proportionally–width should span twice the height to prevent visual distortion. Group related elements (Ctrl+G) before duplicating to retain alignment during bulk edits. Save as .SVG before final export to preserve layers.

Annotate components with concise text–R2 (1k) instead of Resistor 2 value 1 kilo-ohm. Use Arial Narrow or Roboto Condensed at 8pt for readability in compact designs. Hide non-critical labels until final review to declutter workflows.

Test rendered graphics on a monochrome laser printer; fine lines below 0.3mm may disappear. For SMD footprints, round pad corners to 0.5mm radius to comply with fabrication tolerances. Remove stray anchor points (Ctrl+L in Inkscape) to prevent Gerber errors.

Organize assets in subfolders by category–power, logic, passive. Name files numerically (e.g., 005-AND_gate.svg) for sequential loading in CAD suites. Add a plain-text README listing pin counts, tolerances, and intended tools (KiCad, Altium) to avoid misinterpretation.

Convert text to outlines (Shift+Alt+C) if sharing with collaborators lacking specific fonts. Validate consistency by overlaying modified graphics onto a template; misaligned pins trigger DRC errors. Store master copies in .SVG and distribute optimized .PNG exports for version control.
