Anatomical Overview of Blood Flow Pathways in Human Reproductive Organs

Prioritize the internal iliac artery as the primary origin for gonadal circulation in both sexes. In males, the testicular artery emerges directly from the abdominal aorta at L2 vertebral level, descending through the inguinal canal to form an anastomotic network with the cremasteric artery (from the inferior epigastric) and the artery to the ductus deferens (from the internal iliac). Failure to acknowledge this collateral flow risks underestimating ischemia thresholds during inguinal procedures.

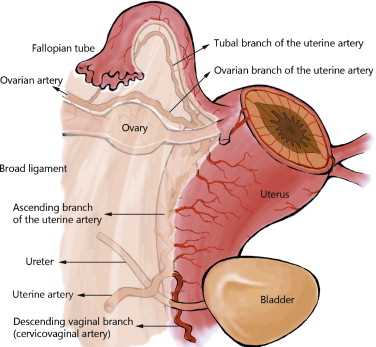

Female anatomy mandates a distinct approach. The ovarian artery, also branching from the aorta at L2, must be traced along the infundibulopelvic ligament where it anastomoses with the uterine artery (a branch of the internal iliac). This dual-source perfusion demands precise mapping during hysterectomy or tubal surgery–ligating only one vessel without accounting for its counterpart invites hemorrhagic complications. The spiral arteries of the endometrium warrant specific attention: their cyclic remodeling during menstruation requires vascular imaging that captures dynamic changes, not static representations.

For surgical planning, adopt color Doppler ultrasound over traditional angiography in non-emergent cases. It provides real-time assessment of flow velocities in the pampiniform plexus (males) and broad ligament vessels (females) without radiation exposure. In vascular anomalies such as varicocele or pelvic congestion syndrome, measure the resistive index (RI): values below 0.5 in testicular veins or above 0.8 in uterine arteries signal pathological reflux. These thresholds guide intervention decisions–percutaneous embolization for varicocele or hormonal suppression for pelvic congestion.

Chart the arterial pathways with three-dimensional rendering using contrast-enhanced CT or MRI angiography. Critical landmarks include the gonadal-aortic junction, the crossing of the ureter (where the uterine artery passes superiorly), and the arc of Riolan (an anatomical variant connecting the ovarian and uterine arteries). Misidentification of these structures during laparoscopy can result in ureteric injury or unintended devascularization of the fallopian tubes or epididymis.

Vascular Pathways of Gonadal Systems: A Structured Overview

To accurately interpret gonadal perfusion patterns, prioritize tracing the arterial hierarchy from its origin. The aortic bifurcation at vertebral level L4-L5 serves as the primary branching point for the internal iliac arteries, which further subdivide into critical vessels. For male anatomy, the testicular arteries–direct branches of the abdominal aorta–descend through the inguinal canal, supplying the testes with oxygenated flow. Clinicians must verify patency of these vessels during surgical planning, as obstruction here impairs spermatogenesis within 3-5 days.

Female vascular networks demand nuanced attention: the uterine arteries–branches of the internal iliacs–form an anastomotic arcade with the ovarian arteries. This dual perfusion system ensures endometrial viability during proliferative phases. The spiral arterioles in the endometrium exhibit cyclical remodeling; their dilation and constriction correlate with hormonal fluctuations (17β-estradiol peaks). Doppler ultrasonography should assess resistive indices here–values below 0.7 may indicate arteriovenous malformations or fibroids compressing adjacent perfusion pathways.

Venous drainage patterns exhibit sex-specific divergence. Male gonadal veins drain bilaterally: the left empties into the renal vein, while the right merges directly with the inferior vena cava. This asymmetry explains the 20-fold higher incidence of left-sided varicoceles–obstruction upstream elevates hydrostatic pressure, dilating the pampiniform plexus. For female anatomy, the ovarian veins follow a parallel but inverted route, with the left also terminating in the renal vein. Clinicians should screen for pelvic congestion syndrome in multiparous patients, where reflux in incompetent gonadal veins manifests as chronic pelvic discomfort.

Pediatric vascular formations require specialized scrutiny. Neonatal testicular torsion stems from delayed fusion of the tunica vaginalis, allowing the testis to rotate freely and occlude its arterial pedicle. Immediate surgical intervention (within 6 hours) salvages viable tissue; delays beyond this window result in irreversible necrosis. In adolescent females, the hymenal arteries temporarily perfuse the urogenital sinus before regressing. Persistent bleeding post-menarche warrants evaluation for hemangiomas or arteriovenous anomalies within the vaginal fornices.

Iatrogenic risks during pelvic procedures necessitate preoperative vascular mapping. The internal pudendal artery–a terminal branch of the internal iliac–supplies the perineal musculature and external genitalia. Trauma during prostatectomy or hysterectomy can lacerate this vessel, leading to retropubic hematomas (reported in 3.7% of cases). Surgeons must isolate the vessel proximal to its branching to prevent profuse bleeding, utilizing angiographic guidance when anatomical variability complicates identification.

Pharmacological modulation of gonadal perfusion offers therapeutic avenues. Vasodilators like sildenafil enhance erectile tissue engorgement by inhibiting PDE5, prolonging cyclic AMP signaling in cavernosal arterioles. In contrast, anti-angiogenic agents (e.g., bevacizumab) reduce vascular density in endometrial and prostate malignancies, though they risk inducing ovarian failure or testicular atrophy. Dosage calculations must account for hepatic CYP3A4 metabolism–concurrent use of macrolides may elevate serum levels by 200-300%.

Emerging diagnostic tools refine vascular assessment. 4D flow MRI quantifies hemodynamics in uterine arteries during pregnancy, detecting preeclampsia-associated vasospasm with 92% sensitivity. For male infertility evaluations, microvascular contrast-enhanced ultrasonography visualizes testicular perfusion at capillary resolution, identifying subclinical ischemia in non-obstructive azoospermia. Clinicians should integrate these modalities with traditional angiography to avoid false negatives from standard Doppler assessments.

Critical Vascular Pathways in Male Genital Anatomy

Prioritize the internal iliac artery as the primary source for genital perfusion. Its branches provide 80% of arterial input to pelvic structures, with the inferior vesical artery specifically targeting the prostate, seminal vesicles, and distal vas deferens. Clinicians should note its proximity to the ureter–misidentification during laparoscopic procedures risks unintended ligation.

The testicular artery, arising from the abdominal aorta, maintains testicular thermoregulation and spermatogenic function. Its tortuous path through the inguinal canal makes it vulnerable to compression in varicocele cases. Doppler ultrasound assessments should focus on peak systolic velocity (

Anastomoses between the cremasteric artery (from the inferior epigastric) and the testicular artery ensure collateral perfusion. Failure to preserve these connections during hernia repair can lead to ischemia. Surgeons must map these vessels intraoperatively using indocyanine green angiography to avoid postoperative testicular atrophy.

The deferential artery accompanies the vas deferens, supplying the epididymis and spermatic cord. Its occlusion–common in chronic epididymitis–presents as segmental infarction on MRI. Contrast-enhanced imaging is critical for differential diagnosis, distinguishing vascular blockage from granulomatous inflammation.

Within the penis, the deep artery of the penis (branch of the internal pudendal) directly perfuses the corpora cavernosa. Arterial insufficiency here is the leading cause of vasculogenic erectile dysfunction. Penile duplex ultrasonography should measure end-diastolic velocity (>5 cm/s confirms venous leakage); values below this threshold warrant pharmacologic testing with intracavernosal prostaglandin E1.

The dorsal artery of the penis supplies the glans and penile skin. Its superficial location makes it susceptible to blunt trauma–patients with straddle injuries may present with delayed hematoma formation. Immediate surgical exploration is mandatory if color Doppler reveals active extravasation, as unchecked hemorrhage can progress to Fourniers gangrene.

Functional Considerations in Vascular Pathology

Vascular steal syndrome occurs when the internal iliac artery diverts flow from genital branches to lower limb musculature during exercise. Athletes with pelvic claudication often misattribute symptoms to overtraining. The ankle-brachial index (

Diabetic angiopathy disproportionately affects small vessels in the male genital tract. Microvascular disease reduces nitric oxide bioavailability, impairing erectile function before peripheral neuropathy manifests. Screening should include penile brachial pressure index (0.6 μmol/L predicts endothelial dysfunction).

Venous Drainage Pathways in Female Reproductive Anatomy

Prioritize identifying the ovarian veins as the primary route for deoxygenated return from the ovaries. The right ovarian vein drains directly into the inferior vena cava, while the left empties into the left renal vein–account for this asymmetry in diagnostic imaging or surgical planning.

The uterine venous plexus forms a critical network along the lateral uterine walls, merging with vaginal veins to create the uterovaginal plexus. This plexus communicates with the internal iliac veins via tributaries, necessitating precise ligation during procedures like hysterectomies to prevent retrograde hematoma formation.

• Vaginal veins parallel the arterial path but drain into the internal pudendal vein and vesical venous plexus rather than directly mirroring arterial supply.
• Clitoral drainage follows the dorsal vein complex, which splits into superficial and deep components–the latter piercing the urogenital diaphragm to join the vesical plexus.
• Fimbrial veins from the fallopian tubes empty into ovarian veins, creating collateral flow that can obscure localized pathology on Doppler studies.

Clinicopathological Implications

Pelvic congestion syndrome stems from incompetent valves in ovarian or uterine veins, causing dilated, tortuous vessels visible on MRI. Treat with coil embolization targeting the ovarian vein first, then uterine tributaries if symptoms persist (pain worsens with prolonged standing).

During pelvic surgeries, avoid transecting the infundibulopelvic ligament without first isolating its venous contents–this ligament contains ovarian veins vulnerable to avulsion bleeding. Use vascular clips instead of monopolar cautery near suspected varices.

1. In endometriosis, altered venous drainage contributes to lesion proliferation; map collateral vessels preoperatively using transvaginal ultrasound with color flow.
2. Postpartum hemorrhage variants may involve the parametrial veins between uterine and iliac systems–prepare cross-matched blood for cases with known placenta accreta spectrum.

For radiologists, note that normal venous anatomy appears hypointense on T1-weighted MRI but hyperintense on T2; deviations like thrombosis or arteriovenous malformations require contrast-enhanced sequences. Suspect malignancy if vessels exhibit irregular walls or mass effect on surrounding structures.
