Understanding Key Elements in Electronic Schematic Diagrams

Begin by identifying power sources in your technical drawing–batteries, AC/DC supplies, or voltage regulators are the backbone. A single-cell battery symbol (two parallel lines, one longer) signifies 1.5V, while stacked lines multiply the voltage. Mislabeling these disrupts calculations for current flow and resistor values. Always verify polarity: the shorter line indicates the negative terminal.

Resistors, depicted as zigzag lines or rectangles with values in ohms (Ω), control current intensity. A 100Ω resistor restricts 10mA at 1V, but errors compound in parallel/series networks. Use color codes or printed values for accuracy–tolerance bands (gold/silver) show ±5% or ±10% variance. Potentiometers add a third terminal for adjustable resistance; rotating the wiper alters voltage division.

Capacitors, shown as two parallel lines (non-polarized) or curved lines with a plus sign (polarized), store charge temporarily. Ceramic capacitors (smaller, without polarity) handle high-frequency noise, while electrolytic types (larger, polarized) stabilize power supplies. Misplacing a polarized capacitor leads to catastrophic failure–ensure the positive lead aligns with the higher voltage node.

Transistors, the three-legged switches (NPN/PNP for BJTs, vertical/horizontal lines for FETs), require precise pin identification. The collector/base/emitter (BJT) or source/gate/drain (FET) determine amplification or switching behavior. A wrong connection inverts signal flow or burns the component. Measure continuity before soldering.

Diodes, triangles pointing to a line, permit current in one direction only. Standard silicon diodes drop 0.7V; Schottky diodes drop 0.3V for faster switching. Light-emitting diodes (LEDs) require a series resistor–calculate using R = (Vsource - VLED) / ILED; otherwise, they burn out instantly.

Integrated circuits (ICs), rectangles with numbered pins, demand exact pinout references. A 555 timer in astable mode generates square waves, but swapping pins 2 and 6 halts oscillation. Always match the datasheet’s pin assignments–ground, power, and signal inputs dictate functionality. Decoupling capacitors (0.1µF) near IC power pins prevent voltage spikes.

Connectors and switches, simple open/closed circles or lines, are often overlooked. A push-button switch interrupts current when pressed; a toggle switch maintains state. Misreading these labels causes short circuits or open loops. Trace paths with a multimeter to confirm continuity before powering the circuit.

Decoding Electrical Blueprint Symbols and Their Roles

Start by identifying power sources first–batteries, AC mains, or solar cells–marked by distinct icons. A straight line with a plus sign denotes a battery; alternating short and long lines indicate AC voltage. Verify voltage ratings next to symbols to avoid mismatches in design.

Resistors appear as zigzag lines or rectangles with values in ohms (Ω). Look for prefixes: “K” for kilo-ohms (1,000 Ω), “M” for mega-ohms (1,000,000 Ω). Potentiometers add an arrow across the resistor symbol, showing adjustable resistance.

Capacitors split into two types. Polarized (electrolytic) capacitors show one curved line (negative) and one straight (positive). Non-polarized types use two parallel lines. Values are in farads (μF, nF, pF), with tolerances often listed as ±5% or ±10%.

• Inductors: coiled wire symbols, measured in henries (H, mH, μH).
• Diodes: arrows pointing toward a line (cathode), permitting current in one direction.
• LEDs: diode symbol with two outward arrows, requiring forward voltage (1.8V–3.3V typical).
• Transistors: NPN/PNP types, three terminals (emitter, base, collector), labeled “Q” in layouts.

Switches break or route circuits, depicted as breaks in lines with mechanical indicators (toggle, push, slide). Double-check pole count–SPST (single-pole, single-throw) versus DPDT (double-pole, double-throw)–to ensure correct circuit control.

Integrated circuits (ICs) appear as rectangles with numbered pins. Common prefixes include “U” (e.g., U1) followed by part numbers (e.g., LM358, ATmega328). Cross-reference datasheets for pin functions–pin 1 is often marked with a dot or notch.

Ground symbols vary: three downward lines for earth, a single line with “GND” for common reference. Always connect grounds to avoid floating voltages, which cause erratic behavior. Mixed signal designs may use separate analog/digital grounds tied at one point.

Troubleshooting Misfires in Symbol Interpretation

1. Cross-check symbol standards (IEEE vs. IEC) if discrepancies arise–some shapes differ slightly.
2. Label nets clearly (e.g., “VCC,” “VIN”) to track connections across large blueprints.
3. Measure twice before soldering: component orientation (e.g., diodes, polarized caps) is irreversible.
4. Use simulators (LTSpice, KiCad) to validate layouts before physical assembly.

Fuses and circuit breakers use elongated ovals or rectangles. Note current ratings (e.g., 1A, 500mA) to prevent overloads. Thermal fuses add temperature thresholds near the symbol. Always place them near power inputs, never downstream of critical paths.

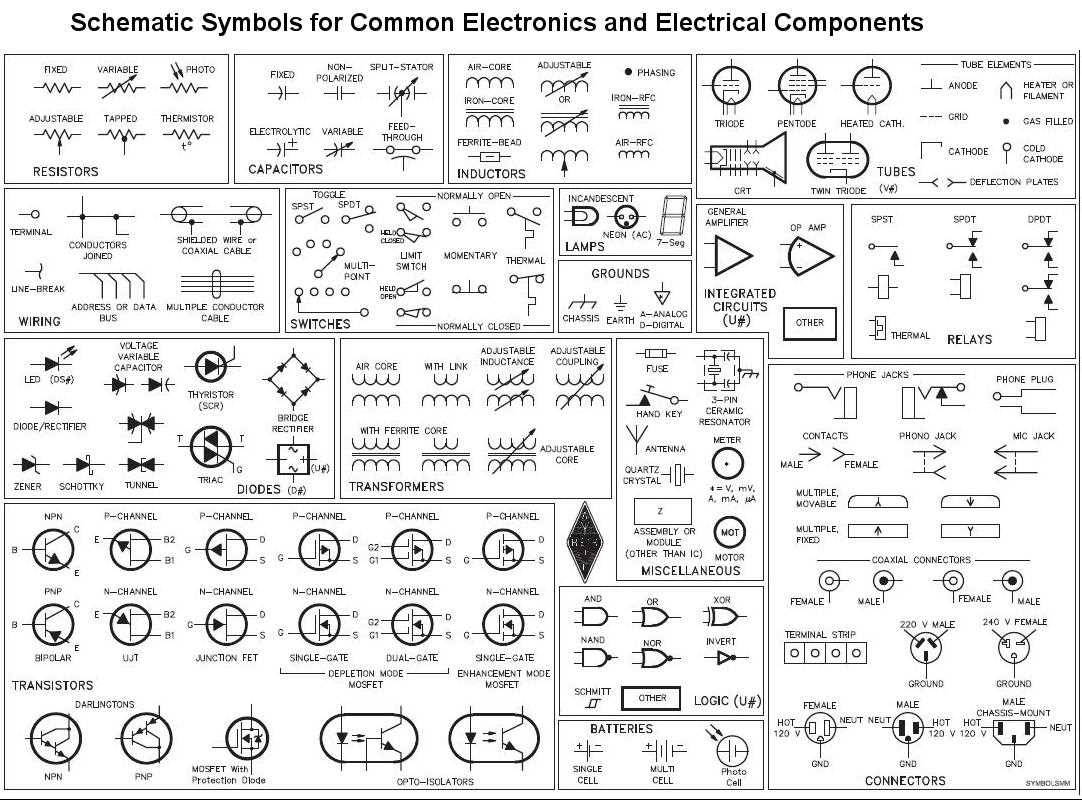

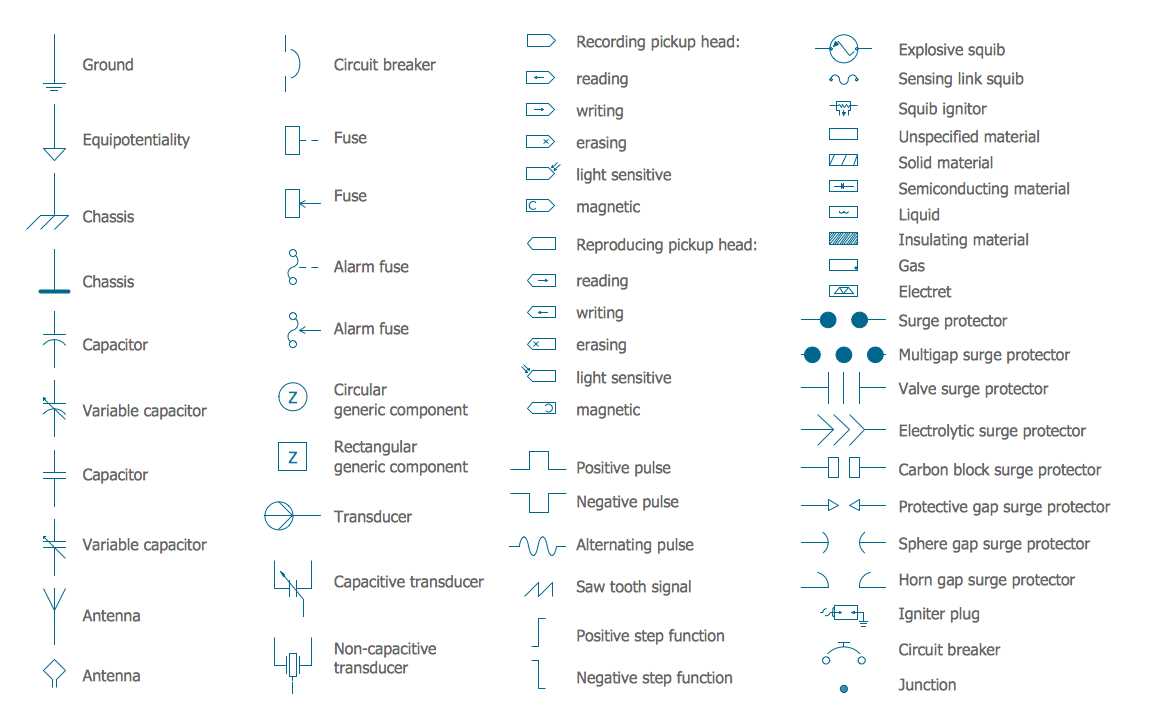

How to Identify Common Symbols in Electronic Circuit Drawings

Start by memorizing resistor symbols–they appear as zigzag lines (ANSI) or rectangles (IEC). The zigzag is the most widely recognized, while rectangles are used in international standards. Note any accompanying values (e.g., “10kΩ” or “220R”) or designators like “R1” to distinguish between identical parts. Tolerance (±5%, ±1%) is often marked near the value for precise boards.

Transistors come in three main variants: BJT (bipolar junction), JFET, and MOSFET. BJTs show a solid line with three terminals (collector, base, emitter) and an arrow indicating the emitter. NPN arrows point outward; PNP inward. JFETs replace the arrow with a perpendicular line at the gate, while MOSFETs add a second line parallel to the channel. Check for “Q” prefix (e.g., “Q3”) and small circles denoting surface-mount packages.

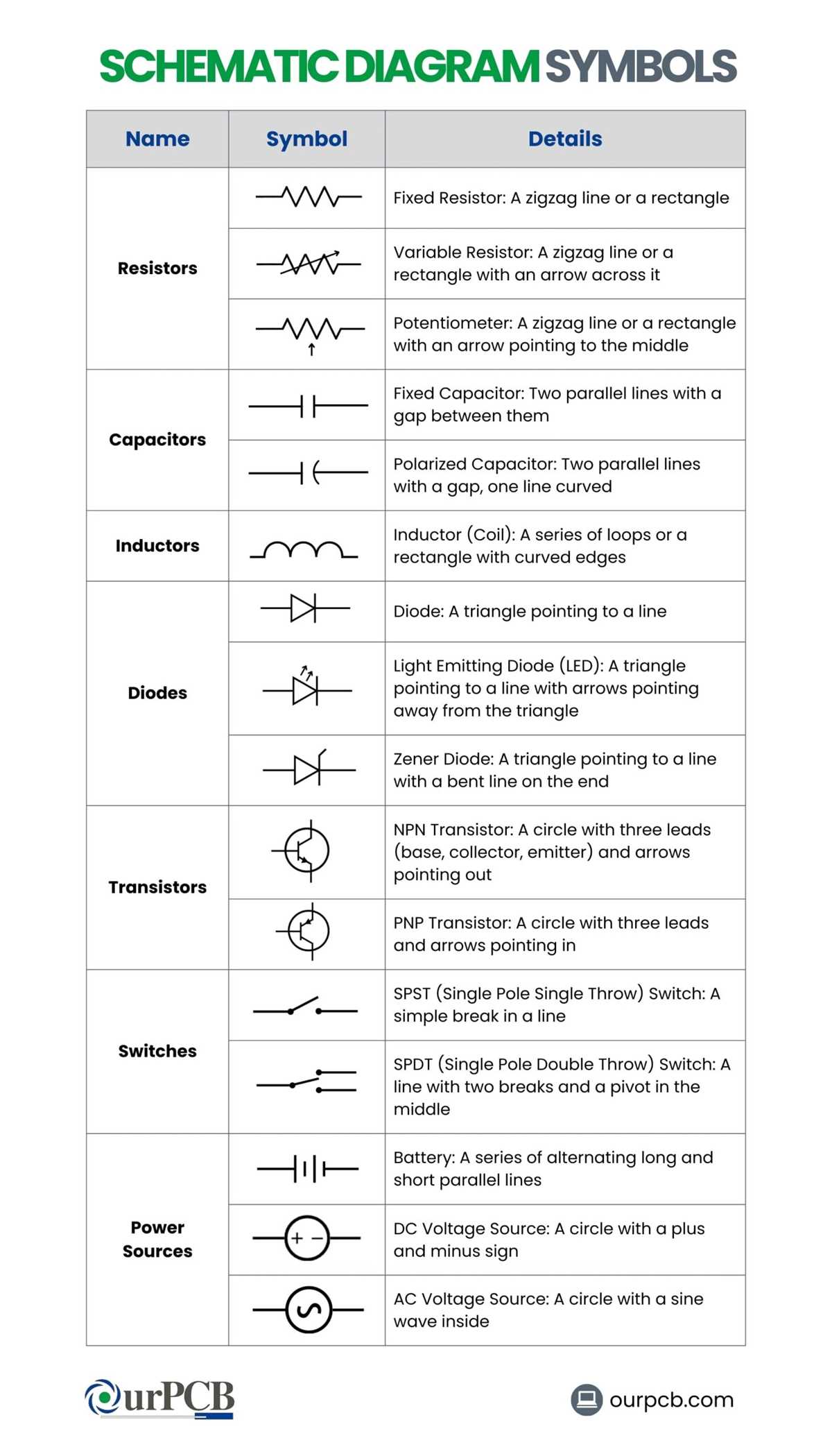

Symbol Type	Key Features	Common Label Prefixes
Capacitor	Two parallel lines (non-polarized) or one curved line (polarized/electrolytic)	C, CP
Diode	Triangle pointing to a line, with a stripe on the cathode end	D, LED
Inductor	Series of loops or a filled rectangle (ferrite core)	L, RFC
IC (Integrated Circuit)	Rectangle with numbered pins, often labeled with part number (e.g., “LM358”)	U, IC

Power sources require careful distinction: batteries show alternating long and short lines (primary cells) or dashed lines (rechargeable). DC symbols add a plus sign (+) near the longer line; AC uses a circle with a sine wave inside. Ground symbols vary–three descending lines (earth), inverted “T” (chassis), or three equally sized lines (signal ground). Always confirm ground types, as mixing them risks circuit failure.

Step-by-Step Guide to Reading Passive Part Markings

Locate the alphanumeric code on the resistor body–usually three or four digits. The first digits represent significant figures, while the last indicates the multiplier. For example, “472” equals 4,700 ohms (4.7kΩ): 4 and 7 as the base, followed by two zeros. Tolerance is often omitted but may appear as a letter (e.g., “K” for ±10%). If the value includes an “R,” it signifies a decimal point (e.g., “1R5” is 1.5Ω).

Check for a letter suffix after the digits–this denotes the tolerance. Common codes: “F” (±1%), “G” (±2%), “J” (±5%), “K” (±10%), and “M” (±20%). Absence of a letter typically implies ±20% tolerance. For older resistors, bands may replace or supplement printed codes; cross-reference both if present.

Capacitor Label Interpretation

Capacitors use a mix of numeric and letter codes. A marking like “104” means 10 followed by four zeros, totaling 100,000 picofarads (0.1µF). Letters “p” (pico), “n” (nano), or “µ” (micro) may precede the value (e.g., “47p” = 47pF). For electrolytic types, voltage is often printed separately–”16V” indicates a 16-volt rating.

Tantalum capacitors use “µ” for microfarads and may omit the unit entirely. A “22µ” marking equals 22µF. Ceramic capacitors often omit the “p” or “n” prefix; “22” alone defaults to 22pF. Polarity is critical–look for a stripe, “+” symbol, or longer lead to identify the positive terminal. Reverse polarity damages the part.

Inductor and Other Passives

Inductors commonly state values directly in microhenries (µH) or millihenries (mH), often without units. “101” typically means 100µH, while “100” could mean 10µH–context matters. Ferrite beads may only list impedance at a specific frequency (e.g., “600@100MHz”).

Potentiometers and variable resistors use codes like “103” (10kΩ) but may also include taper (e.g., “B” for linear, “A” for logarithmic). Trimmer capacitors (“trimcaps”) often show minimum and maximum capacitance (e.g., “5-30pF”). Verify datasheets if labels are ambiguous–manufacturer conventions vary.

Scan for EIA (Electronic Industries Alliance) codes on small SMD parts. A resistor marked “1001” is 100Ω with 1% tolerance (“1T” = ±1%, “0T” = ±2%). Capacitors under 10pF may use “R” as a decimal (e.g., “R5” = 0.5pF). Always confirm with a multimeter or scope if precision is required.

Decoding Integrated Circuit Pinouts on Circuit Blueprints

Start by identifying the IC’s part number printed on its package–this is your first critical clue. Most manufacturers provide datasheets online; search for the exact model to avoid mismatches. For example, a TL072 op-amp will differ from an LM358, even if pin counts align. Bookmark the datasheet’s pinout section for quick reference.

Pin numbering follows a standardized clockwise convention when viewed from above, but exceptions exist–especially with multi-row packages like QFP or BGA. Always confirm orientation using the datasheet’s top-view illustration. A dot or notch near pin 1 is the universal marker; never assume numbering without verifying this detail.

Common pitfalls include confusing power pins (VCC/VSS, VDD/VSS) with signal inputs. On logic ICs like the 74HC595 shift register, VCC is pin 16 while GND is pin 8–swap these, and the IC may overheat or fail. For analog ICs, note whether the supply is split (e.g., +5V/-5V) or single-ended (e.g., +5V/GND).

Signal pins often require external components for proper operation. A microcontroller’s GPIO might need pull-up resistors if used as inputs; an ADC’s VREF pin typically ties to a precision voltage reference, not the main supply. Check the datasheet’s “typical application circuit” to see recommended configurations.

Handling Complex Pin Functions

Modern ICs bundle multiple functions into single pins. For instance, the ESP32’s GPIO34-39 are input-only, lacking software-controlled pull-ups or interrupts. STM32 chips label pins with dual functions like “PA5/ADC_IN5/SPI1_SCK”–refer to the reference manual to decode these aliases. Ignoring such nuances leads to silent failures or erratic behavior.

Oscillator pins (XTAL_IN/XTAL_OUT) demand careful layout. Use the exact crystal frequency specified in the datasheet, and place loading capacitors as close as possible to the pins. A common mistake is skipping the required load caps, resulting in unstable or missing clock signals. For USB-enabled ICs, D+ and D- traces must follow impedance matching rules (typically 90 ohms differential).

Multiplexed pins (e.g., address/data buses on memory chips) switch roles during operation. The 23LC1024 SPI RAM uses the same pins for address and data; violating timing constraints corrupts writes. Deploy a logic analyzer to verify signal integrity if the circuit behaves unpredictably.

Thermal pads on power ICs (e.g., TO-220 or QFN packages) must connect to a large copper pour for heat dissipation. Datasheets specify pad sizes and recommended via patterns–ignore these guidelines, and the IC may throttle or shut down under load. For BGA packages, stencil apertures for solder paste must precisely match the datasheet’s specifications to avoid bridging or starved joints.
