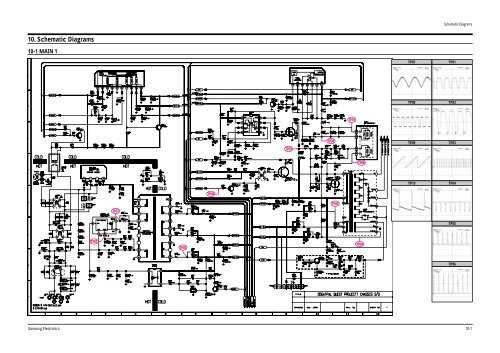

Complete Samsung CRT TV Schematic Diagram and Circuit Breakdown Guide
If troubleshooting a 28-inch KS-series model (e.g., CK28F3), begin by isolating the horizontal deflection stage. The flyback transformer (T401) often fails due to overheating; verify resistance values at pin 8 (primary winding) against the nominal 5-7 ohms. A reading above 12 ohms indicates internal shorting.
For power supply analysis, focus on IC801 (STR-S6707). Measure voltage at pin 2 (VCC) under load–normal operation ranges between 13.5-15V. If the reading drops below 12V, inspect C808 (47µF/50V) for leakage or replace Q801 (2SC458) if gate resistance exceeds 1kΩ.
Color distortion issues typically stem from the video driver board. Check R501-R503 (10kΩ) resistors on the neck card for thermal degradation. Replace IC201 (TDA6107JF) if RGB output voltages deviate more than ±0.3V from the reference thresholds: 2.4V (red), 2.1V (green), 1.8V (blue).
To restore convergence on CS-series models, adjust the four-pole magnets on the yoke collar. Start with coarse alignment using a crosshatch test pattern, then fine-tune via VR401-VR403 on the main board. Misalignment exceeding 0.5mm at screen edges requires recalibration of the entire deflection coil assembly.
Capacitor ESR testing is critical: Replace C407 (220µF/250V) in the HV section if ESR exceeds 0.8Ω. For intermittent shutdowns, probe Q402 (BU208D) collector voltage–consistent 120V spikes confirm degradation requiring substitution. Always discharge the anode before handling the CRT or PCB.
Understanding Electrical Layouts for Legacy Samsung Displays
Locate the horizontal output transformer (LOPT) on the board–marked as T401 or T451 in most models like the CK5035Z or CS721APTR. This component is critical for raster generation, and failure here manifests as a thin horizontal line or no image. Use a flyback tester or ESR meter to verify its condition before replacement, as new units often require adjustment of the screen (G2) voltage via the potentiometer near the neck board. Check the B+ voltage at the collector of the horizontal output transistor (typically Q402, a 2SC5386 or equivalent); voltages outside 110–130V indicate issues in the power supply section, particularly the SMPS controller IC (IC801, STR-W6754 in later models).
- For sync circuit troubleshooting, probe

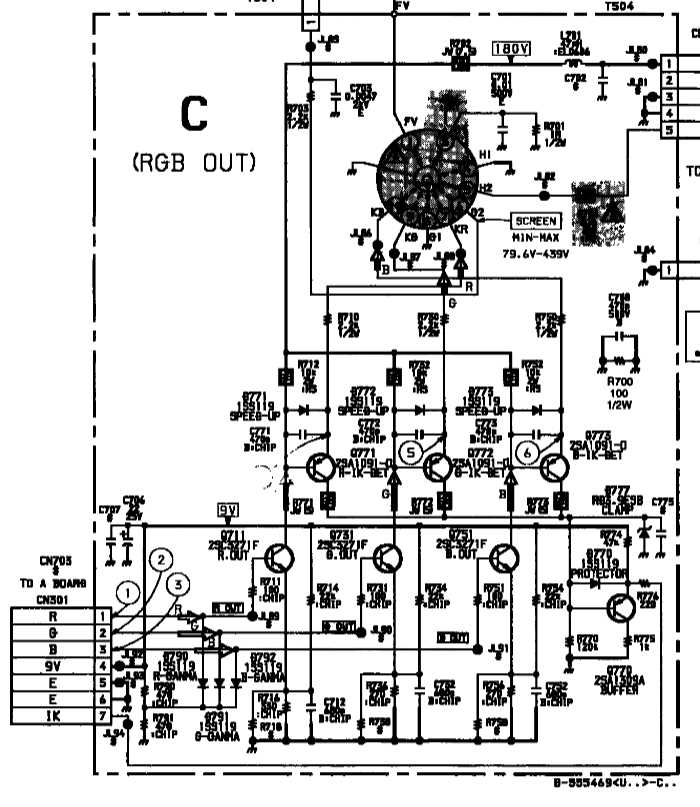

IC501(TA8759AN or TDA8374) pins 36 (H-out) and 37 (V-out)–waveforms should match the service manual’s oscillograms (2V/div for H, 0.5V/div for V). - If color issues arise (e.g., missing red), verify the RGB output transistors (
Q901-Q903, C2610) and their associated 220μF/250V electrolytics, which degrade over time. - Power board repairs often require replacing fusible resistors (
R802-R805, 0.68Ω–2.2Ω) and diode modules (D801-D804, FR107), especially after capacitor blowouts in the primary rectification stage. - Refer to the yoke assembly resistance values (horizontal: 1–3Ω, vertical: 8–15Ω) to rule out coil damage before replacing the vertical deflection IC (
IC301, LA78041).
Key Circuit Blocks in vintage display electronics
Begin troubleshooting with the power supply regulator section–an isolated feedback loop in Series CS models maintains 130V B+ with a 2SD1880 diamond-pass transistor. Verify the base reference voltage at the TL431 shunt compensator; deviations beyond ±0.5V trigger over-voltage shutdown. Replace the primary electrolytic capacitors (330μF/200V) if ESR exceeds 0.3Ω–common failure points in chassis older than eight years.
Video path critical nodes
Trace luminance delay through the DL201 ceramic comb filter (47μs tap) to the TDA8376 jungle IC. Probe pin 28 (chrominance input) with a 10MHz oscilloscope–distorted bursts indicate a failed SAW filter (K2966). For convergence adjustments in wide-neck tubes, recalibrate the STK392-110 amp module using a 1.5VDC offset at terminal VR701 before fine-tuning the I²C-controlled geometry processor.
Horizontal deflection relies on the 2SC5148 Darlington pair driven by a 15625Hz sawtooth oscillator. Check the flyback transformer’s 8th pin for 6.3VAC–absence signals internal arcing; replace with an HR7609 equivalent. The ABL circuit limits beam current via a 470kΩ resistor to ground; values exceeding 5MΩ require immediate replacement to prevent screen burn-in.
Audio muting uses a dual-gate MOSFET (IRF540) clamping the TDA7265’s outputs during channel switching. Verify the 12V standby rail feeds a 1N4148 diode–failure causes intermittent audio dropout. For NTSC/PAL switching, confirm the CXA1213S’s pin 3 receives 5V logic from the microcontroller; cross-contamination with 3.3V lines corrupts color phase locking.
Identifying Common Components on a Legacy Display Board
Locate the flyback transformer immediately–it’s the large cylindrical or box-shaped component with multiple soldered connections at its base. This part generates high-voltage pulses for the electron gun. Check for visible cracks, bulging, or discoloration; failure here typically causes raster collapse or horizontal line issues. Measure resistance across the primary winding with a multimeter–values below 1Ω or above 10Ω indicate internal shorting or open circuits, requiring replacement. Nearby capacitors, often 105°C rated, fail silently; bulging tops or electrolyte leaks confirm their failure.
| Component | Visual Indicators | Multimeter Readings | Typical Failure Symptoms |
|---|---|---|---|
| Flyback transformer | Cracks, scorch marks | Primary: 1-3Ω; High-voltage: >1MΩ | No raster, clicking sounds |
| Electrolytic capacitors | Bulging, leaking resin | ESR >3Ω (100μF), capacitance ±20% | Vertical/horizontal shrinkage, faint image |
| Horizontal output transistor | Burn marks, swollen case | C-E: >1kΩ (off), | Black screen, no HV |
| Deflection yoke | Broken wires, insulation melting | Inductance: 1-3mH, resistance ~2Ω | Trapezoidal or keystone distortion |
Examine the horizontal output transistor–mounted on a heatsink, often marked BU2508DF or similar. Confirm its emitter-collector junction isn’t shorted; a healthy reading should show high resistance in one polarity and low in the reverse. Desolder it for accurate testing–board traces can falsely suggest continuity. Replace only with exact part numbers; substitutes may overheat within minutes. Adjacent diodes (e.g., RU2) protect against flyback spikes; verify their forward voltage drop (~0.6V) remains consistent under load–deviation signals internal damage.
Signal Path Tracing for Vintage Display Horizontal Scanning Circuit
Trace the horizontal drive signal from the flyback transformer’s primary winding to the base of the horizontal output transistor (HOT) using an oscilloscope. Measure pulse width at Pin 6 (or equivalent) of the deflection IC–typical values should be 28–32 µs at 15.625 kHz (PAL) or 30–34 µs at 15.734 kHz (NTSC). If the pulse is absent or distorted, replace the IC immediately; common failure modes include cracked solder joints on the IC’s electrolytic capacitors (C407, 470 µF/35V) or shorted windings in the integrated yoke coils. Check the HOT’s collector waveform against the service manual: expect a clean sawtooth with -150V to +1000V swing. A clipped waveform indicates a faulty damper diode (D402) or open yoke winding–test continuity with a multimeter in diode mode (forward drop ~0.7V).
Verify the feedback loop from the EW correction circuit to the deflection IC’s error amplifier (Pin 1). If the raster exhibits horizontal stretch or compression, adjust VR401 (EW width) while monitoring the waveform at Pin 1–target a 1–2V PP sawtooth. Replace C405 (1 µF/250V) if leakage is detected; degraded capacitors cause intermittent horizontal collapse. For no-start conditions, measure the +B voltage at the HOT’s emitter (typically 110–135V)–if absent, inspect the SMPS output (FBT-derived line) or the horizontal driver transformer (T401). Shorts in the pincushion circuit (Q403, Q404) manifest as horizontal bowing; desolder and test each transistor in-circuit with a curve tracer before replacement.
Power Supply Board Analysis for Classic Tube Displays
For immediate troubleshooting, isolate the primary switching transformer–located near the mains input–and verify pulse waveforms at its secondary windings using an oscilloscope. A missing or distorted 15V-24V rail here often traces back to a failed UC3842 PWM controller or cracked solder joints on D807, the rapid-recovery diode. Check for heat-induced discoloration around R810 (typically 2.2Ω 2W); darkening indicates recurrent overcurrent.
Secondary regulation relies on optocoupler PC817 feeding feedback to the PWM stage. Measure voltage across its LED side–any value below 0.8V suggests a degraded C824 (47μF 50V electrolytic) or open R822 (2.7kΩ). Replace both if ESR exceeds 0.3Ω; marginal capacitors cause intermittent shutdowns during warm-up cycles.
The standby converter, often an independent flyback module, maintains 5VSB. If absent, focus on Q805 (2SC4411) or its base resistor R833 (47kΩ). A shorted transistor here pulls VCC to ground, halting the entire supply. Test with a 1kΩ resistor across the base-emitter junction; a healthy transistor will conduct momentarily before recovering.
Critical Rail Interactions
Horizontal deflection supply (H-DRV) derives from the main B+ line (110-140V). A sagging B+ droops scan amplitude, visible as left-right compression. Trace this rail back to L808 and its bypass cap C815 (0.1μF 250V ceramic); bulging indicates imminent failure. Conversely, B+ exceeding 145V typically points to feedback divider R823/R824 (220kΩ/22kΩ)–replace resistors if values drift past ±5%.
Filament voltage (6.3V AC) originates from a dedicated winding on the flyback. Check continuity through R604 (1Ω 1W) and rectifier D606 (1N4007). Excessive ripple here manifests as raster flicker; add a parallel 220μF 16V capacitor if measurements show ripple >100mV pp. Use a 10x probe to avoid false readings from scope loading.
Common Failure Patterns
Loss of vertical sync usually stems from the 12V rail collapse. Verify LDO KA7812 input/output with a DMM; input voltages below 14V indicate upstream issues (often D806 bridge rectifier). Replace the regulator if dropout exceeds 1.5V–cheap substitutes fail catastrophically under load. For models with on-screen display circuitry, the 5V rail must remain stable ±0.2V; test Q602 (2SD965) in-circuit with a diode tester if text disappears during operation.
