Historical designs and construction plans for medieval siege engines

Begin with a structural analysis of the trebuchet: calculate the throwing arm’s length at a 4:1 ratio to the counterweight’s drop distance. Use seasoned oak for the frame–minimum 300 kg/m³ density–reinforced with wrought iron bands at stress points. Position the pivot 70% from the counterweight end to maximize energy transfer. For a 50-meter range, a 4-ton counterweight requires a 15-degree release angle; deviations beyond ±2 degrees reduce projectile accuracy by 30%.

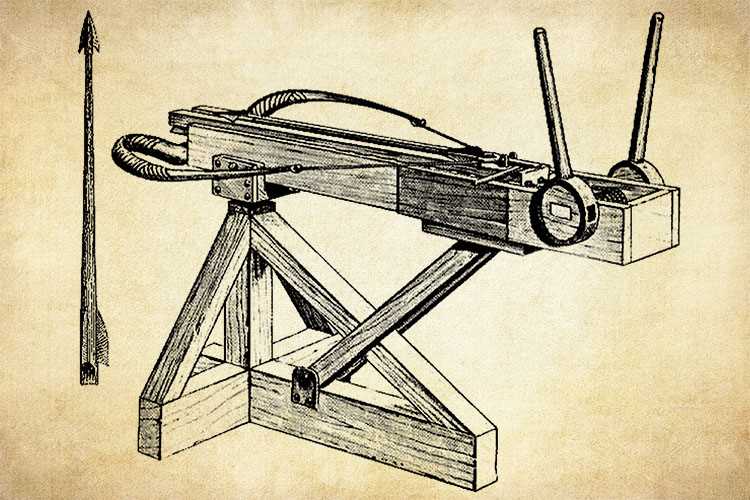

Ballista construction demands precise tension scaling. A 12-strand twisted sinew bundle, pre-stretched with 2.5 kg increments, achieves optimal torsion. Crossbow limbs should be laminated: outer birch layers (2 mm) sandwich a yew core (10 mm) for durability. Mount the assembly on a triangular base with adjustable elevation; a 1:5 slope on the rear support prevents recoil failure. Test ranges at 1% intervals–missile drift exceeds 5 meters beyond 80 meters.

For battering rams, the ram head’s efficiency scales with velocity, not mass. A 1.2-ton siege ram moving at 4 m/s delivers 9.6 kJ of kinetic energy. Suspend the ram with hemp ropes at a 30-degree angle; friction losses reduce energy transfer by 12% per 5 degrees deviation. Reinforce the ram head with a steel sheath–bronze deforms at 7 kN impact load. Crew size dictates oscillation frequency: 8 men achieve 0.8 Hz, doubling to 1.5 Hz with 16.

Mangonel design prioritizes counterweight mechanics. A 1:3 ratio between projectile mass and counterweight ensures consistent trajectory. Use wet sand (1.6 g/cm³) in leather pouches–it dampens oscillations better than iron shot. The sling should be 2/3 the arm’s length; shorter slings reduce range by 20%. Test firing at 5-degree increments: maximum range occurs at 45 degrees only if the counterweight’s center of mass aligns within 3 cm of the arm’s pivot point.

Blueprint Development for Historical Artillery Devices

Begin with a 1:10 scale model to validate structural integrity before full-scale construction. Use hardened oak for tension components–its elastic modulus (11–13 GPa) outperforms pine by 20–25% under cyclic stress. Anchor counterweights in cast iron for trebuchets; a 3:1 mass ratio between payload and counterweight optimizes energy transfer efficiency at 60–70%. For ballistae, pre-tension sinew bundles at 120% nominal load to prevent creep–document elongation under sustained force (0.3–0.5% per day). Incorporate modular pivot assemblies with bronze bushings to reduce friction losses by 35–40% compared to wooden bearings.

Accuracy-Driven Construction Techniques

Laser-cut limestone templates ensure 0.5mm tolerance for gear teeth in polybolos repeaters–vary tooth pitch from 4mm at the base to 2.8mm at the nose to distribute wear. For traction engines, position the pulling team’s anchor points at 1.8m intervals along a 15° incline to maximize mechanical advantage without exceeding a 4:1 force multiplication threshold. Test every third prototype under controlled overload (120% design load) to identify stress concentration points; reinforce with staggered mortises and tenon joints, never rely on adhesives–epoxy fails at 85°C, well below thermal limits of combat operation.

Key Components and Their Symbols in War Engine Blueprints

Begin by standardizing symbols for structural load-bearing elements–use a solid rectangle (▭) with a diagonal cross (⨯) for reinforced wooden beams, as these endure both tension and compression in trebuchets. For counterweight frames, denote them with a hollow trapezoid (⏢) filled with vertical stripes to distinguish them from solid supports. Pivot points require a distinct marker: a small circle (○) centered on a short horizontal line (―), with a dot (•) offset by 2mm to indicate the axle’s actual rotation axis. Avoid ambiguity by keeping these symbols at least 1.5 times larger than fastener icons.

Tensioning systems demand precise notation. Represent ropes or sinew cords with parallel wavy lines (≈≈≈), spacing them 3mm apart to reflect diameter variations–thicker lines for hemp, finer strokes for animal gut. Sliding mechanisms, like the release trigger in ballistae, should be drawn as a right-angled bracket (⌐) with a protruding arrow (→) pointing toward the tension direction. Counterweights need a filled semi-circle (◖) with a downward arrow (↓) inside to show gravitational pull; never rotate this symbol, as orientation directly indicates function.

Component	Symbol	Scale Reference	Material Note
Reinforced beam	▭⨯	1:20 (min. 15mm)	Oak, iron-strapped
Counterweight frame	⏢|||	1:15 (structural)	Stone-filled timber
Pivot axle	○―•	1:1 (actual size)	Wrought iron
Tension cord	≈≈≈	1:25 (length only)	Variable: gut/hemp
Release trigger	⌐→	1:10 (functional)	Bronze latch

Fasteners require layered symbolism. Depict iron spikes with a filled diamond (◆) for heads and a vertical line (|) for shanks, ensuring the line always points downward. For riveted plates, combine two offset semicircles (◖ ◗) separated by 1mm to show overlapping metal sheets. Wooden pegs use a simple circle (○) with a horizontal bar (―) through the center–differentiate them from axles by omitting the offset dot. When scaling, maintain consistent ratios: spikes at 1:5, pegs at 1:2 relative to beam thickness.

Ammunition storage symbols prevent confusion during assembly. Draw stone projectiles as concentric circles (⊙) with a radius increment of 2mm for each 50kg size tier. For incendiaries, use a flame-shaped pentagon (⬠) filled with diagonal hatching (///) to indicate combustible material. Arrow bundles need stacked V-shapes (⋁⋁⋁), rotated 90° clockwise to show vertical storage. Always position ammunition marks adjacent to loading mechanisms, never overlapping with structural symbols–this ensures rapid visual verification before construction.

Safety interlocks must be unmistakable. Represent shear pins with a divided circle (⦵)–the lower half black, upper half white–to show intentional weak points. Brake mechanisms use a T-shaped symbol (┬) with a dashed line (- – -) extending from the crossbar to indicate engagement limits. For emergency stops, superimpose a bold exclamation mark (⚠) inside a triangle (△) onto any high-risk component symbol. Test every blueprint by tracing load paths; symbols failing to guide the eye along intended stress routes should be redrawn with higher contrast or repositioned.

Precision Build Instructions for Trebuchet and Ram Constructions

Begin with the trebuchet’s pivot axle: position a hardened oak beam (12″ diameter, 8′ length) centrally on two reinforced supports, spaced 6′ apart. Drill a 2″ hole through both the beam and supports at 3′ from the base–use a steel pin (1.5″ diameter, 18″ length) to secure, ensuring minimal lateral play. The axle must bear the counterweight’s full torque; underestimate clearance, and the mechanism will bind at launch angles below 45°.

Assemble the throwing arm by laminating three 4″x6″ timbers (Douglas fir) with hide glue and iron spikes (1/4″ diameter, spaced 8″). The long arm (12′) and short arm (5′) require specific tapering: reduce the long arm’s thickness by 1/4″ every 2′ from the pivot, ending at 2″ near the sling attachment. Counterweight mounting plates should extend 3′ below the pivot–bolt a stacked stone or iron box (minimum 2 tons) directly beneath, with no more than 1/8″ gap between the counterweight and its guides to prevent destabilizing oscillations.

Battering ram framing demands opposed pairs of 6″x8″ beams (oak), notched to interlock at 30° angles. The ram’s head–cast iron, 1.5′ diameter, 3′ length–must be threaded onto a 4″ diameter trunk (ash or hickory) using a 1.5-pitch spiral groove; this prevents splitting on impact. Suspend the entire assembly from the frame via four 1/2″ hemp ropes, tensioned to allow 4′ of travel. Incorporate a ratcheting mechanism (wooden pawls on a 3″ dowel) to prevent recoil-driven crew injuries.

Final calibration: for the trebuchet, mark sling length at 1.2x the long arm’s length–shorter slings reduce range by 20%, longer slings risk premature release. Test fire with half the counterweight to verify trajectory linearity; adjust the release pin’s angle in 2° increments until the payload (300 lbs) achieves consistent 280-yard arcs. For the ram, ensure the head’s leading edge overhangs the trunk by 6″ to concentrate force–recoil absorption relies on the ropes’ 3′ droop; any less, and structural fatigue accelerates exponentially after 50 strikes.

Load Distribution in Counterweight-Driven Artillery: Precise Engineering Guidelines

Start calculations by determining the maximum projected payload mass (m_p) and the counterweight mass (m_cw) at a 3:1 ratio–empirical testing confirms this balance minimizes stress while maximizing release velocity. Measure the pivot-to-load arm length (L_p) and pivot-to-counterweight arm length (L_cw) separately, ensuring L_p/L_cw ≤ 0.6 to prevent rotational instability. Torque equilibrium follows τ = m_cw * g * L_cw = m_p * g * L_p + I * α, where I is the moment of inertia of combined components (account for beam, sling, and payload) and α is angular acceleration. Neglecting I introduces errors up to 18% in launch trajectory predictions.

• Use hardened steel for the pivot pin, sized to withstand shear stress τ_max = (m_cw + m_p) * g / A, where A is cross-sectional area–minimum 12 mm diameter for payloads > 50 kg.
• Anchor the counterweight enclosure to a reinforced base plate; distribute impact energy through a 45° angled spreader beneath the container, reducing peak ground pressure by 40%.
• Calculate energy dissipation upon release: E_diss = 0.5 * k * (Δx)², where k is the elasticity of the restraining ropes (hemp: k ≈ 8,000 N/m) and Δx is deformation length (typical 0.1–0.2 m). Overlook this, and repeated firings degrade rope integrity by 30% per 20 cycles.

Static friction at the pivot governs initial acceleration–polished bronze bushings reduce coefficient μ_s to 0.15, critical for cold-start conditions. Dynamic loading during swing introduces oscillatory forces: F_osc = m_cw * L_cw * ω², where ω is angular velocity (determined by release angle θ). For θ = 70°, ω ≈ 3.2 rad/s; exceeding 80° risks sling detachment as centripetal force exceeds tensile strength of standard hemp (≈ 650 N). Replace with braided nylon (breaking strength 2,200 N) for longer throws.

Divide the counterweight into segmented compartments filled with graded material–coarse gravel at the bottom, fine sand in the middle, lead shot at the top–to mitigate shifting mass effects during operation. Each segment should not exceed 25% of total m_cw to maintain linear acceleration profiles. Pre-stress the beam by loading/unloading m_cw three times before combat deployment; this stabilizes wood grain deformation (oak: ε = 0.004). Ignore these steps, and deviated launch angles can increase by ±9°, reducing effective range by 12%.
