Practical Guide to Interpreting and Understanding Schematic Diagrams

Start by identifying the key symbols–each represents a specific component or connection type. Resistors, capacitors, transistors, and power sources have standardized markers. Check the legend if a symbol isn’t immediately recognizable.

Follow the signal flow from input to output. Trace the lines step-by-step, noting junctions where paths split or merge. Avoid assuming routes; verify each branch to prevent misinterpretation.

Label all reference designators (e.g., R1, C3, Q2). These tags link the visual layout to the corresponding part list, which provides exact specifications like values, tolerances, or part numbers.

Measure voltages at critical nodes if the plan includes test points. Compare readings with expected levels marked near components–discrepancies often reveal errors or design flaws.

Group related clusters: power circuits, amplifiers, and signal processors typically occupy distinct sections. Recognizing these zones speeds up troubleshooting and modifications.

Validate each ground connection. Misplaced grounds create noise or dysfunction. Confirm continuity with a multimeter if the lines seem ambiguous.

Cross-reference with physical layouts when possible. A board view aligns component placement with the abstract flow, clarifying orientation and proximity.

Mastering Electrical Blueprints: A Practical Approach

Identify the power source first–locate batteries, AC inputs, or terminals marked with positive and negative signs. Trace the current flow from these points through conductors (lines representing wires) to switches, resistors, or integrated circuits. Use component symbols as a guide: zigzag lines denote resistors, parallel lines indicate capacitors, and circles with internal letters (Q, U, D) represent transistors, ICs, or diodes. Note voltage ratings near components or connectors, often shown as “V” or numerical values (e.g., 5V, 12V), which dictate operational limits.

Break down hierarchical blocks by examining labels like “Power Supply,” “Control Unit,” or “Output Stage”–these subdivide complex circuits into manageable segments. Follow signal paths: arrows or dotted lines typically show data flow, while solid lines carry power. Cross-reference component values (e.g., “R1 10kΩ,” “C3 220μF”) against a symbol legend if present. For unknown symbols, consult datasheets or standardized charts (IEC 60617, ANSI Y32). Verify continuity by mentally simulating the path: a broken line or missing connection often indicates an error in interpretation.

Identifying Key Components and Symbols in Circuit Illustrations

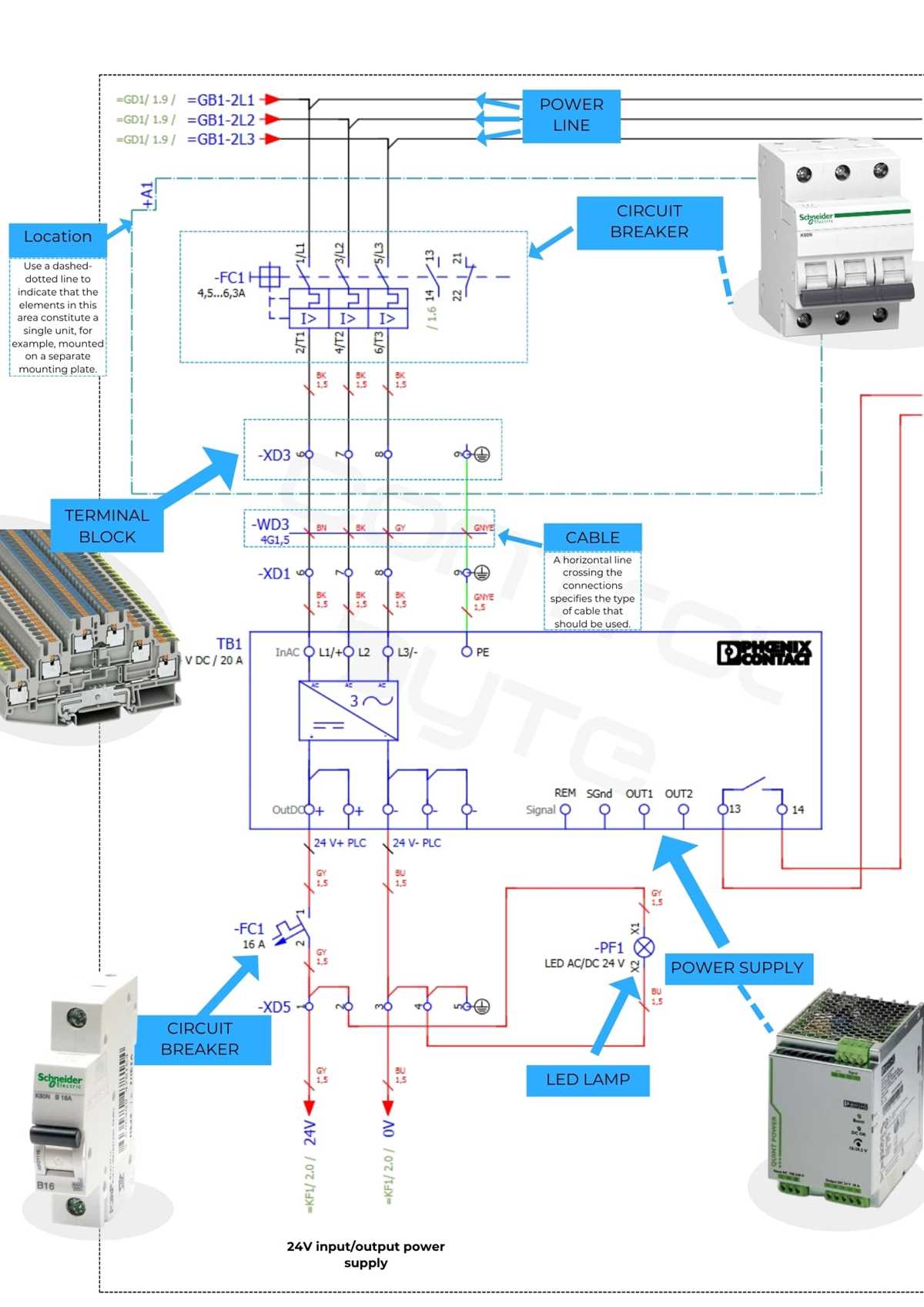

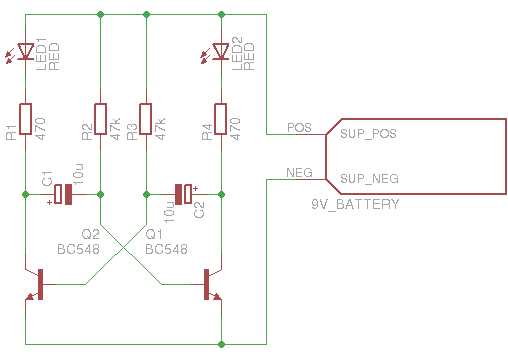

Begin by locating power sources–batteries appear as parallel lines, with the longer line marking the positive terminal. Resistors are zigzag lines or rectangles with a label denoting resistance in ohms (e.g., “R1 1kΩ”). Capacitors show two parallel lines or a curved line opposite a straight line, labeled with farads (e.g., “C1 10µF”). Transistors split into bipolar (BJT) and field-effect (FET) types: BJTs display a vertical line with three terminals (emitter, base, collector), while FETs show a channel with gate, source, and drain.

Active elements like integrated circuits (ICs) are rectangles with numbered pins. Pin 1 is often marked by a dot, notch, or angled corner. Passive components–inductors, transformers, and diodes–follow distinct visual rules. Inductors resemble coiled wires, while diodes appear as a triangle pointing to a line, with the triangle’s tip indicating forward current flow. Transformers consist of two or more inductors sharing a core, depicted as vertical lines between coils.

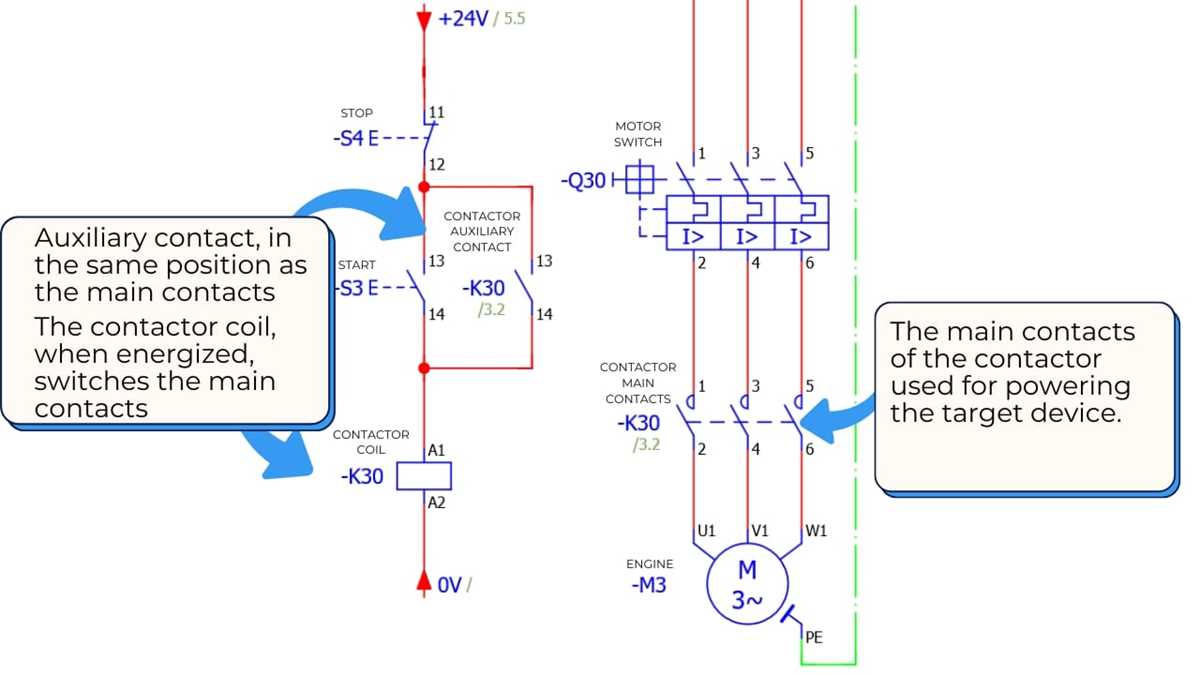

Switches and relays use standardized symbols: a break in a line with an arrow or lever for mechanical switches, and a coil with contacts for relays. Connectors (e.g., headers, jacks) are labeled rectangles or circles with pin numbers. Below is a reference table for quick identification:

Component	Symbol	Key Attributes
Battery	Parallel lines (uneven length)	Longer line = positive; voltage labeled (e.g., 9V)
Resistor	Zigzag or rectangle	Value in ohms (Ω) or kilohms (kΩ)
Capacitor	Two parallel lines (polarized: curved line)	Value in farads (F); polarized types marked “+”
Diode	Triangle + line	Arrow indicates current direction; LEDs add rays
Transistor (BJT NPN)	Vertical line with three legs	Emitter (arrow out), base (middle), collector (top)

Ground symbols vary by type: chassis grounds use three descending lines, signal grounds add a horizontal bar, and earth grounds depict a triangular pattern. Polarized components (e.g., electrolytic capacitors) include a “+” mark. Labels adjacent to symbols provide critical data–part numbers, values, or reference designators (e.g., “U2”, “Q3”)–which correspond to a bill of materials (BOM).

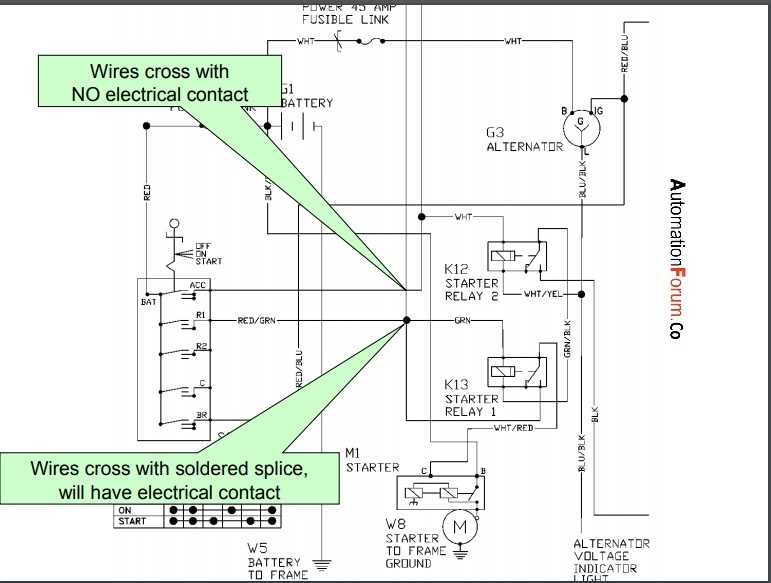

Trace wires by following thin solid or dashed lines; junctions appear as dots where lines intersect. Avoid mistaking dotted lines (often indicating shielded cables or alternative signal paths) for standard connections. For ICs, verify pin assignments in datasheets–the diagram’s orientation (pin 1 top-left, counter-clockwise numbering) is not universal. Cross-reference symbols with a manufacturer’s documentation if ambiguity arises, as some organizations use proprietary notations.

Specialized symbols exist for sensors, motors, and optoelectronics. A photovoltaic cell shows a diode with additional rays, while a speaker appears as a stretched hourglass. Thermistors and varistors modify the resistor symbol with a diagonal slash. When interpreting multi-layer boards, note that overlapping lines without junctions do not connect–vias (plated holes) are tiny circles linking layers.

Step-by-Step Guide to Following Signal Flow and Power Links in Circuit Blueprints

Start at the input terminal of the component generating the signal. Use a highlighter or digital tool to mark each connection in distinct colors–green for signals, red for power, and blue for ground. This prevents overlap and clarifies overlapping paths in complex layouts.

Identify series components early. If a resistor, capacitor, or inductor appears inline, note its effect on the signal: resistors drop voltage, capacitors block DC, inductors resist sudden current changes. Cross-reference with datasheets if values are unclear.

Key Checkpoints for Signal Integrity

Verify every junction where a signal splits. At each branch, ask: does the impedance match downstream components? Mismatches cause reflections, distorting waveforms. Tools like Spice simulations can predict issues before physical testing.

Trace power rails separately. Distinguish between raw input (e.g., 12V) and regulated outputs (e.g., 5V, 3.3V). Note decoupling capacitors near ICs–they suppress noise. Missing or misplaced caps lead to erratic behavior, visible in oscilloscope readings.

Ground connections require special attention. Star grounding–routing all grounds to a single point–minimizes interference in mixed analog-digital circuits. Avoid daisy-chaining grounds, as this creates ground loops, corrupting sensitive signals.

For multi-layer boards, use net labels to track signals crossing layers. A via or plated hole connecting a top-layer trace to an inner layer should align with the corresponding label. Layer misalignment is a common error causing open circuits.

Test points simplify debugging. Locate them near critical nodes: ADC inputs, clock sources, or high-current outputs. Probe these first when troubleshooting. Missing test points force reliance on component pins, risking damage.

Final step: document discrepancies. If a connection doesn’t match the original design file, highlight it in the blueprint and update the bill of materials. This ensures consistency across revisions and team members.

Decoding Labels and Annotations for Functional Understanding

Prioritize identifying components with alphanumeric tags first–these often follow industry-standard naming conventions. For instance, resistors labeled R1, R2 may indicate sequence, while R_FEEDBACK or R_PULLUP describe function. Check for suffixes like _MAX, _MIN, or _TYPICAL on voltage/current annotations, which clarify operational limits rather than nominal values.

• Prefixes reveal component type: C_ for capacitors, L_ for inductors, Q_ for transistors.
• Unitless numbers (e.g., 10k, 2.2uF) demand cross-referencing with nearby symbols–compare with adjacent tolerances (±5%) or voltage ratings (16V).
• Signal names like CLK_OUT or VCC_SENSE map directly to pins; verify against datasheets to distinguish power rails from control lines.

Annotations near connectors deserve special attention. A GND pin annotated with CHASSIS implies a protective earth ground, while SIG_GND suggests a floating reference–never assume they’re equivalent without isolation notes. Look for polarity markers (+, -) on electrolytic caps or diodes, but confirm with footprint drawings if symbols are ambiguous.

Cross-reference functional blocks via hierarchical labels. A block labeled POWER_REG_3V3 might feed into multiple sub-circuits; trace its outputs through VCC_3V3 nets to avoid misinterpreting redundant labels. Use net colors (if available) or line styles like dotted/dashed to distinguish analog, digital, and high-voltage domains–solid lines usually denote primary signal paths.

1. Match text annotations to test points (TP1, TP2)–these often correlate with debug headers or oscilloscope probes.
2. Watch for asterisks (*) or hash symbols (#): these may flag default states (e.g., #OE = active-low enable) or critical notes.
3. Group-related labels: DATA[7:0] represents an 8-bit bus; ADDR[15:0] implies a 16-bit address space–tally bit ranges to validate connectivity.
