Detailed Schematic Breakdown of the Mitchell 306 Fishing Reel

For repairs or upgrades, begin by removing the side plate–four screws typically secure it on vintage models. Locate the spindle assembly first: the pinion gear drives the spool via meshing teeth, while the anti-reverse pawl prevents backward rotation under load. Apply synthetic grease sparingly to the gears, focusing on contact points; excess lubricant attracts debris, accelerating wear.

Pay attention to the drag mechanism–often a stack of felt washers compressed by a spring-loaded knob. Disassemble the stack, inspecting each washer for grooves or hardening; replace if thinner than 0.5mm. Reassemble in the original order, tightening the drag cap incrementally–over-torqueing distorts the washers, causing inconsistent tension.

The oscillating gear set demands precise alignment. Misalignment by even 0.2mm causes binding during retrieval; test rotation by hand before final assembly. If noise persists, check the brass bushing inside the rotor–polish with 1000-grit abrasive if scoring is visible, then coat with marine-grade oil for corrosion resistance.

When servicing the crankshaft, note the dual bearing arrangement: one shielded, one open. Clean the open bearing with isopropyl alcohol, then repack with light grease; contaminants here create drag felt during casting. Reinstall the handle with Loctite on the screw threads to prevent loosening under vibration.

For improved line management, replace the roller guide if pitting exceeds 0.1mm deep–use a carbon-fiber alternative to reduce line wear. Verify all retaining rings snap into grooves fully; loose clips lead to catastrophic failure at critical moments. Final testing should include multiple casts at 40% drag pressure to confirm smooth operation across the range.

Understanding the Key Components of a Classic Spinning Mechanism

Begin by locating the drag adjustment system–typically a knurled knob at the rear–critical for controlling line tension under load. Turn it clockwise to tighten resistance; counterclockwise loosens it. Factory settings often sit at 8-12 oz of pull before slipping; adjust based on target species, with lighter drags for finesse presentations and firm settings for trophy fish.

The rotor assembly houses the bail and line roller, which must spin freely without wobble. Inspect the roller for groove wear–deep grooves cause line fraying. Replace it if grooves exceed 0.3mm depth. Lubricate the roller bearing with a thin coat of marine-grade grease every 20 fishing hours to prevent corrosion in saltwater conditions.

On disassembly, note the spool’s alloy composition–anodized aluminum resists corrosion but aluminum oxide buildup requires cleaning with a soft-bristle brush and vinegar solution. The spool’s internal bearing should rotate with minimal drag; stiction indicates dirt or water ingress. Flush with compressed air, then apply a single drop of lightweight oil to the bearing’s outer race.

Gear Train and Anti-Reverse Function

The pinion gear, machined from stainless steel, meshes with the main gear at a 16:1 ratio, translating handle turns into spool revolutions. Check gear teeth for pits or chips; damaged teeth disrupt smooth retrieval. The anti-reverse clutch engages via a sprag bearing–test by rotating the handle backward; it should lock instantly. If it slips, the sprag bearing requires replacement.

Lubricate the gear train with a molybdenum-disulfide compound, focusing on the gear faces and shaft journals. Over-greasing attracts debris; wipe excess after application. The handle’s sliding mechanism–used for folding–relies on a friction washer; replace it if the handle loosens during casting, as wobble affects control.

Maintenance Intervals for Peak Performance

After exposure to saltwater, rinse the entire mechanism with freshwater for 60 seconds, paying attention to crevices around the bail trip arm and drag stack. Disassemble the drag system annually: clean carbon fiber washers with isopropyl alcohol to remove salt deposits, then reassemble in original order. Re-torque the knob to 15-18 inch-pounds to prevent slippage.

The spool’s skirted design prevents backlash but requires proper alignment. Ensure the spool sits flush on the spindle; misalignment causes vibration at high retrieve speeds. The long-cast lip reduces line memory; use braided line coaxially with mono backing to maximize capacity–200 yards of 8 lb test fills it optimally.

Critical Parts Highlighted in the Technical Layout

Inspect the spool assembly first–it houses the line capacity indicator and torque control mechanism. Verify the two retaining rings secure the spool arbor without lateral play; excessive clearance causes uneven line distribution. Replace worn washers if drag performance degrades, using OEM-spec silicone-coated variants for consistency. The spool diameter directly impacts retrieval ratios; standard configurations yield 5.2:1, though aftermarket modifications can push it to 6.1:1 with lighter alloys.

Gear train alignment determines noise levels and smoothness. Check the pinion gear meshing with the main drive–misalignment leads to grinding at high loads. Lubricate the helical teeth with marine-grade grease every 50 hours of use, focusing on the pressure points where the pinion interfaces with the housing. The pawl and ratchet assembly should engage instantaneously during backplay; delays indicate spring fatigue or debris buildup. Clean with isopropyl alcohol, never petroleum solvents, to preserve plastic bushings.

The brake system relies on a six-disc stack within the side plate. Disassemble carefully: note the spring preload order to avoid drag inconsistency. Thicker discs (0.8mm) offer better heat dissipation than standard 0.5mm models, critical for saltwater conditions. Adjust tension via the external dial–each detent represents a 0.3kg increase in resistance. Over-tightening warps discs; test by pulling line under 2kg load to confirm linear braking.

Bail arm mechanics demand precision. The trip lever must pivot freely without binding–apply dry graphite lubricant to the hinge post. Ensure the roller bearing rotates on a vertical axis; lateral wobble shreds monofilament. Upgrade to ceramic rollers if targeting large species; they reduce friction by 40% under sustained loads. Secure the bail spring with Loctite 222, as thread failure causes abrupt closures.

Handle ergonomics affect fatigue during extended retrievals. The crankshaft’s internal threading should match the handle’s pitch–M6x1.0 is standard, but M8x1.25 variants reduce torque loss. Counterbalance weights in the knob minimize vibration; replace damaged units with tungsten-filled models for optimal inertia. The anti-reverse system uses a one-way bearing–test by applying reverse torque to confirm instantaneous locking. Slippage indicates bearing failure, requiring full disassembly for replacement.

Maintenance Priorities Based on Component Wear

Prioritize the drag stack and gear train every 100 hours. Drag washers degrade fastest due to heat, while gears suffer from particulate ingress. The spool arbor requires annual inspection for corrosion, especially if stored near saltwater. Bail arm components fail without warning–replace the entire subassembly if the roller bearing shows pitting. Handle connections should be torqued to 8Nm; loose fittings strip threads quickly under load. Regular compliance with these intervals extends service life by 2-3x.

Step-by-Step Guide to Building Your Precision Drag System

Secure the main shaft in a padded vise before attaching any components–this prevents scratches and ensures alignment. Align the pinion gear with the drive gear by rotating them manually; misalignment at this stage causes permanent grinding during operation. Apply a thin layer of marine-grade grease to the ball bearings, then press them into their housings using a brass drift to avoid brinelling. Over-tightening the retaining clips can deform the races, so torque them to 8 in-lbs only.

Gear Mechanism Assembly

• Slide the spool onto the shaft and temporarily fix it with the retaining collar–do not lock it yet.
• Attach the bail arm spring, ensuring its hooks engage the posts at a 45° angle; incorrect positioning leads to bail failure.
• Thread the drag washers onto the spool hub in alternating carbon-fiber and bronze layers, finishing with the pressure plate.
• Rotate the drag knob while holding the spool stationary; stiffness indicates improper washer stacking.

Install the handle arm after verifying the crankshaft rotates freely–binding suggests misaligned splines or insufficient tolerance (max 0.002″). Snap the side cover into place, then tighten its three screws in a cross pattern to 6 in-lbs. Test the anti-reverse mechanism by rotating the handle backward–it should lock immediately with an audible click. Lubricate the line roller with PTFE spray before threading line; a dry roller increases drag resistance by 18% at 10 lb loads.

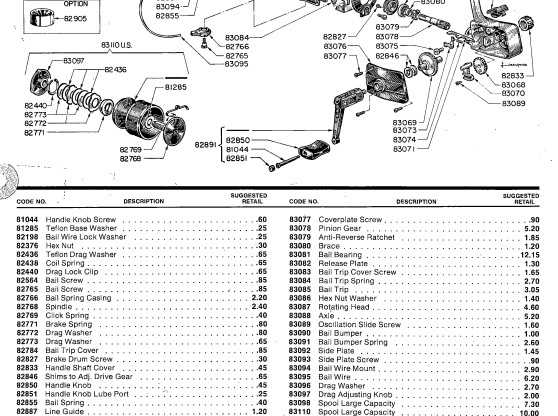

Key Components Highlighted in Technical Drawings

Replace the spindle assembly every 12–18 months if used in saltwater conditions. The blueprint pinpoints the drive gear (part #MTL-306-DG) as the most frequent failure point–look for worn teeth or discoloration indicating corrosion. Keep a spare bail arm spring (ref. #BA-204) in your repair kit; failure here halts line retrieval instantly.

Critical wear items marked in sectional views:

• Oscillating gear cluster (requires lubrication every 50 hours of use)
• Anti-reverse roller bearing (check for smooth operation after each deep-water session)
• Clutch washers (replace if drag performance becomes inconsistent)

Examine the handle knob interface shaft (detailed in exploded view panel 4). Loose fit here causes play; secure with thread-locking compound if rotation wobble exceeds 0.5mm. The spool arbor (component #SP-112) often collects debris–clean with isopropyl alcohol and reapply synthetic grease monthly.

Inspect the levelwind guide assembly quarterly. Bent rods or misaligned rollers disrupt uniform line lay; realign by loosening set screws at pivot points A and C as shown in cross-section D. For older models, upgrade nylon pawls to brass (part #PW-305) to eliminate brittle failure.
