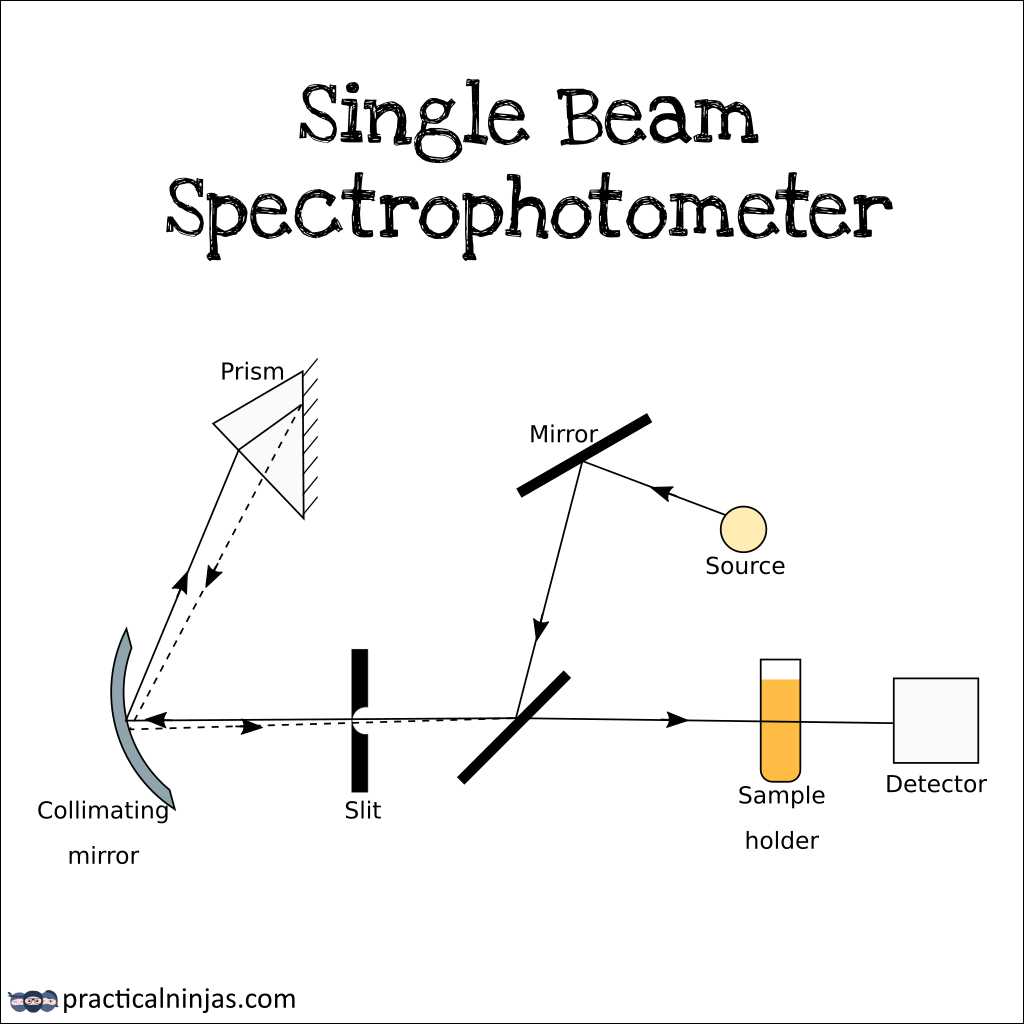

Design and Components of a Single-Beam UV-Vis Spectrophotometer Explained
Start by positioning the light source–typically a tungsten-halogen bulb for visible range or a deuterium lamp for ultraviolet measurements–no closer than 15 cm from the entrance slit. This spacing reduces stray light while maintaining sufficient intensity. The entrance slit should be adjustable between 0.1 mm and 2 mm; a 0.5 mm width delivers an optimal balance for most aqueous samples with concentrations between 1 μM and 10 mM. Direct the beam through a concave mirror with a focal length of 250 mm to collimate the light into a parallel path measuring approximately 10 mm in diameter.
Place the sample holder at the beam’s narrowest point, ensuring the cuvette glass thickness does not exceed 1.25 mm; thicker walls introduce unacceptable refractive losses. A single 10 mm light path is standard, but quartz cells with 2 mm or 5 mm paths are preferable for highly absorbing or weakly absorbing samples, respectively. Immediately after the sample, position a second concave mirror identical to the first to refocus the beam onto the exit slit–never exceed a 1 mm slit width here to prevent spectral smearing. The photodetector, usually a silicon photodiode or photomultiplier tube, must sit directly behind the exit slit with no air gap; even small gaps introduce Fresnel reflections that distort linearity at absorbance values above 1.5.
Include a cutoff filter wheel between the exit slit and the detector. For 350 nm measurements, use a 340 nm long-pass filter; for 600 nm measurements, switch to a 590 nm filter. Without these, second-order diffraction from the grating contaminates readings by 10–15 %. The diffraction grating itself should have 1200 grooves per mm blazed at 250 nm for UV work or 500 nm for visible work; coarser gratings degrade resolution below 1 nm and should be avoided unless throughput is prioritized over precision.
Wire the detector output through a transimpedance amplifier set to 106 V/A gain, followed by a 12-bit analog-to-digital converter running at 20 kHz. Sample the dark current for 100 ms before each reading and subtract it pixel-by-pixel from the light measurement; failure to do this introduces baseline drift that mimics absorbance at wavelengths shorter than 230 nm. Calibration drifts faster than 0.003 absorbance units per hour indicate either lamp aging or contamination on the entrance-window–replace tungsten filaments every 1000 hours, deuterium cathodes every 500 hours, and clean both mirrors every 200 measurements with methanol-soaked lint-free swabs.
Optical Path Layout in Basic Light Absorption Analyzers
Align the light source at a 90-degree angle to the monochromator entrance slit to minimize stray radiation. Deuterium lamps excel in the 180–370 nm range, while tungsten-halogen bulbs cover 350–2500 nm; match the lamp to your target wavelength to avoid spectral gaps. Position the entrance slit width between 0.1–2.0 mm–narrow slits improve resolution but reduce throughput, while wider slits sacrifice precision for higher signal-to-noise ratios.
Grating selection determines spectral purity: 1200 grooves/mm offers 1–2 nm resolution, while 300 grooves/mm broadens the bandpass to 10–20 nm. Ensure the grating is blazed at your primary measurement wavelength–one blazed at 250 nm underperforms at 800 nm. Use concave gratings if spherical aberration distorts your beam profile; holographic gratings reduce ghost lines but cost 30% more.
Sample Chamber Configuration
Quartz cuvettes transmit from 200–2500 nm, but optical glass cuts off below 340 nm–confirm cuvette pathlength accuracy with a 1.00 cm ±0.01 mm standard. For volatile solvents, use stopper-sealed cuvettes to prevent evaporation that skews absorbance readings by 0.02–0.05 units. Position the cuvette holder so the beam hits the center of the sample, avoiding meniscus refraction effects that alter optical density by up to 8%.
Detector placement requires balancing sensitivity and linearity: photomultiplier tubes deliver sub-0.1% stray light but saturate above 3 absorbance units, while silicon photodiodes handle 0–4 AU but lose sensitivity below 350 nm. For dual-detector setups, synchronize readout timing to within 1 ms to prevent phase shifts in kinetic measurements. Calibrate detector response monthly using a holmium oxide filter (peaks at 446 nm, 536 nm) to correct wavelength drift.
Instrument Calibration and Troubleshooting
Baseline correction eliminates lamp intensity fluctuations–run a solvent blank before each sample batch and re-zero every 30 minutes for high-precision work. If absorbance drifts exceed 0.005 AU/hour, inspect the monochromator bearings for wear; lubricate with PTFE spray every 500 hours of operation. Check the grating drive belt tension–slippage causes wavelength errors of ±2 nm, visible as distorted peak shapes.
For stray light reduction, install a second exit slit after the sample chamber; this cuts interference from 0.1% to 0.01% at 220 nm. When measuring strongly absorbing samples (>2 AU), dilute the solution or use a shorter pathlength cuvette–0.1 cm cuvettes extend the linear range to 4 AU. If noise levels rise, clean the detector window with methanol and a lint-free cloth; fingerprints increase noise by 10x.
Power supply stability dictates performance: permit lamps to warm up for 30 minutes–deuterium intensity fluctuates ±15% in the first 10 minutes. Stabilize voltage within ±0.1% using a line conditioner; dirty power spikes degrade grating coatings, reducing efficiency by 5% annually. Replace lamps when output drops below 70% of initial intensity–for tungsten filaments, this occurs after ~1000 hours.
Document every alignment step: record slit widths, grating angle, and detector gain settings for reproducibility. When switching between UV and visible ranges, adjust the beam splitter or insert a cutoff filter to block second-order radiation–unfiltered 250 nm light generates false peaks at 500 nm, misleading concentration calculations. Validate wavelength accuracy with a mercury lamp (distinct lines at 435.8 nm, 546.1 nm) before critical measurements.
Key Components and Their Placement in the Optical Path
Position the deuterium or tungsten-halogen lamp at the optical path’s origin to ensure stable, broad-spectrum emission. Align the lamp’s arc or filament perpendicular to the entrance slit to minimize light scattering and maximize beam collimation. Use a concave mirror with a focal length of 50–100 mm immediately after the lamp to collect and direct the beam efficiently; offset it by 10–15° to reduce stray reflections.
Mount the entrance slit 3–5 mm from the collimating mirror with a width adjustable between 0.1–2 mm. Narrower slits improve resolution but reduce signal strength; calibrate based on the sample’s absorbency range. Place a quartz or fused silica lens post-slit to focus the beam into a parallel path, ensuring minimal chromatic aberration across 190–1100 nm.
Monochromator Positioning and Grating Selection
Fix the diffraction grating at a 30° angle to the incoming beam for optimal dispersion. A 1200 grooves/mm blazed grating centered at 250 nm provides balanced efficiency for UV and visible ranges. Align the grating’s rotational axis precisely with the exit slit’s centerline to prevent wavelength drift during scans. Include a stepping motor with 0.1° resolution for reproducibility.
Locate the exit slit directly opposite the entrance slit, maintaining identical dimensions. Adjust both slits synchronously during wavelength sweeps to maintain consistent bandwidth. Position a photomultiplier tube (PMT) or silicon photodiode detector 10–20 mm behind the exit slit, angled to avoid back-reflections. For PMTs, use a -800V bias for UV sensitivity; lower voltages suffice for visible detection.
Sample Holder and Reference Optimization
Insert the sample cuvette 50–70 mm from the exit slit in a holder machined from black anodized aluminum to minimize stray light. Use a 10 mm pathlength quartz cuvette for liquid samples; shorter pathlengths (1–2 mm) suit high-absorbency solutions. Orient the cuvette’s polished faces perpendicular to the beam to prevent Fresnel losses, which can exceed 4% per interface.
For baseline corrections, place an identical empty cuvette or solvent reference in the beam path prior to the sample scan. Alternate between sample and reference at 0.5-second intervals during rapid measurements to compensate for lamp drift. Implement a shutter between the exit slit and detector to measure dark current immediately before each scan, subtracting it from raw absorbance values.
Install a beam splitter 20–30 mm before the detector for dual-channel systems, directing 10–20% of the light to a secondary sensor. This configuration enables real-time monitoring of source fluctuations without increasing scan time. Ensure the splitter’s wedge angle does not deviate more than 0.5° from perpendicular to avoid polarization biases.
Route all optical components in a modular, kinematic mount design to simplify alignment. Secure mirrors and lenses with locking thumbscrews torqued to 1.5 Nm to prevent vibration-induced misalignment. Enclose the entire path in a temperature-controlled housing (±0.1°C) to stabilize refractive indices and detector response.
Step-by-Step Signal Flow from Emission Source to Sensor
Begin by ensuring the emission source operates at peak stability–deuterium lamps for 190–350 nm and tungsten-halogen for 350–1100 nm. Position the lamp housing to align the filament axis perpendicular to the optical path, minimising stray reflections. Verify the current supply remains within ±0.5% of the rated value; fluctuations above this threshold introduce noise detectable at the sensor as baseline drift.
- Engage a chopper or shutter to modulate the beam at 100–150 Hz, creating a reference signal that the detector can lock onto.
- Place a fused-silica condenser lens immediately after the source to collimate the beam; focal length should match the entrance aperture of the monochromator (typically 50–100 mm).
- Filter any infrared radiation above 1100 nm using a cold mirror or heat-absorbing glass if the sample is heat-sensitive.
Monochromator: Wavelength Isolation
Mount the diffraction grating on a precision rotary stage; blazed gratings at 300 lines/mm yield 1 nm resolution across the 200–800 nm range. Calibrate the drive motor by scanning mercury emission lines (435.8 nm and 546.1 nm) and adjust the zero-point until the peak centre aligns within ±0.2 nm of the target wavelength. The slit width dictates resolution: set 0.5 nm slits for routine work, narrowing to 0.1 nm for narrow-band measurements.
Direct the isolated wavelength through an exit lens identical to the entrance lens; misalignment here reduces transmittance by up to 15%. Install a beam splitter immediately after the exit port to divert 5–10% of the light to a reference photodiode, compensating for source fluctuations during spectral scans.
Sample Compartment and Detection
Select cuvettes with path lengths suited to the analyte concentration: 10 mm for ε > 10⁴ L mol⁻¹ cm⁻¹, 1 mm or 0.1 mm for highly absorbing samples. Ensure quartz windows for
Choose a photomultiplier tube (PMT) for low-light applications or a silicon photodiode array for multiplex advantages. Apply -800 V to -1200 V to the PMT dynode chain, stabilising the voltage within ±0.1% to prevent gain drift. For silicon detectors, maintain cooling at -20 °C to suppress dark current noise below 0.05% of full scale. Connect the sensor output to a trans-impedance amplifier with zero-offset adjustment, then route the signal through a 16-bit ADC sampling at 1 kHz for spectral data and 10 kHz for kinetic traces.
