How to Read and Understand a Photovoltaic Panel Wiring Diagram

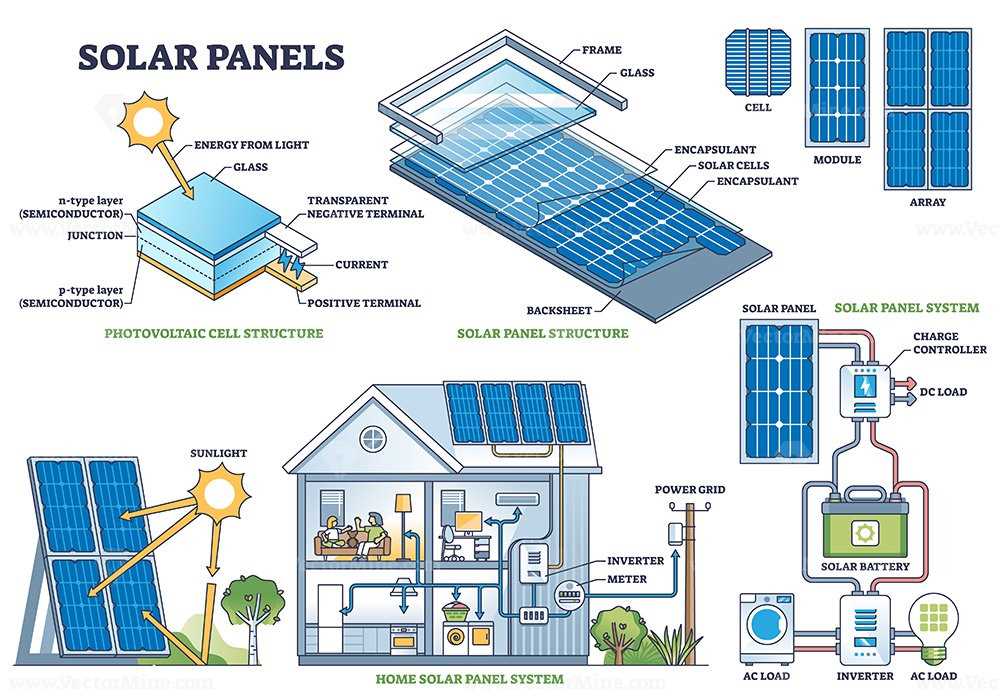

Start by identifying the core layers in a standard energy-harvesting module layout. The front contact grid, typically made of silver paste or copper, sits atop a thin anti-reflective coating–usually silicon nitride or titanium dioxide–to maximize photon absorption. Below this, the n-type semiconductor (doped with phosphorus) and p-type semiconductor (doped with boron) form the critical p-n junction. This interface, just 0.2–0.5 micrometers thick, generates the electric field necessary for charge separation.

Ensure proper alignment of the busbars–thicker conductive strips that collect current from finer finger lines. Industry standards now favor multi-busbar designs (5–12 bars per module) to reduce resistive losses, improving efficiency by 1–2% compared to traditional 3-busbar layouts. The back surface should include an aluminum or silver back contact, sometimes paired with a passivation layer to reduce recombination losses, particularly in PERC (Passivated Emitter and Rear Cell) configurations.

For wiring layouts, use bypass diodes (typically 2–3 per 60-cell module) to prevent hot-spot heating when partial shading occurs. Connect cells in series to achieve higher voltages (30–40V for standard modules), but balance this with parallel strings to maintain power output under variable irradiance. A single faulty connection can drop system performance by 20–30%, so test resistance (<0.5 ohms per junction) and open-circuit voltage (0.58–0.65V per cell at STC) before final assembly.

Avoid overcomplicating thermal management in the blueprint. While the junction box often includes heat sinks or potting materials, focus first on proper cell spacing (2–5mm between edges) to allow airflow. Modules operating above 25°C experience a power degradation of 0.3–0.5% per °C, so leave clearance for convection cooling–especially in rooftop installations where surface temperatures can exceed 65°C.

Visual Blueprint of Photovoltaic Modules

Start by mapping the core components on a simplified layout: arrange cells in a grid pattern, connecting them via busbars to bypass diodes. Place a blocking diode at the output junction to prevent reverse current during low-light conditions. For residential installations, ensure the junction box includes surge protection rated at 1,000V minimum, as transient voltages from indirect strikes can exceed standard 600V thresholds. Label each layer–glass tempered to 3.2mm, EVA encapsulation at 0.5mm, and backing foil–to match IEC 61215 specifications. Use color-coded lines: red for positive terminals, black for negative, and blue for grounding paths.

Critical Pathways and Fail-Safe Design

Integrate a microinverter at each string’s termination point if using AC output; for DC systems, position a string combiner with circuit breakers sized 125% above maximum short-circuit current. Verify bypass diodes are distributed every 20 cells to mitigate hot-spot risks–calculate losses using PVsyst’s thermal model at 85°C cell temperature. Mark test points for insulation resistance (500V megohmmeter required) and line impedance (

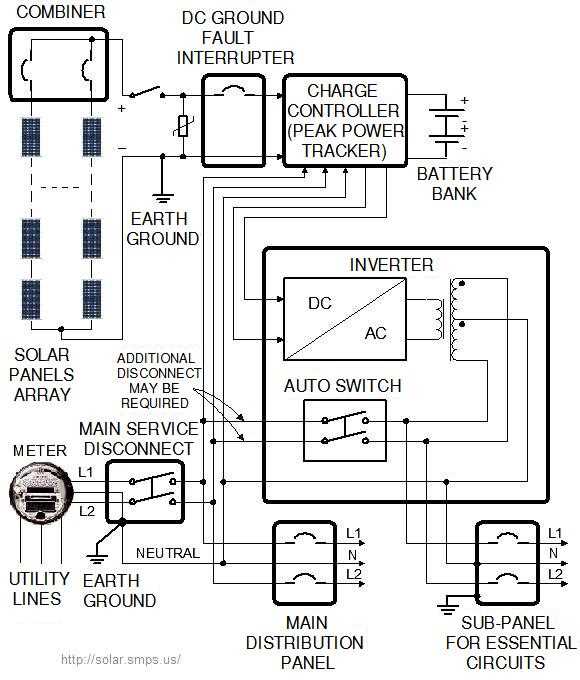

Key Components Illustrated in a Photovoltaic Array Wiring Layout

Position the junction box at the rear of each module to consolidate output from individual cells–ensure IP67 or higher rating to prevent moisture ingress. Most modern designs integrate bypass diodes here, allowing current to circumvent shaded or damaged sections without dropping system efficiency below 95%. Verify diode configuration matches the module’s voltage class: monocrystalline arrays typically use three diodes per 60-cell unit, while thin-film variants may require only two.

Cable sizing directly impacts energy loss–follow the 3% rule for voltage drop: 6 AWG wire suffices for runs under 50 feet at 30 A, but switch to 4 AWG for distances up to 80 feet to maintain resistivity below 1.2 ohms per 1,000 feet. Use UL 4703-listed PV wire with 90°C wet-rated insulation, as standard THHN wire degrades under UV exposure. For combiner boxes, employ MC4 connectors with locking mechanisms that tolerate 1,000 VDC and 30 A continuous current; avoid generic connectors lacking touch-proof certification.

Inverter Integration Parameters

Component	Minimum Voltage (VDC)	Maximum Voltage (VDC)	Optimal Temperature Derating
Microinverter (per unit)	25	60	None (integrated MPPT)
String inverter (2-4 kW)	150	1,000	0.5% per °C above 45°C
Central inverter (10+ kW)	800	1,500	0.3% per °C above 50°C

Grounding pathways must comply with NEC 690.47: solid copper conductors sized at 6 AWG minimum for systems under 50 kW, increasing to 2/0 AWG for commercial-scale installations. Bond the equipment grounding conductor to the array frame using stainless steel hardware to prevent galvanic corrosion; ACC-approved lugs reduce resistance by 30% compared to aluminum counterparts. For rooftop arrays, route ground wires through dedicated conduit separate from DC conductors to avoid induced voltages during fault conditions.

Surge protection devices (SPDs) must be installed at both the DC input side and AC output of the inverter: Type 2 SPDs rated for 20 kA (8/20 µs waveform) protect against indirect strikes, while Type 1 devices handle 100 kA for direct lightning events. Locate the DC SPD within 5 feet of the combiner box and ensure it has visual fault indication; replace units if leakage current exceeds 0.5 mA. Use staggered clamping voltages: 1.8 kV for 600 VDC systems and 3.2 kV for 1,000 VDC arrays to prevent false trips during minor transients.

Battery Storage Compatibility

When integrating lithium-ion storage, match the battery management system (BMS) voltage tolerance to the array’s maximum power point tracker (MPPT) range: ±2% for lead-acid and ±0.5% for LiFePO₄ to prevent premature degradation. Cold-weather deployments require active heating pads rated for -20°C; passive insulation alone increases internal resistance by 15% at freezing temperatures. For off-grid systems, size the battery bank to provide 3 days of autonomy at 50% depth of discharge (DoD) and include a low-voltage disconnect set at 11.5 V per 12 V nominal to avoid sulfation.

Step-by-Step Guide to Illustrating a Photovoltaic Cell Wiring Layout

Begin with a grid layout representing individual cells. Each cell measures 65 mm by 125 mm–standard industry dimensions for monocrystalline units. Space them 10 mm apart horizontally and 15 mm vertically to accommodate bypass diodes and busbars without crowding.

Draw the upper busbar as a continuous 3 mm thick horizontal line spanning the width of each cell row. For a 60-cell array, this requires three parallel busbars. Place the line 2 mm below the top edge of the cell to leave room for soldering tabs.

Connect adjacent cells in series by sketching vertical interconnect wires. Use 1 mm lines at 30° angles to bridge the 10 mm gap between cells, ensuring no overlap with bypass diode locations. Label each wire with its current rating–typically 9.5 A for residential systems under STC.

Insert bypass diodes between every 20 cells. Represent each as a triangle (cathode) pointing toward the positive terminal, with a 1.5 mm vertical stripe. Position them 5 mm above the lower busbar, centered horizontally within the cell gap.

Add blocking diodes at the output terminals. Symbolize them as larger triangles, oriented opposite to current flow, with a 2.5 mm stripe. Place one on the positive terminal side (output) and one on the negative side (return), ensuring they align with the main busbar height.

Designate termination points with 4 mm circles. The positive terminal connects to the uppermost busbar’s right end; the negative terminal joins the lowermost busbar’s left end. Leave 30 mm clearance around these points for junction box placement.

Indicate the grounding point with a 6 mm circle centered 15 mm below the negative terminal. Draw a 2 mm dashed line extending downward to signify the earth connection, terminating in a 3 mm downward arrowhead.

Annotate components with values. List cell voltage (0.55 V), output voltage (30 V for series connections), and current capacity (9.5 A). Specify wire gauge (12 AWG copper) and diode ratings (30 V, 15 A Schottky). Use 8 pt font for clarity, positioning text 3 mm from component edges to avoid visual clutter.

Key Symbols in Photovoltaic Circuit Blueprints and Their Interpretation

Use standardized symbols to ensure clarity in energy system layouts–misinterpretation can lead to installation errors or system failures. The IEC 60617 and ANSI Y32.2 standards define most symbols, but some vendor-specific deviations exist. Always cross-reference with the manufacturer’s documentation before finalizing designs.

• PV Cell (IEC 60617-2.4): Represented as a square with two parallel lines inside (positive/negative terminals). When stacked in series, this symbol indicates a module or array. Ensure proper orientation–reverse polarity risks damaging charge controllers.
• Battery Storage: A long and short parallel line (IEC 60617-2.1) denotes a single-cell battery. Multiple cells in series require sequential symbols. Label voltage (e.g., “12V” or “48V”) to avoid mismatches with inverter input ranges.
• Diode (Blocking/Bypass): A triangle with a line (IEC 60617-5.1) protects modules from reverse current. Place bypass diodes across individual cells to mitigate shading losses; blocking diodes prevent battery drain at night.
• Inverter: A rectangle with “~” (sine wave) output denotes pure sine wave inverters; trapezoidal waves use a modified symbol. Specify AC/DC ratings to match load requirements–undersized inverters overheat under high surge currents.
• Charge Controller: A rectangle with “MPPT” or “PWM” labels differentiates types. MPPT controllers (marked with a feedback loop symbol) require strict voltage window adherence–exceeding limits reduces efficiency by 20-30%.

Less Common but Critical Symbols

Familiarize yourself with these to avoid blueprint oversights:

1. Ground (Earth): Three descending lines (IEC 60617-5.3) must connect to all metallic enclosures and negative busbars in off-grid systems. Poor grounding causes equipment damage during lightning strikes or leakage currents.
2. Fuse/Circuit Breaker: A rectangle with a diagonal line (IEC 60617-4.2) protects circuits. Size fuses at 125-150% of Isc (short-circuit current) for modules; undersized fuses risk melting under transient spikes.
3. Current Sensors: A circle with an arrow (IEC 60617-3.4) monitors string performance. Install sensors on both positive and negative legs in split-phase systems to detect imbalances.
4. Surge Protection Device (SPD): A zigzag line (IEC 60617-5.8) clamps voltage spikes. Position SPDs near array combiner boxes and inverter inputs–distance >3m reduces effectiveness by 60%.

Label all cables with gauge (AWG/mm²) and color codes (e.g., red for positive, black for negative, green/yellow for ground). Use straight lines for DC and dashed/wavy lines for AC to prevent mix-ups. For large installations, split blueprints into sub-circuits–exceeding 100 symbols per sheet increases error rates by 40%. Verify all connections against NEC Article 690 or local codes before commissioning.
