Key Components of Industrial Air Pollution Control System Schematic Design

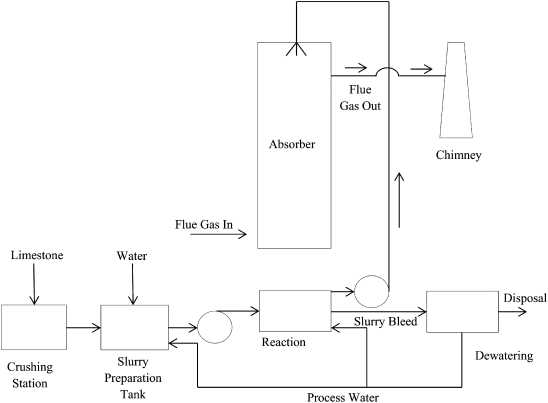

Begin with a multi-stage filtration setup: coarse pre-filters for particulate removal (minimum 50% efficiency at 10 microns), followed by electrostatic precipitators (ESP) with a minimum collection efficiency of 99.5% for particles below 2.5 microns. For sulfur dioxide scrubbing, use wet limestone-gypsum systems operating at 90-95% efficiency–ensure reagent stoichiometry ratios of 1.02–1.05 to minimize excess calcium carbonate consumption. Integrate activated carbon injection upstream for mercury abatement, targeting 90% removal at 5 μg/m³ inlet concentrations.

Design the gas flow path with duct velocities of 12–15 m/s to prevent settling while avoiding excessive pressure drops. Incorporate variable frequency drives (VFDs) on all fans, sized for 105% of maximum expected flow rates under worst-case ambient conditions (−10°C, 1.05 bar). Include redundant heat exchangers with titanium-coated tubes to resist corrosion from flue gas cooling (target outlet temperature: 120–140°C). For NOx reduction, select selective catalytic reduction (SCR) units with vanadium-tungsten catalysts, maintaining a space velocity of 3,000–5,000 h⁻¹ and NH₃ slip below 3 ppm.

Implement continuous emission monitoring systems (CEMS) with cross-stack or probe-based analyzers, calibrated quarterly against ISO 17025 standards. Data acquisition should log at 1-minute intervals, with automated alerts for deviations exceeding ±5% of permit limits. For energy recovery, install condensing economizers with 40–60% efficiency at ΔT ≥ 30°C, coupled with thermal storage to offset peak demand. All control valves should be butterfly-type with pneumatic actuators, responding within 3 seconds to command signals.

Label all components with durable stainless-steel tags, specifying pressure ratings, material compatibility, and maintenance intervals. Include bypass capabilities for emergency shutdowns, with fail-safe damper positions pre-tested under loss-of-power scenarios. System documentation must detail hydraulic gradients, electrical single-line schematics, and emergency protocols for reagent spills or filter blinding events.

Visual Representation of Industrial Emission Treatment Systems

Begin with a hierarchical flow of components to ensure clarity. Place the primary filtration stage (cyclone separators or electrostatic precipitators) at the inlet, followed by secondary scrubbing units (wet scrubbers or baghouses). Indicate pressure drop points with colored arrows–red for high resistance, blue for optimal flow. Include real-time sensors (PM2.5/NOx detectors) near exhaust outlets, spaced every 3 meters for accurate monitoring. Label all ducts with diameter specifications (e.g., DN200 for main conduits) and material (stainless steel 316 for corrosion resistance).

Integrate bypass valves for emergency maintenance, positioning them downstream of each treatment phase. Use dashed lines to denote auxiliary systems–like ammonia injection ports for NOx reduction–placed 1.5 meters above the scrubber outlet. For thermal oxidizers, mark combustion zones with temperature gradients (650°C at core, 300°C at periphery) and fuel input rates (e.g., 2.5 m³/h of natural gas). Avoid generic icons; replace with component-specific symbols–e.g., a gear for rotary atomizers, a coil for heat exchangers.

Highlight fail-safe mechanisms in bold borders, such as automatic venting systems for backpressure spikes. Connect dust collectors to hoppers with sloped angles (≥45°) to prevent clogging, noting hopper volume (1.2 m³ for medium-scale plants). Include insulation layers (mineral wool, 50 mm thickness) on ducts exceeding 150°C, tagging thermal conductivity values (≤0.038 W/m·K). Specify control panel inputs (PLC modules with 4-20 mA signals) and power requirements (400V, 3-phase for motors).

For liquid-based systems, detail reagent mixes (e.g., 5% Ca(OH)₂ slurry for SO₂ capture) and pH levels (target: 7.5–8.5 at scrubber outlet). Add sampling ports upstream of fans, spaced 2 meters apart, with quick-release clamps for probe insertion. Indicate stack height (≥30 meters for regulatory compliance) and exit velocity (≥12 m/s to prevent plume collapse). Use hatched patterns to distinguish recirculation loops from fresh airflow paths.

Ensure compliance annotations align with local standards (e.g., EPA Method 5 for particulate testing). Add inset diagrams for critical subprocesses–like catalytic converter bed layouts (honeycomb monoliths, 200 cells/in²)–with conversion efficiencies (≥95% for VOCs). List all materials’ resistance properties (e.g., FRP for acid mist handling, Hastelloy C-276 for chloride-rich streams).

Critical Elements of an Electrostatic Precipitator in Industrial Gas Cleaning Systems

Install discharge electrodes with a minimum voltage gradient of 3.5–5 kV/cm to ensure consistent corona formation. Use rigid-frame designs for large installations (flue gas volumes > 500,000 m³/h) to mitigate electrode sag under thermal expansion. For high-resistivity particulates (> 10¹² Ω·cm), pre-conditioning with SO₃ injection at 20–50 ppm can reduce back-corona effects by 40–60%. Replace worn electrodes every 18–24 months to maintain collection efficiency above 99.5%.

Performance-Optimizing Configurations

Component	Optimal Specification	Failure Impact
Collection Plates	Corrugated steel, 1.2–1.5 mm thickness; spacing ≤ 400 mm	Particle re-entrainment increases by 30% with spacing > 450 mm
Rapping System	Electromagnetic hammer; 60–100 impacts/hour; 2–3 mm amplitude	Dust layer exceeding 3 mm reduces efficiency by 8–12%
Hopper Design	Pyramidal with 60° slope angles; fluidization air at 0.5 m³/min	Arch formation occurs at slope angles

Integrate online resistivity monitors upstream of the precipitator to dynamically adjust voltage levels; this prevents energy waste in low-load conditions while avoiding sparkover during peak particulate loading. For submicron particles (0.1–1 µm), supplement with pulse energization–apply 10–20 kV pulses at 50–200 Hz to enhance charge capture efficiency by 15–25%. Ground supports with 80% RH), use stainless steel for collection surfaces to prevent corrosion-induced voltage leaks.

Standardized Symbols for Cyclone Dust Collectors in Industrial Process Flowcharts

Position cyclone separators in emission treatment blueprints as upright conical vessels with a tangential inlet at the upper cylindrical section. Use an ISO 10628-compliant symbol: a solid triangle pointing downward inside a circular outline for the main body, paired with a single angled line on the side representing the feed pipe. Ensure the outlet at the top is drawn as a smaller concentric circle to distinguish it from the solids discharge at the cone’s apex.

Label each cyclone with a two-part identifier: type (e.g., high-efficiency, reverse-flow) followed by throughput in m³/h. Place these annotations directly beneath the symbol, aligned left. For units handling particles below 10 μm, add a dashed underline to the throughput number. Glyph dimensions must scale to 1% of the total flowchart width to guarantee readability across A1 printouts and 4K CAD displays.

Connect cyclones to upstream equipment using 8 mm thick solid lines for gas streams and 6 mm dashed lines for particulate matter. Indicate pressure drop across the separator with a numeric ΔP value in kPa beside the inlet line. If the cyclone operates in parallel (e.g., multi-tube designs), represent the array as stacked triangles with uniformly spaced horizontal ellipses between the first and last symbols to avoid clutter.

Integrate cyclone separators with downstream components by routing the purified gas stream through a vertical line emerging from the top outlet circle, terminating at either a baghouse filter symbol (solid rectangle with diagonal hatching) or a wet scrubber icon (zigzag within a rounded rectangle). The underflow solids should exit via a short horizontal line from the cone apex, feeding into a hopper or conveyor symbol (trapezoid with a downward arrow). Colour-code lines: #FF5733 for untreated emission streams, #33FF57 for cleaned gas, and #3357FF for particulate solids.

Incorporate performance data into the blueprint by embedding a compact table adjacent to each cyclone symbol. Include columns for inlet velocity (m/s), cut diameter (μm), collection efficiency (%) for particle size ranges 2.5–10 μm and 10–100 μm, and maintenance interval (hours). Populate tables using real-time plant data–never placeholders–to ensure engineers can verify compliance against emission permits during on-site inspections.

For installations requiring noise attenuation, append a secondary symbol–a segmented arc surrounding the cyclone’s central body–with thickness proportional to acoustic lining thickness (3–10 mm). Annotate the arc with the calculated noise reduction in dB(A) as measured at 1 metre distance. When retrofitting legacy systems, overlay the existing cyclone symbol with a 2 mm red border to highlight upgraded components in migration records.

Key Phases for Integrating Wet Scrubber Units in Plant Designs

Position the absorption tower upstream of any thermal oxidizers or catalytic converters to maximize contaminant removal efficiency before further processing. Allocate a minimum 3-meter clearance on all sides of the tower for maintenance access, with an additional 1.5 meters at the base for sediment collection systems.

Incorporate three distinct liquid distribution zones within the scrubber vessel:

• Primary zone: Nozzle array spaced at 450 mm intervals for coarse droplet formation targeting particles >10 μm
• Secondary zone: Packed bed section with 25 mm polypropylene rings for intermediate scrubbing (5–10 μm particles)
• Tertiary zone: Mist eliminator grid with 0.5 mm wire mesh for sub-micron particle capture

Ensure recirculation pumps deliver 2.5 m³/h per kW of fan capacity, with redundant units sized at 120% of primary flow rate.

Design the reagent mixing tank with conical bottom angled at 60° to prevent sludge accumulation. Include pH sensors at three elevations (0.3 m, 1.2 m, and 2.1 m) and a high-level alarm triggered at 85% capacity. Connect automated lime slurry feed lines to the tank via 50 mm Schedule 40 PVC piping with dual-line redundancy.

Integrate the following sub-systems into the blueprint within 15 meters of the main vessel:

1. Quench chamber with water spray manifold featuring 14 nozzles, each delivering 5 L/min at 3 bar pressure
2. Demister knockout drum (2.5 m diameter × 4 m height) with 3-stage baffle arrangement
3. Sludge dewatering press operating at 100 RPM with 250 μm filter cloth
4. Exhaust stack rising minimum 5 meters above adjacent structures, equipped with CEMS sampling ports at 1.8 m and 3.6 m elevations

Route exhaust gases through 304 stainless steel ductwork (minimum 8 mm wall thickness) with expansion joints at every 12-meter interval. Include purgeable drain valves at low points and heat tracing for sections exposed to temperatures below 60°C. Specify variable-frequency drives for induced draft fans, with operating range 50–120% of baseline flow rate.

Locate the control panel in a NEMA 4X enclosure mounted no higher than 1.5 meters above finished floor. Include the following HMI elements:

• Trend display for differential pressure across packed bed (0–2.5 kPa range)
• Real-time pH monitoring graph (0–14 scale, 0.1 resolution)
• Alarm status indicators for pump failure, high liquid level, and stack opacity exceedance
• Touchscreen-accessible PID loop adjustments for recirculation flow rate

Calibrate pressure transducers quarterly against a deadweight tester and validate CEMS performance annually per EPA Method 301 using cylinder gas audits.
