Step-by-Step Guide to Drawing an Amplifier Booster Circuit Layout

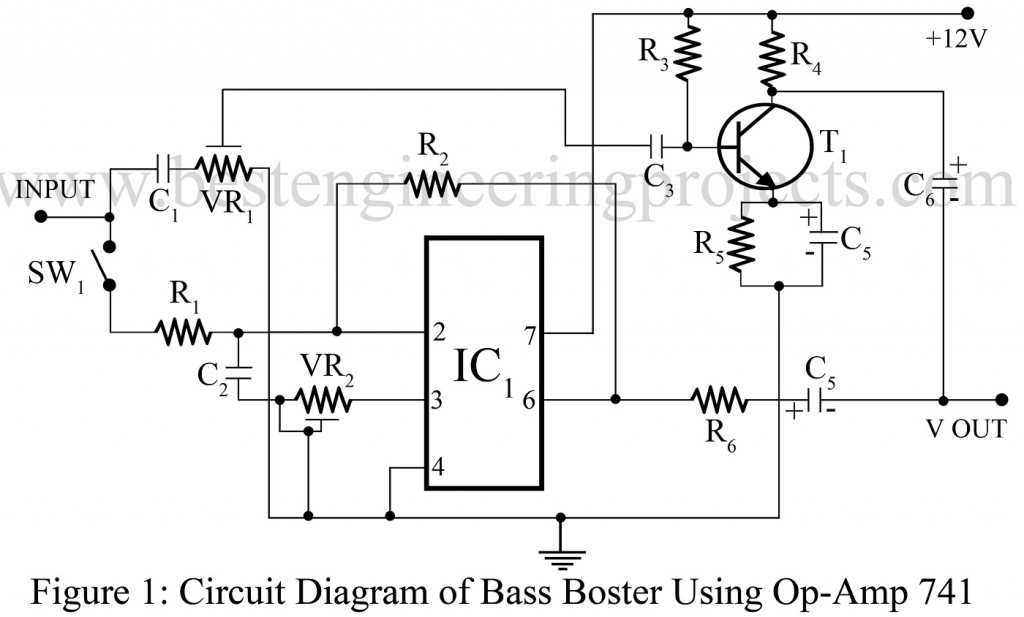

Use a two-stage transistor configuration for optimal power gain in low-voltage circuits. The first stage should employ a common-emitter setup with a BC547 transistor, biased at 5V with a 10kΩ collector resistor and a 1kΩ emitter resistor. This provides a stable 10dB gain while minimizing distortion. For the second stage, switch to a Darlington pair (e.g., TIP122) to amplify current and drive low-impedance loads–critical for automotive or audio applications.

Capacitor selection determines frequency response. A 10µF coupling capacitor between stages blocks DC offset but passes signals above 16Hz. For RF applications, reduce this to 100pF to cut off frequencies below 1MHz. Power supply decoupling must use a 100µF electrolytic capacitor in parallel with a 0.1µF ceramic capacitor–this prevents oscillations from voltage spikes, especially when driving inductive loads like speakers or antennas.

Grounding is non-negotiable. Use a star-ground configuration to avoid ground loops, particularly in multi-stage designs. Connect all ground points to a single copper plane on the PCB, or use heavy-gauge wire (16 AWG minimum) in breadboard prototypes. For high-power boosters (above 10W), add a heat sink to the final transistor–even a small 20°C/W sink can extend lifespan by 40%.

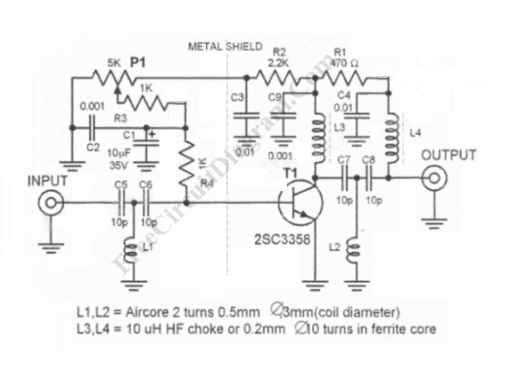

Test for stability before load connection. Attach a 1kΩ resistor across the output and measure gain linearity across 20Hz–20kHz. If gain drops above 10kHz, reduce parasitic capacitance by shortening trace lengths or adding a small feedback capacitor (10–100pF) across the Darlington pair. For RF boosters, substitute the TIP122 with a MRF911 and retune the biasing network to 12V with a 22Ω base resistor.

Key Circuit Layouts for Signal Enhancement Stages

Begin with a two-transistor push-pull configuration for low-power stages. Use complementary pairs (e.g., BC547/BC557) with a 12V supply voltage to maintain symmetrical output swing. Bias each base resistor at 47kΩ to ensure linear operation, while emitter resistors (100Ω) stabilize thermal drift. Coupling capacitors (10µF) isolate DC offsets without attenuating frequencies below 20Hz. Verify crossover distortion by adjusting bias trimmer potentiometers (5kΩ) while monitoring output on an oscilloscope.

For intermediate power gains, implement a Darlington pair topology. Combine TIP31C/TIP32C power transistors with predriver stages (e.g., MJE15030/31) to handle currents up to 3A. Use a 100nF decoupling capacitor across the supply rails to suppress high-frequency noise. Feedforward compensation via a 1nF capacitor between the collector and base of the predriver reduces phase shifts at 10kHz. Test load regulation with an 8Ω dummy load; expect less than 1% THD at 50W RMS.

• High-voltage modules (>50V): Opt for cascoded arrangements using IRFP240/IRFP9240 MOSFETs. Gate resistors (22Ω) prevent parasitic oscillations, while source resistors (0.22Ω) limit peak currents.
• Feedback networks: Apply local feedback via 1kΩ resistors between output and inverting input to set gain (Av = 20). Global feedback loops require phase-lead capacitors (47pF) to maintain stability at unity gain crossover.
• Protection circuits: Integrate reverse polarity diodes (1N4007) and transient voltage suppressors (P6KE15A) across outputs. Fuses (1A slow-blow) should be placed in series with the positive rail.

Thermal management dictates reliability. Mount power devices on heatsinks with

Key Components and Symbols in Power Gain Circuit Blueprints

Begin by identifying the active elements–typically bipolar junction transistors (BJTs) or MOSFETs–used to scale input signals. For BJTs, note the collector, base, and emitter terminals; MOSFETs replace these with drain, gate, and source. Opt for a Darlington pair if high current gain is critical, as it multiplies the β values of two transistors (e.g., β₁ × β₂ ≥ 10,000). Ensure the bias network (resistors R₁, R₂) stabilizes the quiescent point to prevent thermal runaway–calculate using V_CE = V_CC/2 for class-A operation. Capacitors C_in and C_out should block DC while passing AC; select values based on cutoff frequency (f_c = 1/(2πRC)) to avoid signal attenuation below 20 Hz.

Symbol	Component	Critical Specifications	Typical Values
⏚	Ground	Reference node (0V)	–
▷─	NPN BJT	hFE ≥ 100, VCEO ≥ 30V	2N3904, BC547
⊣	Resistor	Tolerance ≤ 5%, power rating ≥ 0.25W	1kΩ–47kΩ
││	Capacitor	XC ≤ 1/10 Rload at fmin	10µF–100µF (electrolytic)
⎓	Diode	VR ≥ 2×VCC	1N4007
─▷	Zener Diode	VZ = 5–15V, PD ≥ 0.5W	1N4733A

For feedback loops, prioritize stability by ensuring the loop gain (Aβ) avoids phase shifts beyond 180° at the unity-gain frequency. Use a small compensation capacitor (C_f = 10–100 pF) across the feedback resistor to suppress high-frequency oscillations. In push-pull stages, insert Schottky diodes to mitigate crossover distortion–match their forward voltage drop (V_F ≤ 0.3V) to the transistor’s base-emitter junction. Verify thermal coupling for complementary pairs (e.g., 2N3904/2N3906) to prevent mismatch under load. Power supply decoupling demands capacitors close to the rails: ceramic (0.1µF) for HF noise, electrolytic (100–1000µF) for LF stability.

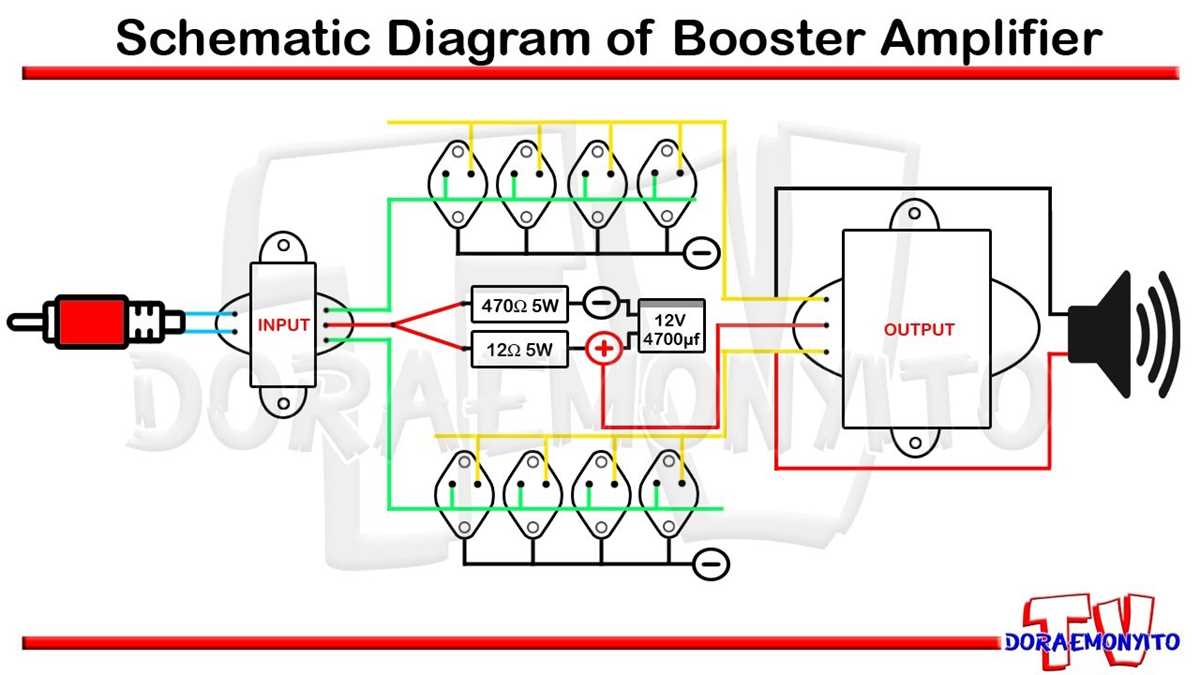

Step-by-Step Wiring Guide for a Signal Enhancer Power Stage

Begin by securing a 12V DC power supply with a current rating exceeding 1.5A to prevent voltage drop during peak output. Connect its positive terminal directly to the input of a voltage regulator (e.g., LM7809) to stabilize the supply for sensitive components. Ground the negative terminal to a common star point near the circuit board’s center to minimize noise coupling. Verify the regulator’s output with a multimeter–it should read consistently between 8.8V and 9.2V before proceeding.

Solder a 100µF electrolytic capacitor between the regulator’s output and ground, ensuring the negative lead aligns with the ground plane. This smooths voltage fluctuations and filters high-frequency interference. For low-pass filtering, add a 0.1µF ceramic capacitor in parallel, placed as close as possible to the power input pins of the active element–typically a Darlington pair (e.g., TIP122) or operational transconductance device (OTA). Avoid exceeding a trace length of 10mm for these components to reduce parasitic inductance.

Wire the input signal through a 1kΩ resistor to the base of the Darlington pair, or to the non-inverting input of an OTA. On the output side, attach a 220µF electrolytic capacitor in series to block DC offset while allowing the enhanced AC signal to pass. For impedance matching, insert a 47Ω resistor between the capacitor’s output and the load (e.g., a 4Ω speaker). Keep this resistor within 5mm of the capacitor’s positive terminal to prevent signal degradation.

For thermal stability, mount a heatsink on the power transistor or OTA, using thermal paste to improve conductivity. A TO-220 package requires a heatsink with a thermal resistance of ≤10°C/W for continuous operation. If ambient temperatures exceed 40°C, reduce the heatsink’s resistance proportionally. Verify thermal performance by touch–components should remain warm but not exceed 60°C under full load.

Finally, test the circuit at 70% of its maximum rated voltage first, monitoring for clipping with an oscilloscope. Adjust the input resistor’s value (start with 680Ω) to fine-tune gain without distortion. If using an OTA, calibrate the bias current via a potentiometer (e.g., 10kΩ) connected to its control pin–aim for 500µA to 1mA for optimal linearity. Ground all unused pins to prevent floating inputs, which can introduce unpredictable noise.

Critical Errors in Power Gain Circuit Drafting

Mislabeling component values by orders of magnitude–writing 10kΩ instead of 100kΩ or 1μF instead of 10μF–causes immediate circuit failure. Verify every passive element’s rating against the bill of materials before finalizing the draft. Use color-coded layers for resistors, capacitors, and inductors to prevent value swaps between parts sharing similar footprints.

Skipping ground symbol differentiation leads to floating nodes and unpredictable noise coupling. Distinguish analog, digital, and power grounds with distinct symbols–triangle, dotted triangle, and thick bar respectively–and connect them at a single star point near the main power inlet. Omitting this step turns marginal performance into non-functional prototypes during EMI testing.

Trace Routing Violations

Running high-impedance signal traces parallel to power rails or switch-mode converter outputs guarantees crosstalk. Maintain 2mm clearance between sensitive traces and noisy conductors; shield with ground fills where separation isn’t possible. Forgetting this spacing in single-sided layouts forces redesign after PCB fabrication.

Incorrect feedback loop placement distorts phase margin and triggers oscillations. Place the feedback takeoff point directly at the load, not downstream from decoupling capacitors or series resistors. Violating this rule shifts stability thresholds beyond safe operating limits, requiring board respins.

Overlooking thermal derating curves for active devices risks junction burnout. Always annotate maximum dissipation values and heatsink requirements next to transistor pads. Absent thermal notes compel last-minute enclosure adjustments when early prototypes overheat under nominal loads.

How to Select Resistors and Capacitors for Peak Signal Enhancer Efficiency

Begin with a resistor tolerance of 1% for fixed-gain stages to minimize gain error. Higher tolerances (5% or 10%) suffice for bias networks where precision is less critical, but expect ±0.5 dB variation in output levels if stability matters. Surface-mount 0603 or 0805 packages reduce parasitic inductance below 1 nH, improving high-frequency response up to 50 MHz. Carbon film resistors introduce excess noise above 10 kΩ–prefer thin-film for values exceeding 22 kΩ to keep noise spectral density under 1 μV/√Hz.

For coupling capacitors, choose polypropylene or NP0 ceramic types with a dielectric absorption below 0.05% to prevent signal smearing in pulse applications. Minimum capacitance should be 10× the stray board capacitance (typically 5–15 pF) to avoid high-pass cutoff shifts; 100 nF per ampere of output current ensures stable transient response. X7R ceramics lose 30% of their rated capacitance at -40°C–specify X5R or C0G for temperature-stable operation from -55°C to 125°C.

Frequency-Dependent Component Sizing

Match resistor values to the signal bandwidth: 1 kΩ–10 kΩ for audio (1 GHz). Lower resistances reduce thermal noise but increase power dissipation–calculate dissipation from P = I²R and ensure the package exceeds the 125°C thermal limit for 0402 resistors (1/16 W) or 0805 (1/8 W).

Decoupling capacitors must handle ripple current: 10 μF electrolytic (low ESR,

Thermal and Parasitic Considerations

Resistors rated at 200°C/W (0402) will heat by 20°C at 100 mW–solder wider traces (2 mm) for heat dissipation if power exceeds 50 mW. Capacitors in feedback loops (e.g., 10 pF–1 nF) should have a voltage rating ≥1.5× the supply voltage to prevent dielectric breakdown; derate voltage by 20% for electrolytics to extend life beyond 5,000 hours. Avoid electrolytics in high-impedance paths (>100 kΩ) due to leakage current (1–10 μA), which can dominate bias errors–opt for film or NP0 ceramics instead.

Parasitic inductance in traces dominates above 50 MHz–keep resistor-capacitor pairs under 10 mm apart to limit resonant peaks. Use a 0 Ω jumper (0402) to bypass slow-start capacitors if inrush current exceeds 2 A, preventing undervoltage lockout. For precision trimming, select 10-turn potentiometers (20 ppm/°C) or digitally controlled resistors (e.g., AD5235) for remote calibration; avoid 3-terminal trimmers if mechanical shock exceeds 15 g.

In low-noise pre-stages, combine a 1 kΩ metal-film resistor with a 470 pF polystyrene capacitor to form a single-pole RC filter. This pair exhibits a corner frequency at 340 kHz while keeping noise below 3 nV/√Hz. For input biasing, never exceed 1 MΩ–input capacitance (typically 5–20 pF) interacts with the resistor to create a low-pass filter, rolling off HF response above 3 kHz unless compensated.

Output stage capacitors must sustain peak current without voltage sag: calculate ESR from ESR = ΔV / I_peak, targeting
