Automotive Lighting Circuit Explanation with Wiring and Component Guide

Begin by isolating the primary power source upstream of the lighting circuits–typically a 12V battery with a dedicated circuit breaker rated for 15A minimum. Connect the feed wire (10-12 AWG copper) directly to a fused distribution block to prevent catastrophic failure in case of short circuits. Avoid daisy-chaining multiple loads from a single fuse; each high-draw component (headlamps, brake lights) requires individual protection to meet ISO 6722 standards.

For headlamp assemblies, integrate a relay harness–OEM units often rely on inefficient switch-to-lamp wiring, causing voltage drops under 11.5V at the filament. A four-pin SPST relay (rated 30A) activated by the stalk switch will maintain optimal luminous flux. Ensure the ground path terminates at the chassis within 200mm of the lamp housing using a star washer to prevent corrosion-induced resistance increases.

Tail and turn signal circuits demand separate validation: test for stray current leakage exceeding 50mA when all lamps are off–this indicates parasitic loads depleting the battery. Use a PWM flasher module for turn signals instead of thermal bimetallic units; modern LED retrofits draw 20-80mA per bulb, well below legacy incandescent thresholds, necessitating electronic compensation to meet ECE R6 regulations.

Fog lamp circuits should include a manual override switch bypassing the automatic illumination control module. Wire a 20A relay directly to the battery via the ignition feed; this ensures operation independent of DRL logic flaws common in vehicles post-2015. Add an inline 10A fuse within 150mm of the relay coil to protect against fire hazards from chafed harnesses.

Validate all connections with a 1Ω load test–measure voltage drop across each terminal point. Acceptable values: <0.2V for primary feeds, <0.5V for grounds. Exceeding these thresholds indicates poor crimping, undersized conductors, or galvanic corrosion at dissimilar metal junctions. Replace any suspect connectors with gold-plated terminals to eliminate oxidation-related failures.

Electrical Blueprint of Vehicle Illumination Networks

Begin by identifying the power source: a 12-volt battery supplies current to all illumination components. Connect the battery’s positive terminal to a fuse box rated for 10–20 amperes, depending on the total load. The fuse acts as a failsafe, preventing overloads that could damage wiring or bulbs. From the fuse, route cables to the main control switch–typically a multifunctional stalk behind the steering wheel. This switch distributes power to headlamps, taillights, and auxiliary beams with minimal voltage drop.

Wire headlamps directly to the control module using 1.5 mm² copper cables; thinner gauges increase resistance and reduce brightness. Use relays for high-beam circuits to handle currents above 15 amperes, avoiding overheating in the switch. Ground both headlamp and taillight assemblies to the chassis via 4 mm bolts, ensuring corrosion-resistant terminals. Poor grounding causes flickering–test connections with a multimeter for less than 0.1 ohms resistance.

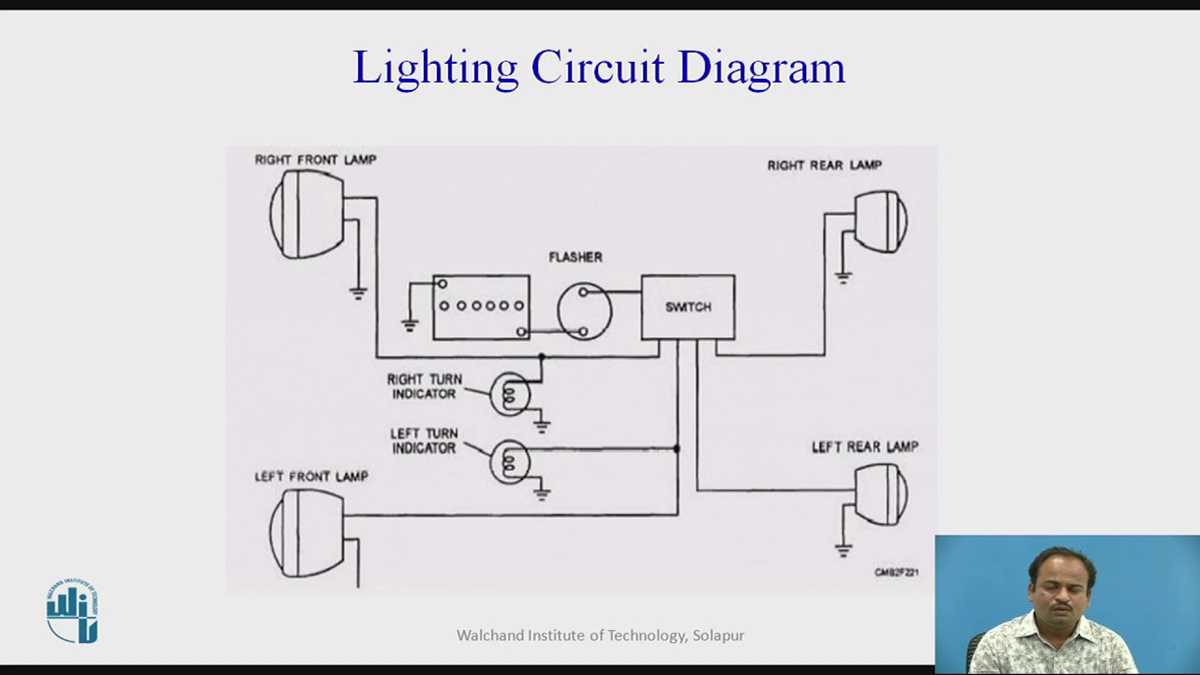

Integrate turn signals through a flasher unit, which interrupts current at 60–120 pulses per minute. Modern vehicles replace mechanical flashers with solid-state modules, but the wiring logic remains: power flows from the switch to the flasher, then branches to left/right indicators. Each bulb’s wattage must match the flasher’s rating–typically 21–27 watts–to ensure consistent flashing. Check compatibility before replacing bulbs; mismatches cause rapid or sluggish blinking.

Daytime running lights (DRLs) require a dedicated circuit with a voltage reducer if the vehicle lacks LED modules. Halogen DRLs operate at 6–8 volts; use a dropping resistor or pulse-width modulation (PWM) controller to prevent filament burnout. Route cables away from hot surfaces, like exhaust manifolds, to avoid melting insulation. Secure all wiring with plastic clamps spaced every 20 cm to prevent sagging or chafing.

For fog lamps, run a separate switch and relay, as they draw 55–100 watts per unit. Position the relay near the battery to minimize voltage loss; a remote mount risks signal degradation. Include a piezoelectric buzzer or dashboard LED to confirm activation, as fog lights often lack visual indicators. Ground the relay’s coil to the chassis, but isolate the load side with silicone-sheathed wire for moisture resistance.

License plate and side-marker lights connect in parallel, not series, to ensure uniform brightness. Use 0.75 mm² wire for these low-current circuits, terminating at a common ground point to simplify troubleshooting. Replace incandescent bulbs with LED equivalents only if the system lacks a load-based voltage regulator–LEDs can trigger false bulb-failure warnings due to lower current draw. Verify polarity before installation; reversed connections destroy LED modules instantly.

Diagnose faults systematically: first inspect fuses, then switches, relays, and finally bulbs. Use a test light or voltmeter to trace current flow–probes should read battery voltage at every connection point. Clean oxidized terminals with dielectric grease; tighten loose grounds with a torque wrench (8–12 Nm). Document each circuit’s path in a notebook; labeling cables reduces repair time by 40%.

Critical Elements and Notation in Vehicle Illumination Blueprint Drafts

Begin by identifying the battery terminal markings–positive (+) and negative (-)–as these dictate current flow direction. Mistaking polarity leads to circuit failure or damage. Modern blueprints often denote the battery with a rectangle divided by a horizontal line, where the upper half represents the positive side. Older drafts may use a simple pair of parallel lines.

Fuses must be located immediately downstream of the power source to prevent overloads. Look for a zigzagging line or a rectangle with a diagonal slash–universal symbols for a fuse. Check amperage ratings labeled beside them; mismatched values risk melting wires or starting fires. Typical ratings for headlamp circuits range from 10A to 30A, while marker lamps use 5A to 10A.

Switches control circuit activation and appear as two intersecting lines or a break in wiring with a small triangle. Headlamp switches often include a circular contact point indicating multi-position functionality (off, parking, on). For hazard flashers, expect a separate symbol resembling a diamond with an internal cross–this denotes a flasher relay, not a standard toggle.

Lamps themselves are depicted as circles containing an “X” (bulb filaments) or a filled semicircle (LED units). Halogen bulbs show two small rectangles inside the circle, representing high and low beam filaments. High-intensity discharge (HID) lamps use a circle with three parallel lines, distinguishing them from standard incandescent symbols.

Ground connections are critical yet frequently overlooked. Represented by downward-pointing arrows or a “T” junction touching a horizontal line, these ensure proper circuit completion. Poor grounding causes intermittent failures, flickering, or total malfunction. Verify that every lamp has a dedicated ground path; shared grounds can create unwanted resistance.

Wiring harnesses interconnect components and appear as single or grouped parallel lines. Thicker lines indicate higher gauge cables (e.g., 10 AWG for main power, 18 AWG for signal wires). Color codes are essential–red typically denotes constant power, yellow for switched power, and green/blue for ground. Follow these precisely; misconnections lead to non-functional units or short circuits.

Relays amplify control signals for high-draw accessories. The standard relay symbol is a square with five numbered terminals: 85 and 86 for the control coil, 30 for input, 87 for output, and 87a for normally closed. Fog lamps and auxiliary lights rely on relays to handle current loads exceeding switch ratings. Always confirm relay compatibility with manufacturer specs; incorrect coil resistance causes premature failure.

Step-by-Step Cable Routing for Front and Rear Vehicle Lamps

Begin by identifying the power source–typically the car’s fuse box–where a dedicated 15-20A circuit breaker or fuse must be allocated for lamp circuits. Use 14-16 AWG wire for headlamp connections and 16-18 AWG for tail lamps, ensuring strands are color-coded: red for positive, brown or black for ground, and yellow or white for switch-controlled leads. Strip 8-10mm of insulation from wire ends, crimp closed-barrel connectors, and apply heat-shrink tubing to prevent corrosion. Route wires through existing harness conduits or along chassis rails, securing every 20-30cm with zip ties or adhesive clamps to avoid chafing against sharp edges.

• Disconnect the battery negative terminal before handling any cables to eliminate short-circuit risks.
• Connect the positive lead from the fuse box to the headlamp switch using a relay if current exceeds 10A–this prevents switch burnout. For dual-filament bulbs (low/high beam), splice the switch output to two separate wires, each feeding the corresponding terminal on the bulb socket.
• Ground both head and tail lamps directly to the chassis near the lamp housing using M6 bolts; ensure surfaces are bare metal, free of paint or rust, and tightened to 10-12Nm torque.
• For tail lamps, run a single switched positive wire from the headlamp switch to the first lamp, then daisy-chain to subsequent units using 3-way splices. Ground each lamp independently to avoid voltage drop in shared grounds.
• Test connections with a multimeter: probes on the bulb socket’s positive and ground terminals should read 12-14V when the switch is activated. If voltage drops below 11V, check for loose crimps or corroded grounds.
• Seal all splices with dielectric grease and wrap with vinyl tape before finalizing zip-tie placement to withstand moisture and vibration.
