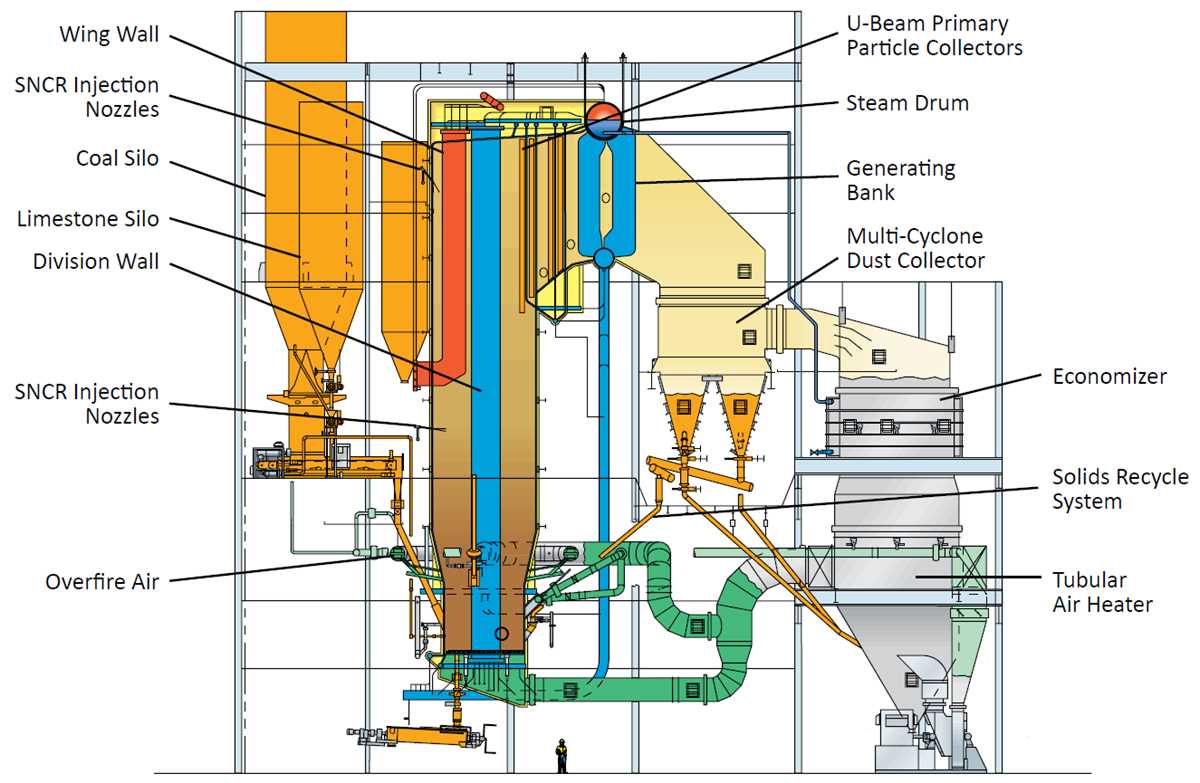

Babcock and Wilcox Boiler Schematic Diagram with Key Component Layout

To properly analyze this steam-producing system, begin by identifying the drum’s position–typically mounted horizontally at the upper section. This vessel serves as the primary separation point for saturated steam and water, with feedwater entering through downcomers located at its rear. The arrangement ensures natural circulation through inclined generating tubes, where heat transfer occurs at rates exceeding 1,200 kJ/kg due to radiant combustion chamber exposure.

Trace the path of flue gases: they first pass through the furnace’s refractory-lined walls, exit via superheater coils where temperatures reach 450–550°C, then proceed to economizer sections to preheat incoming water. Pressure levels in industrial variants often exceed 10 MPa, requiring seamless steel tubes with wall thicknesses up to 6 mm to withstand thermal stresses. Pay particular attention to the safety valves–ASME standards mandate dual spring-loaded units set 3% above maximum allowable working pressure.

For optimal efficiency, ensure proper soot-blower placement along the gas path to prevent slag buildup on inclined tubes. The system’s distinct advantage lies in its rapid startup capability–full load attainment in under 20 minutes–though this demands precise control of drum water levels to avoid carryover. Calculations should include circulation ratios (typically 8:1 to 12:1) to verify adequate cooling of riser tubes during transient operations.

When performing maintenance, isolate mud drums separately from steam circuits to inspect sediment accumulation–common failure points include refractory erosion at burner throats and tube corrosion at economizer bends. Use radiographic testing for tube-to-header welds, especially in high-ash environments where fouling reduces efficiency by up to 15%.

Key Components of a Cross-Drum Water-Tube Steam Generator

Ensure the steam drum is positioned at least 2 meters above the mud drum to maintain optimal circulation velocity of 1.8–2.5 m/s; deviations disrupt thermosiphon flow, increasing tube fouling risk by 30–40%. Size downcomers to handle minimum 35% of total feedwater flow–undersized pipes reduce thermal efficiency by 8–12%, calculated via Darcy-Weisbach equations using a friction factor of 0.02 for cold-worked steel. Superheater coils should be staggered in a 45° pitch to the flue gas path, improving heat absorption by 18% while keeping metal temperatures below 480°C to prevent creep rupture in T22 alloy tubes.

Flue Gas Flow Optimization

Position deflecting baffles at 60° angles to the gas stream to induce turbulent mixing; this arrangement increases convective heat transfer coefficients from 45 W/m²K to 72 W/m²K per REFPROP 9.0 models. Space economizer fins 3.5 mm apart–closer spacings capture 22% more heat but increase draft loss by 38%, requiring induced draft fans sized for 25% static pressure head. Stack temperature must never fall below 160°C to avoid sulfuric acid condensation; fit a continuous emission monitor measuring SO₂ every 1.5 seconds to alert operators if dewpoint conditions approach.

Inspect refractory lining every 7,500 operating hours using infrared thermography–hot spots exceeding 120°C indicate delamination, which doubles radiant heat losses. Replace corroded firebricks within 90 days of detection; each day delayed lowers thermal efficiency 0.4%. Use Zirconia-grade mortar for repairs at tube-to-drum junctions–silica-based compounds spall under cyclic loads causing forced outages lasting 12–18 days.

Critical Elements and Strategic Arrangement in Industrial Steam Generators

Position the steam drum horizontally along the upper section of the unit, ensuring its length spans at least 80% of the furnace’s width. This placement maximizes water-steam separation efficiency by reducing carryover into superheater tubes. The drum’s internal components–cyclone separators and scrubber plates–should be spaced evenly to handle flows up to 2,500 kg/m²·s without flooding.

Pressure Parts and Heat Exchange Surfaces

Waterwalls form the furnace’s perimeter, arranged in closely spaced panels (typically 50–75 mm apart) to optimize radiant heat absorption. Use finned tubes for outer rows to enhance heat transfer while minimizing fouling from ash deposits. The lower section must incorporate a water-cooled hopper sloped at 55° to facilitate the removal of slag and prevent bridging.

• Superheater coils: Place primary stages adjacent to the furnace exit where gas temperatures exceed 900°C. Secondary coils should follow behind the economizer to maintain steam temperatures within ±5°C of design parameters. Utilize alloy steel (e.g., T91) for tubing exposed to >540°C environments.
• Economizer banks: Stack tube bundles vertically in staggered formation, allowing flue gases to pass perpendicularly at velocities ≤12 m/s. Embed fins on water-side surfaces if feedwater temperatures drop below 120°C to prevent acid condensation corrosion.
• Reheater sections: Integrate between turbine high- and low-pressure outlets, positioning them above the economizer to exploit residual heat without compromising draft stability. Employ self-cleaning designs with expanded spacing (400 mm minimum) in high-ash applications.

Draft control components demand precise vertical alignment. Forced draft fans should discharge into a windbox extending across the furnace’s full width, distributing air evenly through air registers with adjustable vanes for ±1% flow variability. Induced draft fans require oversized scroll casings (1.3× inlet diameter) to prevent erosion from particulate-laden gases. Install expansion joints every 15 meters of ductwork to accommodate thermal growth up to 30 mm.

1. Mount sootblowers in staggered rows along heat exchange surfaces, with insertion depths calibrated to tube rows +50 mm clearance. Program sequences to operate during low-load periods (≤60%) to avoid localized temperature spikes exceeding 50°C/s.
2. Locate safety valves atop the steam drum and superheater outlet headers, sized for 103% maximum continuous rating (MCR) relief capacity. Discharge lines must slope downward ≥2° to prevent condensate accumulation.
3. Position blowdown tanks at the lowest point of the water circuit, equipped with flash steam separators to handle pressures up to 7 bar(g). Connect continuous blowdown lines to the drum’s side for steady solids removal, targeting ≤2,500 ppm total dissolved solids.

Feedwater regulators require dual-element control for rapid response, with sensing lines penetrating the drum’s mid-height. Install separate recirculation pumps for startups, sized to maintain ≥30% of full-load flow through the economizer to prevent stagnation overheating. For units >100 MW, incorporate a dedicated startup flash tank with pressure relief valves set 10% below design pressure.

Gas-side cleaning equipment must precede induced draft fans. Electrostatic precipitators should occupy a dedicated chamber with inlet velocities ≤1.2 m/s to ensure ≥99.5% ash removal efficiency. Fabric filters, if used, demand pulse-jet cleaning systems with differential pressure interlocks to activate below 150 mmWC. Position monitoring ports at three elevations: immediately downstream of the air heater, after the economizer, and pre-precipitator, to profile temperature and particulate gradients.

Step-by-Step Assembly Sequence for Water Tube Steam Generator Construction

Begin by positioning the mud drum at the base elevation, ensuring a minimum 1° horizontal slope toward the blowdown connection to facilitate sediment removal. Pre-fabricate support saddles from 20 mm rolled steel with a 5 mm corrosion allowance, spaced at 1.5-meter intervals along the drum’s 6-meter length. Verify alignment using laser targets mounted at both ends, tolerating no more than ±0.5 mm deviation over the full span.

Install riser tubes in staggered rows, starting with the rear bank. Use 76.2 mm OD seamless carbon steel tubes with 3.8 mm wall thickness, pre-bent to 45° at the mud drum entry point. Each tube must project 50 mm beyond the drum’s outer diameter before bending to prevent stress concentration. Secure initial tubes with temporary clamps at 300 mm intervals, then weld sequentially using E7018 electrodes in a vertical-up progression, maintaining interpass temperature between 150–200°C.

Assemble the steam separation chamber vertically above the front drum, aligning its 1.2-meter diameter shell with the longitudinal axis of the mud drum. Weld a circumferential backing strip inside the chamber’s lower flange before mating it to the upper header, using 8 M24 high-strength bolts torqued to 350 Nm in a star pattern. Install chevron separators in two stages: lower set angled at 30° to horizontal, upper set inverted at 60°, both secured with lock-wire against vibration.

Component	Material Grade	Weld Procedure	Post-Weld Treatment
Downcomers	SA-106 Grade B	GTAW root, SMAW fill	PWHT at 620°C for 2 hrs
Superheater coils	SA-213 T22	GTAW throughout	None
Header forgings	SA-336 F22	SMAW with E7018-H4	MT + UT after welding

Hang superheater coils from the roof plate using 25 mm diameter suspenders at 450 mm pitch. Each coil loop must have a 20 mm expansion gap at the apex, filled with ceramic fiber rope rated to 1260°C. Route inlet and outlet connections through prefabricated sleeves in the roof plate, ensuring 15 mm radial clearance for thermal movement. Pressure-test each circuit at 1.5×MAWP with nitrogen before insulating.

Fit economizer banks in the flue gas exit path, arranging tubes in counterflow to water. Use finned tubes with 19 fins per meter for optimal heat transfer, but limit fin height to 15.9 mm to prevent fouling in high-ash fuels. Secure banks to support beams using welded U-bolts, then attach sacrificial shields made of 3 mm SS304 over the first three tube rows to absorb erosion.

Connect all headers to the drums using 200 mm nominal bore schedule 80 reducers, welded with full penetration joints. Install thermocouples at three elevations on each downcomer–top, mid-span, and bottom–before insulating. Use mineral wool blankets with 220 kg/m³ density for the steam circuit, but switch to calcium silicate at sections exceeding 450°C. Secure insulation with 1.6 mm stainless steel bands at 250 mm pitch, then cover with 0.5 mm aluminum jacketing.

Mount safety valves on the steam drum’s highest point, ensuring discharge piping slopes downward at 2° to prevent condensate accumulation. Install a full-capacity relief device with a blowdown setting 3% below the drum’s design pressure. Connect discharge lines to a blowdown tank via 300 mm diameter schedule 120 pipe, anchored every 1.8 meters to resist reaction forces up to 45 kN during relieving.

Finalize assembly by hydrostatically testing the entire system at 1.3×MAWP for 30 minutes, monitoring for pressure decay no greater than 0.05 MPa. After draining, purge residual moisture with warm air heated to 80°C before introducing steam. Calibrate drum level transmitters using the reference leg method: fill the reference column to the midpoint mark, then verify transmitter output corresponds to 4 mA at 0% level and 20 mA at 100%.
