Step-by-Step Guide to Drawing a CCTV System Schematic Layout

Place the control station at the most centralized point of your installation to minimize signal degradation and ensure stable transmission from all cameras. Cat6 cables support distances up to 100 meters without appreciable loss; beyond this range, install repeaters or switch to fiber-optic lines. Power over Ethernet (PoE) injectors eliminate the need for separate electrical wiring, reducing clutter and potential points of failure in your setup.

Segment cameras into distinct zones based on environmental exposure. Outdoor units require IP67-rated housings to withstand dust and moisture, while indoor models benefit from compact form factors and lower lux ratings for low-light clarity. Use a dedicated 24V DC power supply for non-PoE cameras, ensuring voltage regulation remains stable despite line fluctuations.

Assign unique IP addresses within a private subnet for each component to simplify remote access troubleshooting. Configure network switches with port mirroring to capture diagnostic traffic without disrupting live feeds. VLAN segmentation isolates surveillance traffic from general network operations, improving bandwidth allocation and security integrity.

Select camera resolutions proportional to monitoring needs–4K units for high-detail areas like cash registers or entrances, while 1080p suffices for corridors or low-traffic zones. Integrate motion detection triggers sparingly, adjusting sensitivity to avoid false alarms from foliage or lighting changes. Storage capacity calculations must account for compression methods: H.265 reduces file sizes by 50% compared to H.264, extending retention periods without expanding hardware requirements.

Ground all metallic enclosures and cable shields to a common earth point using 10-gauge copper wire, preventing static buildup and electrical interference. Test each segment of the layout with a multimeter before finalizing connections, verifying continuity and correct voltage levels. Document cable routes and component configurations in a revised floor plan, noting distances and critical junction points for future maintenance.

Visual Blueprint for Surveillance Networks

Start by segmenting the installation into three core layers: capture, transmission, and storage. For outdoor deployments, use IP66-rated cameras with 4K resolution and H.265 encoding to reduce bandwidth by up to 50% compared to H.264, while maintaining forensic detail. Position fixed-lens units at 8–12 feet above ground level, angled 15–30 degrees downward to minimize blind spots. Pair fisheye models with dewarping software for 360-degree coverage without stitching artifacts. For perimeter protection, integrate thermal sensors with a minimum resolution of 640×480 pixels and NETD <50 mK to detect human movement at 500+ meters in complete darkness.

Component	Recommended Specifications	Power Requirements	Transmission Protocol
Turret camera (indoor)	2MP, f/1.6 aperture, WDR 120dB	12V DC/24V AC (PoE+)	ONVIF Profile S
PTZ dome (outdoor)	20x optical zoom, IP67, -40°C to 60°C	30W PoE++	RTSP over fiber
NVR (16-channel)	Intel i5, 16TB RAID 5, 4K@30fps	65W power supply	Gigabit Ethernet

Route cabling through galvanized steel conduit for analog signals or OM3 fiber for IP networks, ensuring a 10% spare capacity for future upgrades. Ground all metallic enclosures to a dedicated earth rod with <1Ω resistance to prevent surge damage. For wireless links, use dual-band 5GHz radios with 256-QAM modulation and AES-256 encryption, achieving 1.3 Gbps throughput at 200 meters line-of-sight. Configure edge storage on SD cards with cyclic overwrite disabled and dual recording paths (cloud + NVR) to mitigate single-point failures. Set motion detection zones to ignore environmental triggers like foliage, using pixel-based analysis with a sensitivity threshold of 5%.

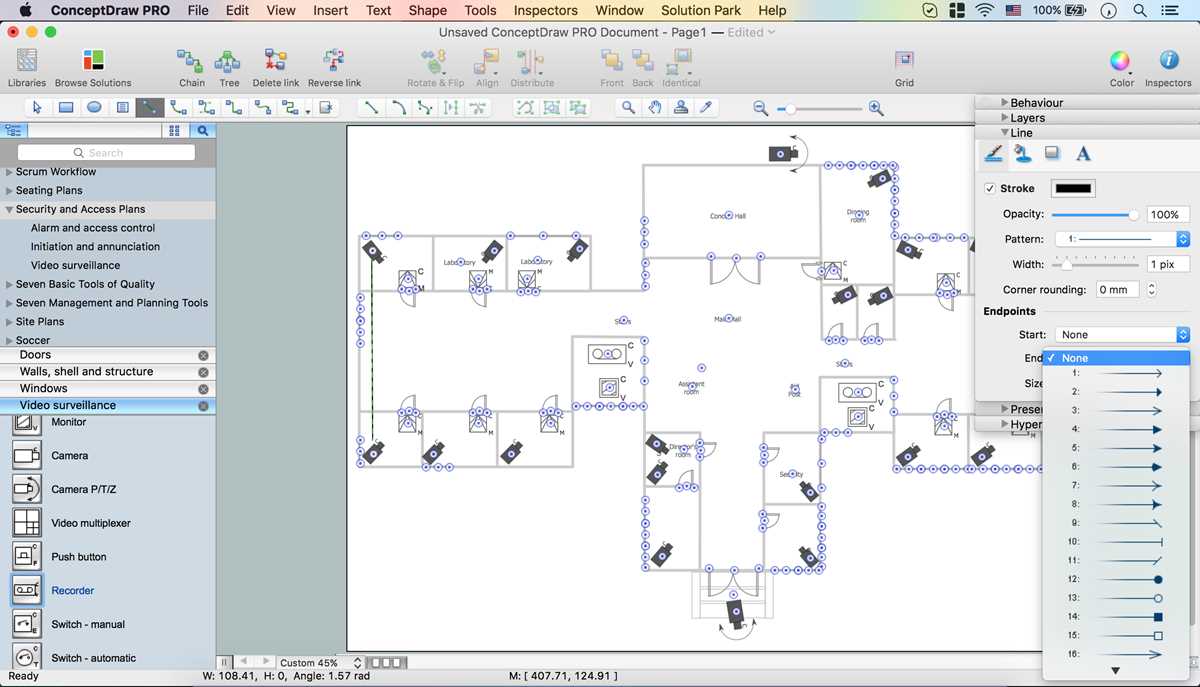

Core Elements for Drafting a Surveillance Blueprint

Begin with a standardized legend labeling power sources, data lines, and device types. Use distinct symbols: triangles for cameras (specify fixed vs. PTZ via internal markings), rectangles for recorders, and circles for junction points. Include a reference table linking each icon to its IP66/IP67 enclosure rating, voltage requirements (e.g., 12V DC ±10% or 24V AC), and PoE class (IEEE 802.3af/at/bt). Annotate twisted-pair cables with CAT5e/CAT6 specifications and coaxial RG-59/RG-6 with impedance (75Ω ±3Ω).

Segment the layout into zones based on environmental factors–indoor (humidity

Integrate fail-safe layers: dual-path power (primary grid + UPS with 4-hour battery backup), redundant storage (RAID 1/5/6 with hot-swap trays), and network loops (STP protocol for ring topologies). Draw breaker panel allocations with ampacity ratings (e.g., 10A for 2MP cameras, 15A for 4K). For thermal/vandal-proof models, denote IK10 impact resistance and NEMA 4X corrosion ratings. Include a bill of materials listing part numbers for connectors (BNC/TNC for analog, RJ45/LC for digital), conduit sizes (½” EMT for 4 cables, ¾” for 8), and labeling standards (ANSI/TIA-606-B for legibility).

Validate the draft using simulation tools–test voltage drop over runs (ideal: ≤3% loss), PoE budget compliance (maximum 15.4W/30W per port), and bandwidth allocation (10Mbps per 5MP stream). Annotate firmware dependencies (e.g., ONVIF Profile S for interoperability) and IP addressing schemes (static/DHCP pools with /24 subnets). For cloud-linked setups, mark VPN endpoints (AES-256 encryption) and edge-storage capacity (SD card slots with Class 10/UHS-I). Finalize with a revision log tracking changes to cable routes, device counts, or compliance updates (e.g., GDPR data retention flags).

Step-by-Step Connection Layout Between Surveillance Units and Recorders

Begin by positioning the digital video recorder (DVR) in a secure, ventilated location near a power outlet and network router. Use a Cat5e or Cat6 Ethernet cable if connecting cameras via PoE (Power over Ethernet) switches. For non-PoE models, ensure separate power adapters (12V DC/2A) for each camera are within 1.5 meters of the unit to avoid voltage drop.

For coaxial-based setups, use RG59 Siamese cable (copper core, 95% braid shielding) with BNC connectors. Maintain cable runs under 300 meters per segment to prevent signal degradation. Terminate connections with a crimping tool using the T568B wiring standard for RJ45 ends or a compression tool for BNC connectors.

Cable Routing and Labeling

• Route cables through conduits or cable trays if exposed to outdoor conditions, ensuring a bend radius of at least 10x the cable diameter to avoid kinks.
• Label both ends of each cable with a unique identifier (e.g., “CAM-1-FRONT”) using heat-shrink tubing or self-laminating labels. Include cable length and type (e.g., “RG59-50m”).
• Avoid running power and data cables parallel within 30cm of each other to minimize interference. Cross at 90-degree angles if unavoidable.

For IP cameras, configure the network switch first. Enable PoE on appropriate ports (15.4W or 30W per port, depending on camera specs). Set a static IP for the recorder within the router’s DHCP range (e.g., 192.168.1.200) and forward ports 80 (HTTP) and 554 (RTSP) if remote access is required. Use a subnet mask of 255.255.255.0 for most small-scale setups.

Connect the first camera to the recorder’s “Video In 1” port (BNC) or PoE switch (RJ45). Power it on and verify image transmission via the live view interface. Repeat for subsequent cameras, ensuring each is assigned to the correct input channel. For analog cameras, adjust the DVR’s video format (NTSC/PAL) to match the camera’s settings in the system menu.

Power and Signal Validation

1. Check voltage at the camera end with a multimeter: 12V±10% for DC-powered units, 48V for PoE models. Replace underperforming power adapters immediately.
2. Use an oscilloscope to verify signal strength for analog cameras: 1Vp-p at 75 ohms impedance. Replace cables if readings drop below 0.8Vp-p.
3. For IP cameras, confirm network connectivity by pinging the camera’s IP. Use arp -a (Windows) or arp -n (Linux/macOS) to detect conflicts.

Ground the DVR and all outdoor cameras by attaching a 10-gauge copper wire to a dedicated earth rod, buried at least 2.4 meters deep. Avoid connecting to electrical ground wires. For lightning-prone areas, install surge protectors (e.g., APC ProtectNet) on all incoming power and data lines, rated for 10kA impulse current.

Finalize the setup by configuring recording schedules: continuous, motion-triggered, or event-based. Set resolution to match camera capabilities (e.g., 1080p@30fps) and adjust compression (H.264/H.265) to balance quality and storage. Test remote access via mobile app (e.g., Hik-Connect, Dahua DMSS) by scanning the recorder’s QR code. Verify all cameras appear in multi-screen view and that playback functions correctly before completing installation.

Power Distribution and Wiring Strategies for Surveillance Networks

Use dedicated 24VAC or 12VDC power sources for each camera cluster, limiting voltage drop to 3% over copper conductors. A 16AWG cable run exceeding 150 meters requires intermediate power injection; 12AWG extends tolerable distance to 220 meters. Avoid PoE switches with passive injectors–opt for IEEE 802.3af/at compliant hardware supporting 15.4W/30W per port to prevent overheating.

Route power cables separately from video and data lines in minimum 20mm PVC conduits, maintaining 30cm spacing from high-voltage wiring (>110V) to suppress electromagnetic interference. Exposed outdoor runs must utilize UV-resistant, gel-filled direct burial cables (e.g., RG-6 with stranded copper shield) or armored variants for rodent-prone areas. Secure cables every 60cm with non-metallic straps; avoid metal zip ties to prevent corrosion.

Centralized vs. Distributed Power Hubs

• Centralized: Single 300W-600W power supply with fused outputs for 8-16 cameras; cost-effective but single-point failure risk.
• Distributed: Individual 10W-30W plug-in transformers per camera; 20% higher upfront cost but inherently redundant.
• Hybrid: Mid-span injectors with local 10A circuit breakers combine PoE flexibility with centralized management.

Ground all metal enclosures and cable shields at a single earth point using 6AWG copper wire, bonding to the building’s main grounding electrode system. Isolate AC and DC grounds–connect DC negative to chassis ground only at the power source. Verify ground resistance below 5 ohms with a clamp meter; values exceeding 10 ohms risk ghosting in video feeds.

Avoid daisy-chaining power–run home-run cables from each device to the distribution panel. Label both ends of every conductor with permanent markers: “CAM-1 PWR,” “CAM-1 VID,” matching DB-9 connectors to port numbers on recording hardware. Use color-coded cables: red for power (+), black for return (-), yellow/blue for video, white/green for data. Document wire gauges and lengths in as-built drawings.

Cable Routing Protocols

1. Map conduit paths avoiding HVAC ducts, water pipes, and fluorescent lighting ballasts.
2. Use fish tape for pull-through; apply talcum powder or cable lubricant for runs >10m.
3. Terminate cables with compression connectors (F-type/BNC), crimping tools ensure 25lb+ pull strength.
4. Test continuity and insulation resistance (>20MΩ) before connecting to equipment.

For solar-powered remote installations, pair 20W-40W panels with 12V deep-cycle batteries (100Ah minimum); include charge controllers with low-voltage disconnect (11.8V cutoff) to prevent battery sulfation. Outdoor junction boxes must meet IP66 ratings, with silica gel packets to absorb condensation. Replace gel-filled cables every 48 months in high-humidity climates–insulation resistance degrades by 8% annually under persistent moisture.
