Technical Comparison of Cold and Hot Rolling Process Schematics

Begin with a scaled 1:50 layout of the entry and exit sections–precision here determines strip alignment. Position uncoilers at a 3° angle to the mill centerline to reduce edge wave formation during high-speed decoiling. Use two-ply steel for backup rolls (HRC 62–65) to maintain surface finish consistency across 0.8–3.0 mm thicknesses. Taper work rolls by 0.015 mm over their final 200 mm to counteract thermal crowning in continuous operations exceeding 1,200 m/min.

Place coolant headers 45 mm from the roll bite, angled 15° downstream to avoid jet interference with the deformation zone. Apply emulsion at 6–8% concentration for temper passes, switching to 3–5% for thin-strip runs to minimize lubricant carryover into annealing. Ensure scrapers contact rolls at 0.02 mm interference–any tighter risks roll surface damage, any looser permits oxide buildup and thickness deviations.

Integrate strain gauges at both drive-side and operator-side housings; place them 100 mm above and below the pass line. This positioning captures true rolling forces without bending moment interference. For temper mills, set interstand tension at 0.3–0.5% of yield strength–deviations beyond ±0.1% will produce visible ridge patterns on the finished coil.

Use laser profilometers 3 m downstream of the last stand to measure flatness in real-time. Configure them for 1 mm spot size at 2 kHz sampling–slower rates miss transient defects from speed fluctuations. For strip under 1.2 mm, reduce measurement height to 100 mm above the strip to avoid air turbulence affecting readings.

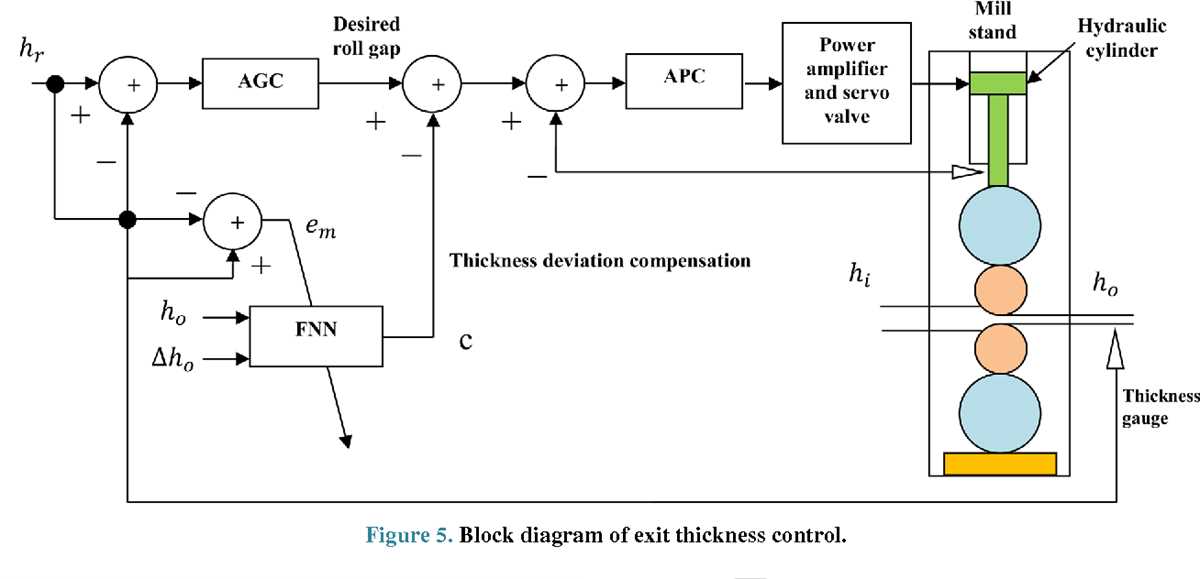

Automate roll gap adjustment via hydraulic cylinders with ±0.002 mm resolution. Calibrate using a 100 µm feeler gauge before each shift–drift beyond ±5% of target thickness requires immediate seal inspection. Position thermal expansion sensors on both drive and non-drive ends of each work roll; readings should converge within 0.005°C for stable crown control.

Visual Representation of Thermal and Non-Thermal Metal Forming Processes

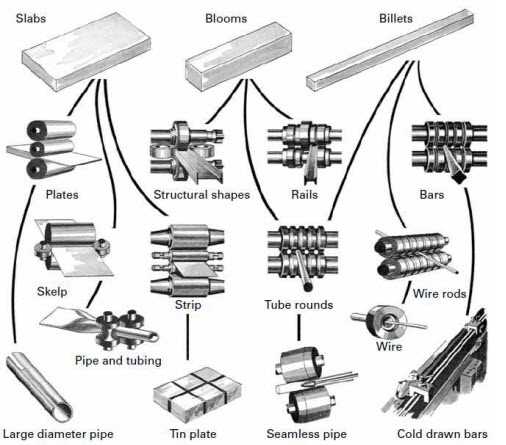

Begin by illustrating the material flow from raw slab to finished product, distinguishing between elevated-temperature and ambient-temperature deformation phases. Mark key transition points such as descaling stations, coilers, and annealing furnaces with precise temperature ranges–typically 900–1200°C for high-heat shaping and 20–200°C for low-heat finishing. Label thickness reductions at each pass, noting that initial breakdown mills reduce slabs by 30–50%, while final stands achieve 1–5% reductions.

Use a dual-axis layout to overlay pressure curves against roll gap geometry. Show how roll force increases exponentially in the later stands due to strain hardening, with values reaching 2–4 MN/m for thin gauges. Include a secondary y-axis for torque demands, which peak during entry phases but drop sharply as material exits the roll bite. Specify bearing types–four-row cylindrical for heavy loads, tapered for precision–directly beneath each roll stand.

• Preheat furnace: 1100–1250°C, natural gas or induction heating
• Roughing mill: 3–15% reduction per pass, water or oil lubrication
• Finishing train: 5–7 stands, interstand cooling sprays set to 40–80°C
• Coiler: tension range 10–50 MPa, adjustable via PID controllers

Separate the diagram into two vertical columns: one for continuous casting feedstock and one for recrystallization annealing cycles. Connect them with horizontal arrows indicating material transfer, specifying crane capacities (e.g., 50-tonne overhead cranes) and transport speeds (3–5 m/s). Annotate defects–centerline segregation, edge cracking–with callouts linking to process parameter corrections (e.g., roll speed adjustments ±0.5%, coolant flow ±2 L/min).

Add a legend with standardized symbols: circles for motors (size scaled to 5–20 MW), triangles for cooling zones, and squares for measurement devices (X-ray for thickness, pyrometers for temperature). Color-code stress distribution maps–red for >200 MPa, yellow for 100–200 MPa, and blue for

Critical Machinery Components and Failure Indicators

1. Work rolls: chrome-plated steel, hardness 70–85 Shore D, replace after 1000–2000 km strip length
2. Backup rolls: forged steel, diameter 1400–1600 mm, grind every 500 km to remove spalling
3. Cooling headers: stainless steel, 4–6 nozzles per zone, pressure 0.3–0.5 MPa, clogging detected via flow sensors
4. Pinch rolls: urethane-coated, 120–150 mm diameter, alignment tolerance ±0.05 mm

Integrate a secondary schematic showing strip shape imperfections–crown, wavy edges, camber–and their corresponding mill adjustments. For example, quarter buckles require work roll bending forces of ±50–150 kN, while center buckles respond to roll crossing angles of 0.1–0.5°. Include a small inset table with permissible tolerances for different grades (e.g., automotive IF steel

Reserve the lower third of the layout for downstream processes. Detail tandem mills with 4–6 stands for ambient processing, noting temper rolling reductions of 0.5–3% and their impact on mechanical properties (yield strength increase of 20–40 MPa). Add a timeline beneath showing cumulative pass times, accounting for acceleration ramps (0.5–2 m/s²) and threading speeds (0.2–0.4 m/s).

Conclude with a summary block listing energy inputs: electrical power (0.1–0.3 kWh/kg), fuel (0.2–0.4 MJ/kg for furnaces), and water (3–8 m³/tonne). Highlight efficiency metrics–inlet thickness vs. outlet thickness ratios (e.g., 250 mm → 0.2 mm = 99.92% reduction)–and correlate them to product applications: deep drawing steels for automotive panels, high-strength strips for aerospace components.

Critical Hardware in Thermal Metal Forming Equipment

Position the reheating furnace at the process outset to ensure uniform slab temperatures of 1,200–1,300°C prior to deformation. Install pyrometers on both entry and exit sides to maintain ±10°C tolerance–deviations beyond this accelerate wear on work rolls. Select burners with recuperative or regenerative technology; recuperative models yield 25–35% fuel savings compared to traditional systems.

The roughing stand must incorporate four-high or six-high configurations when processing low-alloy steels to withstand separating forces exceeding 30 MN. Equip each housing with screw-down motors rated for 20–30 kW; hydraulic AGC systems respond in under 50 ms, outperforming electromechanical actuators that lag 150–200 ms. Lubricate roll neck bearings with circulating oil at 0.3–0.5 MPa, filtered to 10 μm absolute to prevent premature bearing seizure.

Component	Material	Hardness (HRC)	Cooling Method	Expected Life (hours)
Work Rolls	High-chrome iron	58–65	Spray headers, 12–18 nozzles per roll	800–1,200
Back-up Rolls	Forged steel	50–60	Flood, 60–90 m³/h	4,000–6,000
Pinch Rolls	Indefinite chilled iron	62–68	Drip, 3–5 L/min	3,000–4,500

Coilers require three or four wrapper rolls to achieve tight winding at 20–25 m/s; fewer rolls increase scrap by 8–12% due to loose wraps. Install mandrel motors rated for 500–750 kW with torque densities above 10 Nm/cm³ to handle steels up to 18 mm thick. Maintain strip tension between 5–15 N/mm²–excess tension causes edge cracking while insufficient tension allows telescoping.

Integrate emulsion spray headers above and below the strip path; emulsion concentration must remain within 2–5% lubricant. Use Y-type strainers with 80–100 mesh screens to remove scale particles larger than 150 μm that scratch roll surfaces. Monitor emulsion temperature: keep below 60°C via plate heat exchangers, as temperatures above this degrade lubricant film strength by 40%.

Deploy eddy-current and laser profilometers at both mill entry and exit to measure thickness profiles every 10 mm along strip width. Store data in a database tagged by coil ID; analyze trends weekly to detect crown shift. Replace sensors annually–drift exceeding 1 μm introduces unacceptable shape variations.

Step-by-Step Workflow in Thin Gauge Metal Formation

Begin by ensuring the incoming coil meets precise thickness tolerances–typically ±0.01 mm for high-strength alloys–to prevent downstream defects. Feed the strip through an uncoiler with tension control set to 1.2–1.5 times the material’s yield strength, adjusting dynamically via load cells to avoid slippage or necking. Pre-cleaning in alkaline baths at 60–80°C removes oils and oxides; ultrasonic agitation at 40 kHz reduces residue by 95%, critical for subsequent surface adhesion in coating processes.

Critical Processing Stages

1. Entry Loop Regulation: Maintain a 3–5% loop in the entry accumulator to decouple decoiler speed from mill synchronization. Use laser triangulation sensors (accuracy ±0.5 mm) to monitor loop depth, triggering automatic speed adjustments within 50 ms.
2. Reduction Passes:
   • Apply emulsion coolant (3–5% oil concentration) at 45–55°C to manage thermal expansion–exceeding 60°C risks lubricant breakdown.
   • Set roll gap pressure to 80–90% of the alloy’s compressive yield strength; over-reduction in initial passes causes edge cracking, particularly in brittle grades like 5000-series aluminum.
   • Monitor roll force via strain gauges; sudden spikes >15% indicate misalignment or foreign particle entrapment–halt immediately for inspection.
3. Intermediate Annealing (if required): For alloys work-hardened beyond 50% reduction, conduct a 370–420°C bell annealing cycle with nitrogen atmosphere to prevent oxidation. Cool at 20–30°C/hour to room temperature to avoid residual stresses.
4. Exit Tension Control: Wind the processed coil at tension 10–20% below the entry value to prevent telescoping. Use a turret winder with automatic diameter compensation for uniform layering, targeting

Incorporate inline thickness gauges (X-ray or magnetic induction) every 2 passes, calibrating weekly against certified reference standards (ISO 3543). For precision applications (e.g., aerospace foils), add a final pass with roll surface roughness Ra
