Understanding DC Power Supply Schematic Design and Circuit Components
Use four core blocks to build any fixed-output regulator: a step-down transformer, bridge rectifier, smoothing capacitor and linear or switching post-regulator. Spec the transformer secondary voltage at 1.4× (plus diode drop) the desired DC level; a 12 V output therefore needs ≈ 18–20 V AC. Keep secondary current rating ≥ 1.2× the maximum DC load–over-sizing here adds negligible cost yet prevents core saturation under transients.
Place ultra-fast recovery diodes (1N5819 for ≤ 1 A, MBR2045CT for ≥ 5 A) in a full-wave bridge; each device sustains reverse voltages of 40 V or more for 12–15 V rails. Mount the bridge on a small aluminium pad (≈ 0.1 °C/W) when currents exceed 3 A to avoid thermal runaway. Value the smoothing electrolytic at 500 µF per amp of load current–polypropylene film capacitors last longer but require 2–3× more footprint.
For post-regulation, LM7812 (or LM2940 for low-dropout needs) linear devices remain simplest: input must stay ≥ 2.5 V above output at full load to maintain regulation. Switchers like LT1074 or TPS563201 save heat at ≥ 85 % efficiency when inputs exceed 24 V, yet require inductors rated at least 1.5 A saturation and 100 kHz minimum switching frequency to keep output ripple below 50 mVₚₚ.
Route ground traces star-point from the smoothing capacitor to the load return; avoid shared paths between high-current AC and low-level DC nodes. Add 100 nF ceramic capacitors directly at the regulator input and output pins to quench high-frequency noise. Test load-step response with 1 A pulses at 1 kHz–a 500 mA transient should deviate ≤ 200 mV; if overshoot exceeds this, increase the smoothing capacitor or raise the regulator input voltage.
Key Components of a DC Voltage Regulator Layout
Start with a transformer rated at least 20% above the required output current to handle transient loads without saturation. For a 12V output, select a 15-0-15V secondary winding to account for diode drops and ripple. Core size matters–torroidal transformers reduce electromagnetic interference by up to 40% compared to EI types, making them ideal for noise-sensitive circuits.
Bridge rectifiers using 1N4007 diodes work for currents under 1A, but for higher loads, MOSFET-based rectification slashes voltage drops by 0.7V per diode to 0.1V, improving efficiency. Place a 1000μF smoothing capacitor immediately after the bridge; larger values like 4700μF reduce ripple to under 100mV but increase inrush current–add a 1Ω NTC thermistor to limit it.
Voltage Regulation Strategies
Linear regulators like LM7812 excel in simplicity but waste energy as heat–replace them with buck converters (e.g., LM2596) for 90%+ efficiency. Adjustable modules require precise feedback: a 10kΩ potentiometer paired with a 1kΩ resistor sets the output from 1.2V to 37V; calibration ensures stability within ±2%. For dual outputs, use separate windings or a center-tap transformer with two regulators to prevent cross-load fluctuations.
Add a 10μF tantalum capacitor at the regulator output to improve transient response and a 0.1μF ceramic capacitor at the input to filter high-frequency noise. Overcurrent protection demands a resettable fuse or a polyfuse; for short-circuit resilience, a crowbar circuit with an SCR shunts excess current to ground when voltage exceeds a zener diode’s breakdown threshold.
Ground layout avoids common pitfalls: connect the transformer center tap, filter capacitor negatives, and regulator ground to a single star point to eliminate ground loops. High-current paths use 2oz copper traces wider than 2.5mm for every ampere; thermal vias under regulators improve heat dissipation. For remote sensing, route separate wires to the load to compensate for voltage drops in long cables–this maintains regulation within 1% even under full load.
Testing validates performance: measure ripple with an oscilloscope set to AC coupling–expect under 50mV for well-designed circuits. Simulate load steps with a 10% to 90% current transition; output voltage should recover within 20μs. EMI compliance checks involve a spectrum analyzer; if noise exceeds FCC limits, add ferrite beads on input/output leads and shield the transformer with a mu-metal enclosure.
Key Components in a DC Voltage Regulator Circuit
Select a transformer with a secondary voltage rating at least 30% higher than the required output to compensate for rectifier voltage drops and input fluctuations. For example, a 12V output demands an 18V transformer secondary winding when accounting for bridge rectifier losses (~1.4V) and minimum headroom. Core size should align with load current: an EI-33 core suits 0.5A applications, while toroidal transformers excel at 3A+ due to lower leakage inductance.
Use a full-wave bridge rectifier (e.g., W04G) for currents below 1.5A; beyond this threshold, parallel Schottky diodes (SB560) reduce forward voltage to ~0.3V, cutting power dissipation by 60% compared to standard silicon. Thermal management is critical–mount diodes on a heatsink for currents >2A, with thermal paste applied at 0.1mm thickness to ensure
Output Capacitor Sizing
| Load Current (A) | Minimum Capacitance (μF) | Ripple Voltage (mVpp) |
|---|---|---|
| 0.1 | 470 | 15 |
| 0.5 | 2200 | 25 |
| 1.0 | 4700 | 40 |
| 2.0+ | 10000 | 60 |
Low-ESR capacitors (e.g., Panasonic EEU-FM1V) halve ripple compared to general-purpose types. For high-current designs (>3A), add a 0.1μF ceramic capacitor in parallel to suppress high-frequency noise, particularly when driving switching regulators like LM2596.

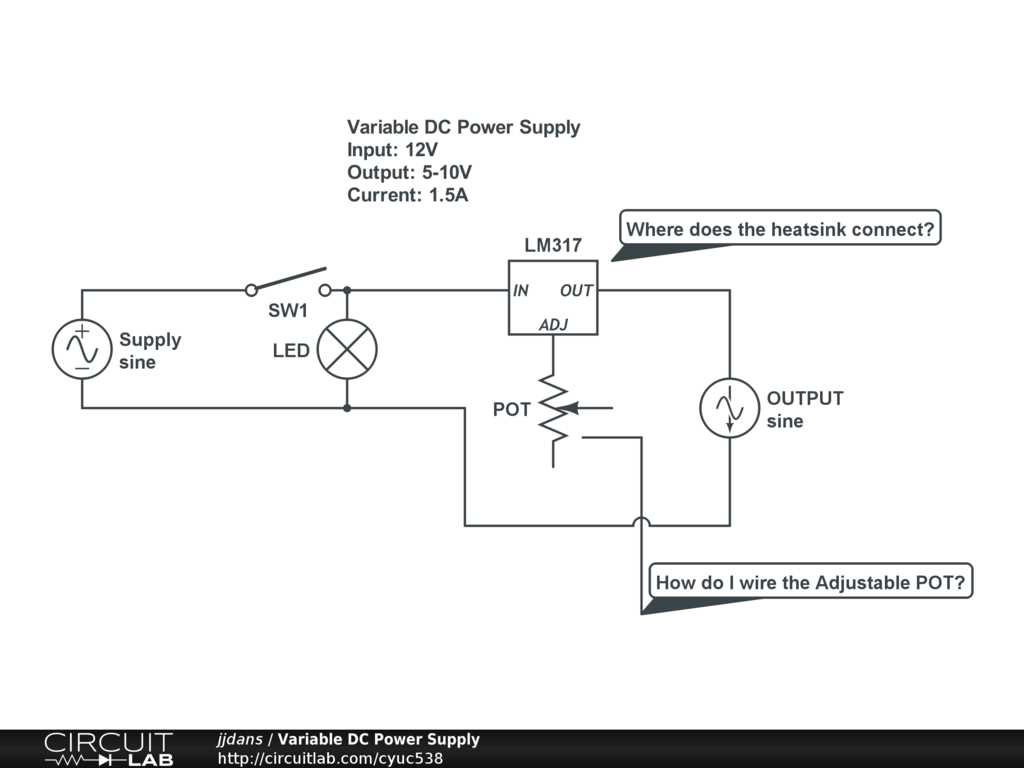

Integrated voltage regulators (e.g., LM7812) simplify designs but limit flexibility; adjustable regulators (LM317) require precise resistor calculations: R1=240Ω, R2=(Vout-1.25V)*240Ω/1.25V. To improve regulation, add a 1μF tantalum capacitor on the adjustment pin, reducing output impedance by 30%. For noise-sensitive circuits, replace the standard configuration with an LDO (e.g., LT1085), dropping dropout voltage to 1.2V at 3A.
Protection Mechanisms
Reverse polarity protection demands a P-channel MOSFET (e.g., IRLML6402) instead of a diode–this cuts voltage drop to 0.1V at 2A. Overcurrent protection with a polyfuse (e.g., 16R) resets automatically, but for >5A, use a current-sense resistor (0.01Ω, 5W) paired with a comparator (LM393) to trigger a crowbar SCR (e.g., BT151). Thermal shutdown circuits should activate at 85°C using a 10kΩ NTC thermistor, disabling the regulator via a small-signal MOSFET (2N7000).
Step-by-Step Assembly of a Transformer-Based Rectifier
Start with a 230V AC to 12V AC toroidal transformer–20VA minimum–verified for correct voltage output before wiring. Mount it securely using M4 bolts through the center hole, leaving 3mm clearance from the chassis to prevent magnetic interference. Connect the primary side to an IEC inlet with a 2A fuse in series; the secondary leads attach directly to the rectifier bridge.
Use a KBPC3510 or similar 35A bridge rectifier for currents up to 3A. Secure its body to a heatsink (5°C/W minimum) with thermal paste, tightening screws to 0.6Nm. Input terminals accept the transformer’s AC leads (observe polarity if marked), while the DC outputs go to the smoothing capacitor–no intermediate components needed for basic operation.
- Cut leads to 10cm after tinning; excess length increases ESR.
- Avoid skinning insulation closer than 3mm to solder joints.
- Twist AC input wires 3 turns/cm to reduce EMI.
Capacitor Selection & Wiring
Choose a 2200µF 25V electrolytic capacitor–low-ESR types (Nichicon PW series) halve ripple at full load. Connect its positive terminal to the bridge rectifier’s DC+ output; the negative terminal attaches to the chassis ground via a star washer to ensure contact integrity. Place a 0.1µF ceramic across the capacitor’s leads, soldered <5mm from its body to suppress HF transients.
Test under load: a 12Ω 20W resistor simulates real-world draw. Measure DC voltage at the capacitor terminals; ripple should not exceed 120mV peak-to-peak at 1A. If ripple persists, double the capacitance or switch to a CRC filter–a 1Ω 5W resistor in series followed by another 2200µF capacitor drops ripple to ≤30mV.
Final Checks & Encapsulation
Inspect all solder joints under 10x magnification; voids or cold joints introduce thermal noise. Coat transformer connections with silicon RTV to prevent arcing at 400V breakdown. Ventilate the enclosure by drilling 6mm holes above and below the heatsink–natural convection maintains bridge rectifier temperature <60°C at 2A continuous. Label all terminals with PCTFE sleeves (M2.5) for maintenance.
- Verify grounding resistance <1Ω before powering.
- Log temperature rise after 30 minutes at 1.5A–chip temperature delta should align with the datasheet’s derating curve.
- Store unused transformers in vacuum-sealed bags with desiccant to prevent core corrosion.
Calculating Output Voltage and Current for Linear Regulators

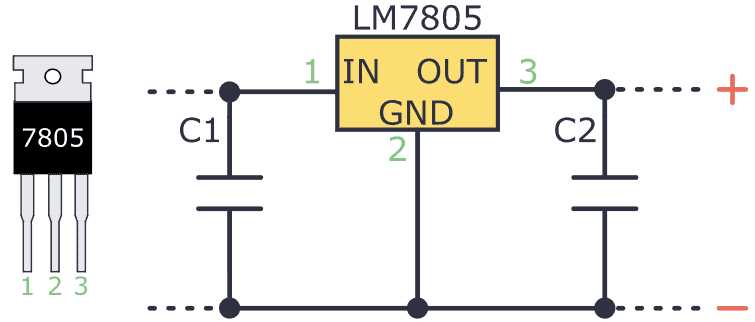

Use the dropout voltage specification to determine the minimum input-output differential required for stable operation. For a 7805 regulator, maintain at least 2V difference between input and output to prevent dropout effects. Measure input voltage under full load conditions, accounting for ripple, which can reduce the effective potential.
To compute maximum load current, subtract the quiescent current (typically 5-8mA for standard linear regulators) from the total input current. Verify with the formula: Iout(max) = Iin – Iq. For adjustable regulators like the LM317, ensure the adjustment resistor ratio (R1/R2) remains stable under thermal drift, using temperature-stable components (e.g., 1% metal film resistors) to preserve accuracy.
For fixed-output regulators, the nominal output potential is preset, but real-world values may deviate due to manufacturing tolerances (±5% for most ICs). Compensate by adding a low-value trimmer (e.g., 100Ω) in series with the ground pin for fine-tuning. Avoid exceeding the maximum power dissipation (Pd(max) = (Vin – Vout) × Iout(max)), which can lead to thermal shutdown without adequate heat sinking (TO-220 packages typically handle 1-2W without additional cooling).
When designing for variable loads, calculate worst-case scenarios using the regulator’s load regulation specification. A 7805 with 50mV load regulation at 1A means output may shift by ±2.5% when load current swings between 5mA and 1A. For precision applications, use a low-dropout (LDO) variant (e.g., LT1085) with ≤1V dropout and tighter tolerance (±1%).
Always verify calculations against the datasheet’s electrical characteristics table. Ignoring parameters like line regulation (e.g., 1mV/V for the LM1117) can introduce errors of 100-200mV in high-voltage designs. Use an oscilloscope to check for transient response issues during load steps, ensuring the regulator recovers within specified settling time (typically 50-200µs for linear types).
