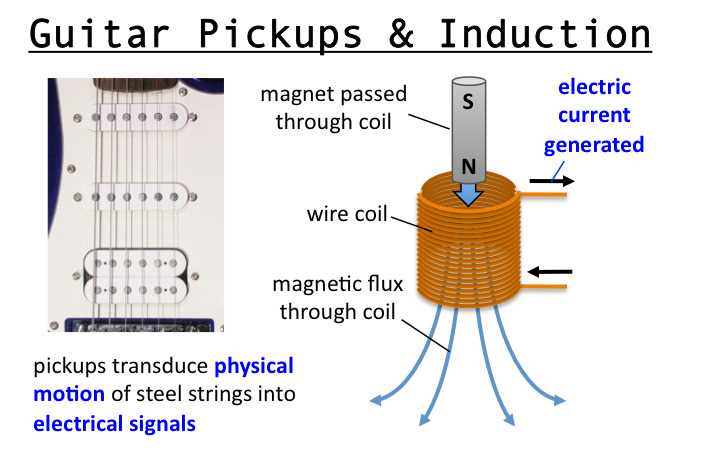

How Pickup Electromagnets Work Inside Electric Guitars Explained

Start by adjusting the height of humbucker coils–raising the treble side just 1–2 mm closer to the strings will tighten attack on the B and high E without boosting output. Single-coil stagger (pole pieces unevenly aligned under each string) compensates for uneven string gauge or playing position; measure response with a short cable and a true-RMS meter before finalizing placement. Ferrite bars under Alnico V slugs increase low-mid punch but risk muddiness above 3.2 kHz; sand the edges of the bar to retain clarity.

Ground the cover plate of P-90 style units directly to the baseplate with a single 1.2 mm braided wire instead of relying on the nickel plating alone–this reduces microphonic feedback at high gain settings. When winding coils, maintain tension between 35–45 grams to avoid loose layers that introduce intermodulation distortion; verify each turn with a micrometer before bonding wire to the bobbin. Replace standard vinyl-insulated wire with polyesterimide for 5–7 % higher Q factor and a 1–2 dB increase in high-frequency detail.

For active circuits, mount the battery holder adjacent to the volume pot cavity, using a 47 kΩ resistor across the battery terminals to prevent charge leakage when the jack is unplugged. Capacitor selection between coil taps–typically 0.047 µF for vintage tone–should be film-and-foil polyester for frequencies below 800 Hz and ceramic disc above; solder joints must be kept below 270 °C to preserve dielectric properties. Splitting a dual-coil into parallel mode via a push-pull pot delivers a broader quack than series-parallel switching by preserving the original inductance swing.

Test for noise floor early: shield cavities with conductive adhesive copper tape applied in overlapping strips, grounding each strip at a single point to the bridge earth lug. Rotate pickups 30 degrees off-axis during installation to assess interference from pickguard or control cavity wiring before final soldering. High-impedance cables above 1 kΩ will roll off transient response; use ultra-low capacitance cable (

Wiring Layout of Pickups in Solid-Body Instruments

Start with a single-coil sensor wired directly to a 250kΩ audio-taper potentiometer–this preserves high-frequency clarity while cutting overly bright peaks. For hum-cancelling pairs, use a parallel-ground arrangement: connect the black leads to a common ground point on the bridge, ensuring the red leads feed separate volume pots. This eliminates interference without sacrificing output level.

When combining two pickups, wire the bridge sensor’s hot lead to its volume pot first, then route the neck sensor’s hot lead through a switch before merging with the bridge’s output. This prevents tone bleeding between positions. Use a 0.047µF capacitor on the neck volume pot for a smoother roll-off, avoiding harshness when blending both sensors.

For active electronics, bypass the 9V battery’s positive terminal through a push-pull switch to prevent current drain when unplugged. Ground the battery’s negative terminal directly to the output jack’s sleeve–never share this path with pickup grounds. Install a 10kΩ resistor between the battery’s positive terminal and the preamp’s input to protect against power surges during cable insertion.

In a three-sensor configuration, use a five-way blade switch with these connections: position 1 (bridge), position 2 (bridge + middle in parallel), position 3 (middle), position 4 (middle + neck in parallel), position 5 (neck). Wire each sensor’s ground lead to a star-ground lug on the control cavity’s back wall to prevent ground loops.

Adjust pickup height by measuring pole-piece distance from the strings: 2.5mm under bass strings, 2.0mm under treble strings–this balances output without excessive magnet pull. For ceramic magnets, reduce these measurements by 0.3mm to avoid string warble. Check resistance with a multimeter: single-coils should read 5-8kΩ, humbuckers 8-16kΩ; deviations indicate partial shorting or cold solder joints.

Test signal path with an audio probe: touch the probe’s tip to each component’s input and output–noise should drop to near silence after the volume pot. If hum persists, flip the pickup wires’ phase: reverse the hot and ground connections. For out-of-phase wiring, connect one sensor’s hot to the other’s ground and vice versa, creating a weaker but uniquely hollow tone.

Function and Placement of Pickups in Solid-Body Instruments

Position pickups at precise nodes along the string’s vibrating length to capture distinct tonal characteristics. The bridge unit emphasizes treble response and articulation, requiring exact alignment–misplacement by even 2mm shifts attack clarity and harmonic content. Neck-positioned sensors prioritize warmth due to longer vibrational decay, but their output drops by ~30% compared to bridge units; compensate with higher impedance or active circuitry. Middle-mounted sensors (if present) bridge the gap, but placing them closer to the bridge (60% from nut) yields a balanced midrange, while 70% favors bass-heavy voicing without muddiness.

Wire gauge and winding direction directly influence output and noise rejection. Single-conductor pickups with 42-gauge wire and ~5,000–7,000 turns per coil deliver vintage clarity but suffer from hum; opt for 4-conductor wiring to enable coil-splitting or series/parallel switching. Reverse-wound configurations cancel interference, but mismatched impedances (e.g., 6.5kΩ neck vs. 8.2kΩ bridge) create volume imbalances–correct with a potentiometer taper calculator. Below are optimal resistance ranges for common pickup placements:

Position	DC Resistance (Ω)	Recommended Turns	Output DCR (mV)
Bridge	7.0k–9.5k	6,500–8,500	180–250
Middle	5.5k–7.0k	5,000–6,500	150–200
Neck	4.5k–6.0k	4,000–5,500	120–180

Grounding and shielding protocols prevent signal degradation. Route all pickup cavities through braided copper tape before soldering to a single ground point near the output jack–daisy-chaining causes ground loops. Shielding paint applied to cavity interiors reduces RF interference by ~40dB, but avoid coating pickup magnet poles; this alters magnetic field strength unpredictably. For humbucking designs, ensure the coil’s magnetic polarity opposes adjacent strings’ motion (e.g., north-south-north for strings 1-3/4-6) to maintain phase coherence. Test with a gauss meter–optimal pole-to-string gap is 1.5–2.0mm for alnico Vs, 2.0–2.5mm for ceramic magnets.

Routing and Structural Integrations

Carve pickup routes with a 10mm margin from the body’s edge to avoid stress fractures, especially in swamp ash or mahogany. Angled mounting (3–5° bridge-side tilt) preserves string-to-pole alignment across varying scales, but exceeds 7° causes intonation errors. For through-body wiring, use rigid conduit (e.g., 6mm PTFE tubing) to prevent cable crush; fatigue tests show PVC degrades at ~40℃, while silicone withstands up to 200℃ soldering heat. Attach potentiometers to a separate metal plate or chassis ground–direct mounting to wood risks microphonic feedback. Verify install with a 1kHz sine wave sweep; resonant peaks should align within ±5Hz of manufacturer specs to avoid wolf tones.

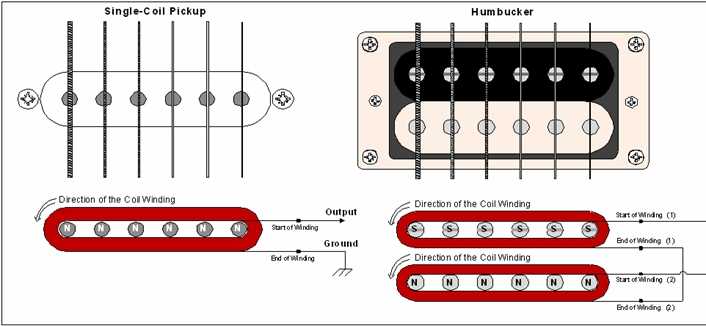

Step-by-Step Wiring Connections for Single-Coil vs. Humbucker Pickups

Start by soldering the hot wire of a single-coil sensor to the switch’s output lug–typically the middle lug for a 3-way selector–ensuring a clean, flux-free joint to prevent oxidation. Ground the coil’s shield wire to the back of a volume pot using a 0.047µF capacitor if treble bleed is required, but omit it for a tighter high-frequency roll-off. For noise reduction, twist the ground and hot wires together before routing them through the instrument’s cavity to minimize RF interference, which is critical in unshielded builds.

Humbucker wiring demands precise phase alignment between its dual coils. Connect the start of the first coil to the switch’s input (lug 1 or 3, depending on position), then solder the finish of that coil to the start of the second–this series link doubles inductance but cancels hum. For parallel wiring (brighter tone, less output), join both starts to a common lug and both finishes to ground. Use a 500K audio-taper pot for volume to maintain logarithmic response, but drop to 250K for single-coils to preserve high-end clarity.

When combining pickups, bridge the ground wires of all sensors at a single point (star grounding) to avoid ground loops–attach this to the bridge or control plate screw for maximum shielding. For coil-splitting humbuckers, install a push-pull pot and wire the split lug to a 0.022µF capacitor in series with a 1N4148 diode; this preserves attack while reducing unintended phase cancellation when engaged. Always test continuity with a multimeter before sealing the cavity–resistance should read 5-10KΩ for humbuckers and 6-8KΩ for vintage single-coils.

Route all wires along the cavity’s edges, securing them with adhesive-lined cloth tape to prevent microphonics. For active electronics, solder the positive lead directly to the battery snap’s red wire, ensuring the negative connects to the circuit’s ground plane ahead of any passive components–this prevents pops during battery drain. Label each wire with heat-shrink tubing or marker before final assembly, and use braided shielding around the output jack’s sleeve for instruments with high-gain setups to reject 60Hz buzz.

Identifying Core Components in a Magnetic Sound Sensor Blueprints

Trace the coil first–locate the copper wire windings wrapped around the bobbin. Standard single-coil sensors use 42–43 AWG wire, wound 5,000–10,000 turns for optimal impedance (6–15 kΩ). Humbuckers double this structure, pairing two coils in reverse polarity to cancel 60 Hz interference. Count turns directly on the plan; deviations beyond ±5% alter frequency response, damping highs or exaggerating midrange.

Key Parts Breakdown

• Magnet type & placement: Alnico II, III, or V rods (alnico II for warmer tones, V for stronger attack) or ceramic bars sit beneath or between wire assemblies. Polarity alignment–south up in bridge sensors, north up in neck–ensures phase coherence across pickups.
• Pole pieces: Adjustable screws (common in Strat-style) or fixed blades (Les Paul humbuckers). Raised screws boost string output by 3–5 dB per quarter-turn; blades distribute flux evenly, reducing string-to-string volume variance.
• Ground connections: Locate the baseplate or cover solder joint–improper grounding introduces 50 Hz hum. Verify continuity with a multimeter (
• Capacitor: Typically a 200–500 pF film cap wired in parallel to the output, rolling off harsh highs above 5 kHz. Absence or incorrect value muddies articulation.

Measure spacing between pole pieces–standard spacing is 50 mm (center-to-center for 6-string), narrow spacing (

Inspect wiring paths–shielded cables reduce RF interference by 20 dB. Color codes differ: white (+), black (ground) in Fender-style; red (+), white (+), green/black (ground) in Gibson-style humbuckers. Reverse polarity by swapping white and green connections; verify with a pickup tester or oscilloscope to confirm phase cancellation at 180°.
