Understanding the Optical Layout of an Ellipsometer Schematic Design
Optical metrology instruments for analyzing film thickness and refractive index rely on a precise arrangement of components, each fulfilling a distinct role in signal generation and processing. A typical configuration integrates a light source, polarization optics, sample stage, and detection system aligned in a linear or angled pathway. The source–commonly a laser or broadband lamp–emits monochromatic or polychromatic radiation, while polarizers and compensators modulate the beam’s state before interaction with the sample. Post-reflection, an analyzer segregates the desired polarization components, directing them toward photodetectors or spectrometers for intensity measurement.
Key performance factors depend on geometric alignment and optical path stability. Light incidence angles range from 45° to 75° relative to the sample surface, balancing sensitivity to thin layers and signal strength. For spectroscopic variants, the detector array spans wavelengths from ultraviolet (250 nm) to near-infrared (1700 nm), enabling simultaneous acquisition of dispersion data. Modulated designs incorporate rotating compensators or photoelastic modulators, achieving temporal resolution below 1 ms for dynamic thickness tracking. Calibration standards–such as silicon wafers with known oxide thickness (e.g., 30–280 nm)–validate system accuracy prior to each measurement cycle.
Critical placement tolerances include sub-millimeter positional accuracy for beam steering mirrors and ±0.1° angular precision for sample alignment. Thermal drift compensation–achieved via active temperature control (±0.01°C)–prevents baseline shifts during prolonged data acquisition. For multi-angle configurations, motorized goniometers adjust incidence angles in increments as fine as 0.01°, supporting detailed angular spectra. Detection noise reduction employs lock-in amplification or Fourier-transform algorithms, distinguishing signal variations as small as 1×10-4 in delta-psi parameters.
Material-specific considerations dictate configuration adjustments. Transparent substrates (e.g., glass) demand shorter wavelengths (300–500 nm) to minimize penetration depth, while opaque or absorbing films (e.g., metals, semiconductors) benefit from near-infrared illumination to enhance surface sensitivity. Liquid samples require enclosed flow cells with optically flat windows (e.g., fused silica) to eliminate scattering artifacts. Advanced setups integrate microscopy objectives for micro-spot analysis (down to 10 µm diameter), enabling mapping of inhomogeneous surfaces with spatial resolution matching step heights of atomic layers.
Optical Layout of Polarization Measurement Systems
Position the light source at a 45° angle to the sample surface for optimal sensitivity. Laser diodes operating at 632.8 nm or 532 nm wavelengths deliver consistent results, with stability checks required every 100 hours. Avoid broadband sources unless spectroscopic analysis is critical–coherence length limitations reduce signal fidelity.
Critical Alignment Steps
Mount polarizers in rotation stages with 0.01° precision; misalignment by even 0.1° introduces phase errors exceeding 5%. Calibration should use a silicon wafer with native oxide (thickness ~2 nm) as a reference–verify against known refractive indices (n = 3.882, k = 0.019 at 632.8 nm) before measurement. Thermal drift stabilization requires active cooling for high-power setups; a Peltier module maintains ±0.1°C stability.
Detector placement demands strict angular tolerance: position photodiodes within ±0.5° of the ideal reflection angle to prevent signal attenuation. For thin films (
Data Interpretation Workflow

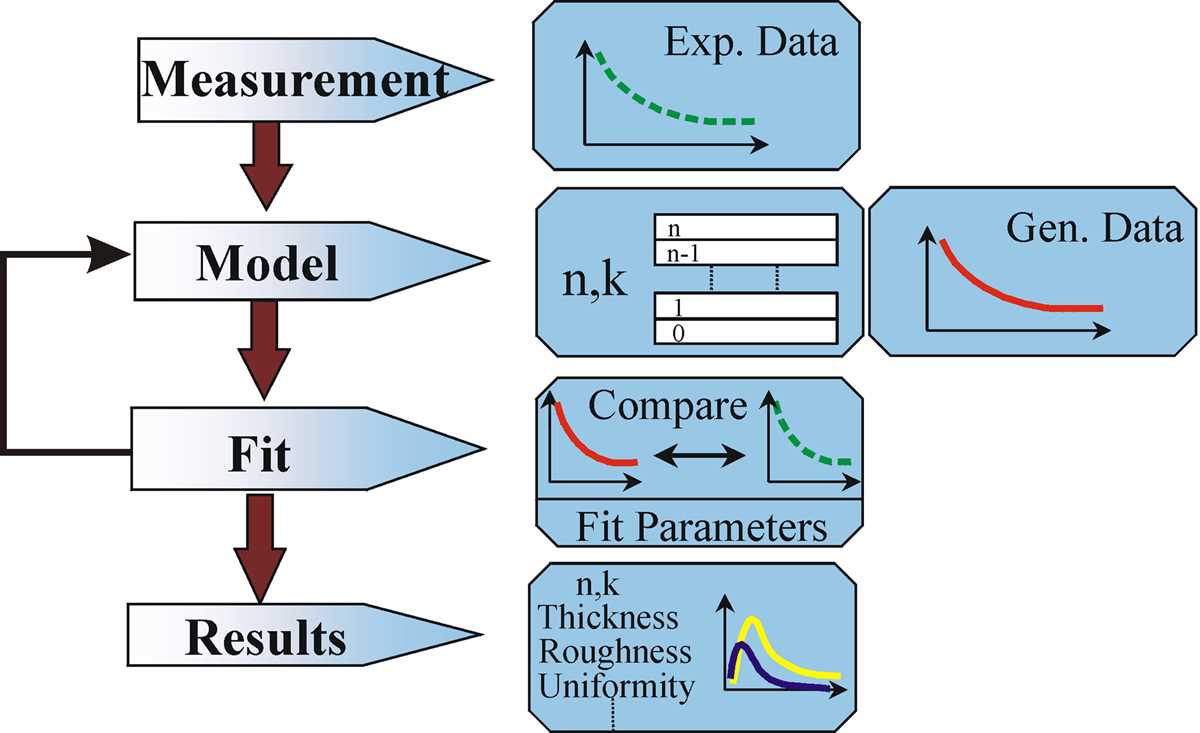

Convert raw intensity measurements to ellipsometric parameters (Ψ, Δ) using the following relation: tan(Ψ)eiΔ = Rp/Rs, where Rp and Rs are complex reflection coefficients for p- and s-polarized light. Fit data to a model incorporating film thickness, refractive index (n), and extinction coefficient (k) via nonlinear regression–initial guesses should be within 10% of expected values to avoid local minima.
Validate results against spectroscopic techniques if anomalies appear–discrepancies often stem from surface roughness or interfacial layers, which require modified models (e.g., Bruggeman effective medium approximation). Store raw data in lossless formats (.csv or .txt) with timestamped metadata to enable traceability; automated scripts for processing reduce human error in repetitive measurements.
Key Optical Components and Their Arrangement
Position the light source at an incidence angle of 60–75° relative to the sample surface to optimize polarization sensitivity. Use a broadband xenon or laser-driven plasma lamp for spectral coverage from 200 nm to 1700 nm, ensuring consistent output across ultraviolet, visible, and near-infrared ranges. Avoid arc lamps with unstable discharge arcs–flicker exceeding 0.1% RMS degrades ellipsometric precision.
Align the polarizer and analyzer in crossed or parallel configurations depending on measurement mode. For null ellipsometry, a Glan-Taylor prism with extinction ratios below 1×10⁻⁵ is critical to minimize parasitic light leakage. Rotating element systems benefit from achromatic waveplates with phase retardation errors under ±0.5° across the operating spectrum. Position both elements within ±0.1 mm of the optical axis to prevent beam walk-off.
Select detectors based on wavelength range: photomultiplier tubes for deep UV (200–400 nm), silicon photodiodes for visible (400–1100 nm), and InGaAs detectors for near-infrared (900–1700 nm). Use baffles and spatial filters to eliminate stray light–detector noise floors below 10 pW/cm²/√Hz improve signal-to-noise ratios in thin-film measurements. For dynamic range, employ logarithmic amplifiers or two-stage detection with 16-bit ADCs.
Mount the sample on a high-precision goniometer with angular resolution under 0.01° to maintain orthogonal alignment between incident and reflected beams. Use a thermally stabilized stage (±0.05 °C) to prevent drift in optical constants during data acquisition. For anisotropic materials, integrate azimuthal rotation (±0.002° resolution) to resolve directional dependencies in dielectric functions.
Optical paths should minimize air-glass interfaces–each uncoated surface introduces 4% reflection loss at normal incidence. Use antireflection-coated lenses (MgF₂ or SiO₂ for UV, broadband AR for visible/NIR) and low-birefringence quartz or fused silica substrates. For high-power applications, employ water-cooled optical mounts to prevent thermal lensing effects that distort wavefronts.
Calibrate the system using a certified SiO₂ reference sample with known thickness (±0.1 nm) and refractive index (±0.001). Verify alignment by measuring the Brewster angle of a bare silicon wafer–the reflection minimum should coincide within 0.02° of the theoretical value (54.7° at 632.8 nm). Recalibrate after any component adjustment or environmental changes exceeding ±2 °C.
Light Source Selection and Polarization Control in Optical Thin-Film Analysis
Select a broadband xenon arc lamp for spectral measurements spanning 200–1000 nm with stable intensity and minimal flicker. Xenon lamps deliver 105 W/cm2·sr radiance, outperforming halogen or deuterium sources where UV output decays below 300 nm. Mount the lamp in a parabolic reflector coated with Al/MgF2 to collimate >90% of emitted photons into a 5 mm beam, reducing etendue losses. Include a 10 nm bandpass filter at 400 nm for alignment verification–this wavelength avoids overlap with common absorption edges in semiconductors and dielectrics.
Polarization purity dictates measurement fidelity; integrate a Glan-Thompson prism with extinction ratio >105 for wavelengths ≥250 nm. Position the prism after the monochromator to eliminate stray birefringence from gratings, adjusting the azimuth with a motorized stage (±0.05° resolution). Rotate at 1 Hz during azimuth scans to suppress ambient noise–this frequency avoids interference with typical 10–100 Hz modulation rates in phase-sensitive detection. For wavelengths below 250 nm, switch to a Rochon prism fabricated from α-BBO, which maintains >95% transmission while resisting solarization.
- Linearly polarized light degrades
- Ellipticity introduced by stress birefringence scales as ΔI/I = 0.2% per °C temperature gradient; control variance within ±0.1°C.
- Modulate polarization with a photoelastic modulator (PEM) at 50 kHz–this frequency sidelobe spacing exceeds 50 Hz, rejecting 1/f noise from ambient vibrations.
Calibrate the light source weekly by measuring reflectance of a bare crystalline silicon wafer at 70° incidence–known pseudo-Brewster angle (±0.2°) ensures >99.9% p-polarized reflectance suppression. Use a thermoelectrically cooled InGaAs photodiode for IR wavelengths >900 nm, integrated with a transimpedance amplifier (noise floor 2 active area provides quantum efficiency >80% between 350–800 nm; select a diode with
Stabilize intensity fluctations to
Sample Positioning and Angle Adjustment Mechanisms
Mount samples on a motorized goniometric stage with bidirectional angular resolution of ±0.005° and repeatability better than ±0.01° across the full 360° azimuthal range. Use incremental rotary encoders with 25-bit resolution for closed-loop feedback; verify encoder signals with a secondary reference sensor during calibration to eliminate drift errors.
Integrate a dual-axis tilt platform beneath the sample holder to compensate for surface non-uniformities. Configure tilt axes with piezoelectric actuators offering 10 nm step resolution; pair each actuator with a strain-gauge sensor for real-time displacement monitoring. Set actuator control loops with 1 kHz update rates to maintain sub-milliradian tilt stability under 1 g vibration loads.
| Mechanism | Actuation Type | Resolution | Load Capacity | Thermal Drift |
|---|---|---|---|---|
| Goniometer stage | Stepper motor + worm gear | ±0.005° | 5 kg | <0.05°/K |
| Tilt platform | Piezoelectric + flexure | 10 nm (linear equiv.) | 2 kg | <0.2 nm/K |
| Z-translation | Voice coil | 1 μm | 10 kg | <1 μm/K |
Alignment Workflow
Perform initial coarse alignment using a laser crosshair projector emitting orthogonal beams at 635 nm; ensure beam deviation remains below 10 μm over 200 mm projection distance. Fine-tune sample position with a quad-cell photodetector capturing reflected beams at ±1° incidence angles; adjust until differential voltage outputs converge within 0.1 mV of nominal zero-crossing values.
Implement a secondary alignment check via spectroscopic measurements at three fixed wavelengths (450 nm, 633 nm, 850 nm) immediately after coarse adjustment. Record reflectance amplitudes at each wavelength; deviations exceeding 2% from baseline values signal misalignment requiring iterative correction. Store baseline spectra in non-volatile memory to detect long-term drift caused by thermal expansion or mechanical creep.
Design sample holders with vacuum-compatible kinematic mounts incorporating three spherical sapphire contacts seated in conical grooves. Ensure groove surface finish sustains Ra ≤ 0.1 μm to achieve positional repeatability better than ±2 μm under 10^-3 mbar pressures. Use titanium grade 5 for structural components to balance stiffness (E = 110 GPa) and thermal expansion (8.5 μm/m·K) characteristics.
