Complete FPGA Schematic Diagram Guide with Design Principles and Applications

Start with a clear signal hierarchy. Group clock domains into dedicated nets with low-skew buffers–Xilinx Vivado recommends placing BUFG primitives within 20% of the die’s optimal routing paths. Separate global clocks from regional ones using BUFR or BUFHCE for finer granularity. Label each net with exact voltage thresholds: LVCMOS18 for 1.8V I/O, HSTL_I for high-speed interfaces. Transceivers like GTY or GTH demand impedance-matched traces–50Ω single-ended, 100Ω differential–documented in IBIS models before layout begins.

Replace generic pull-up resistors with configurable weak keepers from the FPGA fabric. For instance, Intel Quartus’ ALTERA_TRI_STATE_BRIDGE automates bidirectional port handling, reducing external components by 40%. When interfacing DDR4, pre-assign DQS pins to byte lanes using fly-by topology–length-match traces within ±5 mils to avoid timing violations. Use dedicated PLL outputs for phase-aligned clocks; specify M and D divider ratios in HDL to avoid post-synthesis mismatches.

Annotate power rails precisely. Core VCCINT requires decoupling caps every 5mm–0.1μF ceramic for high-frequency noise, bulk 10μF tantalum near regulators. I/O banks split by voltage (VCCIO) and standard (e.g., 2.5V LVDS vs. 3.3V LVTTL) prevent ground loops. Tools like Xilinx Power Estimator verify thermal margins; derate current limits by 20% for industrial-grade chips. For partial reconfiguration, isolate static logic from reconfigurable partitions with explicit barriers in the constraint file (set_property HD.RECONFIGURABLE true [get_cells ...]).

Map reset strategies to dedicated global nets. Synchronous resets synchronize with the slowest clock domain to avoid metastability; asynchronous resets require deglitch circuits (SRLC16E in Xilinx, alt_reset_bridge in Intel) with a minimum 3-clock-cycle hold. For SerDes lanes, pre-emphasis and equalization taps are set via IP cores–document these values in the block diagram to align with PCB stack-up. Always cross-reference the schematic with the manufacturer’s pinout file (CSV/XDC) to avoid I/O standard conflicts.

Use parameterized macros for repetitive structures. A shift register in Verilog (generate loops) eliminates redundant symbols for datapaths. For DSP slices, instantiate Xilinx DSP48E2 blocks directly, bypassing generic multipliers–this reduces logic utilization by 30%. Document all PLL/DLL configurations (e.g., CLKOUT_PHASE_SHIFT) to ensure reproducible timing closure. Finally, embed checksums or version IDs in the diagram’s metadata to track revisions across teams.

Creating a Clear Block Representation for Programmable Logic Chips

Start by segmenting the design into three primary layers: the fabric core, I/O interfaces, and clocking network. Use hierarchical naming conventions for each net–prefix global signals with g_, local nets with l_, and clock domains with clk_ followed by the frequency in MHz (e.g., clk_100). Tools like Altium or KiCad support net classes; assign distinct widths and colors to prevent misinterpretation.

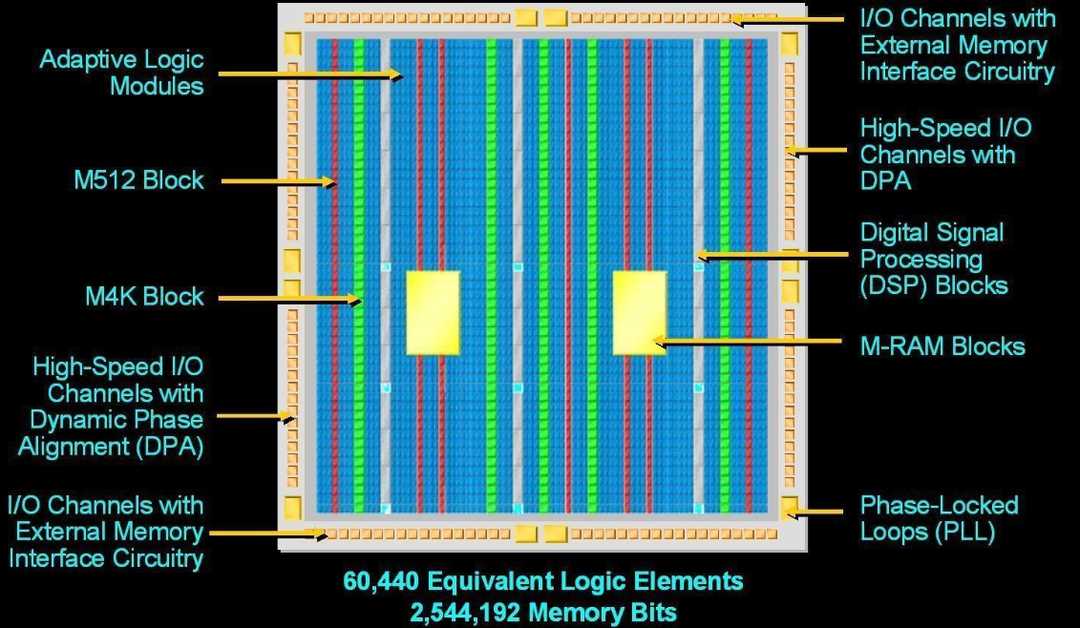

For the logic fabric, adopt a modular strategy. Group Look-Up Tables (LUTs), flip-flops, and multiplexers into tiles labeled TILE_<X>_<Y>, where X and Y denote row-column positions. Each tile should expose only its input/output ports at the top hierarchy, hiding internal routing. This reduces clutter and accelerates debug cycles. Place power rails (VCC_INT, GND) at the edges of each tile, ensuring uniform distribution.

• Represent dedicated blocks (PLLs, DSP slices, block RAM) as rectangular symbols with exposed ports on all sides.
• Label dimension: 60×40 mils for PLLs, 80×60 mils for DSP slices.
• Orient blocks to align with the natural data flow–left-to-right for combinatorial logic, top-to-bottom for pipelined stages.

Minimize crossing lines where possible. If unavoidable, use curved jumpers instead of straight 90-degree intersections. Designate four routing layers: METAL1 for horizontal connections, METAL2 for vertical, METAL3 for critical clock paths, and METAL4 for global rails. Set clearance rules: 8 mils for VCC/GND, 6 mils for signal nets.

Clock Distribution Best Practices

Construct a balanced H-tree for the primary clock domain. Place the root at the geometric center of the die. Branch lengths must be identical (±0.1 mm) to maintain skew within 20 ps. Represent branches as tapered lines–start at 12 mils width, halve at each segment down to 3 mils at leaf nodes. Use shielded traces for high-frequency clocks (clk_>200); space shields 4 mils from the signal and connect them to a quiet GND net.

1. Annotate each clock net with its frequency and phase offset (e.g., clk_125_0.2ns).
2. Insert clock buffers every 3 mm of trace length–symbolize them as inverters with a small dot on the output.
3. Separate adjacent clock domains by a minimum of 5 times their respective wavelengths to mitigate crosstalk.

For configuration logic, depict the JTAG chain as a daisy-chained shift register. Each link (boundary scan cell) should expose TDI, TDO, TCK, and TMS ports. Enclose the register within a dashed rectangle labeled with the scan cell count (e.g., BSC_16). Route TCK on METAL3 with guard rings–spacing 2 mils from adjacent signals. Terminate the chain with a pull-down resistor (RTERM_10k) on TDO to prevent floating states.

Core Elements of a Programmable Logic Circuit Blueprint

Begin by segmenting the design into logical blocks, each corresponding to a distinct functional unit. Group related input/output (I/O) pins, clock networks, and processing modules together to enhance clarity. Avoid mixing signals from unrelated subsystems–this reduces debugging time and simplifies verification.

Label every critical signal path with its functional purpose, not just generic identifiers. Use prefixes like clk_, rst_, data_, or ctrl_ followed by descriptive suffixes (e.g., clk_sys_100mhz). Ambiguity in naming leads to misinterpretation during integration or testing.

• Clock trees: Represent all clock domains explicitly, even if derived from a single source. Indicate frequency dividers, phase-locked loops (PLLs), and skew management paths. Omit clock gating logic in high-level views but ensure it’s documented in lower-level subcircuits.
• Reset networks: Distinguish between synchronous and asynchronous resets. Use distinct symbols (e.g., inverted triangles for async, normal triangles for sync) and annotate reset polarity (active-high/low).
• Configuration interfaces: Highlight programming ports (JTAG, SPI, I²C) as separate modules. Show connections to internal configuration memory and any dedicated lines for bitstream loading.

Adopt a hierarchical structure for large designs. Top-level blueprints should only show major interfaces–expansion ports, memory controllers, peripheral buses–while offloading details to subcircuit sheets. Use standardized sheet symbols with consistent port ordering (inputs on left, outputs on right) to maintain readability across levels.

Color-code voltage domains if the design spans multiple rails (e.g., core logic at 1.2V, I/O at 3.3V). Use dashed lines for power nets and solid lines for signals. Annotate voltage tolerances and current ratings where applicable to prevent misconnections during PCB integration.

1. Apply directional markers on buses–avoid bidirectional labels unless the signal genuinely toggles direction. Number bus bits from LSB (bit 0) on the right to MSB (bit N) on the left to match industry conventions.
2. Include test points or debug signals sparingly but strategically. Expose key registers (e.g., status flags, error counters) as separate pins or multiplexed outputs for observability during prototyping.
3. Document any inferred or hard IP blocks (e.g., DSP slices, embedded multipliers) with a brief note on their role. Avoid recreating vendor-provided symbols–link to datasheets instead.

Use net ties for shared resources (e.g., pull-ups, termination resistors) instead of directa daisy-chaining. This prevents unintended coupling and simplifies modifications. For differential pairs, maintain strict symmetry in routing symbols and annotate impedance targets.

Add revision history in a corner of the top-level document. Include columns for date, author, changes, and verification status. Restrict modifications to formal review cycles–unapproved edits should never propagate to manufacturing outputs.

Step-by-Step Guide to Creating a Configurable Logic Circuit Layout

Begin by isolating the core functional units of your programmable hardware design. Identify critical modules such as processing blocks, memory interfaces, I/O controllers, and clock networks. Group related components spatially to minimize signal routing complexity. Use a hierarchical naming convention for each block–prefix subsystem types (e.g., DSP_CORE_, MEM_CTRL_) followed by unique identifiers.

Select a vector-based drafting tool with support for custom symbols and netlists. Avoid raster editors; precision matters at 0.1mm scale. Create a symbol library for recurring elements: flip-flops, LUTs, multiplexers. Define properties for each: pin direction, voltage domain, timing constraints. Below is a reference for symbol attributes:

Element	Pin Count	Signal Type	Voltage Domain	Critical Path?
D Flip-Flop	3	Data, Clock, Reset	1.2V	No
4-Input LUT	5	Inputs, Output, Config	1.0V	Yes
I/O Buffer	2	Bidirectional	3.3V	No

Establish uniform grid spacing–0.5mm typically suffices for mid-complexity designs. Align block edges to grid intersections to simplify auto-routing later. Place high-fanout components (e.g., clock distributors) centrally to reduce skew. Draw power rails along the periphery: separate analog and digital domains with ferrite beads or capacitors if mixed-signal interference is a concern.

Route controls and data buses first, prioritizing timing-critical paths. Use differential pairs for high-speed signals (LVDS, SerDes), maintaining matched lengths within ±0.2mm. Label every net uniquely, even temporary ones; ambiguity causes synthesis errors. Apply color-coding: red for power, blue for clocks, green for resets, black for general signals. Add textual notes for non-obvious decisions–future reviewers will thank you.

Incorporate observability features: test points on clock inputs, scan chains for flip-flops, LEDs tied to status registers. Simulate minimal subcircuits before final assembly. Export the draft in IEEE-1364 netlist format for toolchain compatibility. Validate connectivity with a rule-checker; ensure no floating inputs or undriven outputs remain.

Document assumptions clearly. Capture voltage thresholds, clock frequencies, and load conditions in a companion file. For example:

# Clock domain specs
CLK_MAIN: 100 MHz, 50% duty cycle
CLK_PERIPH: 25 MHz, variable phase
# Power rail tolerances
VCC_CORE: 1.0V ±5%
VCC_IO: 3.3V ±10%

Archive the symbol library, constraints file, and netlist in version control. Tag the commit with the hardware revision number (e.g., v1.2_clk_opt). Update only one variable per iteration to isolate bugs; regressions are harder to debug in physical hardware than in software.
