Creating and Understanding LED Light Circuit Diagrams Step by Step
Begin by selecting a current-limiting resistor based on your source voltage. For a 12V supply and a standard 20mA forward current, use 470Ω to 1kΩ. Higher values reduce brightness but extend lifespan; lower values increase heat risk. Calculate resistance with (Vsupply – Vforward) / Iforward–ignore this formula only if driving with a constant-current regulator.
Place a reverse polarity protection diode parallel to each emitter–1N4007 suffices for reverse voltages up to 1000V. Omitting it risks failure during accidental voltage reversal. For multi-emitter arrays, wire emitters in series to share current evenly; paralleling requires matched forward voltages (±0.1V tolerance) to prevent current hogging.
Decouple the circuit with a 0.1μF ceramic capacitor near the power input to suppress transients. Position it within 10mm of the first component. For PWM dimming, insert a 1N4148 flyback diode across any inductive load (e.g., relay coils) to clamp voltage spikes that can exceed 100V. Avoid electrolytic capacitors–their leakage current degrades efficiency in low-power designs.
Use a n-channel MOSFET (e.g., IRLZ44N) for switching at frequencies above 500Hz. Gate drive threshold above 4V ensures full enhancement; sub-2V devices risk resistive losses. For analog dimming, a 10kΩ potentiometer in series with a 1kΩ resistor creates a voltage divider–output directly to emitter anode without exceeding maximum forward current.
Thermal management dictates reliability. Attach emitters to a 7°C/W heatsink per watt of dissipation. Overdriving by 10% triples thermal stress; operating at 80% rated current extends lifetime to 50,000 hours. Verify layout with a thermal camera–hotspots above 65°C degrade chromaticity and forward voltage stability.
Circuit Layout for Solid-State Illumination
Start with a constant current driver rated for the forward voltage of your emitter–typically 3V for single-chip devices or 9–12V for COB arrays. Bypass the driver output with a 100nF ceramic capacitor no farther than 10mm from the chip’s anode and cathode pads to suppress high-frequency transients that erode lumen maintenance.
Add a reverse-polarity protection diode in series with the supply if the load draws more than 0.5A; Schottky types (e.g., 1N5822) minimize forward drop and prevent thermal runaway during accidental reverse connection. For dimming via PWM, keep the switching frequency above 200Hz to avoid visible flicker; most drivers integrate a logic-level MOSFET gate, so a simple microcontroller output suffices without additional buffering.
Ground return paths must be routed on a contiguous plane; star topology from the driver’s ground terminal prevents ground-loop currents that induce flicker or premature failure. Test thermal resistance with a thermocouple on the emitter slug; aim for ΔT
Key Components in a Solid-State Illumination Circuit Blueprint
Prioritize a current-limiting resistor sized between 150Ω and 1kΩ for 3–24V DC sources to prevent semiconductor degradation. Match resistor wattage to expected dissipation–jump from ¼W to 1W when driving strings above 50mA. Position the resistor upstream of the semiconductor to guard against reverse polarity spikes. Choose resistors with ±1% tolerance for precision dimming applications; ±5% suffices for indicator tasks.
Critical Supplementary Elements
- Bridge rectifier (KBU8J): Mandatory when operating directly from AC; pairs with a 10μF smoothing capacitor to clip ripple below 0.1Vpp.
- PWM driver (PT4115): Enable 1kHz modulation at 8-bit resolution to extend emitter lifespan–avoid frequencies below 200Hz to prevent visible flicker.
- Thermal pad (TO-220): Secure emitters rated above 1W to a copper pour sized no less than 20mm² per watt dissipated. Solder at 260°C for 3 seconds max to prevent delamination.
- TVS diode (SMBJ15A): Install across leads if electrostatic exposure exceeds 2kV–clamp voltage should sit 20% above nominal forward voltage to suppress transients.
- Opto-isolator (PC817): Insert between low-voltage control signal and high-side switch to isolate 3V MCU logic from 48V drivers–leakage current must stay under 1μA.
Omitting any single item from the above checklist risks thermal runaway in prolonged duty cycles, especially in arrays exceeding 10W. Test assembled boards under full load at 60°C ambient for 72 hours before production approval.
How to Interpret Voltage and Current Markings in Circuit Blueprints
Identify voltage annotations by their placement near power rails–common labels include “VCC” for supply lines (typically 3.3V, 5V, or 12V in low-power setups) or “VDD” in CMOS designs. Currents appear as arrows with values in milliamps (mA) or amperes (A), often paired with series resistors; a “20mA” marking near a 220Ω resistor suggests a forward voltage drop of ~1.8V for standard emitters. Reference this table for quick decoding:
| Symbol | Typical Range | Component Implication |
|---|---|---|
| VF | 1.8–3.3V | Emitter forward voltage; subtract from supply for resistor sizing. |
| IF | 10–30mA | Forward current; higher values require heat sinks. |
| RL | 47–1kΩ | Limiting resistor; (Vsupply – VF)/IF = R value. |
Match polarity markings–flat-sided anodes connect to positive, cathodes (shorter legs, arrows, or stripes) to ground or resistors. AC symbols (sine waves or “~”) indicate rectified circuits; expect smoothing capacitors (10–100µF) downstream. For pulse-width modulation (PWM) lines, look for “EN” or “CTRL” labels with frequencies between 500Hz–2kHz and duty cycles annotated in percentages.

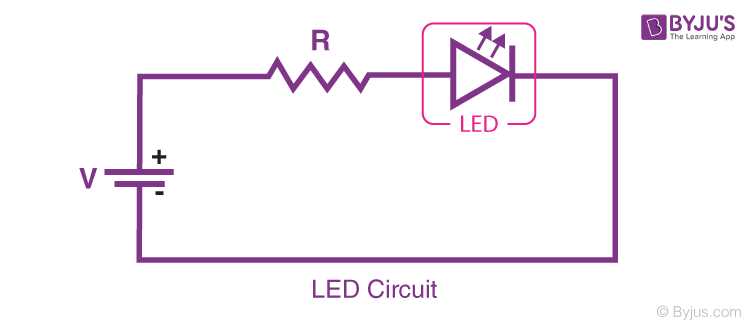

Step-by-Step Guide to Drawing a Basic Circuit Illustration
Gather these components before starting: a power source symbol (typically a battery), a resistive element (zigzag line for a resistor), and an indicator symbol (two arrows pointing outward for the semiconductor device). Place the power source on the left side of your workspace–this establishes the voltage input direction and improves readability.
Connect the positive terminal of the battery to the resistor using a straight horizontal line. Ensure the line maintains consistent thickness; variations can imply unintended circuit complexity. Next, extend the line from the resistor’s opposite end to the semiconductor’s anode (the longer lead). Add a short vertical line downward from the cathode (shorter lead), then draw a straight line back to the battery’s negative terminal–completing the loop.
Label each segment with values if known: 5V for the supply, 220Ω for the resistor, and a current-limiting note for safety. Use short, descriptive tags directly above or below lines to avoid clutter. Verify connections by tracing each path with a finger or stylus–no gaps should exist unless intentionally representing a switch.
For clarity, offset intersecting lines with a small semicircle where they cross. This standard convention prevents misinterpretation of unintended junctions. Finally, review the polarity of all elements; reversed anode-cathode placement will render the illustration functionally incorrect.
Selecting the Optimal Current-Limiter for Semiconductor Emitters
Calculate the required resistance value using Ohm’s law: R = (Vs - Vf) / If. For a 5V supply driving an emitter with a 2V forward drop and desired 20mA current, the resistor must be (5 - 2) / 0.02 = 150Ω. Round to the nearest standard value, typically 150Ω or 160Ω, but never exceed 10% deviation from the calculated value to prevent brightness inconsistencies or thermal runaway in high-power variants.
Choose resistor power rating based on circuit conditions. For the example above: P = (Vs - Vf) × If = 3V × 0.02A = 0.06W. A ¼W (0.25W) resistor is standard for most setups, but multipixel arrays or high-brightness emitters exceeding 50mA may require ½W or 1W ratings to avoid overheating. Always verify surface temperature during operation–resistors exceeding 60°C indicate insufficient dissipation.
- Carbon film: 5% tolerance, low cost, sufficient for hobbyist applications below 100mA.
- Metal film: 1% tolerance, stable across temperatures, ideal for precision or outdoor installations.
- Wirewound: High power handling (2W+), but inductance may cause voltage spikes in PWM-driven circuits.
- SMD (thick/thin film): Compact, heat-efficient, but requires reflow soldering for reliability.
Account for ambient temperature variations. Derating curves in datasheets show resistor failure rates rising exponentially above 70°C. For automotive or industrial uses, select resistors with operating ranges of -40°C to 125°C. Ceramic-encased wirewound types maintain stability in fluctuating thermal environments better than carbon compositions.
For emitter strings (multiple elements in series), sum forward voltages before calculating: R = (Vs - ∑Vf) / If. Example: three red elements (2V each) on a 12V rail at 15mA: (12 - 6) / 0.015 = 400Ω. Verify total current doesn’t exceed any single resistor’s rating–parallel strings require individual current-limiters to prevent imbalances.
Pulse-width modulated (PWM) circuits demand low-inductance resistors like metal film or SMD thick film to avoid phase shifts. Carbon types introduce 5–10ns delay per pulse, distorting signal fidelity in high-frequency applications. Always match resistor bandwidth to the driver’s switching speed–standard 1/4W carbon film tolerates up to 10kHz, while specialized non-inductive types handle 1MHz+.
