Visual Representation of Matter Concepts in Schematic Diagrams

Begin by isolating the core components of any material system. Break down the subject into fundamental particles, structural bonds, and energy states–these form the minimal viable framework for graphical interpretation. For solids, represent atomic or molecular lattices as interconnected nodes with precise spacing ratios, avoiding abstract symbols. Use thermal expansion coefficients to scale bond lengths dynamically if temperature variation is relevant. Liquids demand a focus on short-range order and kinetic energy: visualize particle trajectories as overlapping paths with velocity vectors, not static clusters.

Gases require a different approach. Compressibility factors dictate spacing; plot particles with Boyle’s law corrections at varying pressures. Phase transitions should be marked by step functions in color or line weight–avoid gradient metaphors. If depicting plasmas, highlight Coulomb force interactions by aligning charge densities with electric field lines. For each state, annotate with measurable parameters: density, viscosity, or conductivities at specified conditions.

For composite substances, map phase boundaries explicitly. Use distinct shapes for distinct components–spheres for polymers, cylinders for fibers, conic sections for dispersions. Avoid defaulting to monochrome; correlate element types to standardized color codes (e.g., nitrogen blue, carbon black, oxygen red). Label triple points on phase diagrams with exact pressure-temperature coordinates; fuzzy approximations undermine accuracy.

When integrating energy flow, use directional arrows scaled to magnitude. Thermal gradients can be shown as density plots with isolines at 10°C increments. For quantum systems, plot probability densities directly–abandon orbital depictions unless explicitly calculating electron positions. Every line and fill must correspond to a calculable metric; decorative elements obscure meaning.

Visualizing the Core Structure of Physical Substance

To accurately represent conceptual models of material composition, begin by categorizing primary phases: solid, liquid, gas, and plasma. Use hierarchical layers in your illustration–start with atomic nuclei at the center, surrounded by electron clouds. For solids, depict repeating lattice patterns with fixed angles (e.g., 109.5° for diamond cubic). Include crystalline imperfections like vacancies or dislocations at a scale of 1:100,000 unit cells to reflect real-world deviations.

For liquids, replace rigid grids with dynamic, short-range ordered clusters. Indicate hydrogen bonding in polar compounds (like H₂O) with dashed lines, showing bond lengths of ~1.8 Å. Use color gradients to represent density fluctuations; for example, blue for high-density regions (ρ = 1.2 g/cm³) transitioning to red for low-density zones (ρ = 0.8 g/cm³). Add directional arrows to show Brownian motion with velocities proportional to temperature (v ∝ √T).

Phase Transition Zones

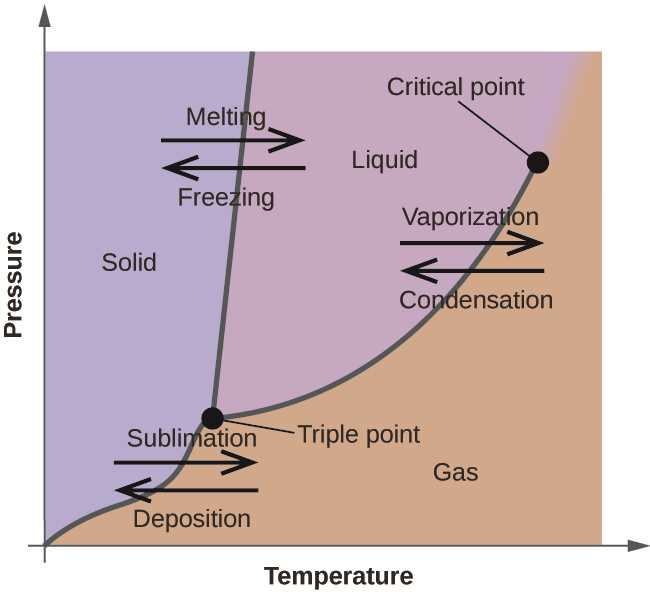

Highlight critical points where state changes occur. At the triple point–such as for CO₂ (T = -56.6°C, P = 5.11 atm)–draw a small circle with three diverging lines marking solid, liquid, and gas equilibrium. Annotate the latent heat values (e.g., 334 kJ/kg for H₂O fusion) near transition boundaries. For plasma, overlay a grid of charged particles, using “+” and “−” symbols with sizes proportional to ionization energy (e.g., He⁺ at 24.6 eV).

Incorporate quantitative scales for clarity. For nanoparticles, use a logarithmic axis (1 nm to 1 μm) with tick marks at 10 nm intervals. Label surface-area-to-volume ratios (e.g., 600 m²/g for 5 nm silica). For amorphous materials, show radial distribution functions with peaks at characteristic distances (e.g., 2.8 Å for vitreous silica). Avoid decorative elements; prioritize data density–limit colors to four (RGB + black) and line styles to three (solid, dashed, dotted).

Validate your model against experimental data. Cross-reference X-ray diffraction patterns (e.g., Bragg’s law: nλ = 2d sinθ) or spectroscopic signatures. For carbon allotropes, distinguish sp² hybridization (graphite) from sp³ (diamond) via bond angles in your layout–120° vs. 109.5°. Include error margins (e.g., ±0.2°) if sourced from simulations. Ensure all units follow SI conventions (kg, m, s) and convert imperial measures (e.g., °F → K).

Core Elements of a Physical Blueprint Representation

Start by isolating the primary structural blocks–identify no more than five critical modules per layout to prevent clutter. Label each segment with precise terminology matching industry standards, such as VCC for supply voltage or GND for ground reference, avoiding ambiguous abbreviations. Use hierarchical layering: power distribution on a dedicated plane, signal paths in sequential tiers, and auxiliary functions like capacitors grouped by purpose (decoupling, filtering).

Standardize connector symbols–solid rectangles for integrated circuits, circles for vias, and triangles for transistors–and align them to grid increments of 2.54 mm to ensure scalability across fabrication tools. Incorporate mandatory annotation layers: component designators (R1, C2) adjacent to pads, values in consistent units (μF, Ω), and reference designators for multi-part devices (U1A, U1B). For high-frequency designs, add impedance targets (50 Ω) directly on trace routes.

Signal Integrity Reinforcements

Route differential pairs with identical lengths, tolerating TP12) for automated validation.

Include thermal relief patterns for through-hole pads–four spokes at 45° angles with 0.3 mm width–to improve solderability without compromising conductivity. Reserve a silk-screen layer for polarity indicators (diodes, LEDs) and orientation keys (connector pin 1). Add an assembly drawing subset highlighting critical adjustments: jumpers, zero-ohm resistors, and configurable paths.

Validate netlist extraction against a reference bill of materials–flag discrepancies where pin counts or package types differ. Implement design rule checks: minimum trace width 0.2 mm, annular ring ≥0.15 mm, and solder mask expansion 0.1 mm beyond pad edges. For multi-layer boards, alternate signal directions (horizontal/vertical) between layers to minimize crosstalk.

Export Gerber files with explicit layer assignments: copper (Top/Bottom), solder mask, silk-screen, and drill coordinates. Embed aperture lists and include fabrication notes specifying material thickness (1.6 mm FR-4), surface finish (ENIG), and impedance-controlled stack-up requirements. Archive source files in open formats (.kicad_pcb, .brd) for future revisions.

Building a Visual Model for Concept Classification

Select a core subject–physical substance, energy form, or abstract entity–and isolate its three fundamental properties. Use a blank workspace: draw a central oval with the subject’s name, then branch out three radial lines, each terminating in a labeled rectangle for density, phase, and reactivity.

Split each property into measurable components. For density, add sub-branches for mass (grams), volume (cubic centimeters), and derived ratio (g/cm³). Phase requires distinct states: solid block, flowing liquid, gaseous cloud–illustrate each with simple icons. Reactivity demands inputs: oxidizers, catalysts, inert blockers–map them as interlocking arrows pointing back to the main oval.

Color-code interactions. Use red for high-energy conversions, blue for stable conditions, and yellow for transitional states. Apply solid lines for direct relationships, dotted for conditional dependencies, and dashed for reversible processes. Limit arrows to eight to prevent clutter; merge parallel flows into single channels.

Layering Scale and Context

Add concentric circles around the central oval. The innermost ring defines atomic structure (protons, electrons, bonds); the next tier covers macroscopic clusters (crystals, polymers). Each circle retains the same three-property branching but adjusts units: picometers for atomic, meters for bulk.

Introduce environment markers–temperature nodes at the bottom, pressure nodes on the sides–link them to phase branches with thin dotted connectors. Place numerical thresholds directly beside each node, ensuring values sit outside the arrows to keep flows unobstructed.

Validate each branch with real-world benchmarks. Density branches must cite specific gravity values; phase changes reference boiling or melting points; reactivity branches list half-life or reaction rates. Include citations in 8-pt font beneath corresponding nodes.

Final Refinement Checks

Scan for orphaned elements–any component without incoming or outgoing connectors. Merge duplicate labels; replace generic terms (“observed behavior”) with precise metrics (“reduction potential -0.34 V”). Test legibility by printing at A3 size–every label must remain readable without magnification.

Export the model as a scalable vector file. Embed metadata: creation timestamp, revision number, and tool version in the file’s document properties. Distribute a PDF thumbnail alongside the master file for quick visual reference.

Common Symbols and Notations for Representing Physical States

Use standardized glyphs to avoid ambiguity in technical documentation. Solid phases are universally denoted by (s), liquids by (l), gases by (g), and aqueous solutions by (aq). Plasma–rare in basic diagrams–requires (pl). For mixtures, distinguish suspensions ((susp)), colloids ((col)), and emulsions ((emul)) to prevent misinterpretation. ISO 80000-4:2019 confirms these conventions; deviate only with explicit justification.

• Single-component transitions: Arrows between symbols indicate phase changes–(s) → (l) for fusion, (l) → (g) for vaporization.
• Multi-component interactions: Stack symbols vertically for concurrent states–e.g., (s) + (g) for sublimation.
• Dynamic conditions: Append temperature (T) or pressure (P) in parentheses–(g, T>373K)–to denote superheated steam.

Specialized Annotations

For crystalline allotropes, subscript numerals differentiate forms–(s_α) vs. (s_β) for sulfur. Ionic states employ brackets: [Na⁺(aq)] + [Cl⁻(aq)]. In electrochemical schematics, omit implicit charges; use ↔ for reversible reactions and → for irreversible. Legacy texts may use ↓ (precipitate) and ↑ (gas evolution)–replace these with modern (s) and (g) unless replicating old manuscripts.
