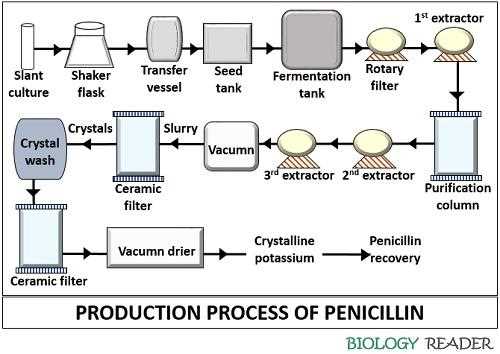

StepbyStep Schematic of Penicillin Manufacturing Process Explained

To optimize industrial biosynthesis of beta-lactam compounds, initiate with a high-yield Penicillium chrysogenum strain–specifically Wisconsin 54-1255 or its derivative DS17690. These strains achieve titers exceeding 50 g/L under controlled conditions. Select a fermenter with Rushton turbines for efficient oxygen transfer, maintaining dissolved oxygen above 20% saturation during exponential growth. Failure to sustain this threshold reduces secondary metabolite output by 30-45%.

Feed substrate phenylacetic acid (PAA) incrementally–0.5 g/L/h during trophophase, escalating to 1.2 g/L/h post-48 hours. Overfeeding triggers catabolite repression, collapsing yields. Monitor extracellular proteases via azocasein assay; levels above 0.1 U/mL signal culture degradation. Adjust pH dynamically: 6.0 during growth phase, dropping to 5.0 pre-harvest to inhibit beta-lactamase activity. Calcium carbonate buffering prevents pH drift, but excessive use (>20 g/L) causes osmotic stress.

Downstream isolation begins with microfiltration (0.2 µm) to remove mycelia, followed by activated carbon adsorption (Darco KB-B) at pH 2.5. Recover 92-95% of target molecule using 50% acetone eluent–acetonitrile reduces yield by 8%. Crystallization requires precise supersaturation control: cool from 50°C to 5°C over 6 hours. Rapid cooling forms unstable polymorphs, cutting final purity below 97%. Store crystals at 4°C in stainless steel 316L drums; oxidation occurs above 25°C within 72 hours.

Validate each batch via HPLC-UV (254 nm) against USP Reference Standard 8565. Impurities–especially penicilloic acid and 6-aminopenicillanic acid–must not exceed 2%. For scaled purification, countercurrent chromatography achieves 99.5% purity but increases costs by 22%. Evaluate trade-offs between yield loss (3-5% in semicontinuous systems) and capital expenditure before selection.

Visual Representation of β-Lactam Antibiotic Synthesis Pathway

Begin with a semi-continuous submerged cultivation system using Penicillium chrysogenum strains optimized for high-yield biosynthesis. Select NRRL 1951-derived mutants (e.g., Wisconsin 54-1255) with titer improvements exceeding 50 g/L under fed-batch conditions. Incorporate lactose as the primary carbon source in the initial growth phase, transitioning to sucrose feed at 48–72 hours post-inoculation to sustain secondary metabolism.

Integrate pH-controlled fermentation with 6.0–6.5 target range maintained via automated ammonium hydroxide addition. Avoid phosphate limitation–optimum levels reside between 0.1–0.3 g/L KH₂PO₄–to prevent premature conidiation and penicillin degradation. Oxygen transfer rates must exceed 1.2 mmol/L·min^-1; deploy air spargers with 0.2 mm microbubbles for efficient dispersion without excessive foaming.

Implement phenylacetic acid (PAA) precursor feeding at 0.5–1.0 g/L·h^-1, initiating no earlier than 24 hours after inoculation. Use calcium or potassium salts of PAA to minimize toxicity while ensuring solubility. For high-density cultivations, employ two-stage feeding: pulse-add PAA during exponential phase, then switch to continuous dosing during stationary phase to maintain specific production rates above 5 mg/g·h^-1.

Incorporate real-time monitoring via mid-infrared spectroscopy for acetic acid accumulation–levels surpassing 2 g/L indicate metabolic stress, necessitating feed rate adjustments. Include inline filtration for biomass removal in perfusion systems to extend cultivation beyond 140 hours. Clarify broth using rotary vacuum filters with 80–120 µm pore size cellulose filter aids, achieving >98% cell mass reduction prior to solvent extraction.

For purification, apply countercurrent extraction with butyl acetate at pH 2.0–2.5, followed by pH shift to 7.5–8.0 using potassium hydroxide for re-extraction into aqueous phase. Minimize interfacial emulsions by controlling ionic strength (0.2–0.5 M KCl) and maintaining extraction temperature at 5–10°C. Crystallization yields sodium or potassium salts via cooling to 4°C; target particle size distribution centers on 100–150 µm for downstream formulation compatibility.

Avoid β-lactamase contamination by sterilizing all transfer lines with 0.1 N NaOH for 30 minutes post-run. Include redundant bioburden reduction filters (0.2 µm) at broth harvest and solvent feed points. Validate process hold times–broth stability degrades by 1% per hour at 25°C, necessitating immediate processing upon harvest completion.

Optimize waste stream treatment: adjust mycelial cake pH to 11.5 with lime prior to composting to neutralize residual β-lactams. Recover spent solvents via fractional distillation with >99% efficiency; monitor acetone and methyl isobutyl ketone residues in final product via gas chromatography–limit concentrations to

Critical Elements in a Beta-Lactam Antibiotic Synthesis Workflow

Select strains of Penicillium chrysogenum with spore counts exceeding 1×10⁸ CFU/ml and verified resistance to phenylacetic acid concentrations up to 2.5 g/l. Maintain a cryopreservation protocol at -80°C in 15% glycerol v/v for long-term culture viability, thawing only in 30°C water baths with agitation at 120 RPM for no longer than 5 minutes. Avoid freeze-thaw cycles above three; discard replicates exhibiting more than a 12% decrease in secondary metabolite yield post-revival.

Fermenter Configuration Parameters

Component	Optimal Range	Failure Threshold
Dissolved Oxygen	25–40% saturation	<18% for >4h
pH	6.2–6.8	Outside 6.0–7.0 >2h
Temperature	25–27°C	>30°C or <23°C >1h
Agitation	300–500 RPM	Constant <250 RPM >30m
Nitrogen Source	Corn steep liquor (3–5% w/v)	Ammonia >1.2 g/l

Install cascading PID controllers to modulate airflow and agitation speed based on dissolved oxygen readings, ensuring nitrogen flow rates do not exceed 0.3 VVM during exponential growth. Equip fermenters with in-line Raman probes post-24h mark to detect isopenicillin N synthase activity peaks, triggering phenylacetate feed pumps at 400–600 ml/h when 6-aminopenicillanic acid titers surpass 1.8 g/l.

Implement a three-stage harvest protocol: initial centrifugation at 8,000 × g for 10 minutes to remove mycelial biomass, followed by microfiltration through 0.22 µm polyethersulfone membranes to eliminate residual proteins, and final purification via counter-current extraction using amyl acetate at pH 2.5. Monitor extraction columns for breakthrough curves, replacing solvent batches when partition coefficients drop below 12. Maintain cryohydrate conditions at -20°C during storage, verifying moisture content remains below 0.5% via Karl Fischer titration.

Adopt aseptic sampling ports with sterile nitrogen backpressure to prevent contamination during repeated sampling. Use 18% NaOH feed solutions for pH adjustments, avoiding ammonium hydroxide to prevent nitrogen catabolite repression. Calibrate all sensors to NIST-traceable standards quarterly, with deviations exceeding 2% triggering immediate shutdown and recalibration protocols. Document all deviations from setpoints lasting over 15 minutes, cross-referencing with near-infrared spectroscopy data to identify unidentified metabolite accumulation.

Step-by-Step Mapping of *Penicillium chrysogenum* Growth Phases

Initiate strain activation by inoculating Penicillium chrysogenum spores from a lyophilized stock into a 50 mL seed medium containing 3% glucose, 0.5% peptone, 0.3% yeast extract, and 0.1% NaCl at pH 6.0. Incubate at 25°C with shaking at 220 rpm for 48 hours–monitor biomass density via optical density (OD₆₀₀) targeting 0.8–1.2 before transferring to the next stage. Avoid exceeding 5% (v/v) inoculum volume in subsequent phases to prevent nutrient depletion and pH drift.

Optimizing Fed-Batch Fermentation

Transition the culture to a 1 L stirred-tank bioreactor with lactose (1.5% w/v) as the primary carbon source and phenoxyacetic acid (0.5 g/L) as the precursor; maintain dissolved oxygen at 40% saturation via cascaded agitation (400–800 rpm) and aeration (0.5–1.0 vvm). Introduce nitrogen via ammonium sulfate (0.2% w/v) and phosphate via KH₂PO₄ (0.05% w/v) in a controlled feed regimen–carbon-to-nitrogen ratio should not drop below 10:1 to avert catabolite repression. Harvest after 120–144 hours when β-lactam titer plateaus (HPLC detection at 214 nm) and mycelial viability declines below 80% (methylene blue staining).

Engineering a Contamination-Free Blueprint for Antimicrobial Culture Media

Incorporate dual-stage pre-sterilization filters with 0.1 μm pore size upstream of the steam inlet to eliminate airborne particulates before media heating. Position these filters within a sealed stainless-steel manifold rated for 150°C thermal cycling, ensuring compliance with ISO 13408-1 standards for aseptic processing.

Select autoclave-resistant borosilicate vessels with fully welded flange connections to prevent microfractures during repeated thermal shock. Use vessels with a minimum design pressure of 3 bar and integrate redundant silicone O-rings impregnated with 2% silver ions to inhibit biofilm formation at flange interfaces.

• Media sterilization cycles must adhere to logarithmic reduction targets: ≥12-log for bacterial endospores, ≥8-log for fungal spores, validated via Bacillus stearothermophilus biological indicators (ATCC 7953).
• Pre-heat deionized water to 90°C before nutrient addition to minimize foaming and prevent Maillard reactions between reducing sugars and amino acids.
• Adjust steam injection rate to 0.8 kg/min per 100 L vessel capacity to maintain uniform heat distribution during the 15-minute holding phase at 121°C.

Integrate inline spectroscopy sensors (280–350 nm UV range) post-sterilization to detect residual organic contaminants at concentrations <0.1 ppm. Calibrate sensors against a blank media baseline every 24 hours to account for optical drift caused by protein denaturation during sterilization.

Design media transfer lines with tri-clamp fittings and electropolished inner surfaces (Ra <0.4 μm) to prevent adhesion of hydrophilic components like starch or dextran. Use peristaltic pumps with steam-sterilizable silicone tubing (Shore A 60–70 hardness) for media dosing; avoid centrifugal pumps to eliminate shear-sensitive component degradation.

1. Sterilize all additives (e.g., phenylacetic acid precursors, trace metals) separately in 1.5 L glass ampoules at 134°C for 5 minutes before aseptic addition via membrane-filtered (0.2 μm) transfer lines.
2. Implement a closed-loop nitrogen purge system (99.999% purity) during media cooling to prevent oxidative stress on thermolabile vitamins and cofactors.
3. Store sterilized media at 4°C for ≤72 hours; monitor pH drift every 8 hours using sterilizable glass electrodes calibrated with NIST-traceable buffers pH 4.01 and 7.00.

Anchor all fermentation vessels on vibration-isolated platforms with active damping (natural frequency <2 Hz) to prevent sedimentation of insoluble components like calcium carbonate or talc. Install clean-in-place (CIP) nozzles with 316L stainless steel balls and 180° spray patterns to ensure ≥99% coverage of vessel surfaces during alkaline wash cycles (NaOH 2% w/v at 80°C).

Validate sterilization efficacy through fractional factorial experiments measuring glucose depletion rates in E. coli K-12 (ATCC 25404) miniature batch cultures. Target ≤2% coefficient of variation across technical replicates to confirm absence of inhibitory byproducts from Maillard reactions or lipid peroxidation.
