Complete Guide to Push Button Switch Circuit Layout and Connections

Use a normally open (NO) contact configuration for standard triggering applications. This setup ensures the circuit completes only when the actuator is depressed, making it ideal for momentary actions like startup sequences or reset functions. For low-voltage DC circuits–typically 3V to 12V–pair the contact with a 1N4148 diode across the coil to suppress voltage spikes, protecting sensitive microcontrollers from transient damage.

In high-current AC applications (10A or above), select silver-alloy contacts instead of standard copper. Silver maintains conductivity under arcing conditions, reducing resistance buildup over repeated cycles. For dimmable LED systems, integrate a series resistor (470Ω–1kΩ) between the actuator and the triac gate to prevent false triggers from back EMF, extending both contact and load lifespan.

For multistage control (e.g., fan speed or lighting presets), stack multiple isolated SPST contacts in a single housing. Each pole should feed into a separate opto-isolator (e.g., MOC3041) to bridge low-voltage logic with 120/240V loads without ground loops. Label wiring clearly–phase (L), neutral (N), and load (L1)–using color-coded heat-shrink tubing (red/black/blue) to avoid misalignment during assembly or troubleshooting.

Avoid soldering directly to terminal lugs; use crimped connectors (e.g., ferrule or fork terminals) with a ratcheting crimper for consistent clamping force. This prevents intermittent failures from cold joints or vibration. For PCB-mounted variants, position the actuator so pressing force aligns with the contact spring’s axis–off-center pressure accelerates wear. Test switch longevity by simulating 50,000 cycles at nominal load before deployment.

Understanding Electrical Representations of Momentary Contact Devices

Always include a normally open (NO) or normally closed (NC) symbol to define the initial state of the control element in your circuit layout. A NO configuration ensures current flows only when the actuator is engaged, ideal for start mechanisms, while NC maintains continuity until pressed, suited for stop or emergency signals. Use standardized IEC or ANSI symbols–NO appears as two parallel lines with a gap, NC as the same lines crossed by a diagonal–to prevent misinterpretation during prototyping or troubleshooting. Label pins explicitly if working with surface-mount or through-hole components, where manufacturer datasheets often assign arbitrary numbering.

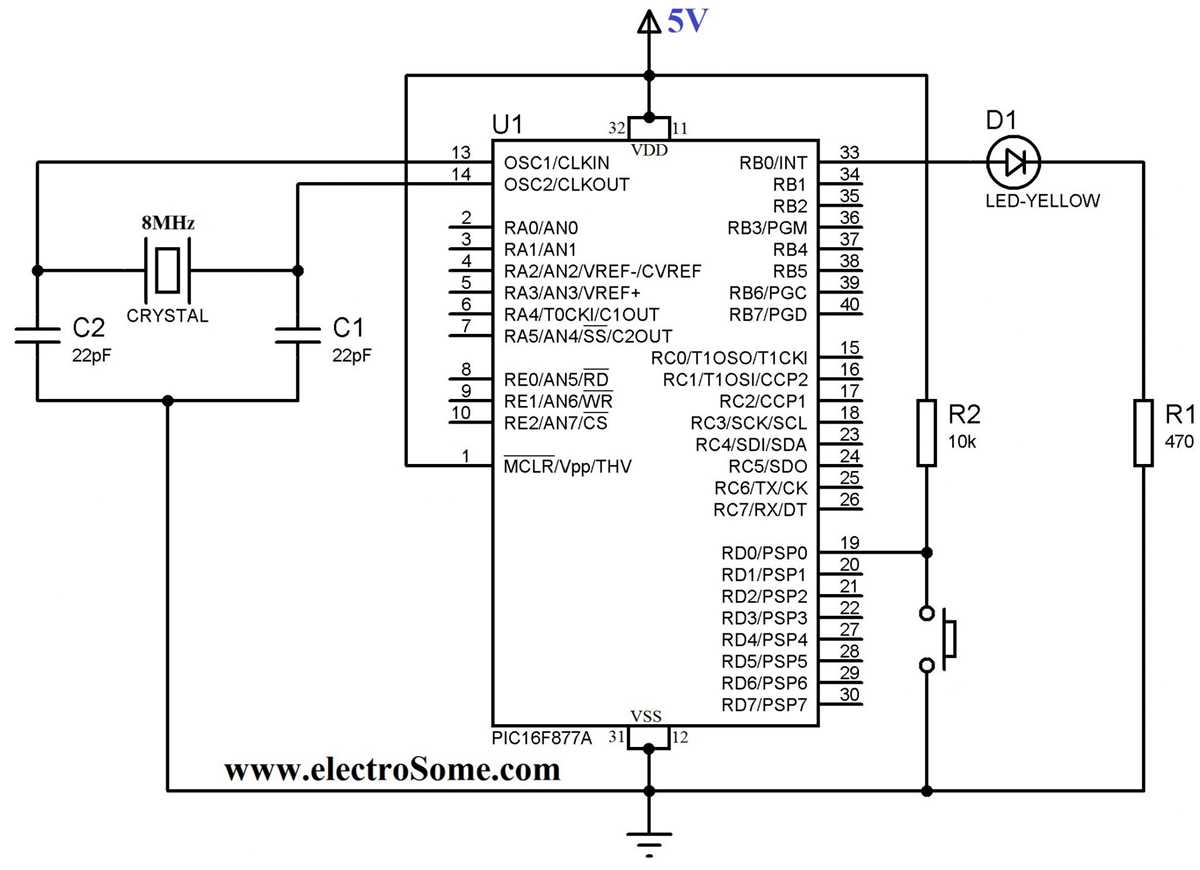

For debounce circuits, pair the contact device with a resistor-capacitor (RC) network or a Schmitt trigger IC like the 74HC14. Place a 10 kΩ pull-up/pull-down resistor between the input pin and VCC/GND, depending on logic level requirements, then add a 0.1 µF capacitor in parallel to filter voltage spikes. This eliminates false triggers in microcontroller-based systems without additional coding. If using an Arduino or similar board, leverage built-in debounce libraries (e.g., `Bounce2`) but ensure the RC values align with interrupt latency–too large a capacitor risks sluggish response.

In high-current applications (e.g., motor control), isolate the control element from load circuitry using a relay or solid-state optocoupler like the PC817. Wire the relay coil (typically 5V–24V) in series with the NO/NC contacts, then connect the load to the relay’s switched terminals. For AC loads, opt for a TRIAC-based optocoupler (e.g., MOC3041) to handle inductive transients. Verify coil current ratings–most miniature relays require 50–80 mA, which may exceed the control element’s direct-drive capacity without a transistor (e.g., 2N2222) or MOSFET (e.g., IRLZ44N) as an intermediary.

Test fault conditions by simulating stuck contacts or wire breaks–apply a multimeter in continuity mode across terminals while manipulating the actuator. If designing for fail-safe operations (e.g., safety interlocks), wire multiple NC elements in series so any single failure opens the circuit. For programmable logic controllers (PLCs), refer to manufacturer-specific input module specifications; Allen-Bradley’s 1756-IB16, for instance, sinks current, requiring a compatible configuration (e.g., +24V to common) with no external resistors unless specified otherwise.

Key Components in a Manual Actuator Circuit

Select a momentary contact mechanism with a spring-loaded return to ensure consistent reset behavior under 2–5N actuation force–avoid linear slides exceeding 6mm travel unless tactile feedback is critical for user safety. Pair this with a single-pole, double-throw (SPDT) or double-pole, double-throw (DPDT) snap-action microswitch rated for at least 120% of peak circuit current; opt for gold-plated beryllium copper contacts for currents below 100mA to prevent oxidation and maintain low contact resistance under 30mΩ. For high-cycle applications (>100k actuations), specify a hermetically sealed unit with silicone-rubber booting to block dust and moisture ingress, particularly if ambient humidity exceeds 80% RH.

Integrate a flyback diode (e.g., 1N4007) directly across inductive loads–relays, solenoids–to clamp voltage spikes above 1.5× supply voltage; position it within 5mm of the coil terminals to minimize loop inductance. For transient suppression, add a 0.1μF ceramic capacitor across the actuator contacts if arc suppression is required during rapid on/off cycles (

Step-by-Step Wiring of Normally Open and Normally Closed Contacts

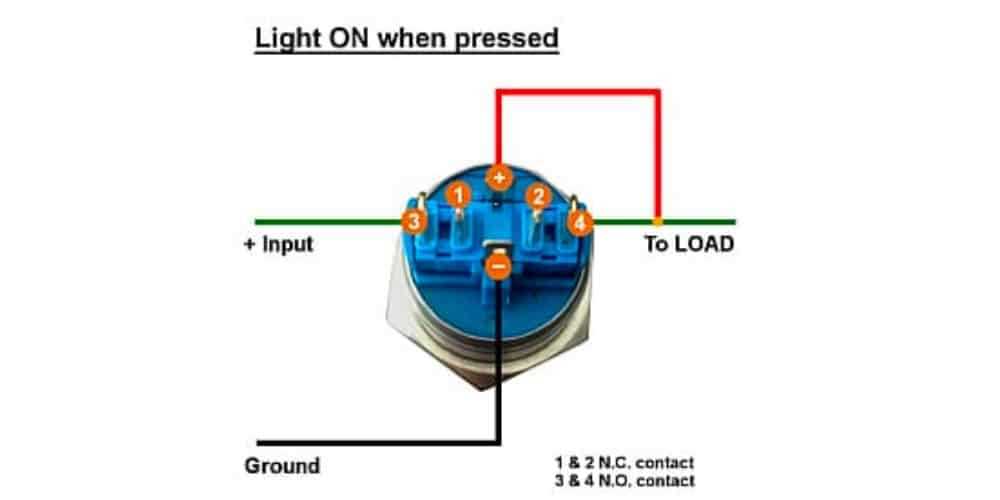

Begin by identifying the control device terminals: common (C), normally open (NO), and normally closed (NC). Use a multimeter in continuity mode to verify which terminal remains connected to C when the actuator is at rest (NC) and which connects only when pressed (NO). Record these findings directly on the device or in your project notes–mislabeling will cause reverse functionality.

For a momentary actuator wired as NO, connect the power source to the C terminal. Run the load (relay coil, indicator lamp, or motor) from the NO terminal to ground or neutral. Upon actuation, the circuit completes, energizing the load. Critical: ensure wire gauge matches the load current–18 AWG suffices for signals under 5A, but 14 AWG is mandatory for 10A+ applications.

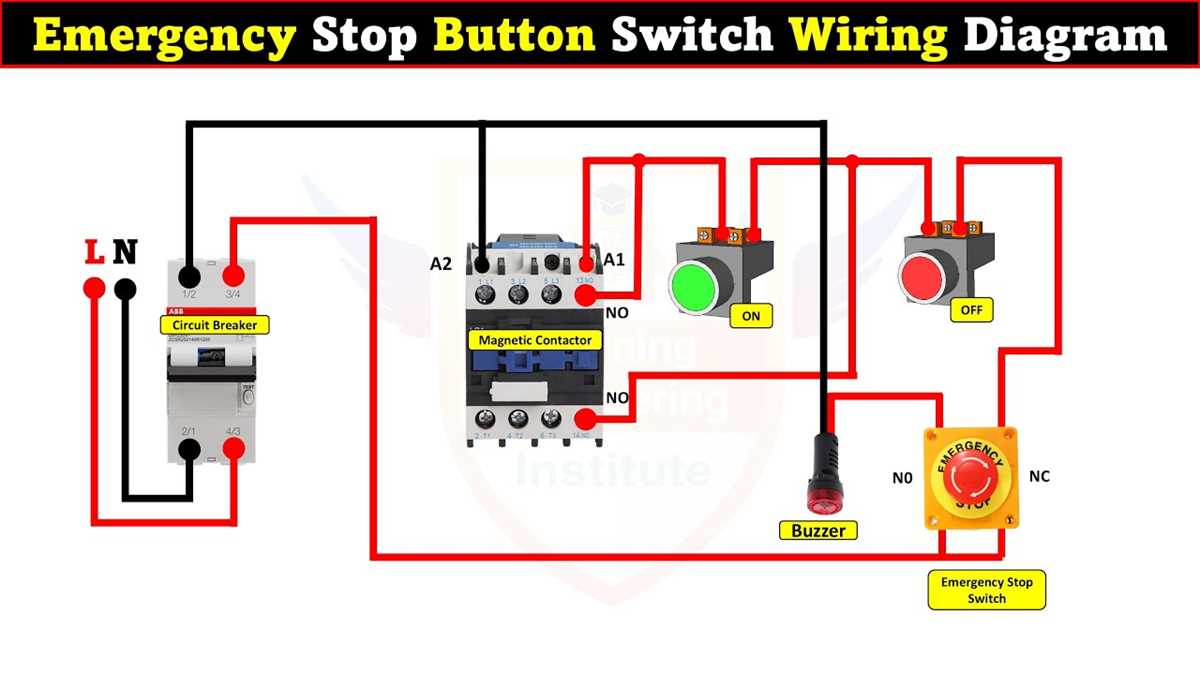

Wiring an NC contact follows the same process but reverses the outcome. Power enters C, while the load ties to NC. The load remains energized until the actuator engages, breaking the path. Applications include emergency stop systems or fail-safe lighting–test by pressing the actuator; the load must deactivate immediately. If it doesn’t, recheck polarity or verify NC/NO labels with the multimeter again.

Safety Considerations

• Never bridge C to both NO and NC simultaneously–this creates a short when actuated, risking component burnout.
• Use crimp connectors or solder with heat-shrink tubing for outdoor or high-vibration environments; stranded wire (not solid) prevents fatigue fractures.
• Add a 1N4007 diode across inductive loads (relays, solenoids) to suppress voltage spikes–mount it as close to the load as possible, cathode to positive.
• For AC circuits, confirm the control device is rated for mains voltage (e.g., 120V/240V) before wiring; DC-rated actuators will arc and fail under AC.

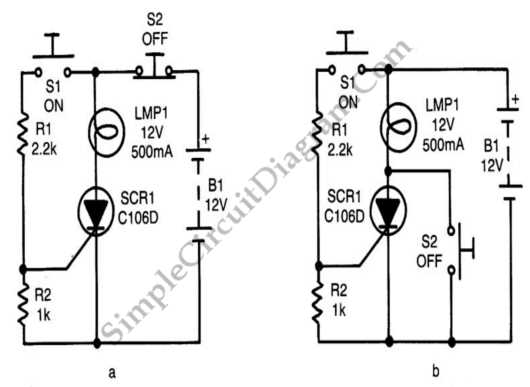

When integrating both NO and NC contacts into a single system–such as a dual-mode latching circuit–wire the NO for function execution and the NC for self-holding. Example: A start actuator (NO) energizes a relay coil, while a stop actuator (NC) cuts power to the coil. Use a relay with a 10A+ contact rating for motors, but opt for low-power reed relays (≤500mA) for logic signals to reduce wear.

Finalize with a polarity test. Connect a battery (e.g., 9V) to C and NO–briefly touch the NO lead to the battery’s positive terminal while monitoring the load. It should activate only during contact. Repeat for NC; the load should remain on until the actuator is pressed. Document the wire colors and terminal labels on a ladder logic diagram or physical labels–future troubleshooting will depend on this clarity.

Common Symbols and Their Meanings in Control Circuit Graphics

Always reference the IEC 60617 or ANSI Y32.2 standards when interpreting circuit representations–regional variations exist, and misalignment with local conventions can lead to costly design errors. Below is a breakdown of the most frequently encountered graphical elements:

─┬─

─┴─

─⏚─

─♂─

─□─

Misinterpreting a Normally Closed contact as Normally Open can invert logic behavior–always cross-check against the legend and verify with continuity testing if the physical unit is accessible. For multi-state devices like rotary selectors or potentiometers, look for additional annotations indicating position counts; absence of these details suggests a simplified representation that may omit critical transitional states.

When working with imported equipment or legacy documentation, watch for deviations: European notation often combines the actuator and contact symbols into a single glyph, while North American diagrams typically separate them. If a symbol appears ambiguous, probe its behavior using a multimeter in resistance mode–low impedance under quiescent conditions identifies a Normally Closed path, while high impedance indicates Normally Open.
