How Solar Panels Work Step-by-Step Guide to Photovoltaic System Design
Begin with a clear isolation of components: Map the photovoltaic array first–identify panel wattage (e.g., 300W–400W per unit), tilt angle (15°–40° depending on latitude), and string configuration (series-parallel for voltage matching). Use a microinverter (e.g., Enphase IQ8) for individual panel optimization or a string inverter (e.g., Fronius Primo) with multiple MPPT inputs for larger arrays. Specify wire gauges–#10 AWG for branch circuits, #6 AWG for combiner to inverter–to prevent voltage drop (target
Integrate battery storage strategically: For off-grid or hybrid systems, lithium iron phosphate (LiFePO4) batteries dominate due to 6,000+ cycle life and 95% depth of discharge. Pair with a charge controller (e.g., Victron MPPT 150/35) sized to handle 125% of array short-circuit current. Include a DC disconnect between array and controller, and an AC disconnect between inverter and grid (NEC 690.13–15 requirements).
Optimize grid interaction: For net-metered systems, install a bi-directional meter and comply with local interconnection standards (e.g., UL 1741 for inverters). Include a rapid shutdown switch within 10 feet of the array per NEC 690.12. Ground all metal components using #6 AWG copper wire bonded to a ground rod driven 8 feet deep, with separate equipment grounding conductors for each string.
Validate with simulation tools: Use PVsyst or SAM (System Advisor Model) to model shading losses (keep

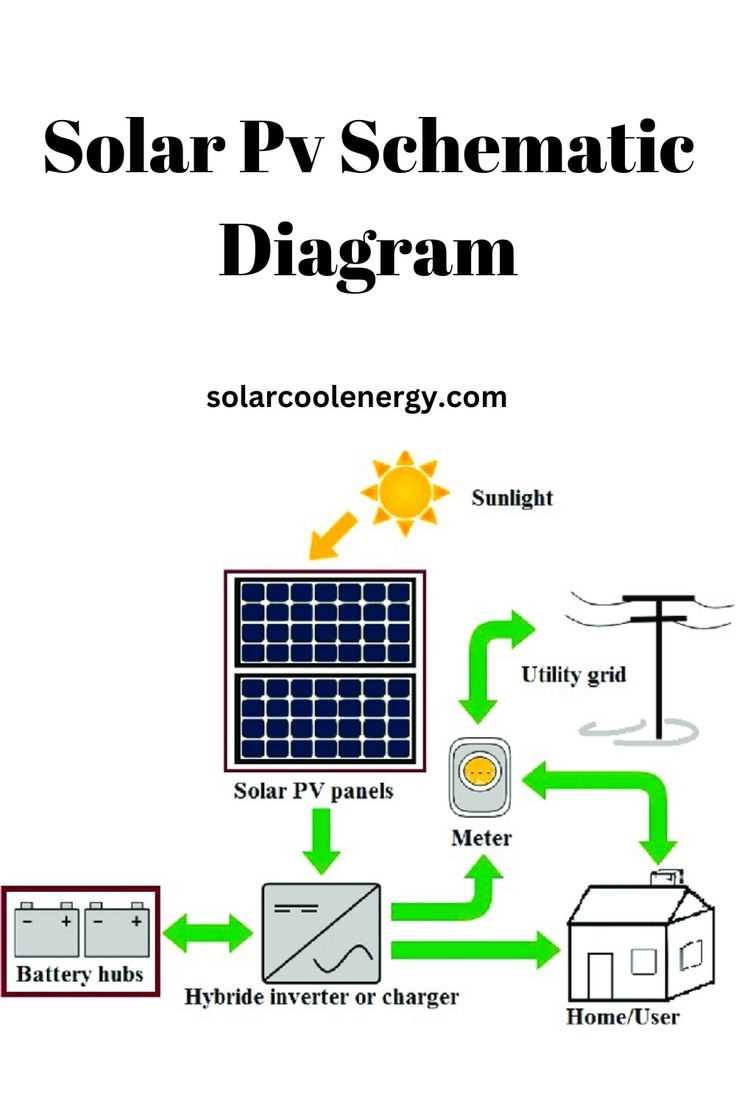

Visual Representation of Photovoltaic Power Systems

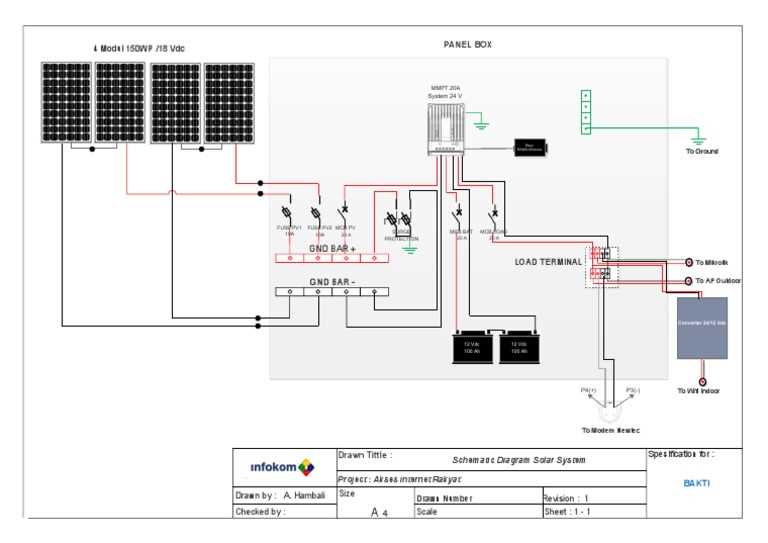

Begin by segmenting the layout into three core blocks: generation, conversion, and distribution. Place the photovoltaic panels at a 30-40° angle facing true south (northern hemisphere) or true north (southern hemisphere) for optimal irradiance capture. Indicate the direct current (DC) output lines with 10 AWG copper wiring for systems under 10 kW to minimize resistive losses.
Integrate a charge controller between the module array and battery bank, specifying a maximum power point tracking (MPPT) model for 20-30% higher efficiency over pulse-width modulation (PWM) alternatives. Label the battery terminals clearly–positive to positive, negative to negative–to prevent reverse polarity damage. For lithium-ion storage, ensure a battery management system (BMS) is included to monitor cell voltage, temperature, and state of charge (SoC).
- Use 60-cell monocrystalline modules (300-400W range) for residential setups–higher efficiency per square meter than polycrystalline.
- Position the inverter within 5 meters of the battery bank to reduce voltage drop. For grid-tied systems, select a hybrid inverter with anti-islanding protection.
- Ground all metallic components with 6 AWG bare copper conductors, bonding to a grounding rod driven at least 2.4 meters deep.
For off-grid configurations, illustrate a diversion load (e.g., air heater or water pump) on the DC bus to dissipate excess energy when batteries reach 100% SoC. Grid-tied setups require a bidirectional meter to track net consumption–mark the utility connection point with a disconnect switch rated for 1.5× the system’s maximum continuous current.
Include surge protectors on both DC and alternating current (AC) sides–DC-rated for 600V and AC-rated for 277V (split-phase) or 480V (three-phase). Specify combiner boxes for systems exceeding 8 modules, grouping strings in parallel with fuses matching the module’s short-circuit current (Isc) multiplied by 1.56 for safety margin calculations.
- Calculate wire sizing using the formula:
Allowable Voltage Drop (%) = (2 × Length × Current × Resistance) / Voltage. For 3% drop on a 48V system at 20A over 10 meters, use 8 AWG copper. - Label all conduits and junction boxes with waterproof tags–IP67 minimum for outdoor components.
- Indicate breaker sizes: DC breakers 1.25× the string’s Isc, AC breakers matching the inverter’s continuous output rating.
Critical Elements of a Photovoltaic Installation Blueprint
Select monocrystalline panels with a minimum 22% efficiency rating for rooftop or ground-mounted arrays to maximize yield in constrained spaces. Pair them with microinverters rated for 97%+ conversion efficiency–Enphase IQ8 or SolarEdge Power Optimizers–to mitigate shading losses and enable module-level monitoring. For off-grid setups, specify lithium iron phosphate batteries with a 10-year cycle life and 80% depth-of-discharge warranty; avoid lead-acid variants due to their 3–5 year lifespan and higher degradation rates. Size the charge controller to handle 25% overcurrent protection: a 40A MPPT unit suffices for a 12V/500W system, while a 60A model accommodates 24V/1kW arrays.
Wiring and Safety Margins
Use 6 AWG copper wiring for branch circuits in residential systems, downgrading to 10 AWG only for runs under 10 meters; oversizing by one gauge prevents voltage drop exceeding 2%–critical for inverter stability. Install combiner boxes with 600V DC-rated breakers and surge arrestors (IEC 61643-31 compliant) at array outputs to suppress spikes. Grounding rods must extend 2.5m deep in high-resistivity soil, bonded to the racking with tinned copper wire no smaller than 8 AWG. Specify rapid-shutdown devices meeting NEC 690.12 within 30cm of modules: SunSpec-certified solutions trigger in under 10 seconds to isolate panels during emergencies.

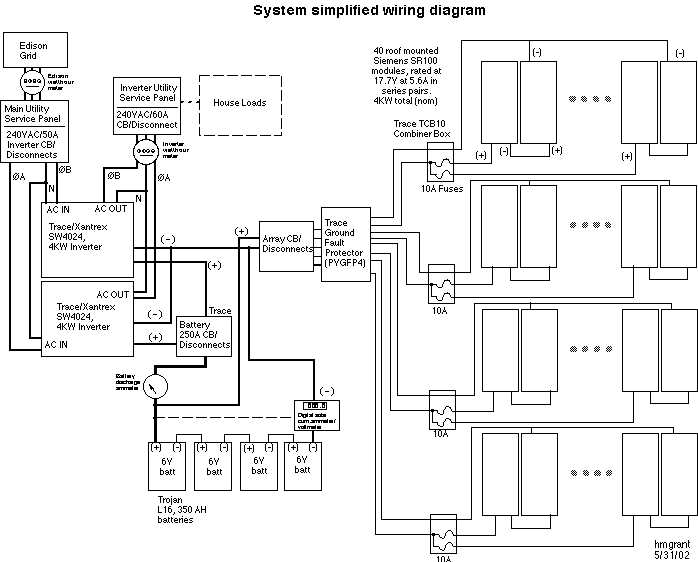

Interpreting Electrical Blueprints for PV Installations
Identify the main busbars first–these thick horizontal or vertical lines represent the primary power conduits. Locate the incoming feed from the inverter or charge controller; it’s typically marked with voltage ratings (e.g., 48V, 240V) and thicker than branch circuits. Count the number of conductors–most residential PV setups use three: positive, negative, and grounding–but commercial arrays may include neutral or dual-phase feeds.
Trace each string of panels backward to its combiner box. Look for dashed or dotted lines indicating DC output; these converge into solid lines post-combiner, showing consolidated current. Note inline components: blocking diodes (prevent reverse flow), fuses (rated 10–15A per string), and disconnect switches (mandatory for maintenance). Skip any symbols labeled “optional”–they’re manufacturer-specific, not standardized.
Decoding Disconnect Sequences
Study the legend for symbols: a solid rectangle with an “X” denotes a fuse; two angled lines crossing a conductor mean a disconnect switch. Verify the sequence–PV output should pass through a DC disconnect before reaching the inverter, then an AC disconnect post-conversion. Some blueprints embed surge protectors (varistors or gas discharge tubes) near the inverter input; these are critical for lightning-prone areas.
Calculate wire gauges using the legend or referenced table–10 AWG for 30A circuits, 6 AWG for 60A, but adjust for ambient temperature derating (NEC 310.15(B)(2)). Highlight any undersized conductors–these create fire hazards. Cross-reference component labels with the bill of materials; mismatches indicate outdated diagrams or installation shortcuts.
Locate grounding points: a solid green line or a triangle touching a conductor. Each string must ground at the combiner box, and the inverter’s metal housing should bond to the grounding electrode system. Missing grounding paths violate NEC 690.43–flag these immediately. For microinverter setups, grounding symbols appear at each panel’s junction box, not centralized.
Testing Connectivity Before Energizing
Use a multimeter to validate continuity across all printed paths. Set the dial to ohms (Ω) and measure between circuit endpoints–reading “OL” (open line) signals a broken connection. Check polarity: DC positive connects to the central busbar’s upper slot, negative to the lower. Reverse polarity burns inverters within seconds. For AC circuits, verify phase alignment–miswired grids cause destructive feedback. Finally, confirm torque specs on terminal blocks–loose connections arc at 50A+ currents.
Step-by-Step Process for Designing Photovoltaic Array Circuit Configurations
Begin by calculating system load requirements based on peak wattage and daily consumption. For off-grid setups, multiply the total load by 1.25 to account for inefficiencies in charging cycles. Grid-tied systems require matching inverter capacity to the utility’s interconnection limits–typically 120% of the panel’s rated output for North American installations.
Select module voltage and current parameters that align with charge controller specifications. MPPT controllers demand Voc (open-circuit voltage) inputs within 150% of their rated maximum, while PWM units require exact panel-battery voltage matching. Use the following reference values for 60-cell silicon panels:
| Parameter | Standard Value | Cold Temp (-10°C) Adjusted |
|---|---|---|
| Voc | 40.0V | 44.8V |
| Vmp | 33.0V | 37.0V |
| Isc | 9.8A | 10.3A |
| Imp | 9.2A | 9.7A |
Determine string sizing by dividing the inverter’s max input voltage by the panel’s Vmp. For 24VDC systems, ensure series strings maintain 36-48V operating range to avoid controller dropout. Parallel configurations must balance current across branches using identical cable lengths and gauges, calculating voltage drop with the formula:
Vdrop = (2 × L × I × R) / 1000
Where L = cable length (m), I = current (A), R = conductor resistance (Ω/km).
Install blocking diodes on each string output to prevent reverse current flow during low irradiance. Schottky diodes (rated 1.5× Isc) minimize voltage drop losses compared to standard silicon rectifiers. Position bypass diodes across individual modules to limit hotspot heating–typically three diodes per 72-cell panel segment.
Ground all metallic components using 6 AWG copper conductors bonded to a dedicated earth rod with
| Circuit Type | Fuse Rating (A) | Breaker Type |
|---|---|---|
| String (DC) | 12-15 | Class T |
| Combiner Output | 1.2× Isc × Strings | DC-rated |
| Inverter Input | 1.25× Imax | UL 1741 |
Verify layout with an insulation resistance test (>100 MΩ at 500VDC) before commissioning. Use a four-wire Kelvin measurement at combiner outputs to detect latent high-resistance connections. For rooftop arrays, slope modules 10-15° steeper than latitude to optimize winter output while minimizing soiling accumulation.
Document termination points using torque-controlled drivers set to manufacturer specifications–typically 9-12 in-lbs for MC4 connectors. Label all conductors with:
– Circuit ID (e.g., “String A1–A4”)
– Voltage/current ratings
– Date of installation
– Cable gauge/specs
Store as-built drawings with thermal imaging results showing
