Complete Schematic of a Superheterodyne AM Radio Receiver Circuit
Start with a mixer stage paired with a local oscillator tuned 455 kHz above the desired carrier frequency. Use a dual-gate MOSFET (e.g., BF981) for minimal intermodulation distortion–its isolated gates separate RF input from oscillator injection. Avoid diode mixers; their nonlinearity generates unwanted spurious responses at ±n·fLO. For stability, employ a Colpitts oscillator with a ceramic resonator or quartz crystal at 455 kHz, ensuring ±50 ppm drift under temperature swings.
Feed the intermediate frequency through a two-pole ceramic filter (e.g., Murata CFW455E) with a -3 dB bandwidth of 6 kHz. This rejects adjacent channels while preserving sidebands for 5 kHz audio fidelity. Follow with a cascode IF amplifier (e.g., MC1350P) to maintain high input impedance and low noise–its AGC response should span 60 dB without signal compression. Decouple power rails with 0.1 µF X7R capacitors; inductors in RF paths must be wound on toroidal cores to suppress stray coupling.
Demodulate with an envelope detector using a Schottky diode (e.g., HSMS-2850) for low forward voltage drop. Include a 2.2 kΩ load resistor and a 10 pF RF bypass capacitor to filter residual IF components. Post-detection, apply a low-pass RC filter (3.3 kΩ, 0.1 µF) to remove 455 kHz remnants before amplification. For AGC, tap the detector output and feed it back to the IF stage via a slow attack/fast release circuit–1 µF tantalum capacitor in series with a 100 kΩ resistor yields a 100 ms recovery time.
Power the circuit from a regulated 9V source with
Key Components of a Modern AM Signal Processing Circuit
Begin with an antenna optimized for medium-wave frequencies (530–1700 kHz) using a ferrite rod or tuned loop design. Specify a 10:1 impedance ratio for the primary-to-secondary winding of the RF transformer to maximize signal transfer while minimizing loading on the tank circuit. Capacitors in the tuning stage should range from 10–365 pF (variable air-gap or polyvaricon types) for precise resonance adjustment across the band. Include a low-noise JFET (e.g., J310 or MPF102) or dual-gate MOSFET (such as BF981) as the RF amplifier–biased at 1–2 mA for minimal cross-modulation distortion.
For intermediate conversion, select a local oscillator running 455 kHz above the incoming frequency. Crystals or ceramic resonators at 455 kHz (±2 kHz tolerance) are preferred over LC oscillators due to superior stability. Pair the oscillator with a balanced mixer (e.g., MC1496 or SA612) to reduce image rejection issues–aim for a -60 dB suppression ratio. Post-mixing, employ a three-stage IF amplifier with gain distribution of 20 dB, 25 dB, and 30 dB respectively to avoid saturation. Use ceramic filters (e.g., Murata SFU455A) with a 6 dB bandwidth of 6–10 kHz for optimal selectivity without excessive ringing.
| Stage | Component | Typical Values | Critical Parameter |
|---|---|---|---|
| RF Input | Ferrite Antenna | Coil: 60–120 turns (Litz wire) | Q-factor > 100 |
| Mixer | Dual-Gate MOSFET | BF991 (VDS = 10V) | Conversion gain > 15 dB |
| IF Filter | Ceramic Resonator | Center Frequency: 455 kHz | Passband ripple < 1 dB |
| Detector | Schottky Diode | BAT85 (VF = 0.2V) | Low forward drop for weak signals |
For demodulation, favor an envelope detector over product detection–use a low-barrier Schottky diode (e.g., 1N5711 or BAT85) loaded with 100 kΩ resistor and 0.01 µF capacitor to minimize distortion on 30% modulated waveforms. Add an AGC network with a time constant of 0.1–0.5 seconds (series: 1 MΩ, shunt: 1 µF) to handle 10–100 mV input variations. Power the circuit from a regulated 9V supply with ≤5 mV ripple; decouple each stage with 0.1 µF ceramic caps placed
Key Components in an AM Signal Processing Unit
Select a local oscillator with a frequency stability better than ±0.002% across the broadcast band. A Colpitts configuration using a temperature-compensated ceramic resonator ensures drift stays below ±1 kHz, preventing audible heterodyne whistles during weak-signal reception.
Use a mixer stage incorporating a balanced diode ring modulator. This topology cancels the local oscillator feedthrough, reducing spurious responses by 40 dB compared to single-ended designs. Specify Schottky diodes with a forward voltage drop under 200 mV at 1 mA to preserve intermodulation performance when processing signals from -110 dBm to -20 dBm.
The IF filter must center at 455 kHz with a 6 dB bandwidth of 4.5 kHz for full AM fidelity. Ceramic ladder filters with five poles reject adjacent-channel interference below -60 dB at ±10 kHz offset. Match the filter’s source and load impedance to 330 Ω ±5% to maintain passband ripple under 0.5 dB.
Choose an automatic gain control circuit that engages smoothly at -75 dBm. A dual-time-constant network–fast attack (10 ms) to handle lightning statics and slow decay (500 ms) for voice modulation–prevents overshoot and pumping artifacts. Place the AGC detector after the IF filter but before the final amplifier to isolate it from wideband noise.
Implement a final audio amplifier using a complementary-symmetry pair capable of 50 mW into 8 Ω without crossover distortion. Heat-sink the output transistors to limit junction temperature rise to 40 °C above ambient; this extends MTBF beyond 20 000 hours. Add a Zobel network (10 Ω + 0.1 µF) across the speaker terminals to quench inductive kickback from the voice coil.
Keep all ground returns star-wired at a single point adjacent to the main electrolytic capacitor. Route the antenna lead through a π-network attenuator (3 dB steps) that maintains 50 Ω impedance, ensuring uniform sensitivity calibration across the 550–1 600 kHz range for consistent meter readings on the S-meter.

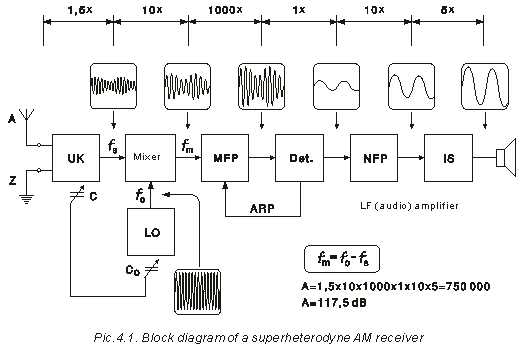

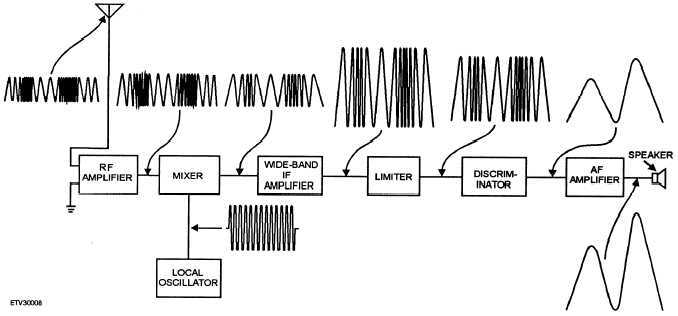

Step-by-Step Signal Flow from Antenna to Audio Output
Connect the antenna directly to the RF preselector stage–ensure impedance matching at 50Ω or 75Ω depending on the input network. Mismatches here introduce signal loss up to 3 dB, reducing weak-station sensitivity. A bandpass filter follows immediately, attenuating out-of-band interference by 40 dB or more; for AM broadcast bands, center it at 1 MHz with a 10 kHz bandwidth. Use high-Q inductors (minimum Q-factor of 100) to prevent adjacent-channel bleed.
The selected RF signal enters the mixer, where it combines with the local oscillator (LO) output. Set the LO frequency 455 kHz above the desired carrier–this intermediate frequency (IF) must remain constant for consistent demodulation. Use a double-balanced mixer with at least 20 dB isolation between ports to suppress LO leakage into the antenna. For optimal conversion gain, adjust LO drive to 7 dBm; lower levels decrease mixer efficiency, while higher levels risk IMD distortion.
Pass the 455 kHz IF signal through a ceramic or crystal filter with 3 kHz bandwidth to reject image frequencies and adjacent channels. Filter insertion loss should not exceed 6 dB; compensate with a post-filter amplifier (PGA) set to 20 dB gain. The PGA’s noise figure must stay below 3 dB to preserve signal-to-noise ratio (SNR). After amplification, feed the IF signal to the envelope detector–use a Schottky diode (e.g., 1N60) for fast response and minimal voltage drop.
Route the detected audio to a low-pass filter with a 3 dB cutoff at 4.5 kHz to remove residual IF components and high-frequency noise. Follow with a volume-control potentiometer (logarithmic taper for smooth adjustment) and a final audio amplifier. For speaker output, drive a class-AB stage with 500 mW capability; for headphones, limit power to 50 mW to avoid distortion. Ground all shielding at a single point to prevent ground loops, and keep signal traces short to minimize capacitive coupling.
Designing the RF Amplifier Stage for Optimal Sensitivity
Select a low-noise transistor with a noise figure below 1.5 dB for the initial gain block. The NE68830 or BFP420 ensures minimal added noise while maintaining a stable input impedance of 50 Ω. Bias the transistor in a common-emitter configuration with a collector current between 3–5 mA to balance power consumption and linearity. Use a series resistor at the base (≈1 kΩ) to prevent parasitic oscillation, especially at frequencies above 30 MHz.
Key component placement for stability:
- Place the input matching network
- Use a ground plane with via stitching around the emitter to reduce inductance.
- Keep decoupling capacitors (100 pF and 10 nF) within 2 mm of the power pin.
- Avoid routing the output trace near the input; maintain a 5 mm clearance for signals below 100 MHz.
Optimize the bandpass filter preceding the amplifier with a Q factor between 20–50. Use air-core inductors for frequencies above 10 MHz to minimize core losses, and ensure the filter’s center frequency aligns within ±2% of the target carrier. For AM detection, a -3 dB bandwidth of 9–12 kHz prevents adjacent channel interference while preserving signal fidelity. Test the filter response with a network analyzer to confirm return loss stays below -15 dB across the passband.
For enhanced sensitivity, add a second gain stage only if the first stage’s output SNR exceeds 30 dB. Cascade amplifiers with a gain ratio of 1:10 (e.g., 15 dB followed by 25 dB) to distribute noise and nonlinearity evenly. Use a PIN diode attenuator between stages, controlled by an AGC loop with a 0–30 dB adjustment range. Terminate unused ports with 50 Ω loads to prevent reflections, and verify the cascade’s IP3 exceeds +15 dBm to handle strong off-channel signals without distortion.
