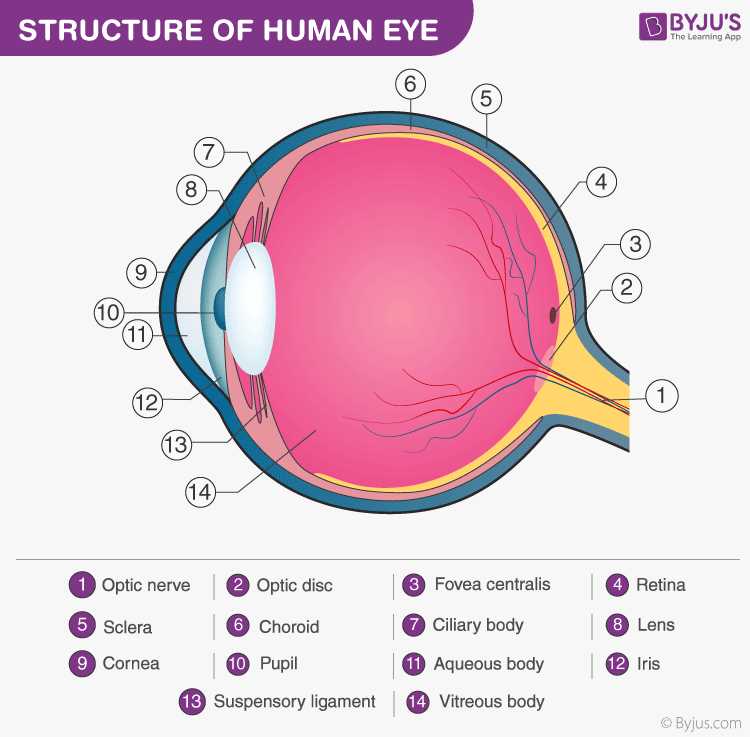

Understanding the Anatomical Layout of the Human Eye Schematic

Begin by examining the corneal layer–the transparent dome forming the outermost barrier. Its precision-engineered curvature focuses incoming light with an accuracy of ±0.5 diopters, making it the primary refractive element. Damage here disrupts clarity immediately, so prioritize protective measures like UV-filtering lenses during prolonged exposure.

Beneath lies the iris, the aperture-like diaphragm regulating light entry via its muscular contractions. The pupil’s dilation range (1.5–8 mm) adapts within seconds to ambient conditions, a mechanism you can leverage to assess neurological responses during clinical evaluations. Track reactions under controlled lighting to detect anomalies early.

The lens, a dynamic convex structure, adjusts focal length through accommodation–thickening to near +20 diopters when viewing objects within 10 cm. Presbyopia onset (typically after age 40) stems from its stiffening fibers, requiring corrective optics with exact spherical adjustments. Note that cataract development obscures this layer’s transparency, mandating surgical intervention when visual acuity drops below 20/40.

Retinal tissue spans the innermost surface, housing 120 million rod cells for low-light detection and 6 million cone cells concentrated in the 1.5 mm foveal pit for high-resolution color vision. Degeneration here (as in macular disorders) manifests as central scotomas; employ Amsler grids weekly for self-monitoring and contrast-sensitivity tests at 6-month intervals.

Optic nerve fibers bundling at the blind spot (1.5 mm diameter) transmit processed signals to the visual cortex, where spatial data reconstructs in ~13–20 milliseconds. Compression along this pathway (e.g., from glaucoma) causes irreversible field loss–measure intraocular pressure consistently using applanation tonometry, aiming for readings below 21 mmHg.

Visual Blueprint of Ocular Anatomy

Begin by mapping the cornea’s aspheric curvature–its +43 diopter refractive power dictates initial light convergence. Ensure your illustration distinguishes the five-layered composition: epithelium (50 µm), Bowman’s layer (8–12 µm), stroma (500 µm, 90% collagen fibrils), Descemet’s membrane (5–10 µm), and endothelium (5 µm). Overlay numeric labels for thickness tolerances (±10 µm for clinical relevance) to avoid oversimplification.

Render the crystalline lens with gradient transparency, noting the 4 mm axial thickness in emmetropic adults. Segment the nucleus (harder, 1.41 refractive index) from the softer cortex (1.38) and capsule (3–4 µm) using distinct shading–this clarifies presbyopic changes. Include the zonular fibers’ radial tension (0.3–0.5 mm length) as fine, evenly spaced lines; omit them and risk misrepresenting accommodation mechanics.

Depict the retina’s foveal pit (central 1.5 mm) at 1:1 scale, marking cone density at ~200,000/mm². Use a dotted boundary for the ora serrata’s serrated edge–its 6–7 mm anterior to the equator position is critical for surgical planning. Color-code vascular layers: retinal arterioles (red, 100–120 µm diameter), choriocapillaris (purple, 20–30 µm), and scleral emissaries (blue, 50–80 µm). Exclude the optic disc’s blind spot unless cross-referencing visual field deficits.

Critical Elements in an Ocular Anatomy Slice

Prioritize identifying the cornea first in any cross-section analysis–its 0.5–0.6 mm thickness and five-layer composition (epithelium, Bowman’s layer, stroma, Descemet’s membrane, endothelium) dictate refraction precision. Measure curvature radii: anterior surface averages 7.8 mm; posterior, 6.5 mm. Deviations beyond ±0.2 mm signal potential keratoconus or Fuchs’ dystrophy, mandating pachymetry validation.

Lens and Ciliary Body Examination

Locate the lens equator–its 10 mm diameter and biconvex profile must align with zonular fibers radiating from the pars plana of the ciliary body. Suspended by 2–3 μm fibers, the lens’ elastic capsule (3–4 μm anteriorly, 2–3 μm posteriorly) enables accommodation via ciliary muscle contraction, reducing diameter by 0.4 mm during near focus. Disruptions here–pseudoexfoliation, Marfan-associated subluxation–require Scheimpflug imaging for biomechanical analysis.

Scrutinize the retina’s 10 distinct strata, focusing on the macula lutea’s 5.5 mm diameter. Within this, the fovea centralis–a 1.5 mm pit lacking vasculature and ganglion cells–achieves 20/8 acuity through cone densification (150,000 cones/mm²). Outer nuclear layer thickness drops to 25 μm here; any thickening >30 μm suggests cystoid macular edema or epiretinal membranes, necessitating OCT segmentation.

Aqueous humor dynamics dominate anterior chamber physiology: flow rate averages 2.5 μL/min, with turnover balancing production (ciliary processes) and drainage (trabecular meshwork, Schlemm’s canal). Intraocular pressure (IOP) targets 10–21 mmHg; deviations require outflow facility assessments (tonography) or genetic screening for MYOC/TIGR mutations in juvenile glaucoma. Review canal diameter–normal range 0.2–0.4 mm–via gonioscopy to rule out angle-closure risks.

Path of Light Through an Optical System: Cornea to Retinal Processing

Prioritize understanding refractive indices when analyzing light entry. The cornea’s curvature, averaging 7.8 mm radius, bends incoming photons by roughly 43 diopters–nearly 70% of total focusing power. Ensure regular hydration; dry corneas scatter light, degrading contrast sensitivity by up to 30%. Thin tear film layers (5-7 μm) maintain smooth transitions between air and tissue surfaces.

• Aqueous humor follows, with a refractive index of 1.336–marginally below water’s 1.333. Fluctuations in intraocular pressure beyond 21 mmHg distort this medium, causing halos around point light sources.
• Pupil diameter dynamically adjusts via iris muscles, regulating light influx from 1.5 mm (bright conditions) to 8 mm (low-light). Aberrations rise exponentially with dilation; spherical errors can exceed 0.5 diopters at 7 mm.
• Phakic lenses require precise alignment. Misalignment by just 0.1 mm introduces astigmatic errors, quantified via Zernike polynomials.

Crystalline lens accommodation shifts power between 19 diopters (distant focus) and 34 diopters (near focus). Age-related stiffening (presbyopia) reduces amplitude by 0.3 diopters per year after age 40. Consider multifocal intraocular lenses for patients over 50, but warn of glare under mesopic conditions.

Vitreous body’s gel consistency stabilizes retinal positioning. Syneresis (liquefaction) accelerates post-50, increasing floaters’ prevalence–visible as entoptic phenomena when light scatters off collagen fibrils. Posterior vitreous detachment necessitates monitoring for retinal tears via dilated fundus exams every 6 months.

1. Retinal layers invert the optical path. Ganglion cells aggregate signals from ~120 million photoreceptors into 1.2 million axons forming the optic nerve.
2. Fovea centralis packs 200,000 cones per mm², enabling 20/20 acuity. Even minimal edema here reduces contrast detection thresholds.
3. Rod density peaks at 20° eccentricity, optimizing night vision. Red light (650 nm) preserves scotopic sensitivity by minimally bleaching rhodopsin.

Phototransduction initiates when photons isomerize 11-cis-retinal to all-trans-retinal within opsins. Rhodopsin regenerates in 30 minutes; reduce exposure to

Signal compression occurs via bipolar cells–ON cells depolarize to light increments, OFF cells to decrements. Horizontal cells provide lateral inhibition, sharpening edges via GABAergic feedback. Amacrine cells modulate 40+ neurotransmitters, including dopamine (circadian rhythms) and glycine (direction selectivity).

Optic nerve fibers bundle at the lamina cribrosa; intraocular pressure spikes here compress axons, risking glaucomatous cupping. Axon loss correlates with perimetric sensitivity loss–0.1 log units per 10,000 fibers damaged. Use OCT nerve fiber layer thickness maps to detect early changes (>5 μm deviation from normative database).

Key Functional Roles of the Outer Layers in Visual Processing

Prioritize understanding how each layer interacts with light and neural signals–unlike typical anatomical descriptions, their dynamic interplay defines visual clarity, pressure regulation, and disease resilience. The sclera’s opacity isn’t passive; it actively shields deeper tissues from mechanical stress while maintaining ocular rigidity under intraocular pressure fluctuations (18–22 mmHg). Clinicians should note its collagen fiber arrangement: circumferential alignment near the corneal limbus resists deformation, while posterior fibers exhibit irregular patterns to absorb asymmetrical loads. In cases of myopia progression, scleral thinning (below 0.5 mm) correlates with axial elongation; monitor patients with A-scan ultrasonography at 6-month intervals if baseline thickness drops beneath this threshold.

The choroid’s dual role–vascular supply and thermoregulation–demands precise measurement during diagnostic imaging. Use enhanced depth imaging OCT (EDI-OCT) to quantify subfoveal choroidal thickness (SFCT), where normal ranges vary by age: 270–360 µm in emmetropic adults but drop to 190–250 µm in high myopes. Disruptions in Bruch’s membrane, located at the choroid-retina interface, often precede age-related macular degeneration (AMD); track drusen accumulation via autofluorescence imaging (AF) when SFCT deviates >20% from normative data. The choroid’s melanin content also attenuates stray light, reducing retinal scatter–consider this in photophobia assessments.

The retina’s neural circuitry processes photons into electrical signals through distinct, specialized layers. The fovea’s pit (diameter ~1.5 mm) contains exclusively cone photoreceptors with 1:1 ganglion cell connectivity, enabling 20/20 acuity; contrast this with peripheral rod density (>160,000/mm²), where summation across bipolar cells sacrifices resolution for scotopic sensitivity. To diagnose early diabetic retinopathy, focal ERG (30 Hz flicker) isolates dysfunction in the outer plexiform layer–amplitudes

Region	Primary Photoreceptor	Ganglion Cell Ratio	Functional Specialization	Clinical Vulnerability
Fovea	L/M cones	1:1	High-acuity vision	Macular edema, cone dystrophies
Perifovea	S cones, rods	1:10–50	Color contrast, mesopic vision	Glaucomatous damage, RP
Peripheral retina	Rods	1:100+	Motion detection, night vision	Vascular occlusions, lattice degeneration

The retinal pigment epithelium (RPE) phagocytoses ~10% of outer segment discs daily; failures in this process (e.g., mutations in MERTK) cause retinitis pigmentosa. When evaluating RPE health, interpret fundus autofluorescence patterns: granular hypoautofluorescence indicates atrophy, while hyperautofluorescent rings suggest lipid accumulation in Stargardt disease. Müller glial cells span the retina’s thickness, buffering potassium ions to maintain ionic homeostasis; their hypertrophy (seen in OCT as cystoid spaces) often precedes neurovascular damage in ischemic conditions.

Pressure gradients across these layers dictate fluid dynamics critical for transparency. The sclera’s hydraulic conductivity (4–8 x 10⁻¹¹ cm²/s/mmHg) balances aqueous outflow through the choroidal stroma, while the RPE’s tight junctions (TER >150 Ω·cm²) prevent edema. In central serous chorioretinopathy, RPE barrier disruption correlates with SFCT increases >400 µm–use swept-source OCT to differentiate between choroidal vascular hyperpermeability and RPE breaches. Clinicians should target therapy (e.g., half-fluence photodynamic therapy) to regions with subretinal fluid persistence >3 months, verified via en face OCT segmentation.

Adapt diagnostic protocols to each layer’s biomechanical properties. For scleral pathologies like necrotizing scleritis, correlate ultrasound biomicroscopy (UBM) findings with inflammatory markers (e.g., CRP >10 mg/L) and initiate systemic immunosuppression if scleral thickness nears 0.3 mm. In choroidal melanomas, use B-scan ultrasonography to measure tumor height: lesions >2 mm require prompt plaque brachytherapy to prevent extraocular extension. Dynamic OCT angiography (OCTA) enhances retinal vascular assessment–capillary dropout in the superficial plexus (density

Neural remodeling after injury reveals compensatory mechanisms that aren’t immediately obvious. Following retinal detachment, glial fibrillary acidic protein (GFAP) upregulation in Müller cells (detectable via immunohistochemistry) precedes functional recovery; however, persistent GFAP elevation beyond 6 months signals gliosis rather than repair. In AMD, choriocapillaris dropout (>25% nonperfusion on OCTA) accelerates geographic atrophy–quantify this using binarized images to guide anti-VEGF treatment intervals. For inherited retinal diseases, prioritize genetic testing panels covering ABCA4 and USH2A, which account for 30–40% of Stargardt and Usher syndrome cases, respectively.

Leverage layer-specific biomarkers to stratify disease risk. Aqueous flare, measured via laser flare photometry (values >10 photons/ms indicate breakdown of the blood-ocular barrier), predicts scleritis recurrence. In diabetic retinopathy, vitreous levels of interleukin-6 (IL-6 >20 pg/ml) correlate with proliferative changes independent of HbA1c. For retinal toxicity screening (e.g., hydroxychloroquine), baseline multifocal ERG with ring ratios (fovea:periphery >2.0) provides earlier detection than fundus autofluorescence. Standardize follow-up imaging intervals based on layer-specific progression rates: every 3 months for subfoveal choroidal neovascularization, biannually for RPE atrophies with diameters increasing
